All information about Led Aluminum Profile Aluminum Extrusions Channels
High quality anodized LED aluminum channels for LED strip lights, also known as led aluminum profiles or led aluminum extrusions, are your best choice of installation and function companion for LED strip light projects.
They are popularly used as LED light strip diffuser to achieve better diffusion and set creative lighting effects, and work as LED strip mounting channel to assist LED strip light installation.
LED light channel with diffuser is often surface mounted for under cabinet lighting. Ceiling LED strip channel, recessed LED channel, and corner LED channel are among the top choices for LED strip light application.
The aluminum channels provide housing and protection for LED strips. Working as heat sinks, they greatly improve the heat management of LED strips.
This article aims to introduce some basic knowledge of led aluminum profiles to you, and help you choose high-quality led aluminum profile products for your projects.
Table of Contents
What is led aluminum profile

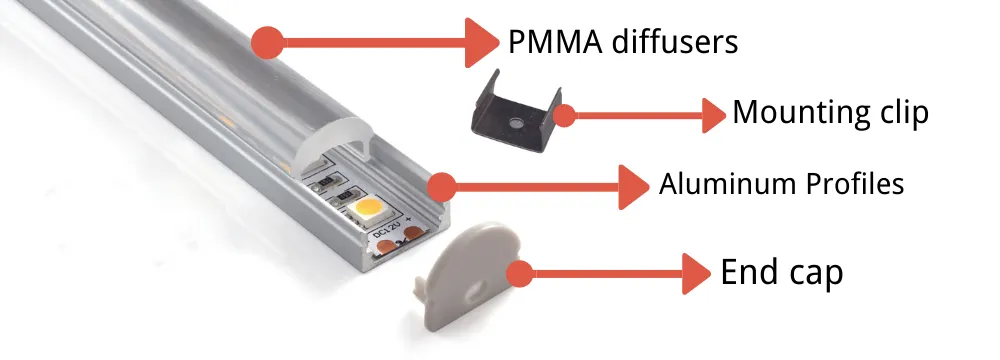

LED Aluminum Profile Structures
LED aluminum profiles are also known as LED extrusion profiles, Common parts include aluminum profiles, PMMA diffusers, end caps and mounting clips. They are extruded lighting fixtures for LED strips of different shapes and sizes. LED aluminum profiles are assembled with LED light strips and other accessories, which are widely used in the field of LED lighting.
YIFORD offers those LED aluminum profiles:
Sort by installation method
It is using recessed clamps or screw to fix the profile into the ceiling
It is installed with a wire rope suspended from the ceiling
It is used in corner of the wall, kitchen, etc
It is using plastic or metal clips to fix the profile on the surface of the items

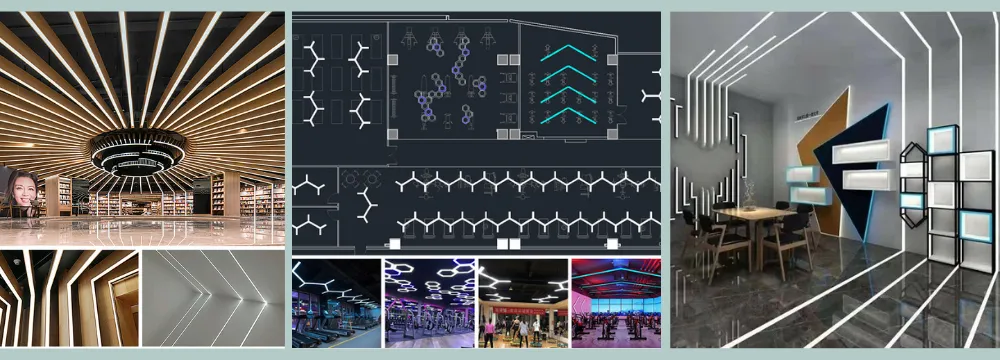

Sort by Application Scenario
Cabinet Lighting
Small size, used for furniture, cabinets, etc., often use 5mm/8mm wide light strips
General Lighting
Large size, large luminous area, used for main lighting in space.
Decorative Lighting
Medium size, often used for wall decoration, molding, contour decoration, etc.
Architectural Lighting
Medium size, the shape is more complex, with lace, it is often used for stairs, artistic modeling, etc.
LED Aluminum Profile = Aluminum Extrusion + Diffuser.
Aluminum extrusion and diffuser are two very important parts of led aluminum profiles. (Other small accessories such as end caps are also part of the led aluminum profile) But these two main parts determine the quality of the led profile. So when we talk about the quality of led aluminum profiles, the main focus is on aluminum extrusions and plastic diffusers.
The role of led aluminum profiles
The LED aluminum profile is designed to fully tap the potential of installation and connection, providing designers, architects and engineering parties with flexible solutions for space and lighting design, and is the best choice for LED strip project installation and functional companions. We can find them used in small cabinets as well as LED linear lighting in large spaces such as home applications, office lighting, supermarkets, shopping malls and hotels. Widely used as LED light bar diffuser to achieve better diffusion and set creative lighting effects, and as LED light bar installation channel to assist LED light bar installation. The aluminum channels provide housing and protection for the LED strip, and as heat sinks, they greatly improve the thermal management of the LED strip.
How to choose led aluminum profiles?
If a buyer is going to buy led aluminum profiles, he should have a good understanding of his lighting project before buying.
There are hundreds of Led aluminum profiles on the market. When we are faced with so many options, we can be completely confused. What kind of led aluminum profile should we choose?
This article will help if you are a reseller in your country.
This article will also help if you are shopping for LED aluminum profiles for personal home use.
If you are a LED linear light manufacturer in your country and you want to buy LED aluminum extrusions for your company to manufacture LED linear lights. After reading you will also find some useful information.
Top 10 considerations for purchasing led aluminum profiles
1. Inner width of led aluminum profile
Always make sure that the inner base of the led aluminum profile is wider than the width of the led strip so that the led strip can be smoothly installed into the profile.
There are various options for internal channel widths. Generally, the size of aluminum c-slot or aluminum u-slot varies from narrow to 5mm to wide to 50mm or more, suitable for various light strips, such as 5mm, 8mm, 10mm, 12mm and other light strips. With the development of the lighting market in recent years, their internal dimensions have become wider, such as 20mm, 30mm, and even 100mm. However, due to the actual lighting project, the width of LED aluminum profiles is now more than 100mm.
2. Depth of Led Aluminum Profile aluminum extrusions channels
The depth of led aluminum may be limited by the installation space. The depth of the LED strip channel has a double impact on the installation and use of the strip.
The depth of the LED strip channel needs to match the depth of the mounting slot. Remember that the thickness of the mounting surface will limit the depth of the groove.
The depth of the aluminium profile determines the distance between the LED strip and the diffuser. Distance affects the uniform distribution of light. For the same LED strip, the darker the profile, the more uniform the light distribution. If the contour depth is constant, the higher the LED density, the better the light distribution effect of the LED strip.
Shallow depths with narrow width LED profiles are always suitable for small areas, but deeper sized LED profiles will be applied to walls or ceilings. From our case, we produce many wide and deep LED profiles for ceilings. Such as 54x70mm, 100x75mm, 75x75mm, etc.
3. The length of the led aluminum profile
The common lengths on the market are 1 meter, 2 meters, 2.5 meters, 3 meters, etc. Before choosing your profile length, you should clarify which shipping method you prefer to ship your led aluminum profiles. By air or sea. If you choose air freight, you’d better choose the length within 3 meters to avoid extra freight. But if you choose economical sea freight, the length will be a free choice. You can ask your supplier to customize any length available for container loading.
4. Shape Of Led Aluminum Profile
Most of LED aluminum profiles are U-shaped channel steel, and U-shaped aluminum profiles are widely used. But there are also V-shaped channels, round, wavy. Different shapes of LED aluminum profiles are available for different installations. For example, corner aluminum profiles are suitable for corner installation. Aluminum u-groove can have wings or no wings, also called flange. LED profiles with flanges help cover uneven grooves.
Which shape of led profile is the best choice, ask yourself where you want to install the led profile and what lighting effect you want to achieve. The better you know about your lighting project, the better choices you’ll make.
5. Led Aluminum Cover Plate
The housing of the LED aluminium profile provides protection against dust, moisture and UV radiation for the LED strip inside the aluminium profile. The cover can also be used as a diffuser or lens for the LED strip. The cover can be clear, frosted or creamy white. Each type of cover produces different lighting. The clear cover is transparent, allowing light to pass through without reducing brightness. The frosted cover is translucent, reducing the brightness slightly. But its main function is to achieve uniform light and avoid glare. The use of milky white cover can realize pointless light emission, that is, when the LED light strip in the aluminum profile is turned on, the LED cannot be seen. If you don’t like seeing individual LED light spots and just want to see spotless lighting, choose LED profiles with frosted covers or bras, paired with suitable LED strips, with a LED density of at least 120 LEDs per meter.
In addition, the profile cover provides the LED strip inside the aluminium profile with a strong resistance to weather conditions, dust, water droplets and UV radiation.
6. LED aluminum profile accessories
To help users use LED profiles easily, we provide a variety of mounting accessories for various LED profiles, such as mounting brackets, 3M tape, fasteners, etc.
Mounting brackets. Mounting brackets, also known as mounting clips, ensure easy and safe installation. They can also be used as a connector between two aluminium profiles.
3M tape. For surface mounting of LED profiles you can use 3M Double Sided Tape (not included but can be found in our 3M Double Sided Tape section).
end cap. Aluminium profiles come with standard end caps. They fit profiles to further protect them from dust and other harmful elements and also give the profiles a nicer appearance.
Other accessories for LED profiles. In addition to the above accessories, there are also aluminum profile connectors, fasteners, suspension devices, suspension cables, etc. They help make your professional installation as easy as possible.
LED strip connector. Note that some LED strip connectors are too large to fit into the aluminum track channel. Find out the inside dimensions of the anodized aluminum tube and choose the right width LED connector.
7. The color of Led Aluminum Profile aluminum extrusions channels
Anodised silver, painted white and black are the three basic colours for LED aluminium profiles. Black can also be achieved by anodizing, but the cost of anodizing black is a bit more expensive than jet black. Three colors seem too few for practical operating conditions. There is always a project that needs a special color. Such as dark brown, gold, blue, etc. Always remembering color is not difficult to achieve, but quantity and cost will be the first consideration.
8. Quality
The best aluminum alloy for making led aluminum profiles is 6063 T5. In addition, the anodized layer of the aluminum profile should reach 8-13 microns, and the paint layer should reach 60-80 microns. If the oxide layer is thicker, the profile will be hard and not easily deformed. It also has better corrosion resistance.
For the cover plate, the thickness of the cover plate we often make is 1.2mm ultra-thin and 1.4mm large.
The raw material of the cover we choose high quality Panlite and other brand materials.
9. Design
Do you have any ideas for LED profile design? If you have some knowledge about the structure design of LED profiles, you will choose LED profiles with simple structure design but good quality from the market. For example, an aluminum profile with a removable middle plate is a better design than a non-removable one. With the removable middle part we can easily put the LED driver into the LED profile.
10. Suppliers
How much do you know about led aluminum profile suppliers in China?
Do they have an aluminum plant or a plastic extrusion plant? Ask for a factory tour and you’ll find out.
The amount of inventory has a great impact on the delivery time. The raw materials of aluminum profiles are generally purchased by tons. One ton of aluminum materials can produce several kilometers of LED aluminum profiles. For styles, if each model is only one ton, the inventory is also very large, and powerful companies will prepare some inventory to meet the needs of small orders, and the delivery time is also fast.
What kind of installation are you going to use
Install for the led profiles
There are different installation methods according to our actual usage. The most common type of mounting we see is surface mount. Usually, led aluminum profiles are fixed by brackets on both sides of the profile. The second popular installation method is embedded. Before installing this recessed led aluminum profile, we need to make grooves in the wall, ceiling or other surfaces that need to be recessed. This installation method makes the led aluminum profile integrated with the wall or ceiling without any protrusion. Pendant led aluminum profile for hanging use. Using hanging wire, hang the led aluminum profile under the ceiling in offices, supermarkets, hotels and other application places. In complex lighting projects, there are mixed installation methods of led aluminum profiles. Such as surface mount combined with groove. Recessed LED aluminium profile combined with pendant LED aluminium profile.
What shape do you need?
Install methode for led channel system
Most led aluminum profiles are U-shaped with or without flanges. In addition, there are V-shaped LED aluminum profiles specially designed for corner LED lighting use. And there are round tubular led aluminum profiles designed with semi-circular plastic diffuser or 360 degree plastic diffuser. LED aluminum profiles can also be bent into different shapes for LED lighting, that is, bendable led aluminum profiles. Another popular LED aluminum profile is the round LED profile for pendants.
| Part Number | Picture | Size Drawing | Descrtption | Include Item: |
|---|---|---|---|---|
| YF-ALP001-R |  |  | super slim 8mm recessed aluminum LED profile with flange, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
| EC-001-R end cap per pair | ||||
| YF-ALP002-R |  |  | super slim 8mm recessed aluminum LED profile, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
| EC-002-R end cap per pair | ||||
| MC-002-R snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| Rotary Buckle per PCS | ||||
| YF-ALP002-RL |  |  | recessed aluminum LED profile with lens:60degrees, Option 1: PMMA Clear lens | Profile+PC cover per meter |
| EC-002-RL end cap per pair | ||||
| MC-002-R snap per PCS | ||||
| Rotary Buckle per PCS | ||||
| YF-ALP002-M |  |  | super slim aluminum LED profile, Option: 1),PC diffused cover, 2),PC semi-clear cover, Installation:surface mounting | Profile+PC cover per meter |
| EC-002-RL end cap per pair | ||||
| MC-002-R snap per PCS | ||||
| YF-ALP002-R2 |  |  | super slim 8mm recessed aluminum LED profile, with shield one side Option: 1),PC diffused cover, 2),PC semi-clear cover, 3),PC clear diffuser Installation:Surface mounting under cabinet | Profile+PC cover per meter |
| EC-002-R end cap per pair | ||||
| YF-ALP003-R |  |  | 15mm recessed aluminum LED profile with flange, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
| EC-003-R end cap per pair | ||||
| YF-ALP004-R |  |  | 15mm recessed aluminum LED profile without flange, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
| EC-004-R end cap per pair | ||||
| MC-002-R snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| Rotary Buckle per PCS | ||||
| YF-ALP004-RL |  |  | recessed aluminum LED profile with lens:30degrees, Option 1: PMMA Clear lens | Profile+PC cover per meter |
| EC-004-RL end cap per pair | ||||
| MC-002-R snap per PCS | ||||
| Rotary Buckle per PCS | ||||
| YF-ALP140 |  |  | Aluminium LED profile with adjustable viewing angle Option: 1), 10 degrees lens 2),30 degrees lens 3), 60 degrees lens Installation: suface mounting | Profile+PC cover per meter |
| EC-004-RL end cap per pair | ||||
| MC-002-R snap per PCS | ||||
| Rotatable stand/PCS | ||||
| YF-ALP005 |  |  | squar aluminum LED profile, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover 3),PMMA Clear Cover | Profile+PC cover per meter |
| EC-005 end cap per pair | ||||
| MC-005 snap per PCS | ||||
| YF-ALP006 |  |  | aluminum corner LED profile, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
| EC-006 end cap per pair | ||||
| MC-005 snap per PCS | ||||
| YF-ALP007-R |  |  | aluminum corner LED profile, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
| EC-007-R end cap per pair | ||||
| MC-007 snap per PCS | ||||
| YF-ALP013 |  |  | 10mm deep aluminum LED profile with flange, Option 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
| MC-014 snap per PCS | EC-013 end cap per pair | |||
| YF-ALP014 |  |  | 10mm deep aluminum LED profile with flange, Option 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
| EC-014 end cap per pair | ||||
| MC-014 snap per PCS | ||||
| ALP013-R |  |  | Recessed Aluminum LED profile with flange Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover Strip suggest:double row won't see LED dots | Profile+PC cover per meter |
| EC-014 end cap per pair | ||||
| MC-014 snap per PCS | ||||
| YF-ALP014-R |  |  | Aluminum LED profile without flange Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover Strip suggest:double row won't see LED dots | Profile+PC cover per meter |
| EC-014-R end cap per pair | ||||
| MC-014 snap per PCS | ||||
| YF-ALP016-R |  |  | 30X30mm big size Aluminum LED profile for corner, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
| EC-016R end cap per pair | ||||
| MC-015R snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP021 |  |  | Flat Aluminum led profile for cabinet decoration: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
| EC-021 end cap per pair | ||||
| YF-ALP023-R2 |  |  | Slim Aluminium LED profile for dry wall Option: 1),PC Diffused Cover Installation:Recessed | Profile+PC cover per meter |
| EC-021 end cap per pair | ||||
| YF-ALP024 |  |  | Aluminum led profile for stairs lighting: 1),PMMA opal matte diffuser, 2),PMMA semi-clear matte diffuser, 3),PMMA clear diffuser | Profile+cover per meter |
| EC024（ end cap per pair） | ||||
| YF-ALP024-R |  | | Aluminium LED profile for stair light Option: 1),pcs diffused cover Installation: Surface mounting | Profile+anti-slip plate+ mask per meter |
| EC024-R（ end cap per pair） | ||||
| ALP024-R1 |  |  | aluminium LED profile for stairs,light up and down at the same time Option: 1),PC diffused cover Installation: Surface mounting | Profile+anti-slip plate+ mask per meter |
| EC024-R1（ end cap per pair） | ||||
| YF-ALP035-R |  |  | super slim13mm recessed aluminum LED profile, Option: 1),PC Frosted cover, color dot free, liner lighting effort | Profile+PC cover per meter |
| EC-035-R end cap per pair | ||||
| MC-035 snap per PCS | ||||
| YF-ALP073 |  |  | Super slim Aluminium LED profile without flange, Option: 1),PC Frosted Cover, Installation:Surface Mounted or recessed | Profile+PC cover per meter |
| EC-073 end cap per pair | ||||
| MC-073 snap per PCS | ||||
| YF-ALP116 |  |  | super slim aluminum profiles with PC Frosted Cover | Profile+PC cover per meter |
| EC-116 end cap per pair | ||||
| MC-073 snap per PCS | ||||
| YF-ALP117 |  |  | super slim aluminum profiles with PC Frosted Cover | Profile+PC cover per meter |
| EC-117 end cap per pair | ||||
| MC-073 snap per PCS | ||||
| YF-ALP134 |  |  | super slim aluminum led profile for cabinet, 5mm wide PCB Option: 1)PC Frosted Cover | Profile+PC cover per meter |
| EC-134 end cap per pair | ||||
| MC-134 snap per PCS | ||||
| YF-ALP135 |  |  | super slim aluminum led profile for cabinet, 5mm wide PCB, with flange shield from the light outward Option: 1)PC Frosted Cover | Profile+PC cover per meter |
| EC-135 end cap per pair | ||||
| YF-ALP136 |  |  | super slim aluminum led profile for cabinet, 5mm wide PCB Option: 1)PC Frosted Cover | Profile+PC cover per meter |
| EC-136 end cap per pair | ||||
| MC-026 snap per PCS | ||||
| YF-ALP114 |  |  | Slim Aluminium LED profile for bending Bendable Profile Option: 1),PC Diffused Cover Installation:Surface or Pendent | Profile+PC cover per meter |
| EC-114 end cap per pair | ||||
| MC-114 snap per PCS | ||||
| YF-ALP137 |  |  | super slim aluminum led profile for cabinet, 5mm wide PCB, assymetrical light Option: 1)PC Frosted Cover | Profile+PC cover per meter |
| EC-137 end cap per pair | ||||
| YF-ALP138 |  |  | aluminum led profile for cabinet shelf use, 8mm wide PMMA board or glass Option: 1)PC Diffused Cover | Profile+PC cover per meter |
| EC-138 end cap per pair | ||||
| YF-ALP139 |  |  | aluminum led profile for cabinet shelf use, Option: 1)PC Diffused Cover | Profile+PC cover per meter |
| EC-139 end cap per pair | ||||
| MC-139 snap per PCS | ||||
| YF-ALP044-PC-R |  |  | aluminum LED profile for , Option: 1),PC Diffused Cover | Profile+PC cover per meter |
| EC-044-PC end cap per pair | ||||
| MC-044-PC snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP053-R |  |  | Aluminum LED profile for pendant light, Option: 1),PC Diffused Cover Installation: Suspended or surface Mounted | Profile+PC cover per meter |
| EC-053 end cap per pair | ||||
| MC-053 snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP054-R1 |  |  | Aluminum LED profile for pendant light, Option: 1),PC Diffused Cover, Installation: Suspended or surface Mounted | Profile+PC cover per meter |
| EC-053 end cap per pair | ||||
| MC-053 snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP065 |  |  | Aluminum LED profile 45x42MM, square Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi Clear Cover 3), PC Diffused Cover Installation:Surface Mounting | Profile+PC cover per meter |
| EC-065 end cap per pair | ||||
| MC-065 snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP065-T |  |  | Aluminum LED profile 45x55MM, square Option: 1),PC Diffused Cover Installation:Surface Mounting | Profile+PC cover per meter |
| EC-065-t end cap per pair | ||||
| MC-065 snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP066 |  |  | Aluminum LED profile 45x42MM,semicircle Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi Clear Cover 3),PC Diffused Cover Installation:Surface Mounting | Profile+PC cover per meter |
| EC-066 end cap per pair | ||||
| MC-065 snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP017-R5 |  |  | Recessed Aluminium LED profile with flange for ceiling or wall, Option 1),PC Diffused Cover (without ribs) | Profile+PC cover per meter |
| EC-017-R5 end cap per pair | ||||
| SC017-R5 Spring Clip/PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP018-R3 |  |  | 35mm wide Aluminium LED profile without flange for ceiling or pendent light, Option 1),PC Diffused Cover (without ribs) | Profile+PC cover per meter |
| EC-018-R3 end cap per pair | ||||
| MC-018-R3 Metal snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP045-R |  |  | 2 inches Recessed Aluminium LED profile with flange, Option: 1),PC Diffused Cover, | Profile+PC cover per meter |
| EC-045-R end cap per pair | ||||
| SC045-R Spring clips per pair (single-sided spring) | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP046-R |  |  | 2 inches Aluminium LED profile without flange,as pendent light. Option: 1),PC Diffused Cover, Installation:Suspended or Surface Mounted | Profile+PC cover per meter |
| EC-046-R end cap per pair | ||||
| MC-5035 Metal snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP047-R1 |  |  | 3 inches Recessed Aluminium LED profile with flange, Option: 1),PC Diffused Cover, | Profile+PC cover per meter |
| EC-047-R1 end cap per pair | ||||
| SC045-R Spring clips per pair (single-sided spring) | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP048-R1 |  |  | 3inches Aluminium LED profile without flange,as pendent light. Option: 1),PC Diffused Cover Installation:Suspended or Surface Mounted | Profile+PC cover per meter |
| EC-048-R1 end cap per pair | ||||
| MC-5035 Metal snap per PCS | ||||
| 90 degree connector per PCS | ||||
| 180 degree connector per PCS | ||||
| YF-ALP126 |  |  | Trimless recessed Aluminum Profile for plasterboard, wall washer Option: 1)pcs diffused cover （opal) 2)pcs semi clear cover | Profile+cover per meter |
| EC126（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP127 |  |  | Trimless recessed Aluminum Profile for plasterboard, Option: 1)pcs diffused cover （opal) 2)pcs semi clear cover | Profile+cover per meter |
| EC127（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP128 |  |  | Trimless recessed Aluminum Profile for drywall, Option: 1)pcs diffused cover （opal) 2)pcs semi clear cover | Profile+cover per meter |
| EC128（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP078 |  |  | Aluminium LED profile with flange, recessed in 12.5mm drywall Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
| EC078（ end cap per pair） | ||||
| Corner Mounting Accessories per PCS | ||||
| Ceiling installation accessories per PCS | ||||
| joint bridge per PCS | ||||
| ALP078-R |  |  | Aluminium LED profile with flange, recessed in 12.5mm drywall Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
| EC078-R（ end cap per pair） | ||||
| Corner Mounting Accessories per PCS | ||||
| Ceiling installation accessories per PCS | ||||
| joint bridge per PCS | ||||
| YF-ALP090 |  |  | Aluminium LED profile for cove light, recessed into 5/8" ceiling Option: 1),pcs diffused cover Installation:Recessed | Profile+cover per meter |
| EC090（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP091-E |  |  | Aluminium LED profile for cove light, recessed into 5/8" ceiling Option: 1),pcs diffused cover Installation:Recessed | Profile+cover per meter |
| EC091-E（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP092 |  |  | Trimless recessed Aluminum Profile for 12.5mm thick plasterboard for choice Option: 1)pcs diffused cover without ribs | Profile+cover per meter |
| EC092（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP093 |  |  | Trimless recessed Aluminum Profile for 12.5mm thick plasterboard for choice Option: 1)pcs diffused cover without ribs | Profile+cover per meter |
| EC093（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP094 |  |  | Trimless recessed Aluminum Profile for 12.5mm thick plasterboard for choice Option: 1)PC Diffused Cover (without ribs) | Profile+cover per meter |
| EC094（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP095 |  |  | Trimless recessed Aluminum Profile for 12.5mm thick plasterboard for choice Option: 1)pcs diffused cover without ribs | Profile+cover per meter |
| EC094（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP068-S |  |  | Recessed Aluminium LED profile for drywall use, with holes on the flange Option 1),pcs diffused cover | Profile+PC milky white cover per meter |
| Profile+PC black cover per meter | ||||
| Profile+PC black cover per meter | ||||
| Profile+PC white prism cover per meter | ||||
| EC068-S（ end cap per pair） | ||||
| YF-ALP069-R |  |  | Recessed Aluminium LED profile for inside corner, for drywall use, with holes on the flange Option 1),pcs diffused cover | Profile+PC milky white cover per meter |
| Profile+PC black cover per meter | ||||
| Profile+PC black cover per meter | ||||
| Profile+PC white prism cover per meter | ||||
| EC069-R（ end cap per pair） | ||||
| YF-ALP070-R |  |  | Recessed Aluminium LED profile for inside corner, for drywall use, with holes on the flange Option 1),pcs diffused cover | Profile+PC milky white cover per meter |
| Profile+PC black cover per meter | ||||
| Profile+PC black cover per meter | ||||
| Profile+PC white prism cover per meter | ||||
| EC070-R（ end cap per pair） | ||||
| YF-ALP068-R |  |  | Recessed Aluminium LED profile for drywall use, with holes on the flange Option 1),pcs diffused cover | Profile+PC milky white cover per meter |
| Profile+PC black cover per meter | ||||
| Profile+PC black cover per meter | ||||
| Profile+PC white prism cover per meter | ||||
| EC069-R（ end cap per pair） | ||||
| YF-ALP068-R3 |  |  | Mini Aluminium LED profile for drywall use(12.5mm plaster board), without flange Option 1),PC diffused cover | Profile+PC cover per meter |
| EC068-R（ end cap per pair） | ||||
| ALP068-R4 |  | | Mini Aluminium LED profile for drywall use(12.5mm plaster board), with flange Option 1),PC diffused cover | Profile+PC cover per meter |
| EC068-R4（ end cap per pair） | ||||
| YF-ALP068-SR1 | |  | Recessed Aluminium LED profile for drywall use(12.5mm plaster board), with holes on one flange Option 1),PC diffused cover | Profile+PC cover per meter |
| EC068-R（ end cap per pair） | ||||
| YF-ALP071 |  |  | Aluminium LED profile with long flange,recessed in the drywall or ceiling Option: pcs diffused cover | Profile+PC milky white cover per meter |
| Profile+PC black cover per meter | ||||
| EC071（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP071-S |  |  | Trimless recessed Aluminum Profile for plasterboard, Ceiling to wall Option: 1) PC diffused cover （opal) | Profile+PC milky white cover per meter |
| Profile+PC black cover per meter | ||||
| EC071（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP080-R |  |  | Aluminium LED profile whith flange, recessed into 5/8" drywall, Option: 1),pcs diffused cover, 1inch Installation:recessed | Profile+cover per meter |
| EC080（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP081-R |  |  | Aluminium LED profile whith flange, recessed into 5/8" drywall, Option: 1),pcs diffused cover, 1.5inch Installation:recessed | Profile+cover per meter |
| EC080（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP082 |  |  | Aluminium LED profile whith flange, recessed into 5/8" drywall, Option: 1),pcs diffused cover, Asymmetrical Installation:recessed | Profile+cover per meter |
| EC082（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP083-R |  |  | Aluminium LED profile whith flange, recessed into 5/8" drywall, Option: 1),pcs diffused cover, 2 inches Installation:recessed | Profile+cover per meter |
| EC083-R（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP084 |  |  | Aluminium LED profile whith single flange, recessed into 5/8" drywall, Floating Ceiling Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
| EC084（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP084-R | |  | Aluminium LED profile whith single flange, recessed into 5/8" drywall, Floating Ceiling Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
| EC084（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| ALP084-S |  |  | Aluminium LED profile whith single flange, recessed into 5/8" drywall, Option: 1),PC diffused cover, Installation:recessed | Profile+cover per meter |
| EC084-S（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP085 |  |  | Aluminium LED profile whith single flange, recessed into 5/8" drywall, Wall to Ceiling or Ceiling to Wall Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
| EC085（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP086 |  |  | Aluminium LED profile whith flange, recessed into 5/8" ceiling or wall, Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
| EC086（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP087 |  |  | Aluminium LED profile whith flange, recessed into 10mm tile or marble, Option: 1),pcs diffused cover, Installation:recessed | Profile+PC milky white cover per meter |
| Profile+PC black cover per meter | ||||
| Profile+PC black cover per meter | ||||
| Profile+PC white prism cover per meter | ||||
| EC087（ end cap per pair） | ||||
| YF-ALP088 |  |  | Aluminium LED profile whith flange, recessed into 10mm tile or marble, Inside Corner Option: 1),pcs diffused cover, Installation:recessed | Profile+PC milky white cover per meter |
| Profile+PC black cover per meter | ||||
| Profile+PC black cover per meter | ||||
| Profile+PC white prism cover per meter | ||||
| EC087（ end cap per pair） | ||||
| YF-ALP089 |  |  | Aluminium LED profile whith flange, recessed into 10mm tile or marble, Outside Corner Option: 1),pcs diffused cover, Installation:recessed | Profile+PC milky white cover per meter |
| Profile+PC black cover per meter | ||||
| Profile+PC black cover per meter | ||||
| Profile+PC white prism cover per meter | ||||
| EC087（ end cap per pair） | ||||
| YF-ALP110-S |  |  | Aluminium LED profile for dry wall Option: 1),pcs diffused cover 1inch Square Lens Installation:Recessed | Profile+cover per meter |
| EC110-S（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP110-R |  |  | Aluminium LED profile for dry wall Option: 1),pcs diffused cover 1inch Round Lens Installation:Recessed | Profile+cover per meter |
| EC110-R（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP111-S |  |  | Aluminium LED profile Option: 1),PC Diffused Cover 1inch Square Lens Installation:Surface or Pendent | Profile+cover per meter |
| EC110-S（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP111-R |  |  | Aluminium LED profile Option: 1),PC Diffused Cover 1inch Round Lens Installation:Surface or Pendent | Profile+cover per meter |
| EC110-R（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP129 |  |  | Trimless recessed Aluminum Profile for drywall,12.5mm thick plaster board Option: 1)pcs diffused cover （opal) | Profile+PC fine frosted cover per meter |
| Profile+PC black cover per meter | ||||
| EC129（ end cap per pair） | ||||
| YF-ALP130 |  |  | Trimless recessed Aluminum Profile for tile Option: 1)pcs diffused cover （opal) | Profile+PC fine frosted cover per meter |
| Profile+PC black cover per meter | ||||
| EC129（ end cap per pair） | ||||
| ALP129-O |  |  | Recessed Aluminium LED profile for 12.5mm drywall use(outside corner), with holes on the flanges Option 1),PC diffused cover | Profile+PC fine frosted cover per meter |
| Profile+PC black cover per meter | ||||
| EC129（ end cap per pair） | ||||
| YF-ALP130 |  |  | Recessed Aluminium LED profile for 12.5mm drywall use(inside corner), with holes on the flanges Option 1),PC diffused cover | Profile+PC fine frosted cover per meter |
| Profile+PC black cover per meter | ||||
| EC129（ end cap per pair） | ||||
| YF-ALP033 |  |  | Waterproof led profile for floor, strong PC Diffused Cover,3mm thickness | Aluminum+PC cover per meter |
| EC131 end cap per pair | ||||
| YF-ALP034 |  |  | Waterproof led profile for floor, strong PC Diffused Cover, 3mm thickness, without color dot,endless | Aluminum+PC cover per meter |
| EC131 end cap per pair | ||||
| YF-ALP131 |  |  | Trimless recessed Aluminum Profile for ground Option: 1)pcs diffused cover （opal) | Aluminum+PC cover per meter |
| EC131 end cap per pair | ||||
| YF-ALP132 |  |  | Trimless recessed Aluminum Profile for wall or ground Option: 1)pcs diffused cover （opal) | Aluminum+PC cover per meter |
| EC131 end cap per pair | ||||
| YF-ALP133 |  |  | Trimless recessed Aluminum Profile for wall or ceiling Option: 1)pcs diffused cover （opal) | Aluminum+PC cover per meter |
| EC131 end cap per pair | ||||
| YF-ALP050 |  |  | Aluminum LED profile for wall light,without internal driver, Light from Up and down direction , Option: 1),pcs opal matte diffuser, 2),pcs semi-clear matte diffuser, 3),pcs clear diffuser Installation: Wall Mounted | Aluminum+PC cover per meter |
| EC-ALP050 end cap per pair | ||||
| MC-ALP050 snap per PCS | ||||
| YF-ALP062 |  |  | Aluminum LED profile as wall light. indirect light uptowards Option: 1),PMMA opal matte diffuser, 2),PMMA semi-clear diffuser, 3),PMMA clear diffuser 4), pcs diffused cover Installation:Surface Mounted by aluminum profile,not clips | Aluminum+PC cover per meter |
| EC-ALP062 end cap per pair | ||||
| YF-ALALP169 |  |  | Slim wall light, light up or down Option: 1),PC diffused cover, 2),PC semi-clear cover Installation: surface mounting , | Aluminum+PC cover per meter |
| EC-ALP169 end cap per pair | ||||
| MC169 snap per PCS | ||||
| joint bridge per PCS | ||||
| YF-ALP170 |  |  | Slim wall light, light up and down Option: 1),PC diffused cover, 2),PC semi-clear cover Installation: surface mounting , | Aluminum+PC cover per meter |
| EC-ALP170 end cap per pair | ||||
| MC170 snap per PCS | ||||
| joint bridge per PCS | ||||
| YF-SK1270 |  |  | Low glare profile with regressed cover Wall to ceiling, invisble flange Option: 1),PC semi clear cover, 2),Prismatic cover Installation: surface mounting or pendent mounting , | Aluminum+PC cover per meter |
| EC1270 end cap per pair | ||||
| joint bridge per PCS | ||||
| YF-SK1580 |  |  | Aluminum Profile for toe kick line 1) pcs diffused diffuser(opal) Surface mounting | Aluminum+PC cover per meter |
| EC1580 end cap per pair | ||||
| joint bridge per PCS | ||||
| YF-SK1580TR |  |  | Aluminum Profile for toe kick line 1) pcs diffused diffuser(opal) recessed mounting | Aluminum+PC cover per meter |
| EC1580 end cap per pair | ||||
| joint bridge per PCS | ||||
| YF-ALP167 |  |  | Aluminum profile for architectural lighting, 12.5mm drywall Option 1) PC diffused cover (opal), 2) PC semi-clear cover Installation recessed mounting , | Profile+PC cover per meter |
| EC167（ end cap per pair） | ||||
| YF-ALP168 |  |  | Aluminum profile for architectural lighting, 12.5mm drywall Option 1) PC diffused cover (opal), 2) PC semi-clear cover Installation recessed mounting , | Profile+PC cover per meter |
| EC168（ end cap per pair） | ||||
| YF-ALP127-R |  |  | Trimless recessed Aluminum Profile for plasterboard, Ceiling to wall Option: 1) PC diffused cover （opal) 2) PC semi clear cover | Profile+PC cover per meter |
| EC127-R（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP128-R |  |  | Trimless recessed Aluminum Profile for drywall, light shining from wall to ceiling Option: 1) PC diffused cover （opal) 2) PC semi clear cover | Profile+PC cover per meter |
| EC128-R（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-ALP077 |  |  | Aluminium LED profile for wardrobe Option: PC Diffused Cover | Profile+PC cover per meter |
| EC077（ end cap per pair） | ||||
| hang braket/pcs | ||||
| YF-ALP166 |  |  | Aluminum profile for architectural lighting, 12.5mm drywall Option: 1),PC Diffused Cover, Installation: recessed mounting , | Profile+PC cover per meter |
| EC168（ end cap per pair） | ||||
| YF-ALP159-TR |  |  | Low glare profile with regressed cover,Ceiling to Wall, with flange Trimless recessed Option: 1),PC semi clear cover, 2),Prismatic cover Installation: surface mounting or pendent mounting , | Aluminum+PC cover per meter |
| Aluminum + Prism cover per Meter | ||||
| EC158（ end cap per pair） | ||||
| joint bridge per PCS | ||||
| YF-T30 |  |  | 30mm diameter aluminum profile with PC frosted cover for surface or pendent light | Profile+PC cover per meter |
| ECT30（ end cap per pair） | ||||
| IC-ALP027 snap per PCS | ||||
| YF-T40 |  |  | 40mm diameter aluminum profile with PC Frosted Cover for surface or pendent light | Profile+PC cover per meter |
| ECT40（ end cap per pair） | ||||
| Hanging wire per PCS | ||||
| YF-T60 |  |  | 60mm diameter aluminum profile with PC Frosted Cover for pendent light | Profile+PC cover per meter |
| ECT60（ end cap per pair） | ||||
| Hanging wire per PCS | ||||
| YF-T100 |  |  | 4 inches tube for pendent light, Option: 1),PC Frosted Cover Installation:Pendent | Profile+PC cover per meter |
| ECT100（ end cap per pair） | ||||
| Hanging wire per PCS |
How to cut the length of Led Aluminum Profile Aluminum Extrusions Channels
Led aluminum profiles are generally made into 2 meters, 2.5 meters, 3 meters long, and sometimes can be made into 6 meters long. In order to facilitate storage and transportation, the company generally uses 2 meters as the standard length for preparation. In actual use, led aluminum profiles will be cut into suitable lengths for use. For a professional led aluminum profile company, we have professional cutting machines to cut led aluminum profiles. But for small home users, you can cut the LED outline with a hand saw. Whether it is a professional led profile company or a small home user, we have some points to pay attention to when cutting led profiles:
1. Measure the length of a groove or surface
The first step is to measure the length of the groove or the surface on which the LED aluminum profile will be mounted. And keep in mind that the led aluminium profile should be a few millimeters shorter than the groove.
2.Snap the plastic cover into the aluminium profile
There is one more step we have to do first before we cut the LED outline. That is, snap the plastic cover into the aluminum profile and cut the aluminum and PC together. Only then can we keep both parts the same length. If we cut the two parts separately, we might end up with lids and aluminum profiles of different lengths.
3.Make cutting marks on led aluminum profiles
How long do you plan to keep the LED aluminum profiles for installation? Measure it and make a mark on the outline. By doing this step, you will avoid any cutting mistakes.
4.Cut the led aluminum profile with a cutting machine.
Measure the end caps and cut the plastic caps We should know that the end caps take up some space when we install them into the LED aluminum profiles. So the total length of the plastic cap includes the size of the two end caps, and the length of the plastic cap needs to be readjusted. Cut off a few millimeters equal to the size of the two end caps. Going through these steps will make the installation of your led aluminum profile much easier.
Yiford specially designed LED strip light aluminum channels can be installed perfectly in grooves of cabinets, ceilings, stairs, walls, and floors. The resulting lighting is aesthetically beautiful and stylish due to its elegant linear shape, spotless diffusion, and low profile, and unobtrusive contours.
Buy led aluminum profile now? review more from LED Aluminum profile
Surface Mount LED Aluminum Profiles (Extrusions)
what is surface-mounted aluminum profiles?
Surface-mounted aluminum profiles using plastic clips or metal clips to fix the profile on the surface of the items. its come in a variety of shapes and sizes.
the smaller aluminum profiles for task and decorative lighting purposes. the larger surface-mounted aluminum profiles can house high-output LED strips and be used for general lighting purposes.
Easy and convenient used. We use high-quality aluminium profile for strip lights. Our surface mounted led extrusions are made of high quality 6063 aluminum alloy
Our surface-mounted aluminum profiles are sold as a complete kit and include your choice of lens, end cap, install clips and so on.
Advantages of Led Aluminum Profile Aluminum Extrusions Channels
In addition to the role of heat sinks to enhance heat dissipation, LED aluminum grooves, together with LED strips, are an essential element of personalized lighting that many lighting
designers love. They have countless advantages.
1. Improve the beauty of lighting.
The aesthetic appearance of the aluminum channel’s improved linear lighting creates a wonderful lighting shape for the space. When installing the light strip, its contour can add layering to the indoor environment.
A house with a simple structure can have amazing results if the shape of linear lighting is applied well. It can be said that the light strip is a small makeup at home! For commercial use, it displays more attractive merchandise. Installed at home, very elegant. On stage, very eye-catching.
2. Strengthen heat dissipation.
The LED aluminum channel acts as a heat sink, which absorbs the heat generated by the LED strip during operation and dissipates it into the air through the surface of the channel. An improved thermal management system extends the life of the LED strip.
3. Protect the LED strip.
The anodized aluminum tube provides a solid housing for the LED strip, which is protected from water, dust, UV radiation, weather conditions and unwanted influences. For example, it can be used for strip lighting in splash areas.
4. Easy to install.
Aluminium profiles can be seamlessly embedded into recesses in cabinets, stairs, walls and floors. They take up very little space, but provide lighting precisely where you want it to be, without the sight of bulky light fixtures.
5. Works as LED strip diffuser.
The overlay of the aluminum extrusion is often referred to as an LED strip diffuser. It can be frosted or opal to provide the best light diffusion for a perfectly spotless and more even lighting effect and avoid glare.
6. Help with LED strip installation.
Aluminium profiles can help to mount LED strips in different ways. Some surfaces are uneven, rough or too oily for LED strips. Aluminum channels facilitate mounting LED strips to these surfaces. The aluminium channel also acts as a bridge to fill the gap between two separate mounting surfaces.
7. Easy to form different shapes.
DIY lighting shapes are easy. Aluminium channels can easily be cut at different angles at the ends for angular connections to create square, triangular, L-shaped or tree-shaped lighting designs. Create more personalized lighting with ease.
8. The LED light bar can be easily replaced.
The inner light strip can be easily removed and replaced in case the user wants a different color light strip.
9. Safety.
The LED strip channel is designed for low voltage strips. It is very safe to install and use.
Yiford uses premium components to manufacture premium LED aluminium channels. Our LED light bar aluminum channel systems are made from selected extrusions, diffusers, end caps and mounting brackets.
Aluminum extrusions are made of high-quality anodized aluminum and are designed to accommodate and protect flexible or rigid LED strips. The anodized layer, called aluminum oxide, is harder than steel. The thicker the alumina layer, the harder it is for the LED channel to deform, and the better the quality of the aluminum channel.
For typical alumina, the depth can be up to 5 microns. Our aluminum profiles are 10-micron treated to create a hard aluminum oxide coating that withstands chemical attack and other damaging elements.
While aluminum doesn’t rust, it can deteriorate in the presence of certain elements and particles. The aluminium oxide layer on the surface provides suitable corrosion protection. The better the oxidation, the smoother and more upscale the contour will look.
In short, because of the small size of LED aluminum channels and many of the other advantages mentioned above, and because of the flexibility and versatility of LED strips, they are often used together in many modern lighting applications. Adding aluminum channels to your LED strip not only prolongs the life of the strip, but also allows you to enjoy better lighting.
| Part Number | Section Size mm | Lighting Direction | PCB Width mm | Picture | Size Drawing | Refer Apply |
|---|---|---|---|---|---|---|
| YF-TVD13 | round dia 13 | round | 5 |  |  |  |
| YF-TVD20 | round dia 20 | round | 10 |  |  |  |
| YF-TVD22H | round dia 20 | round | Double side 8 |  |  |  |
| YF-TVD40 | round dia 40 | round | Double side 10 |  |  |  |
| YF-SV0308 | 3*8 | Sideview | 5 |  |  |  |
| YF-SV0410 | 4*10 | Sideview | 5/6 |  |  |  |
| YF-SV0612 | 6*12 | Sideview | 8 |  |  |  |
| YF-SV0612H | 6*12 | Sideview | 8 |  |  | |
| YF-SV0616H2 | 6*12 | Sideview | 8 |  |  |  |
| YF-SV0616H3 | 6*16 | Sideview | 8 |  |  | |
| YF-SV0815 | 8*15 | Sideview | 5 |  |  |  |
| YF-SV0817 | 8*17 | Sideview | 8 |  |  |  |
| YF-SV1018 | 10*18 | Sideview | 10 |  |  |  |
| YF-SV1023 | 10*23 | Sideview | 10 |  |  |  |
| YF-SV1023H | 10*23 | Sideview | 10 |  |  |  |
| YF-SV1212 | 12*12 | Sideview | 8 |  |  |  |
| YF-SV1220 | 12*20 | Sideview | 10 |  |  |  |
| YF-SV1220B | 12*20 | Sideview | 10 |  |  |  |
| YF-SV1220C | 10*20 | Sideview | 10 |  |  |  |
| YF-SV1220H | 10*20 | Sideview | 10 |  |  |  |
| YF-SV1225 | 12*25 | Sideview | 12 |  |  |  |
| YF-SV0613 | 6*13 | Sideview | 8 |  |  |  |
| YF-SV1616 | 16*16 | Sideview | 10 |  |  |  |
| YF-SV2020 | 20*20 | Sideview | 10/12 |  |  |  |
| YF-SV3020 | 30*20 | Sideview | 15 |  |  |  |
| YF-SVD22 | round dia 22 | Sideview | Double side 5 |  |  |  |
| YF-SVD22B | round dia 22 | Sideview | Double side 8 |  | |  |
| YF-TV0606 | 6*6 | Sideview | 3 |  |  |  |
| YF-TV1010 | 10*10 | Topview | 5 |  |  |  |
| YF-TV1010C | 10*10 | Topview | 6 |  |  |  |
| YF-TV1010H | 10*10 | Topview | 6 |  |  | |
| YF-TV1010U | 10*10 | Topview | 5 |  |  |  |
| YF-TV1105 | 11*5 | Topview | 8 |  | |  |
| YF-TV1212 | 12*12 | Topview | 8 |  |  |  |
| YF-TV1212C | 12*12 | Topview | 8 |  |  |  |
| YF-TV1212H | 12*12 | Topview | 8 |  |  |  |
| YF-TV1305H | 13*5 | Topview | 10 |  |  |  |
| YF-TV1505 | 15*5 | Topview | 12 |  | |  |
| YF-TV1513 | 15*13 | Topview | 10 |  |  |  |
| YF-TV1525 | 15*25 | Topview | 10 |  |  |  |
| YF-TV1616 | 16*16 | Topview | 10 |  |  |  |
| YF-TV1616H | 16*16 | Topview | 10 |  |  | |
| YF-TV1616H3 | 16*16 | Topview | 10 |  |  | |
| YF-TV1616U | 16*16 | Topview | 10 |  |  |  |
| YF-TV1620 | 16*20 | Topview | 12 |  |  |  |
| YF-TV1723 | 17*23 | Topview | 10 |  |  |  |
| YF-TV2010U | 20*10 | Topview | 10/12 |  |  |  |
| YF-TV2014 | 20*14 | Topview | 10 |  |  |  |
| YF-TV2014C | 20*14 | Topview | 10 |  |  | |
| YF-TV2016 | 20*16 | Topview | 10 |  |  |  |
| YF-TV2018U | 20*18 | Topview | 10 |  |  | |
| YF-TV2020 | 20*20 | Topview | 10/12 |  |  |  |
| YF-TV2020H | 20*20 | Topview | 10/12 |  |  |  |
| YF-TV2020U | 20*20 | Topview | 10/12 |  |  |  |
| YF-TV2020U2 | 20*20 | Topview | 10/12 |  |  |  |
| YF-TV2020U3 | 20*20 | Topview | 12 |  |  | |
| YF-TV3020 | 30*20 | Topview | 15 |  |  |  |
| YF-TV3020U | 30*20 | Topview | 15 |  |  |  |
| YF-TV3020U2 | 30*20 | Topview | 15 |  |  |  |
| YF-TV4015U | 40*15 | Topview | 15/20 |  |  |  |
| YF-TV4025 | 40*25 | Topview | Topview 20/sideview 8 |  |  | |
| YF-TV5015U | 50*15 | Topview | 15/20 |  |  |  |
| YF-TV5025 | 50*25 | Topview | 20 |  |  |  |
| YF-TV7030 | 70*30 | Topview | 30 |  |  |  |
| YF-TV10030 | 100*30 | Topview | 20*2 |  |  |  |
| YF-TVV22 | V corner 22*22 | V corner | 5 |  |  |  |
English
German
French
Russian
Spanish
Hindi
Arabic
Portuguese
Japanese
Romanian
Czech
Greek
Finnish
Hungarian
Italian
Polish
Turkish
Korean
Swedish
