Compare And Test COB Strips With Different Quantity Leds
Yiford cob led strips has over 100 types, they are with different quantity leds, with different voltage, different wideth, different power consume, different colors. let’s test cob strips and share with you on the video
![Compare and test COB strips with different quantity leds 893 test cob strips](https://www.yiford.com/wp-content/uploads/2022/07/Feature-10-colorful-768x1039.webp)
![Compare and test COB strips with different quantity leds 894 different quantity leds](https://www.yiford.com/wp-content/uploads/2022/07/Home-page-step-1.webp)
The most complete introduction about COB led strip lights, you must read before buying led strips.
this article will share you about what is COB? What is the internal structure of the COB led strips? What kind of characteristics does it have? What benefits can each feature bring to our life and design?
this article can give you a more comprehensive understanding of the COB led strips, so that you can better use Yiford COB soft light strips to create novel products or meaningful lighting projects
Table of Contents
Before looking for these answers, please take 30 seconds to look at the whole COB light strips and have a basic impression of it.
Review COB LED Strips by video
There are more than a dozen features listed in this article, some of which may be known to you, and some may not be known to you.
I hope this article can give you a more comprehensive understanding of the COB led strips, so that you can better use Yiford COB soft light strips to create novel products or meaningful lighting projects.
I ever used to DIY COB led strips on some objects in the home and office. It was really great. I recorded them before and after installation and made short videos. You can refer them on Shirley channel on youtube.Click here to review installation effect videos
This article is about 3,000 words and it takes 10 minutes to read. I have made it into a video with subtitles, which can be watched on the YouTube channel. please click above picture to watch video directly.
COB Means What?
What is COB?

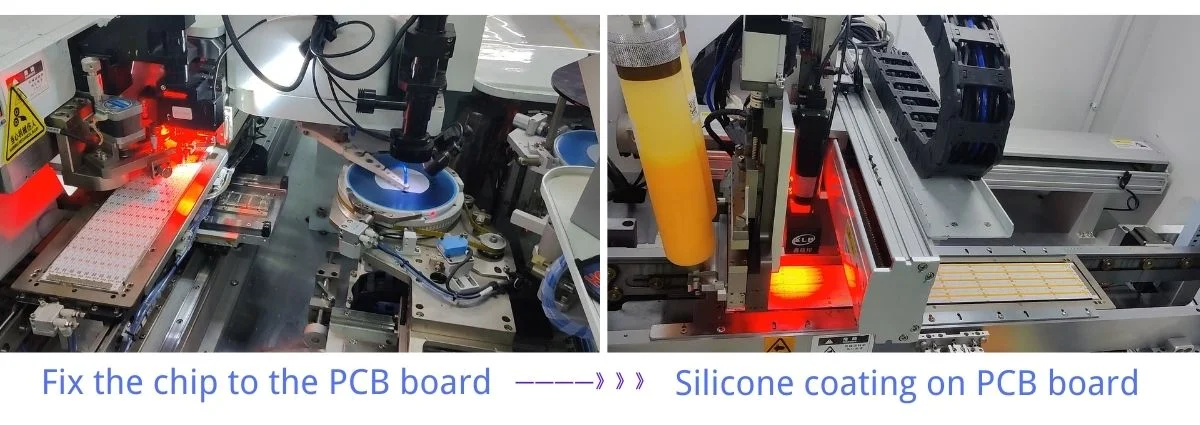

COB is short for Chip On Board, which means that the chip is directly packaged on the PCB.
The COB light strip is a light strip that encapsulates the chip on a flexible board. Chips mostly use flip-chips, which are linearly solid-bonded on the PCB, and then a layer of packaging glue mixed with phosphor is directly dropped on the surface of the chip. The light emitted by the chip is refracted, reflected, and interacted with the phosphor inside the encapsulating gel. The gel uniformly emits light of different colors and color temperatures.
it is a new type of process technology, based on the SMD led strips with further evolution. In order to facilitate your understanding, I drew a side sectional view.
What is SMD?
SMD is the abbreviation of Surface Mounted Devices, which means: Surface Mounted Devices, which is one of the SMT (Surface Mount Technology) components. Surface mount devices have become the current mainstream electronic assembly technology due to their small size, light weight and high power.
Surface mount device packaging is to attach electronic components directly to the substrate, that is, to package and place the chip components on the printed circuit board, and use a reflow furnace to melt the solder alloy interconnected by the electronic system, thereby realizing the interconnection between the chip components and the substrate. Main technique
![Everything you need to know about COB LED Strips Lights 151 smd](https://www.yiford.com/wp-content/uploads/2022/07/smd.webp)
![Everything you need to know about COB LED Strips Lights 152 5050 RGB LED Strips](https://www.yiford.com/wp-content/uploads/2022/07/5050-RGB-LED-Strips-2_001-768x768.webp)
SMD's features
High assembly density, small size and light weight of electronic products. The volume and weight of SMD components are only about 1/10 of those of traditional plug-in components. Generally, after SMT is used, the volume of electronic products is reduced by 40%~60%, and the weight is reduced by 60%~ 80%.
High reliability and strong anti-vibration ability. Solder joint defect rate is low.
Good high frequency characteristics. Electromagnetic and radio frequency interference is reduced.
Easy to automate and improve production efficiency. Reduce costs by 30% to 50%. Save material, energy, equipment, manpower, time, etc.
what is led strips?
LED is short for Light Emitting Diode. The light strip refers to the special processing technology of the LED light welded on the copper wire or the strip flexible circuit board, and then connected to the power supply to emit light.
led strips features
1. Soft and can be curled like a wire;
2. Can be cut and extended;
3. The light bulb and circuit are completely covered in flexible plastic, which has good insulation and waterproof performance and is safe to use;
4. Strong weather resistance;
5, not easy to break, long service life,
6, easy to make graphics, text and other shapes.
Compare to COB LED Strips and SMD LED Strips
1. PCB
2. phosphor encapsulation
3. chip
4. gold wire
1. PCB
2. solder point
3. bracket
4. chip
5. gold wire
6. phosphor encapsulation
We can see that the chip is directly connected to the PCB board. The chip on SMD is connected to the PCB board through the bracket and the solder point. SMD’s frame of the bracket has a certain thickness, while the COB light strip does not have this bracket.
so on the same length PCB board, COB type light strips There are more chips that can be arranged, and the density is higher. One meter can reach 1000 or even 2000 pieces of chips. The brightness and uniformity of those COB led strips far exceed the SMD led strips.
![Everything you need to know about COB LED Strips Lights 155 COB LED Strips--Best LED Light Strips 2022](https://www.yiford.com/wp-content/uploads/2022/07/Feature-9-compare-cob-and-smd-768x768.webp)
COB light strips vs SMD Light Strips
Let's light it up and see the comparison.The COB led strips have a linear light-emitting surface due to their high chip density, while the SMD led strips can see obvious light spots and dark areas. Of course, this dark area and light spot can be solved by adding aluminum profiles and diffusers, just like this. And COB light strips can become very uniform without adding diffuser. In this way, a lot of material costs and labor costs can be saved.
What are the features of COB soft led light strip?
Feature 1: Uniform light
![Everything you need to know about COB LED Strips Lights 156 Dotless LED Strip Lights--No dot no spot COB LED Strips](https://www.yiford.com/wp-content/uploads/2022/07/Feature-5-color-consistent.webp)
Good Luminous Effect
No Light Spots, No Dark Areas, Greatly Saving Material And Labor CostsWhen introducing the structure of the COB led strips, you may have realized that the most obvious feature of the COB led strips is that it emits uniformly, without bright areas and dark spots, and has good overall consistency, soft and non-glaring. This is why more and more customers like to buy Yiford COB light strips.
Feature 2: High Color Rendering Index
![Everything you need to know about COB LED Strips Lights 157 CRI compare](https://www.yiford.com/wp-content/uploads/2022/07/CRI-compare.webp)
rich color reproduction
It can make the color reproduction better, the object looks richer in color, and the details are more obvious. If you have higher requirements for the color reduction, and hope that the light can better restore the color of the object itself, let the object looks more realistic and more eye-catching, then you must use Yiford high CRI COB led strips, Because compared to the SMD led strips with a color rendering index of about 80, the COB led strips have a high color rendering index of over 90.What effect can the high color rendering index bring to the illuminated object?Let’s take a look at this comparison chart. Under the illumination of this high color rendering index COB light strips, the illuminated object has richer colors and color gamut. More extensive, more visible parts, more obvious details. Therefore, Yiford COB soft light strips are widely used in instrumentation, monitoring, machine, museums, jewelry, kitchens, fresh food stores, display areas, and so on.Recommend read: What is Color Rendering Index and Why Choose it Important | Understanding CRI: why-choose-high-color-redering-index-what-is-cri
Feature 3: Good flexibility
![Everything you need to know about COB LED Strips Lights 158 Feature 7 bendable](https://www.yiford.com/wp-content/uploads/2022/07/Feature-7-bendable.webp)
Bendable
strong torsion, good ductility, good effect.This kind of COB light strip is very flexible. Just like this, it is tied into a knot and pulled into a smaller knot. You see, this COB light strip is still good. Of course, my operation demonstration is an extreme test. It is not for you to use it like this. It is just to show you the folding resistance of the Yiford COB light strip. It is indeed very soft and can withstand stronger distortion.In actual use, please use the COB light strip under the instruction manual. great flexibility function allowing you to obtain the shape you need. With the strong adhesive, the cob led strips are easy to install in narrow places. such as modeling, advertising, luminous signs, contours and so on.
Feature 4: Can be cut
![Everything you need to know about COB LED Strips Lights 159 cut led light strips](https://www.yiford.com/wp-content/uploads/2022/07/Feature-12-cuttable.webp)
easy cut shorter
Parallel circuit boards, cut as long as you want, which greatly facilitates DIY and small scattered projects, COB light strips are generally packaged in a roll of 5 meters. In actual use, the length of the light strips we need will not be an integer of 5 meters. At this time, the cutting characteristics of COB led strips are very useful. Measurement The required length first. Then find the place where the COB led strips is closest to the required length, cut it along this cutting line and it can be used alone, which greatly facilitates the DIY project.
There are two ways to connect, one is to connect the solder point of the two light strips with an electric soldering iron and welding wire, and the other is to use Yiford solder-free connector.
This crystal connector has a built-in metal pin. Just press the metal pin to the solder On the solder point, the two light strips can be energized and connected. After the connection is made, there is almost no gap in the middle. At the same time, because the crystal connector is transparent, it is almost impossible to see the connector in the middle after lighting up. The effect is supergreat. click here to watch video for how to use the cob led strips connector
For connection methods and accessories indication, please watch Yiford’s video “How to cut and connect COB soft light strips”. Without any fixture, the light strips can be connected in a few seconds, which is durable and effective.
If you need to quickly connect the COB light strip, you must not miss the YIFORD accessory connector.
Below are the videos for the single color and mutil color led strip lights. you will understand each color’s effect:
Feature 5: Ultra-thin
![Everything you need to know about COB LED Strips Lights 160 Lights For Paintings](https://www.yiford.com/wp-content/uploads/2022/07/apply-for-narrow-space.jpg)
easy to hide
The thickness is only 2mm, only to see the light, no light source, not dazzling and more attractiveYou see, the COB light strip is very thin, with a thickness of only 2 mm, which is 1/16 inch. It can be easily installed in a small space and can be easily hidden. Whether it is a large project or a small product, it is inseparable from the assistance of light. Many times we hope to add some light to the object without increasing the size of the object itself, or hope that the light will not be directly seen. For example, if you install COB led strip into furnishings or wall murals, it is very easy to hide it, you can't see the light strips, only the light. Isn't it very easy to use?
![Everything you need to know about COB LED Strips Lights 161 test cob strips](https://www.yiford.com/wp-content/uploads/2022/07/Feature-10-colorful.webp)
colorful lights for space
There are monochromatic ones, as well as RGB colorful ones, applied to the lighting requirements of various occasions. Colorful colors create a colorful world. We cannot live without a variety of colors, red, green, blue, yellow, purple, pink, etc. Yiford company provides COB in a variety of colors of Light strips, and there are turnable white changeable, colorful changeable, pixel controlled programmable strips, etc., With Yiford LED controller and dimmer, the color of the COB light strip is more extensive. With these COB light strips of different colors, I believe you will easily find the light color you like, and you don't have to worry about matching colors anymore.
![Everything you need to know about COB LED Strips Lights 162 enviornment protect](https://www.yiford.com/wp-content/uploads/2022/07/enviornment-protect.jpg)
adjust brightness and programme
Free choice of brightness and darkness, stepless dimming from 0-100. Moreover, these COB led light strips can also be dimmed, like this, they can be brightened and dimmed, and they can also be compatible with home automation and DMX systems, wall dimmers, and remote dimmers. It’s really smart to adjust what kind of lighting you like.
Feature 8: High Brightness
![Everything you need to know about COB LED Strips Lights 163 application 1](https://www.yiford.com/wp-content/uploads/2022/07/application-1.jpg)
commercial lighting
More than 1,000 lumens per meter, can be decorated and illuminated You may also ask, how is the brightness of such a small light strip? You can rest assured that the light-emitting area of the COB soft light strip is relatively large, and the ordinary COB led light strip can achieve 1,000 lumens per meter, or even as high as 2,000 lumens per meter. Whether it is used on ceilings, walls, floors, interior, and exterior use, no matter for decoration or lighting, it is a very good choice.
Feature 9: Energy saving
![Everything you need to know about COB LED Strips Lights 164 Blue LED Lighting For Cabinet -- Lighting Ideas For Room](https://www.yiford.com/wp-content/uploads/2022/07/TV1723-4.jpg)
low energy consume
It can replace traditional light bulbs with 5-20 times the power, saving energy and electricity costs. Compared with ordinary incandescent bulbs or tubes, LED has a life span of more than 30,000 hours, which is more energy-saving and durable! According to calculations, LED lights can save up to 80% of electricity. However, its lighting is not worse than ordinary electric lights. For example, the brightness of a 13-watt LED bulb is equivalent to that of a 100-watt ordinary incandescent lamp, and its life span is 10 times that of an ordinary incandescent lamp, and can be used for more than 10 years. Using COB light strips instead of traditional incandescent or fluorescent lighting can save a lot of energy and electricity bills.
Feature 10: Environmental protection
![Everything you need to know about COB LED Strips Lights 165 enviornment protect 1](https://www.yiford.com/wp-content/uploads/2022/07/enviornment-protect-1.jpg)
protect the earth
The material does not contain harmful substances ,pollution-free, and has certification, At the same time, the materials of the COB led light strip, whether it is PCB or lamp beads, are environmentally friendly materials and can be recycled. It does not contain harmful substances such as mercury and lead, does not contain ultraviolet rays and infrared rays, safer for your eyes will not cause pollution and damage to the earth, and is environmentally friendly and healthy.
Feature 11: Light weight
![Everything you need to know about COB LED Strips Lights 166 weight light](https://www.yiford.com/wp-content/uploads/2022/07/weight-light-150x150.webp)
low weight
no responsibility for the increase of the installed body, A roll of 5 meters of COB light strips weighs only about 80 grams, which is convenient to handle, and the transportation cost is relatively low. At the same time, it will not add weight to the objects to be installed. If you are looking for a light, thin, soft, and small light source, you must not miss Yiford COB led strips.
Feature 12: Easy install
![Everything you need to know about COB LED Strips Lights 167 adhesive](https://www.yiford.com/wp-content/uploads/2022/07/adhesive-150x150.webp)
back adhesive
Comes with extremely sticky 3M glue, which can be attached after tearing off, which is very easy to install. The installation of the COB soft light strip is also very simple. It comes with double-sided adhesive. After tearing off the adhesive, it can be pasted and used. The stickiness is also strong, such as plastic board, wood board, cardboard, glass, metal, and other smooth and clean objects can be pasted.
![Everything you need to know about COB LED Strips Lights 168 Waterproof Cob Led Strips](https://www.yiford.com/wp-content/uploads/2022/07/waterproof-led-strips.jpg)
Indoor and outdoor use
Whether It Is Rainy Or Bad Weather, It Can Work Normally, And Can Be Used Indoors And Outdoors. If you want to use COB light strips outdoors, you can choose Yiford high waterproof grade soft light strips. A protective cover is added on the surface to prevent water from penetrating the light strips, even in bad weather or even underwater. It can be normal use. For the light strips of the waterproof series, please refer to Yiford website.
Waterproof COB light strip into water.
This wave is wonderful. Throw the COB light strip into the water. It can still work normally, with even light and waterproof grade of IP67. outdoor lighting, Don’t worry about being hit by rain on your light strip.
DIY cob led strips to fish tank
What can the led lights of the fish tank do?
1. Simulate sunlight 2. Ultraviolet LED light can sterilize 3. Helping water plants grow 4. Decorative effect
Feature 14: Safe to touch
![Everything you need to know about COB LED Strips Lights 169 low voltage](https://www.yiford.com/wp-content/uploads/2022/07/low-voltage-150x150.webp)
low voltage
Low voltage as DC 5V/12V/24V, It is safe to touch even while working., COB light strips are using low voltage DC 5V/12V/24V power supply voltage, you will not feel it when you touch it. Both the elderly and children can be used safely without causing safety hazards.
Feature 15: Low heat
Feature 16: Wide emit angle 180 degree
![Everything you need to know about COB LED Strips Lights 170 180 degree light emitte](https://www.yiford.com/wp-content/uploads/2022/07/180-degree-light-emitte-150x150.webp)
Wide range of lighting
Earlier we saw the structure of the COB led strips. Its chip is directly connected to the PCB. The chip emits light directly from the bottom without any obstructions, so the light-emitting angle can reach 180 degrees. The SMD led strips have a bracket, and its light-emitting angle can only reach 120 degrees under the influence of this bracket. The COB led strip with a light-emitting angle of 180 degrees can illuminate a wider range.
![Everything you need to know about COB LED Strips Lights 171 low heat](https://www.yiford.com/wp-content/uploads/2022/07/low-heat-150x150.webp)
easy spread the heat
The copper plate has its own heat dissipation function, which can quickly dissipate the heat, and the self-heating is low. Ordinary incandescent lamps or fluorescent lamps emit a lot of heat, so you can't touch them after a few seconds of work. Since the COB chip is directly bonded to the PCB board, the heat of the chip can be quickly transferred to the PCB board. Therefore, the heat dissipation speed of the chip of the COB light strip is faster than that of the lamp bead type, and the light decay of the COB light strip is smaller and the life is longer.
Summary
The above is about the features review about dotless cob led strip lights If you have any other questions, please contact YIFORD company, email cs@yiford.com and we will be happy to reply to you.
![Everything you need to know about COB LED Strips Lights 172 cob led strip features 1](https://www.yiford.com/wp-content/uploads/2022/07/cob-led-strip-features-1.webp)
As a new type of luminous product, the COB light strips have more functional enhancements due to technological innovation. Its features are far more than what I have introduced in this video. I believe you can discover more COB light strips when you use them. Use its characteristics to create more meaningful products or more interesting lighting projects.
Thank you for reading our introduction about the features of COB led strip lights. Those who can see here must be those who really love LED lighting. You may be an interior designer, product designer, electrical engineer, architect, LED wholesaler, lighting distributor, factory, trade…
If you are looking for a high-quality LED lighting manufacturer, with 3 years after-service, As long-term partners who are familiar with the market and end users, please contact YIFORD. Yiford is happy to provide free samples for your testing.
Want to know YIFORD company, please watch the video:
Which COB strip is the most suitable?
In order to meet the diversified needs of the market, Yiford has launched different series of led lights, and provided dozens of different COB light strip products for buyers to choose. Different voltages, different brightness, and different colors, is it a bit dazzling? Don’t know what to choose? Don’t worry, you will understand after watching this article.
- If you are a wholesaler or agent, it is certainly correct to choose the hottest selling items.
- If you are a designer and want to choose the most suitable COB light strip for the project, it is recommended to check the Shirley Youtube channel’s video on “How to choose the most suitable COB light strip”, combined with the introduction of the product details on the website WWW.YIFORD.COM, You can have a comprehensive understanding of this product before buying, and quickly confirm the most suitable product by yourself for your project.
- If you are undecided, you can also let us help you choose. You can send the lighting requirements to INFO@YIFORD.COM, and we will have professionals to reply you within 24 hours.
Start choose COB LED Strips
–Get started right now!–
The main types of COB light strips from Yiford company:
Warm white, neutral white, cool white and adjustable white.
Monochrome-red, green, blue, yellow, pink, purple.
Color-changing RGB and addressable LED strips.
Outdoor waterproof light strips.
Different voltages 5V 12V 24V.
The COB light strip is made of a new type of flexible light strip. It is soft, ultra-thin, high-brightness, can be bent arbitrarily, is energy-saving and environmentally friendly, and is very popular among architects and designers.
But because COB light strips are usually 5 meters in a roll, and we don’t necessarily use 5 meters in daily use,
we often need to cut or connect multiple strips. you may have question about: can I cut led light strips? how to connect two led strips together?
how to power led strip lighting? How should COB light strips be used correctly?
This BLOG content will be shared with you.
If you are hearing about COB light strips for the first time and don’t know what COB means, what is the difference between COB and SMD light strips, and what are the characteristics of COB light strips, you will get answers form this article:
COB LED Light Strips Most Complete Introduction
Table of Contents
If you want to understand these issues quickly and intuitively, you can watch the video below
It is 11 minutes long, with audio and English subtitles.
If you like to read text-based explanations, please continue reading. The text has 2,000 words and you can read it in about 4 minutes.
How to cut led strips
![How to Cut | Connect | Power COB LED Strip Lights 173 how to cut](https://www.yiford.com/wp-content/uploads/2022/07/cuttable-1.webp)
To cut the COB strip, you only need a pair of scissors. Of course, use a ruler to measure the length you need before cutting it.
The PCB board of the light strip has clearly marked the places that can be cut, and it can be cut along these lines. The unit length of the cutting line of the LED light strip is different, which is determined by the circuit design inside the PCB (print circult board ).
The small units before each group of cutting lines are connected in parallel, so they can still be used normally after cutting.
For the specific instructions for cutting and installation, you can refer to another article by YIFORD led lighting Blog.
Here is a detailed explanation of how to install the COB light strip, 8 steps, step by step tech you:
- Prepare the LED light strip/power supply/controller and related tools,
- measure the required length
- cut the LED strips as needed
- how to quickly connect the power cord
- Test the strip before installation
- how to paste the strip lighting to the desired position
- connect the led power supply and led controller or led dimmer
- last time test and adjust to your favorite color.
![How to Cut | Connect | Power COB LED Strip Lights 174 cob led strips connector](https://www.yiford.com/wp-content/uploads/2022/07/Connector-for-led-strips-12-1024x1024.jpg)
Cut at the designated mark, the led strips can be used normally, what will happen if it is not cut at the designated mark?
For example, you will find that several lights at the end are not on.
The way to solve this problem is to cut off the rest of the uncertain lights, remember to cut along the cutting line.
![How to Cut | Connect | Power COB LED Strip Lights 175 cut length](https://www.yiford.com/wp-content/uploads/2022/07/cutlength.webp)
the cutting unit lengths of some COB strips
12V and 24V COB LED Strips Lights cut length
You may have found that, In general, the cutting length of 12V and 24V is the same,such as white cob led strip lights, and single color led light strip. but for the tunable COB light strips, RGB addressable led strip lights, 12V COB led strip lights, 24V COB led strip lights, each cut length is different, this is because the PCB design is different, the length that can be cut is the same as It is determined by the density of chip set lamps, the number of lamp beads distributed in each segment, and the current setting.
How to connect led light strips
![How to Cut | Connect | Power COB LED Strip Lights 176 power supply](https://www.yiford.com/wp-content/uploads/2022/07/power-supply-1024x1024.webp)

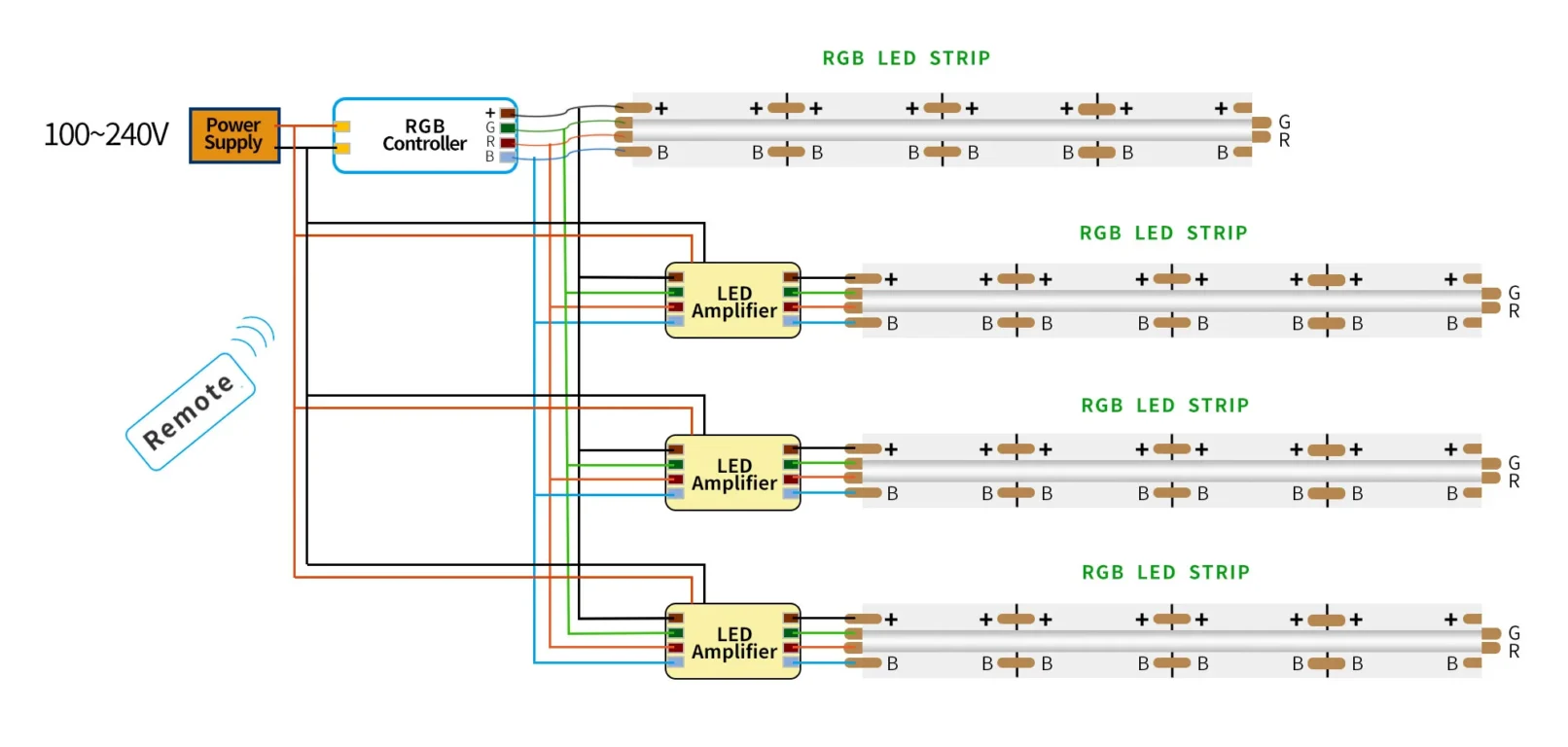

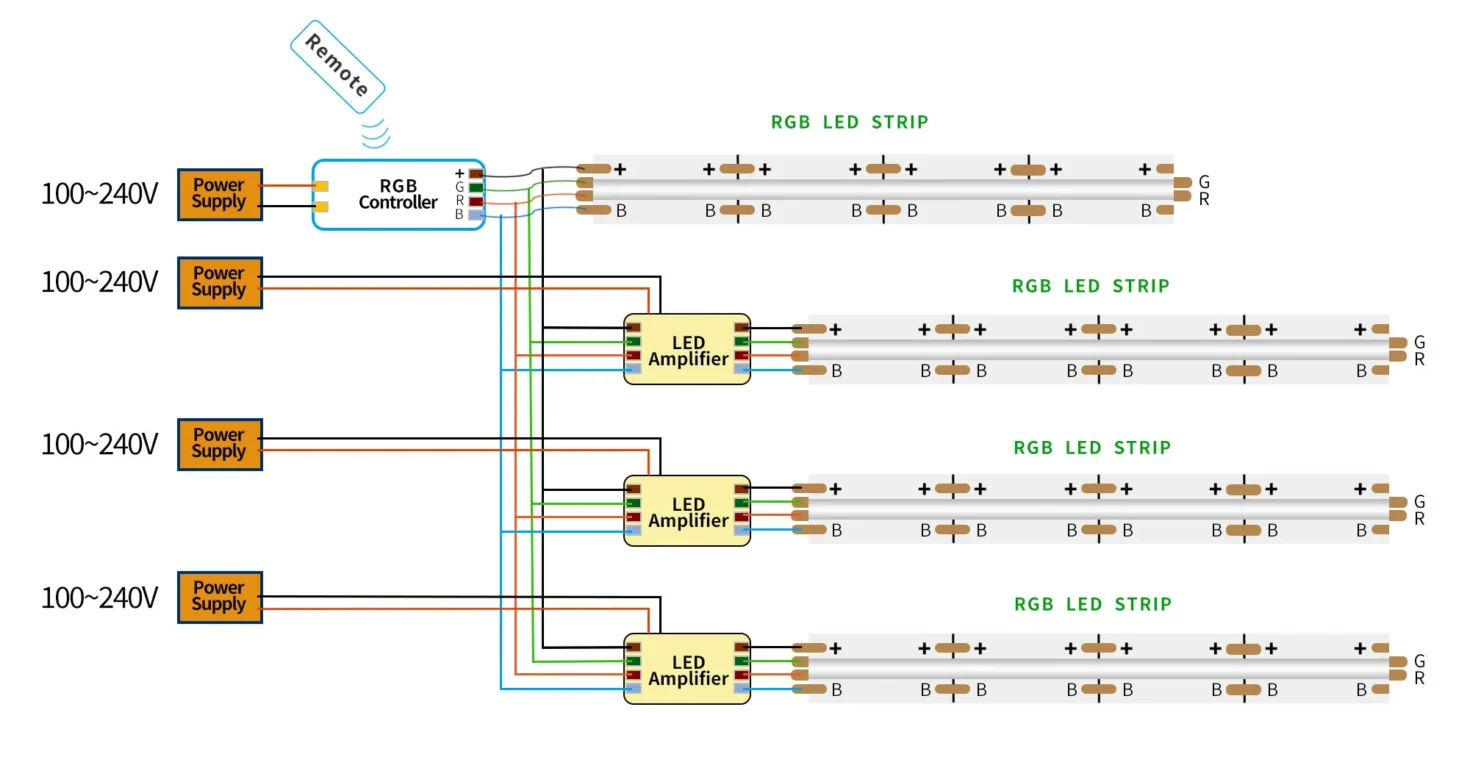

Can you connect led strip lights together? The standard packaging of COB light strips is 5 meters in a roll, and two-color parallel wires of No. 20 are connected at both ends, one red and one black. Of course, we can also provide a DC connector, both of which can be directly connected to the power supply.
For example, if it is wired, it is directly connected to the power supply with terminal.
The led strips connected to the DC connector can be directly connected to the power supply that has a DC male connector.
![How to Cut | Connect | Power COB LED Strip Lights 177 use solderless connector](https://www.yiford.com/wp-content/uploads/2022/07/how-to-use-solderless-connector.webp)
How to use connector
After the strip is cut, you may need to connect it together, How to reconnect cut led strips? two flexible strips, or even three flexible strips, There are two ways to wire led strips:
Use a soldering iron or use a crystal connector.
To use a soldering iron, you need to prepare tin wire and rosin, as well as certain skills, and I don’t specifically introduce them here. The easiest and fastest way is to use this transparent crystal connector, which is specially designed for COB led light strips.
It is small and has high transparency without affecting the luminous effect.
How can I supply power to the light strips that have been cut without wires or DC input terminals?
This is a transparent crystal end connector. You will see that there are two symmetrically arranged metal pins, no need to distinguish between positive and negative. Prepare a 22Awg wire. Keep the connection between the wire and the light strip level.
The positive pole of the wire is opposite to the positive pole of the led strips. Insert the light strips and wire into the corresponding connector position of the connection terminal, insert the cob led strips end into the slot, and make sure that the copper sheet is just below the metal pin of the connector.
To complete the connection, use a tool to press the metal pin down until the surface So far. If you don’t have a tool at hand, you can press it down with your nail shell, and you can see that the metal needle has been inserted into the copper sheet of the wire and light strip.
Gently pull the cob led strips to check that it is locked in place and well connected.
![How to Cut | Connect | Power COB LED Strip Lights 178 led strips connectors](https://www.yiford.com/wp-content/uploads/2022/07/led-strips-connector-1024x451.webp)

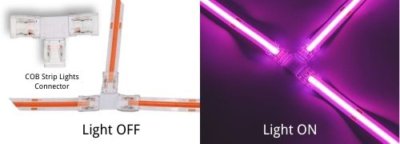

As shown in the figure, the COB light led strips is now connected to 2 wires, and the test is OK.
compare with the light on and light off, the transparents crystal connector are not effect the lighting brightness.
Now you may have question: can I connect different led light strips together?
the answer is yes, use the solderless led light strips connecter, you could connect different color led strips together.
Watch below video for how to use solderless connector for cob led strip lights :
NO. | ITEM NO. | NO. | ITEM NO. | NO. | ITEM NO. | NO. | ITEM NO. |
---|---|---|---|---|---|---|---|
1# | HR-S-SC-2PIN-5MM-B | 2# | HR-S-SC-2PIN-5MM-A | 3# | HR-S-SC-2PIN-5MM-C | 4# | HR-S-SC-2PIN-5MM-D |
5# | HR-S-SC-3PIN-5MM-B | 6# | HR-S-SC-3PIN-5MM-A | 7# | HR-S-SC-3PIN-5MM-C | 8# | HR-S-SC-3PIN-5MM-D |
9# | HR-S-SC-2PIN-8MM-B | 10# | HR-S-SC-2PIN-8MM-A | 11# | HR-S-SC-2PIN-8MM-C | 12# | HR-S-SC-2PIN-8MM-D |
13# | HR-S-SC-3PIN-8MM-B | 14# | HR-S-SC-3PIN-8MM-A | 15# | HR-S-SC-3PIN-8MM-C | 16# | HR-S-SC-3PIN-8MM-D |
17# | HR-S-SC-4PIN-8MM-B | 18# | HR-S-SC-4PIN-8MM-A | 19# | HR-S-SC-4PIN-8MM-C | 20# | HR-S-SC-4PIN-8MM-D |
21# | HR-S-SC-2PIN-10MM-B | 22# | HR-S-SC-2PIN-10MM-A | 23# | HR-S-SC-2PIN-10MM-C | 24# | HR-S-SC-2PIN-10MM-D |
25# | HR-S-SMD-2PIN-10MM-B | 26# | HR-S-SMD-2PIN-10MM-A | 27# | HR-S-SMD-2PIN-10MM-C | 28# | HR-S-SMD-2PIN-10MM-D |
29# | HR-S-SMD-3PIN-10MM-B | 30# | HR-S-SMD-3PIN-10MM-A | 31# | HR-S-SMD-3PIN-10MM-C | 32# | HR-S-SMD-3PIN-10MM-D |
33# | HR-S-COB-3PIN-10MM-B | 34# | HR-S-COB-4PIN-10MM-A | 35# | HR-S-COB-3PIN-10MM-C | 36# | HR-S-COB-4PIN-10MM-D |
37# | HR-S-COB-4PIN-10MM-B | 34# | HR-S-COB-4PIN-10MM-A | 38# | HR-S-COB-4PIN-10MM-C | 36# | HR-S-COB-4PIN-10MM-D |
39# | HR-S-SMD-4PIN-10MM-B | 40# | HR-S-SMD-4PIN-10MM-A | 41# | HR-S-SMD-4PIN-10MM-C | 42# | HR-S-SMD-4PIN-10MM-D |
43# | HR-S-SMD-5PIN-10MM-B | 44# | HR-S-SMD-5PIN-10MM-A | 45# | HR-S-SMD-5PIN-10MM-C | 46# | HR-S-SMD-5PIN-10MM-D |
47# | HR-S-SMD-2PIN-12MM-B | 48# | HR-S-SMD-2PIN-12MM-A | 49# | HR-S-SMD-2PIN-12MM-C | 50# | HR-S-SMD-2PIN-12MM-D |
51# | HR-S-SMD-3PIN-12MM-B | 52# | HR-S-SMD-3PIN-12MM-A | 53# | HR-S-SMD-3PIN-12MM-C | 54# | HR-S-SMD-3PIN-12MM-D |
55# | HR-S-SC-4PIN-12MM-B | 56# | HR-S-SC-4PIN-12MM-A | 57# | HR-S-SC-4PIN-12MM-C | 58# | HR-S-SC-4PIN-12MM-D |
59# | HR-S-SMD-5PIN-12MM-B | 60# | HR-S-SMD-5PIN-12MM-A | 61# | HR-S-SMD-5PIN-12MM-C | 62# | HR-S-SMD-5PIN-12MM-D |
63# | HR-S-COB-5PIN-12MM-B | 64# | HR-S-COB-5PIN-12MM-A | 65# | HR-S-COB-5PIN-12MM-C | 66# | HR-S-COB-5PIN-12MM-D |
67# | HR-S-SMD-6PIN-12MM-B | 68# | HR-S-SMD-6PIN-12MM-A | 69# | HR-S-SMD-6PIN-12MM-C | 70# | HR-S-SMD-6PIN-12MM-D |
115# | HR-S-SC-2PIN-8MM-E | 116# | HR-S-SMD-6PIN-12MM-E |
NO. | ITEM NO. | NO. | ITEM NO. | NO. | ITEM NO. |
---|---|---|---|---|---|
71# | HR-IP-SC-2PIN-8MM-B | 72# | HR-IP-SC-2PIN-8MM-A | 73# | HR-IP-SC-2PIN-8MM-C |
74# | HR-IP-SC-3PIN-8MM-B | 75# | HR-IP-SC-3PIN-8MM-A | 76# | HR-IP-SC-3PIN-8MM-C |
77# | HR-IP-SC-2PIN-10MM-B | 78# | HR-IP-SC-2PIN-10MM-A | 79# | HR-IP-SC-2PIN-10MM-C |
80# | HR-IP-SMD-2PIN-10MM-B | 81# | HR-IP-SMD-2PIN-10MM-A | 82# | HR-IP-SMD-2PIN-10MM-C |
83# | HR-IP-SMD-3PIN-10MM-B | 84# | HR-IP-SMD-3PIN-10MM-A | 85# | HR-IP-SMD-3PIN-10MM-C |
86# | HR-IP-COB-3PIN-10MM-B | 87# | HR-IP-COB-4PIN-10MM-A | 88# | HR-IP-COB-3PIN-10MM-C |
89# | HR-IP-COB-4PIN-10MM-B | 87# | HR-IP-COB-4PIN-10MM-A | 90# | HR-IP-COB-4PIN-10MM-C |
91# | HR-IP-SMD-4PIN-10MM-B | 92# | HR-IP-SMD-4PIN-10MM-A | 93# | HR-IP-SMD-4PIN-10MM-C |
94# | HR-IP-SMD-5PIN-10MM-B | 95# | HR-IP-SMD-5PIN-10MM-A | 96# | HR-IP-SMD-5PIN-10MM-C |
97# | HR-IP-SMD-2PIN-12MM-B | 98# | HR-IP-SMD-2PIN-12MM-A | 99# | HR-IP-SMD-2PIN-12MM-C |
100# | HR-IP-SMD-3PIN-12MM-B | 101# | HR-IP-SMD-3PIN-12MM-A | 102# | HR-IP-SMD-3PIN-12MM-C |
103# | HR-IP-SC-4PIN-12MM-B | 104# | HR-IP-SC-4PIN-12MM-A | 105# | HR-IP-SC-4PIN-12MM-C |
106# | HR-IP-COB-5PIN-12MM-B | 107# | HR-IP-COB-5PIN-12MM-A | 108# | HR-IP-COB-5PIN-12MM-C |
109# | HR-IP-SMD-5PIN-12MM-B | 110# | HR-IP-SMD-5PIN-12MM-A | 111# | HR-IP-SMD-5PIN-12MM-C |
112# | HR-IP-SMD-6PIN-12MM-B | 113# | HR-IP-SMD-6PIN-12MM-A | 114# | HR-IP-SMD-6PIN-12MM-C |
Videos for how to install led strip lights
Which types connector could be used for the cob led strip lights?
Light strips are often need be cutted or re-connected, and some problems related to cutting will be involved here. Here we use the new type flexible lighting COB (chip on board) light strips as a case to explain all the questions you have. you will get know How to cut and connect cob led light strips ? with different types connectors.
Solderless connectors for COB led strips--how to use
The LED light strip is like a luminous ribbon, while providing incredible flexibility. Its characteristics allow the light strips to have many functions, and it is widely used in various places and areas of life. They are the perfect lighting for room. with excellent lighting solution.
If your power supply has a DC connector, how do you supply power to this strip of light?
You can find other accessories on our website.
Please note that the DC connector is divided into positive and negative poles. The positive terminal of the PCB is connected to the positive terminal of the DC connector, and the negative terminal of the PCB is connected to the negative terminal of the DC connector,
so that the DC connector can work normally when it is connected to the DC connector of the power supply.
If the connection is reversed, there is no need to worry. The result is just that the cob led strips does not light up.
Because of the cob led strips reverse current protection function, the led power supply and led cob light will not be burned out.
With this crystal connector we can use this connector where it is inconvenient to arrange the light strips to form a design scheme with a hollow in the middle and bright sides. At the same time, it can be bent into different shapes and can also connect multiple COBs Light strips.
How to seamlessly connect 2 COB light strips?
Let me show you another board-to-board crystal connector which is no positive/negative. It is also very simple to use.
Place the positive poles of the two light bars facing each other and insert them into the terminals. Use a tool to press the metal pin down until the surface is flat.
The metal pins are inserted into the copper sheet of the PCB board to form a conductive bridge. After connecting to the power supply, you can see that the connection can also emit light without affecting the overall effect.
![How to Cut | Connect | Power COB LED Strip Lights 179 solderless connector](https://www.yiford.com/wp-content/uploads/2022/07/solderless-connector-1024x460.jpg)
If you have this accessory with a solderless connector, you can also turn the board-to-board crystal connector into a board-to-wire connector.
The operation method is similar to the previous one. The positive pole of the COB board is opposite to the positive pole of the PCB board. Insert the two ends of the crystal connector respectively, and then press it down,
the COB light bar is connected to the line and can be directly connected to the power supply.
watch video for how to use solderless connector for cob led strip lights, The operation method can refer to the following 15-second video:
How to choose the most suitable connector for your led strip lighting projects?
There are many types of light strip connectors, so you need to choose the right one according to the type of light strip. When choosing the right accessories, there are several factors to consider:
1. How width is your cob strip lighting?
If the strip is 8mm wide, the connector selected must be 8mm wide. If it is 10mm width, the fitting must be 10mm width. 10mm width connectors cannot be used on 8mm width led strips. and Because 8mm wide light strips are the most common. so the 8mm width connectors are the most commonly used.
Of course, the connectors of led cob lighting are also divided into single-color and multi-color. The single-color connector is 2PIN, the white tunable color temperature adjustable light strip is 3PIN, and the RGB COB light strip is 4PIN.
2. How do you need to install the cob led strip lights for your projects?
Yiford provides several connectors with different connection methods, such as the middle butt type in-line type like I, the 90-degree like L, and three-way connection like T. With these connectors,connect two led strips together is easy, you can connect multiple strip lighting, your COB light strip can be used in almost any occasion.
![How to Cut | Connect | Power COB LED Strip Lights 180 cob strips connector](https://www.yiford.com/wp-content/uploads/2022/07/cob-strips-connector-1.jpg)
![How to Cut | Connect | Power COB LED Strip Lights 181 strip lights connector](https://www.yiford.com/wp-content/uploads/2022/07/cob-strips-connector-2.jpg)
![How to Cut | Connect | Power COB LED Strip Lights 182 cob strips connector](https://www.yiford.com/wp-content/uploads/2022/07/cob-strips-connector-3.jpg)
3. What if some light strips do not have this seamless crystal connector?
Not all the led strips has matched connectors. for example, 3mm wide soft light strips, 5mm wide flexible led light strips, and RGB adderssabe led strip lights and so on.
If you need to connect two light strips together, It can be soldered, plus a terminal connector, which acts as a bridge in the middle.
When connecting, remember that the positive pole is connected to the positive pole, and the negative pole is connected to the negative pole.
How to install COB led strip lighting?
There is adhesive on the back of the led cob lights,refer the features for COB led strip lights here. which can be pasted on the surface of the object after peeling off the adhesive. Metal, plate, plastic, etc. can be pasted.
The COB light strips itself emits uniformly without dark areas and spots. If you want better lighting effects and protect the led strips, you can consider using led aluminum profiles. also called led aluminum extrusions , or led light channel. With led aluminum profiles, you can make the light strip more uniform and help The heat dissipation and long life of the product.
Yiford has over 300 different aluminum profiles, here are some dimensional drawings for your reference.
For more detailed information, please refer Yiford catalogue which could be download here.
![How to Cut | Connect | Power COB LED Strip Lights 183 led aluminum profile list](https://www.yiford.com/wp-content/uploads/2022/07/aluminum-profile-list.webp)
The Groover For LED Strip Lights
LED Aluminum Profile
![How to Cut | Connect | Power COB LED Strip Lights 184 aluminum led channel](https://www.yiford.com/wp-content/uploads/2022/07/Feature-8-consistent.webp)
the light becomes more uniform, but the uniformity is still not as good as the features of COB light strips
YIFORD provides three kinds of housings for LED light strips to meet the needs of users in different places:
1. If you want a flexible shell, need to bend or distortion, Neon Silicon Tube series you must consider. Strong flexibility, arbitrary bending, 30-degree to 360-degree light is available.
2. If you want hard linear lighting, Easy to shape, metal material, LED Aluminum Profile series will satisfy for you. Small shell, hundreds of different sizes, all corners can be applied.
3. If you want to use in commercial lighting, especially for the ceiling lights, Ceiling Lights special-shaped series is good choice. Large-scale shell, large-area lighting, easy to combine into different shapes.

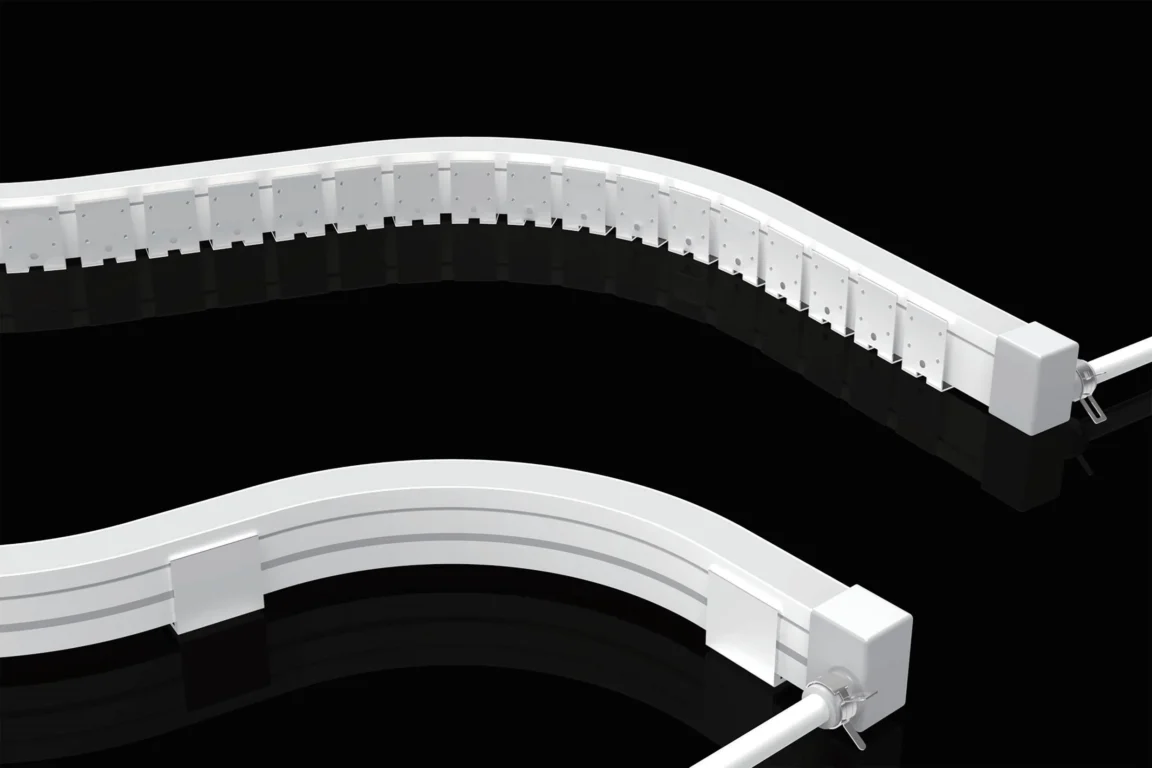

Silicone LED Channels
![How to Cut | Connect | Power COB LED Strip Lights 185 silicone led channel](https://www.yiford.com/wp-content/uploads/2022/07/silicone-led-channel.webp)
![How to Cut | Connect | Power COB LED Strip Lights 186 Flex LED Channel System For LED Strip Lights](https://www.yiford.com/wp-content/uploads/2022/07/silicone-led-strips.webp)
Neon flex silicon led strips is very common on our life, you may wonder what’s features is it, how to use the silicon flex led tube. you can watch below video:
The COB light strip is very simple. but work together with the soft silicone sleeve, it can be made into hundreds of thousands of shapes, and it is waterproof and can be used outdoors.
The use of COB light strips with LED aluminum profiles can create a lot of artistic spaces. if you want to know more about the led aluminum profile, read here All information about Led Aluminum Profile for LED Strip Lights
When buying these materials, you need to consider those factors, how to choose the best COB light strip, how to choose the most suitable housing, how to install the light strip, how to connect the light strip, how to apply the light strip, here are the most detailed explanations,
Get ready to buy cob led strips for your projects?
you may want to know everything before buy cob led strips. you will get all the information from here COB led strip lights buying guide
Features for Silicone LED Tube
Neon Flex Silicon LED Strip Lights Features
LED neon flex is a high quality, flexible LED strip lights with a unique co-extrusion technology. The combination of high quality and exceptional flexibility, allows for an endless range of indoor and outdoor applications. Uniform and without spot illumination at very low installation depths.
Neon FLex Strip Lights | smart rgb neon rope light
Every time or our any program we can think without lighting. lighting always bright our program more and more. If is it LED lighting then this program will be more exciting and colorful. our kids always like lighting. we can use our lighting wedding, birthday party, marriage ceremony, any kind of party.
Part Number | Section Size mm | Lighting Direction | PCB Width mm | Picture | Size Drawing | Refer Apply |
---|---|---|---|---|---|---|
YF-TVD13 | round dia 13 | round | 5 | ![]() | ![]() | ![]() |
YF-TVD20 | round dia 20 | round | 10 | ![]() | ![]() | ![]() |
YF-TVD22H | round dia 20 | round | Double side 8 | ![]() | ![]() | ![]() |
YF-TVD40 | round dia 40 | round | Double side 10 | ![]() | ![]() | ![]() |
YF-SV0308 | 3*8 | Sideview | 5 | ![]() | ![]() | ![]() |
YF-SV0410 | 4*10 | Sideview | 5/6 | ![]() | ![]() | ![]() |
YF-SV0612 | 6*12 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV0612H | 6*12 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV0616H2 | 6*12 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV0616H3 | 6*16 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV0815 | 8*15 | Sideview | 5 | ![]() | ![]() | ![]() |
YF-SV0817 | 8*17 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV1018 | 10*18 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1023 | 10*23 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1023H | 10*23 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1212 | 12*12 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV1220 | 12*20 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1220B | 12*20 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1220C | 10*20 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1220H | 10*20 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1225 | 12*25 | Sideview | 12 | ![]() | ![]() | ![]() |
YF-SV0613 | 6*13 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV1616 | 16*16 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV2020 | 20*20 | Sideview | 10/12 | ![]() | ![]() | ![]() |
YF-SV3020 | 30*20 | Sideview | 15 | ![]() | ![]() | ![]() |
YF-SVD22 | round dia 22 | Sideview | Double side 5 | ![]() | ![]() | ![]() |
YF-SVD22B | round dia 22 | Sideview | Double side 8 | ![]() | ![]() | ![]() |
YF-TV0606 | 6*6 | Sideview | 3 | ![]() | ![]() | ![]() |
YF-TV1010 | 10*10 | Topview | 5 | ![]() | ![]() | ![]() |
YF-TV1010C | 10*10 | Topview | 6 | ![]() | ![]() | ![]() |
YF-TV1010H | 10*10 | Topview | 6 | ![]() | ![]() | ![]() |
YF-TV1010U | 10*10 | Topview | 5 | ![]() | ![]() | ![]() |
YF-TV1105 | 11*5 | Topview | 8 | ![]() | ![]() | ![]() |
YF-TV1212 | 12*12 | Topview | 8 | ![]() | ![]() | ![]() |
YF-TV1212C | 12*12 | Topview | 8 | ![]() | ![]() | ![]() |
YF-TV1212H | 12*12 | Topview | 8 | ![]() | ![]() | ![]() |
YF-TV1305H | 13*5 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1505 | 15*5 | Topview | 12 | ![]() | ![]() | ![]() |
YF-TV1513 | 15*13 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1525 | 15*25 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1616 | 16*16 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1616H | 16*16 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1616H3 | 16*16 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1616U | 16*16 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1620 | 16*20 | Topview | 12 | ![]() | ![]() | ![]() |
YF-TV1723 | 17*23 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV2010U | 20*10 | Topview | 10/12 | ![]() | ![]() | ![]() |
YF-TV2014 | 20*14 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV2014C | 20*14 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV2016 | 20*16 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV2018U | 20*18 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV2020 | 20*20 | Topview | 10/12 | ![]() | ![]() | ![]() |
YF-TV2020H | 20*20 | Topview | 10/12 | ![]() | ![]() | ![]() |
YF-TV2020U | 20*20 | Topview | 10/12 | ![]() | ![]() | ![]() |
YF-TV2020U2 | 20*20 | Topview | 10/12 | ![]() | ![]() | ![]() |
YF-TV2020U3 | 20*20 | Topview | 12 | ![]() | ![]() | ![]() |
YF-TV3020 | 30*20 | Topview | 15 | ![]() | ![]() | ![]() |
YF-TV3020U | 30*20 | Topview | 15 | ![]() | ![]() | ![]() |
YF-TV3020U2 | 30*20 | Topview | 15 | ![]() | ![]() | ![]() |
YF-TV4015U | 40*15 | Topview | 15/20 | ![]() | ![]() | ![]() |
YF-TV4025 | 40*25 | Topview | Topview 20/sideview 8 | ![]() | ![]() | ![]() |
YF-TV5015U | 50*15 | Topview | 15/20 | ![]() | ![]() | ![]() |
YF-TV5025 | 50*25 | Topview | 20 | ![]() | ![]() | ![]() |
YF-TV7030 | 70*30 | Topview | 30 | ![]() | ![]() | ![]() |
YF-TV10030 | 100*30 | Topview | 20*2 | ![]() | ![]() | ![]() |
YF-TVV22 | V corner 22*22 | V corner | 5 | ![]() | ![]() | ![]() |
How to configure the right led power supply
When choosing a power supply, it is recommended to retain 20% of the added value. That is to say, if your led light bar needs 50W, the 20% added to 50W is 60W, because the maximum power consumption will be 60W.
It is possible to use a power supply that can exceed the required power, but you should never Use a power supply with the same or less power rating as the required power.
How to calculate the required power
To calculate the required power (watts), simply multiply the wattage per meter of the strip by the length of the strip to be powered. Therefore, if you want to power a 10W per meter strip to 5 meters, you only need to multiply 5 meters 10W per meter is enough, that is, 50 watts, and then increase the value of 20% on the 50 watts to get 60 watts, so a power supply rated at 60 watts or 72 watts will be an ideal choice. Even a 60-watt or 90-watt power supply is acceptable, because your COB strip will only extract the required power from the power supply.
connect drawing for led strips and power supply
When using a light strip, do not connect it too long, because a long light strip will cause the light strip to withstand too much current, which will damage the light strip. For a light strip of 10 meters per watt, we recommend that the longest one is 5 Meter. If you need to connect more,
you need to connect them in parallel and then connect to the power supply.
![How to Cut | Connect | Power COB LED Strip Lights 385 led strips connect power](https://www.yiford.com/wp-content/uploads/2022/07/led-strips-connect-power.webp)
Waterproof and un-waterproof power supply
The power supply is divided into waterproof and non-waterproof type. The waterproof type has a wire,
and the non-waterproof type has a terminal or DC terminal. The user can choose the appropriate power supply according to their own project needs.
how to power led strip lighting, how to connect lighting strips. how to connect led strip lights to power supply.
Summary
If you have any other questions, please contact YIFORD company and we will be happy to reply to you.
Thank you for reading our introduction to the application of LED lights. Those who can see here must be those who really love LED lighting. You may be an interior designer, product designer, electrical engineer, architect, LED wholesaler, lighting distributor, factory, trader…
You may also wonder where could install led strip lighting? how to use the led strip light for room or lighting projects? where culd use the cob led strip lights? here some led lighting case share with you. What are application ideas for LED Strip Lighting?
If you are looking for a high-quality LED lighting manufacturer, with 3 years after-service, As long-term partners who are familiar with the market and end users, please contact YIFORD. Yiford is happy to provide free samples for your testing.
Want to know YIFORD company, please watch the video:
Is it necessary to design lighting for the TV background wall?
Answer: Yes.
The living room space is the area for the family’s daily activities and entertaining guests. Therefore, in most people’s home decoration, more energy is often spent on the living room. The TV wall in the living rooms idea is the most important wall in the decoration of the living room. After all, most people’s family habits are sitting in the living room chatting and drinking tea while watching TV.
The TV background wall is responsible for the facade of the home and affects the overall appearance and beauty. A well designed TV wall will lose life without lighting. When designing a TV background, remember not to ignore this small detail of lighting design trends.
Table of Contents
![Best TV background Wall back lighting design Ideas 386 lighting for TV background wall](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-1.webp)
TV wall lighting design
At this time, some people may not help but think that the TV wall in my house is not exquisite and expensive stone, just a simple background wall, without too cumbersome and complicated design, and there are basically no people moving on the TV background , It doesn't matter if it's dark. Moreover, poor lighting design will affect the living experience, so it is better not to design! The lighting design is completely unnecessary.You are so wrong to think this way. Next, I will tell you about : Why does the TV wall mounted lighting need to be designed? How to design the TV wall lighting?
Why design the TV wall lighting?
The lack of lighting on the TV background is for the icing on the cake, mainly for the following two reasons:
![Best TV background Wall back lighting design Ideas 387 lighting for TV background wall](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-2-1024x512.webp)
The lighting of the TV wall is closely related to people's vision
Do you know what the real meaning of the TV wall background lighting is? for example movie lights,You might say that it is decoration and beautification of the space, it has this additional meaning, but it is not the most important. Its real meaning is to relieve visual fatigue and protect our eyes when watching movies.
Why eyes are more prone to fatigue in dark environments
In a dark environment, the pupils of the eyes will be enlarged to absorb more light to improve the recognition of objects in the dark, so that in the dark the light of the TV will become very dazzling, easy to damage the eyes and cause visual fatigue; especially the TV is Direct strobe and fast flashing light sources are very harmful to the eyes.
Lighting design pays attention to “ambient light”. Set the background light source on the background wall of the TV to increase the recognition of the space in the dark, reduce the contrast between the TV screen and the surrounding environment, weaken the contrast, and make the flat screen tv more soft and pleasing
![Best TV background Wall back lighting design Ideas 388 light around the TV screen](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-3.webp)
The ambient light around the TV screen helps to ease the vision and avoid the screen from hurting the eyes
TV wall lighting-ambient light in the living room decor
Lighting can be called “atmosphere creation master”, and the “ambience light” among the three major types of home lighting is very suitable for application in the TV wall background decor ideas. It is precisely because the TV wall backgroundis not an area with frequent activities, the demand for brightness is not high, and the “lingering collision” of light and wall layout, material, and color can effectively improve the beauty and comfort of the space, and add a romantic and warmth to home life Scenery.
Classic case of design flaws
The saddest thing about the TV background wall is not that there is no light, but that there are too many lights. Let’s look at some classic design flaws:
![Best TV background Wall back lighting design Ideas 389 lighting for TV background wall 4](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-4.webp)
The spotlight is too close to the wall, and the local spot of the wall-washing light is too bright, which is not only very dazzling, but also the light looks completely lacking in texture.
![Best TV background Wall back lighting design Ideas 390 light around the TV screen](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-5.webp)
Ink marble, vitrified tiles, jade tiles, or painted custom cabinets and other bright surface TV walls, the surface is very easy to reflect light, prone to light pollution.
![Best TV background Wall back lighting design Ideas 391 light around the TV screen](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-7-768x576.webp)
The spotlights on the TV wall background are arranged too densely and the brightness of the light source is too high, causing the entire background wall to glow white, visually uncomfortable, and bright without layered beauty.
![Best TV background Wall back lighting design Ideas 392 Warm White Led Strip Lights](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-8-768x643.webp)
The TV wall downlight did not choose the right light source, and the lamp shade of the downlight was too shallow, or the anti-glare design was not made, resulting in serious glare and uncomfortable direct exposure to human eyes.
The unreasonable lighting design not only fails to show the beauty of the material itself, but also causes visual interference, making the entertainment walls look messy and destroying the original beauty of the decorative background.
How to design the TV wall lighting?
![Best TV background Wall back lighting design Ideas 393 Design The TV Wall Lighting](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-9.webp)
Key points for the lighting interior design
① The lighting interior design of the wall TV background should be based on the overall space art, wall materials and color matching to select the type of light source, lighting model and light distribution method. l
ed tv wall design ideas, The TV accent walls lighting design is mainly to create a unique light and shadow effect, so it does not require high brightness of the lighting, and the light should not directly hit the TV, audio and human faces.
![Best TV background Wall back lighting design Ideas 394 Design The TV Wall Lighting](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-10.webp)
Diffuse reflection with the light source
② The light source of the wall TV background is best expressed as a diffuse reflection form, which can not only emphasize the characteristics of the background, but also avoid the interference of direct light sources on the TV and cause unnecessary glare.When the three-dimensional sense of the background wall is weak, you can use the method of cleaning the wall to arrange the lights, such as installing a light trough to clean the wall, it can present a subtle three-dimensional feeling;When the background wall has a strong sense of three-dimensionality, the lighting can be arranged by washing the wall, such as washing the wall with a wall washer, reducing the length of the shadow and reflecting a strong sense of unevenness.
PS: When using the wall washer to arrange the lights, pay attention to the angle of the light to avoid direct light shining on the TV screen and audio-visual equipment, which will cause light pollution such as light curtain effect and reflected glare, which will affect the best spatial visual effect.
having said so much
What kind of lighting design is a good TV wall lighting?
Of course seeing is believing
Here, I will give you some
Design gameplay case
Design Cases Worthy of Reference
What kind of lighting design is a good TV wall lighting?
![Best TV background Wall back lighting design Ideas 395 Design The TV Wall Lighting](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-11.webp)
other lighting to embellish the TV background wall
③ You can choose other decorative lighting to embellish the TV background wall. If the background wall of the home is made of bricks or stones or has a fireplace, you can set some downlights and spotlights on the ceiling for accent lighting. Produce some arc lighting effects, in addition to attracting people's attention, it can also provide general lighting functionPS: When using downlights on the TV wall, pay attention to the selection of the beam angle of the lamps and the appropriateness of the distance from the wall.
Which lighting is recommended for the TV background wall
Best lighting : led light strips
What does the LED flexible light strip look like?
Let’s take a look at this 15-second short video before it is installed on the wall. This is the latest type of soft light strip, with no light spots and no dark areas. It has high brightness and can be used directly as the main lighting, or it can be hidden in the wall. , Diffuse reflection after refraction, for decoration.
As you can see in the video, this light strips emits very uniformly, and it can form a linear light source without aluminum profiles and diffusers. Compared with the point light source of the SMD soft light strips, Yiford cob led strip lights is more beautiful.
How to use cob led strip lights?
This led strips standard packaging is a roll of 5 meters. The video shows 5 meters, one reel weight is very light, less than 100g, You can also cut it to the length you want. After cutting, it can be connected again. Using the welding-free connector joint which offered by YIFORD, the light strip can be connected again in one second, and no gaps can be seen after lighting, and it is firm and strong. If you want to know how to cut and connect the light bar, please refer to YIFORD’s blog “how to cut connect power cob led strips“or watch youtube video
How to meet TV Wall Lighting design Ideas
LED TV wall ideas:
When it comes to the TV background wall lighting, the first choice is the light strip. The light source is hidden and not exposed, and the light is not dazzling or bright.
The light strip glows uniformly and softly, with a full sense of atmosphere. In addition, the linear lighting is very high and has a strong sense of texture, which is especially suitable for modern and simple styles.
![Best TV background Wall back lighting design Ideas 396 Design The TV Wall Lighting](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-12.webp)
TV background wall lighting for ground
The TV background wall lighting, the first to be the light strip.
![Best TV background Wall back lighting design Ideas 397 Design The TV Wall Lighting](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-13.webp)
LED Light strips for the TV Wall
The combination of the light strip and the wood grain brings a warm and comfortable enveloping feeling.
![Best TV background Wall back lighting design Ideas 398 Design The TV Wall Lighting](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-14.webp)
LED strips for living room
The COB LED strip is matched with stone, highlighting the natural and primitive wild luxury.
![Best TV background Wall back lighting design Ideas 399 light strips for wall](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-15.webp)
led strip lights for wall
The light strip and the soft bag are combined to create a silky and quiet light atmosphere.
In addition to being embedded in the ceiling of the TV background wall, the light strip also has a variety of design and play methods.
![Best TV background Wall back lighting design Ideas 400 Light Strips For Storage Cabinet](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-16.webp)
light strips for storage cabinet
The combination of light strips and storage partitions or custom cabinets adds fashionable value to the space.
![Best TV background Wall back lighting design Ideas 401 LED Light For Bed--Best Lighting ideas for bedroom](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-18.webp)
lighting hidden under the TV cabinet
The light strip is hidden under the TV cabinet, which brings a low-key and quiet atmosphere and makes the TV background wall look lighter.
![Best TV background Wall back lighting design Ideas 402 Lighting Hidden Under The TV Cabinet](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-19.webp)
lighting embedded into wall
The light strip is embedded vertically into the wall, as if there is light from behind the wall, bringing a strong sense of art and invisibly expanding the sense of space.
![Best TV background Wall back lighting design Ideas 403 Lighting Hidden Under The TV Cabinet](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-20.webp)
combinate light strip and wall panel
The combination of the light strip and the wall panel enhances the three-dimensional effect of the wall panel, which is also a wonderful lighting decoration.
What Kind Of Soft Light Strip Is More Suitable For TV Background Wall?
COB LED Strips Lights
If you want to make the light uniform, the brightness is soft and not dazzling, you should choose the COB light strip from YIFORD.
![Best TV background Wall back lighting design Ideas 404 COB LED Light Strips And SMD Light Strips](https://www.yiford.com/wp-content/uploads/2022/07/compare-cob-and-smd.webp)
The luminous effects of COB light strips and SMD light strips
Compared with traditional SMD soft light strips, COB light strips have no graininess, the density of the lamp beads can almost emit light in a line, and the color consistency is high. It can replace some high-density light strips on the market. COB not only saves costs, but also Solve the problems of graininess, chromatic aberration and easy soldering. YIFORD's COB soft light strip can disperse the heat of the chip, improve the light efficiency and improve the glare effect of LED lights.
White lighting for room
![Best TV background Wall back lighting design Ideas 405 Warm White And Neutral Light For Room](https://www.yiford.com/wp-content/uploads/2022/07/white-light-for-room.webp)
warm white and neutral light for room
The indoor lighting color of the family should be neutral light or warm light as much as possible. If the color of the background wall light belt is darker on the top wall or if you want to highlight it with a specific material, use white light. On the one hand, it is brighter, and on the other hand, it has a better performance effect on the surface material. If you want to emphasize the atmosphere, or don't want to be too bright, use warm light.
CCT White adjustable led lights
![Best TV background Wall back lighting design Ideas 406 Warm White Led Strip Lights](https://www.yiford.com/wp-content/uploads/2022/07/cob-led-strips-2-5.webp)
different color temperature of the light
Yiford provides you with a reference for the color temperature of the light. In general, we recommend using a warm white light of about 3500K for the light in the general home, so that the lighting environment is more warm and protects the eyes, and it will not affect the color of other decorative surfaces. (About 4000K is neutral light, 6000K is positive white light). The restaurant can use 3000K lights, which can make food shiny and more appetizing;
If you like to choose different colors of lights at different times or scenes, you can also choose YIFORD’s dual-color temperature soft light bar with a remote control to freely control the color and brightness of the scene light. If you want the light to be soft and warm, you can choose a warm white. If you want the light to be brighter, you can choose a positive white.
RGB Color led lighting for room
If you like to make the room colorful, such as white, red, green, blue, pink, purple, etc., you can install YIFORD’s RGB soft light strips behind the TV or on the ceiling. The effect is as follows:
![Best TV background Wall back lighting design Ideas 407 Led Lighting For Room](https://www.yiford.com/wp-content/uploads/2022/07/cob-led-strips-2-3-1024x722.webp)
Background Wall Lighting Design Avoids Three Major Problems
Well, the above briefly introduced to you, the importance and artistry of background lighting in home background wall decoration, then we must pay attention to avoid the following problems in practical applications:
It is not possible to install the background light for the purpose of installing the background light. You must consider the size of the room wall and choose the appropriate background light;
The brightness of the light is not easy to be too bright or too dark, and the appropriate illuminance will make the room more warm and comfortable;
When decorating the background wall, pay attention to the overall color matching. Do not enter the misunderstanding that the richer the color, the better the atmosphere will be created. It must be coordinated with the overall home matching, and not too abrupt and destroy the beauty of the entire home decoration.
If you want to know or buy related products, please visit www.yiford.com, email to info@yiford.com, and there will be professionals to serve you.
Hidden Anti-Glare Spotlight, Bright But Not Dry High-Grade Light
When choosing spotlights and downlights for the TV background wall, it is best to choose a deeply hidden anti-glare style. The light source is hidden deep in the lamp tube, not only does the light not dazzle, reduces light reflection, but also achieves the advanced effect of “seeing the light but not the light”.
![Best TV background Wall back lighting design Ideas 408 TV Background Wall lighting design](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-21.webp)
TV background wall spotlights
For TV background wall spotlights, choose a style that is hidden and anti-glare.In addition, it is recommended not to install the light source too close, 30-50cm away from the TV wall, which helps to reduce the contrast of the wall reflection and make the light look more textured.
Magnetic track light, freely defined light mode
Magnetic track lights can be freely combined and moved freely, which is especially suitable for families who pursue personalized and changeable lighting schemes. For TV background wall lighting, the magnetic solution is very malleable, providing more possibilities for lighting design.
![Best TV background Wall back lighting design Ideas 409 TV screen lighting design](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-22.webp)
Magnetic track lights
There are many types of light sources that the magnetic track can be adapted to. In addition to spotlights, square box light sources with larger light-emitting surfaces, strip floodlights, and grid lights bring more levels of lighting effects. The uneven lighting scheme is adopted on the magnetic track, which makes the lighting more free and makes it easier to create a colorful atmosphere.
Precautions for the use of TV wall lighting
Avoid long-term use
![Best TV background Wall back lighting design Ideas 410 TV and the background wall](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-TV-background-wall-26.webp)
Although the beautiful TV background wall will be more eye-catching under the shining of the lights, which is conducive to highlighting the personality of the owner.
However, long-term viewing will constitute visual fatigue, which is not good for visual health, and at the same time not conducive to energy saving.
There is no problem with the TV and the background wall being close, and even if the distance is close, it can be integrated with the wall.
The lighting should be soft
![Best TV background Wall back lighting design Ideas 411 lighting for room design 2](https://www.yiford.com/wp-content/uploads/2022/07/lighting-for-room-design-2.webp)
Because the TV background wall is used to set off and decorate the TV, and when people are watching TV, it is enough to have soft reflected light as the background lighting;
In addition, if there are too many auxiliary lighting lights around the TV audio-visual wall, when watching TV It will interfere with the line of sight and is not very practical.
Therefore, it is recommended that the intensity of the TV background light should be reduced to a minimum.
By the way, COB soft light strips are not only used in home or commercial lighting. You can design them in any items that may need lighting to add contours, layers, mystery, or high-level sense to the items.
In short, the surface For this kind of light, thin, soft and small luminous light strip, the creativity is limitless, only you can’t think of it, nothing can’t be done without it.
Part Number | Picture | Size Drawing | Descrtption | Include Item: |
---|---|---|---|---|
YF-ALP001-R | ![]() | ![]() | super slim 8mm recessed aluminum LED profile with flange, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
EC-001-R end cap per pair | ||||
YF-ALP002-R | ![]() | ![]() | super slim 8mm recessed aluminum LED profile, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
EC-002-R end cap per pair | ||||
MC-002-R snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
Rotary Buckle per PCS | ||||
YF-ALP002-RL | ![]() | ![]() | recessed aluminum LED profile with lens:60degrees, Option 1: PMMA Clear lens | Profile+PC cover per meter |
EC-002-RL end cap per pair | ||||
MC-002-R snap per PCS | ||||
Rotary Buckle per PCS | ||||
YF-ALP002-M | ![]() | ![]() | super slim aluminum LED profile, Option: 1),PC diffused cover, 2),PC semi-clear cover, Installation:surface mounting | Profile+PC cover per meter |
EC-002-RL end cap per pair | ||||
MC-002-R snap per PCS | ||||
YF-ALP002-R2 | ![]() | ![]() | super slim 8mm recessed aluminum LED profile, with shield one side Option: 1),PC diffused cover, 2),PC semi-clear cover, 3),PC clear diffuser Installation:Surface mounting under cabinet | Profile+PC cover per meter |
EC-002-R end cap per pair | ||||
YF-ALP003-R | ![]() | ![]() | 15mm recessed aluminum LED profile with flange, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
EC-003-R end cap per pair | ||||
YF-ALP004-R | ![]() | ![]() | 15mm recessed aluminum LED profile without flange, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
EC-004-R end cap per pair | ||||
MC-002-R snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
Rotary Buckle per PCS | ||||
YF-ALP004-RL | ![]() | ![]() | recessed aluminum LED profile with lens:30degrees, Option 1: PMMA Clear lens | Profile+PC cover per meter |
EC-004-RL end cap per pair | ||||
MC-002-R snap per PCS | ||||
Rotary Buckle per PCS | ||||
YF-ALP140 | ![]() | ![]() | Aluminium LED profile with adjustable viewing angle Option: 1), 10 degrees lens 2),30 degrees lens 3), 60 degrees lens Installation: suface mounting | Profile+PC cover per meter |
EC-004-RL end cap per pair | ||||
MC-002-R snap per PCS | ||||
Rotatable stand/PCS | ||||
YF-ALP005 | ![]() | ![]() | squar aluminum LED profile, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover 3),PMMA Clear Cover | Profile+PC cover per meter |
EC-005 end cap per pair | ||||
MC-005 snap per PCS | ||||
YF-ALP006 | ![]() | ![]() | aluminum corner LED profile, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
EC-006 end cap per pair | ||||
MC-005 snap per PCS | ||||
YF-ALP007-R | ![]() | ![]() | aluminum corner LED profile, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
EC-007-R end cap per pair | ||||
MC-007 snap per PCS | ||||
YF-ALP013 | ![]() | ![]() | 10mm deep aluminum LED profile with flange, Option 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
MC-014 snap per PCS | EC-013 end cap per pair | |||
YF-ALP014 | ![]() | ![]() | 10mm deep aluminum LED profile with flange, Option 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
EC-014 end cap per pair | ||||
MC-014 snap per PCS | ||||
ALP013-R | ![]() | ![]() | Recessed Aluminum LED profile with flange Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover Strip suggest:double row won't see LED dots | Profile+PC cover per meter |
EC-014 end cap per pair | ||||
MC-014 snap per PCS | ||||
YF-ALP014-R | ![]() | ![]() | Aluminum LED profile without flange Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover Strip suggest:double row won't see LED dots | Profile+PC cover per meter |
EC-014-R end cap per pair | ||||
MC-014 snap per PCS | ||||
YF-ALP016-R | ![]() | ![]() | 30X30mm big size Aluminum LED profile for corner, Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
EC-016R end cap per pair | ||||
MC-015R snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP021 | ![]() | ![]() | Flat Aluminum led profile for cabinet decoration: 1),PMMA Opal Matt Cover, 2),PMMA Semi-Clear Cover, 3),PMMA Clear Cover 4),PC Diffused Cover 5),PC Semi-Clear Cover 6),PC Clear Cover | Profile+PC cover per meter |
EC-021 end cap per pair | ||||
YF-ALP023-R2 | ![]() | ![]() | Slim Aluminium LED profile for dry wall Option: 1),PC Diffused Cover Installation:Recessed | Profile+PC cover per meter |
EC-021 end cap per pair | ||||
YF-ALP024 | ![]() | ![]() | Aluminum led profile for stairs lighting: 1),PMMA opal matte diffuser, 2),PMMA semi-clear matte diffuser, 3),PMMA clear diffuser | Profile+cover per meter |
EC024( end cap per pair) | ||||
YF-ALP024-R | ![]() | ![]() | Aluminium LED profile for stair light Option: 1),pcs diffused cover Installation: Surface mounting | Profile+anti-slip plate+ mask per meter |
EC024-R( end cap per pair) | ||||
ALP024-R1 | ![]() | ![]() | aluminium LED profile for stairs,light up and down at the same time Option: 1),PC diffused cover Installation: Surface mounting | Profile+anti-slip plate+ mask per meter |
EC024-R1( end cap per pair) | ||||
YF-ALP035-R | ![]() | ![]() | super slim13mm recessed aluminum LED profile, Option: 1),PC Frosted cover, color dot free, liner lighting effort | Profile+PC cover per meter |
EC-035-R end cap per pair | ||||
MC-035 snap per PCS | ||||
YF-ALP073 | ![]() | ![]() | Super slim Aluminium LED profile without flange, Option: 1),PC Frosted Cover, Installation:Surface Mounted or recessed | Profile+PC cover per meter |
EC-073 end cap per pair | ||||
MC-073 snap per PCS | ||||
YF-ALP116 | ![]() | ![]() | super slim aluminum profiles with PC Frosted Cover | Profile+PC cover per meter |
EC-116 end cap per pair | ||||
MC-073 snap per PCS | ||||
YF-ALP117 | ![]() | ![]() | super slim aluminum profiles with PC Frosted Cover | Profile+PC cover per meter |
EC-117 end cap per pair | ||||
MC-073 snap per PCS | ||||
YF-ALP134 | ![]() | ![]() | super slim aluminum led profile for cabinet, 5mm wide PCB Option: 1)PC Frosted Cover | Profile+PC cover per meter |
EC-134 end cap per pair | ||||
MC-134 snap per PCS | ||||
YF-ALP135 | ![]() | ![]() | super slim aluminum led profile for cabinet, 5mm wide PCB, with flange shield from the light outward Option: 1)PC Frosted Cover | Profile+PC cover per meter |
EC-135 end cap per pair | ||||
YF-ALP136 | ![]() | ![]() | super slim aluminum led profile for cabinet, 5mm wide PCB Option: 1)PC Frosted Cover | Profile+PC cover per meter |
EC-136 end cap per pair | ||||
MC-026 snap per PCS | ||||
YF-ALP114 | ![]() | ![]() | Slim Aluminium LED profile for bending Bendable Profile Option: 1),PC Diffused Cover Installation:Surface or Pendent | Profile+PC cover per meter |
EC-114 end cap per pair | ||||
MC-114 snap per PCS | ||||
YF-ALP137 | ![]() | ![]() | super slim aluminum led profile for cabinet, 5mm wide PCB, assymetrical light Option: 1)PC Frosted Cover | Profile+PC cover per meter |
EC-137 end cap per pair | ||||
YF-ALP138 | ![]() | ![]() | aluminum led profile for cabinet shelf use, 8mm wide PMMA board or glass Option: 1)PC Diffused Cover | Profile+PC cover per meter |
EC-138 end cap per pair | ||||
YF-ALP139 | ![]() | ![]() | aluminum led profile for cabinet shelf use, Option: 1)PC Diffused Cover | Profile+PC cover per meter |
EC-139 end cap per pair | ||||
MC-139 snap per PCS | ||||
YF-ALP044-PC-R | ![]() | ![]() | aluminum LED profile for , Option: 1),PC Diffused Cover | Profile+PC cover per meter |
EC-044-PC end cap per pair | ||||
MC-044-PC snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP053-R | ![]() | ![]() | Aluminum LED profile for pendant light, Option: 1),PC Diffused Cover Installation: Suspended or surface Mounted | Profile+PC cover per meter |
EC-053 end cap per pair | ||||
MC-053 snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP054-R1 | ![]() | ![]() | Aluminum LED profile for pendant light, Option: 1),PC Diffused Cover, Installation: Suspended or surface Mounted | Profile+PC cover per meter |
EC-053 end cap per pair | ||||
MC-053 snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP065 | ![]() | ![]() | Aluminum LED profile 45x42MM, square Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi Clear Cover 3), PC Diffused Cover Installation:Surface Mounting | Profile+PC cover per meter |
EC-065 end cap per pair | ||||
MC-065 snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP065-T | ![]() | ![]() | Aluminum LED profile 45x55MM, square Option: 1),PC Diffused Cover Installation:Surface Mounting | Profile+PC cover per meter |
EC-065-t end cap per pair | ||||
MC-065 snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP066 | ![]() | ![]() | Aluminum LED profile 45x42MM,semicircle Option: 1),PMMA Opal Matt Cover, 2),PMMA Semi Clear Cover 3),PC Diffused Cover Installation:Surface Mounting | Profile+PC cover per meter |
EC-066 end cap per pair | ||||
MC-065 snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP017-R5 | ![]() | ![]() | Recessed Aluminium LED profile with flange for ceiling or wall, Option 1),PC Diffused Cover (without ribs) | Profile+PC cover per meter |
EC-017-R5 end cap per pair | ||||
SC017-R5 Spring Clip/PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP018-R3 | ![]() | ![]() | 35mm wide Aluminium LED profile without flange for ceiling or pendent light, Option 1),PC Diffused Cover (without ribs) | Profile+PC cover per meter |
EC-018-R3 end cap per pair | ||||
MC-018-R3 Metal snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP045-R | ![]() | ![]() | 2 inches Recessed Aluminium LED profile with flange, Option: 1),PC Diffused Cover, | Profile+PC cover per meter |
EC-045-R end cap per pair | ||||
SC045-R Spring clips per pair (single-sided spring) | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP046-R | ![]() | ![]() | 2 inches Aluminium LED profile without flange,as pendent light. Option: 1),PC Diffused Cover, Installation:Suspended or Surface Mounted | Profile+PC cover per meter |
EC-046-R end cap per pair | ||||
MC-5035 Metal snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP047-R1 | ![]() | ![]() | 3 inches Recessed Aluminium LED profile with flange, Option: 1),PC Diffused Cover, | Profile+PC cover per meter |
EC-047-R1 end cap per pair | ||||
SC045-R Spring clips per pair (single-sided spring) | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP048-R1 | ![]() | ![]() | 3inches Aluminium LED profile without flange,as pendent light. Option: 1),PC Diffused Cover Installation:Suspended or Surface Mounted | Profile+PC cover per meter |
EC-048-R1 end cap per pair | ||||
MC-5035 Metal snap per PCS | ||||
90 degree connector per PCS | ||||
180 degree connector per PCS | ||||
YF-ALP126 | ![]() | ![]() | Trimless recessed Aluminum Profile for plasterboard, wall washer Option: 1)pcs diffused cover (opal) 2)pcs semi clear cover | Profile+cover per meter |
EC126( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP127 | ![]() | ![]() | Trimless recessed Aluminum Profile for plasterboard, Option: 1)pcs diffused cover (opal) 2)pcs semi clear cover | Profile+cover per meter |
EC127( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP128 | ![]() | ![]() | Trimless recessed Aluminum Profile for drywall, Option: 1)pcs diffused cover (opal) 2)pcs semi clear cover | Profile+cover per meter |
EC128( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP078 | ![]() | ![]() | Aluminium LED profile with flange, recessed in 12.5mm drywall Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
EC078( end cap per pair) | ||||
Corner Mounting Accessories per PCS | ||||
Ceiling installation accessories per PCS | ||||
joint bridge per PCS | ||||
ALP078-R | ![]() | ![]() | Aluminium LED profile with flange, recessed in 12.5mm drywall Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
EC078-R( end cap per pair) | ||||
Corner Mounting Accessories per PCS | ||||
Ceiling installation accessories per PCS | ||||
joint bridge per PCS | ||||
YF-ALP090 | ![]() | ![]() | Aluminium LED profile for cove light, recessed into 5/8" ceiling Option: 1),pcs diffused cover Installation:Recessed | Profile+cover per meter |
EC090( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP091-E | ![]() | ![]() | Aluminium LED profile for cove light, recessed into 5/8" ceiling Option: 1),pcs diffused cover Installation:Recessed | Profile+cover per meter |
EC091-E( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP092 | ![]() | ![]() | Trimless recessed Aluminum Profile for 12.5mm thick plasterboard for choice Option: 1)pcs diffused cover without ribs | Profile+cover per meter |
EC092( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP093 | ![]() | ![]() | Trimless recessed Aluminum Profile for 12.5mm thick plasterboard for choice Option: 1)pcs diffused cover without ribs | Profile+cover per meter |
EC093( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP094 | ![]() | ![]() | Trimless recessed Aluminum Profile for 12.5mm thick plasterboard for choice Option: 1)PC Diffused Cover (without ribs) | Profile+cover per meter |
EC094( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP095 | ![]() | ![]() | Trimless recessed Aluminum Profile for 12.5mm thick plasterboard for choice Option: 1)pcs diffused cover without ribs | Profile+cover per meter |
EC094( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP068-S | ![]() | ![]() | Recessed Aluminium LED profile for drywall use, with holes on the flange Option 1),pcs diffused cover | Profile+PC milky white cover per meter |
Profile+PC black cover per meter | ||||
Profile+PC black cover per meter | ||||
Profile+PC white prism cover per meter | ||||
EC068-S( end cap per pair) | ||||
YF-ALP069-R | ![]() | ![]() | Recessed Aluminium LED profile for inside corner, for drywall use, with holes on the flange Option 1),pcs diffused cover | Profile+PC milky white cover per meter |
Profile+PC black cover per meter | ||||
Profile+PC black cover per meter | ||||
Profile+PC white prism cover per meter | ||||
EC069-R( end cap per pair) | ||||
YF-ALP070-R | ![]() | ![]() | Recessed Aluminium LED profile for inside corner, for drywall use, with holes on the flange Option 1),pcs diffused cover | Profile+PC milky white cover per meter |
Profile+PC black cover per meter | ||||
Profile+PC black cover per meter | ||||
Profile+PC white prism cover per meter | ||||
EC070-R( end cap per pair) | ||||
YF-ALP068-R | ![]() | ![]() | Recessed Aluminium LED profile for drywall use, with holes on the flange Option 1),pcs diffused cover | Profile+PC milky white cover per meter |
Profile+PC black cover per meter | ||||
Profile+PC black cover per meter | ||||
Profile+PC white prism cover per meter | ||||
EC069-R( end cap per pair) | ||||
YF-ALP068-R3 | ![]() | ![]() | Mini Aluminium LED profile for drywall use(12.5mm plaster board), without flange Option 1),PC diffused cover | Profile+PC cover per meter |
EC068-R( end cap per pair) | ||||
ALP068-R4 | ![]() | ![]() | Mini Aluminium LED profile for drywall use(12.5mm plaster board), with flange Option 1),PC diffused cover | Profile+PC cover per meter |
EC068-R4( end cap per pair) | ||||
YF-ALP068-SR1 | ![]() | ![]() | Recessed Aluminium LED profile for drywall use(12.5mm plaster board), with holes on one flange Option 1),PC diffused cover | Profile+PC cover per meter |
EC068-R( end cap per pair) | ||||
YF-ALP071 | ![]() | ![]() | Aluminium LED profile with long flange,recessed in the drywall or ceiling Option: pcs diffused cover | Profile+PC milky white cover per meter |
Profile+PC black cover per meter | ||||
EC071( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP071-S | ![]() | ![]() | Trimless recessed Aluminum Profile for plasterboard, Ceiling to wall Option: 1) PC diffused cover (opal) | Profile+PC milky white cover per meter |
Profile+PC black cover per meter | ||||
EC071( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP080-R | ![]() | ![]() | Aluminium LED profile whith flange, recessed into 5/8" drywall, Option: 1),pcs diffused cover, 1inch Installation:recessed | Profile+cover per meter |
EC080( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP081-R | ![]() | ![]() | Aluminium LED profile whith flange, recessed into 5/8" drywall, Option: 1),pcs diffused cover, 1.5inch Installation:recessed | Profile+cover per meter |
EC080( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP082 | ![]() | ![]() | Aluminium LED profile whith flange, recessed into 5/8" drywall, Option: 1),pcs diffused cover, Asymmetrical Installation:recessed | Profile+cover per meter |
EC082( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP083-R | ![]() | ![]() | Aluminium LED profile whith flange, recessed into 5/8" drywall, Option: 1),pcs diffused cover, 2 inches Installation:recessed | Profile+cover per meter |
EC083-R( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP084 | ![]() | ![]() | Aluminium LED profile whith single flange, recessed into 5/8" drywall, Floating Ceiling Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
EC084( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP084-R | ![]() | ![]() | Aluminium LED profile whith single flange, recessed into 5/8" drywall, Floating Ceiling Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
EC084( end cap per pair) | ||||
joint bridge per PCS | ||||
ALP084-S | ![]() | ![]() | Aluminium LED profile whith single flange, recessed into 5/8" drywall, Option: 1),PC diffused cover, Installation:recessed | Profile+cover per meter |
EC084-S( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP085 | ![]() | ![]() | Aluminium LED profile whith single flange, recessed into 5/8" drywall, Wall to Ceiling or Ceiling to Wall Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
EC085( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP086 | ![]() | ![]() | Aluminium LED profile whith flange, recessed into 5/8" ceiling or wall, Option: 1),pcs diffused cover, Installation:recessed | Profile+cover per meter |
EC086( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP087 | ![]() | ![]() | Aluminium LED profile whith flange, recessed into 10mm tile or marble, Option: 1),pcs diffused cover, Installation:recessed | Profile+PC milky white cover per meter |
Profile+PC black cover per meter | ||||
Profile+PC black cover per meter | ||||
Profile+PC white prism cover per meter | ||||
EC087( end cap per pair) | ||||
YF-ALP088 | ![]() | ![]() | Aluminium LED profile whith flange, recessed into 10mm tile or marble, Inside Corner Option: 1),pcs diffused cover, Installation:recessed | Profile+PC milky white cover per meter |
Profile+PC black cover per meter | ||||
Profile+PC black cover per meter | ||||
Profile+PC white prism cover per meter | ||||
EC087( end cap per pair) | ||||
YF-ALP089 | ![]() | ![]() | Aluminium LED profile whith flange, recessed into 10mm tile or marble, Outside Corner Option: 1),pcs diffused cover, Installation:recessed | Profile+PC milky white cover per meter |
Profile+PC black cover per meter | ||||
Profile+PC black cover per meter | ||||
Profile+PC white prism cover per meter | ||||
EC087( end cap per pair) | ||||
YF-ALP110-S | ![]() | ![]() | Aluminium LED profile for dry wall Option: 1),pcs diffused cover 1inch Square Lens Installation:Recessed | Profile+cover per meter |
EC110-S( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP110-R | ![]() | ![]() | Aluminium LED profile for dry wall Option: 1),pcs diffused cover 1inch Round Lens Installation:Recessed | Profile+cover per meter |
EC110-R( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP111-S | ![]() | ![]() | Aluminium LED profile Option: 1),PC Diffused Cover 1inch Square Lens Installation:Surface or Pendent | Profile+cover per meter |
EC110-S( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP111-R | ![]() | ![]() | Aluminium LED profile Option: 1),PC Diffused Cover 1inch Round Lens Installation:Surface or Pendent | Profile+cover per meter |
EC110-R( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP129 | ![]() | ![]() | Trimless recessed Aluminum Profile for drywall,12.5mm thick plaster board Option: 1)pcs diffused cover (opal) | Profile+PC fine frosted cover per meter |
Profile+PC black cover per meter | ||||
EC129( end cap per pair) | ||||
YF-ALP130 | ![]() | ![]() | Trimless recessed Aluminum Profile for tile Option: 1)pcs diffused cover (opal) | Profile+PC fine frosted cover per meter |
Profile+PC black cover per meter | ||||
EC129( end cap per pair) | ||||
ALP129-O | ![]() | ![]() | Recessed Aluminium LED profile for 12.5mm drywall use(outside corner), with holes on the flanges Option 1),PC diffused cover | Profile+PC fine frosted cover per meter |
Profile+PC black cover per meter | ||||
EC129( end cap per pair) | ||||
YF-ALP130 | ![]() | ![]() | Recessed Aluminium LED profile for 12.5mm drywall use(inside corner), with holes on the flanges Option 1),PC diffused cover | Profile+PC fine frosted cover per meter |
Profile+PC black cover per meter | ||||
EC129( end cap per pair) | ||||
YF-ALP033 | ![]() | ![]() | Waterproof led profile for floor, strong PC Diffused Cover,3mm thickness | Aluminum+PC cover per meter |
EC131 end cap per pair | ||||
YF-ALP034 | ![]() | ![]() | Waterproof led profile for floor, strong PC Diffused Cover, 3mm thickness, without color dot,endless | Aluminum+PC cover per meter |
EC131 end cap per pair | ||||
YF-ALP131 | ![]() | ![]() | Trimless recessed Aluminum Profile for ground Option: 1)pcs diffused cover (opal) | Aluminum+PC cover per meter |
EC131 end cap per pair | ||||
YF-ALP132 | ![]() | ![]() | Trimless recessed Aluminum Profile for wall or ground Option: 1)pcs diffused cover (opal) | Aluminum+PC cover per meter |
EC131 end cap per pair | ||||
YF-ALP133 | ![]() | ![]() | Trimless recessed Aluminum Profile for wall or ceiling Option: 1)pcs diffused cover (opal) | Aluminum+PC cover per meter |
EC131 end cap per pair | ||||
YF-ALP050 | ![]() | ![]() | Aluminum LED profile for wall light,without internal driver, Light from Up and down direction , Option: 1),pcs opal matte diffuser, 2),pcs semi-clear matte diffuser, 3),pcs clear diffuser Installation: Wall Mounted | Aluminum+PC cover per meter |
EC-ALP050 end cap per pair | ||||
MC-ALP050 snap per PCS | ||||
YF-ALP062 | ![]() | ![]() | Aluminum LED profile as wall light. indirect light uptowards Option: 1),PMMA opal matte diffuser, 2),PMMA semi-clear diffuser, 3),PMMA clear diffuser 4), pcs diffused cover Installation:Surface Mounted by aluminum profile,not clips | Aluminum+PC cover per meter |
EC-ALP062 end cap per pair | ||||
YF-ALALP169 | ![]() | ![]() | Slim wall light, light up or down Option: 1),PC diffused cover, 2),PC semi-clear cover Installation: surface mounting , | Aluminum+PC cover per meter |
EC-ALP169 end cap per pair | ||||
MC169 snap per PCS | ||||
joint bridge per PCS | ||||
YF-ALP170 | ![]() | ![]() | Slim wall light, light up and down Option: 1),PC diffused cover, 2),PC semi-clear cover Installation: surface mounting , | Aluminum+PC cover per meter |
EC-ALP170 end cap per pair | ||||
MC170 snap per PCS | ||||
joint bridge per PCS | ||||
YF-SK1270 | ![]() | ![]() | Low glare profile with regressed cover Wall to ceiling, invisble flange Option: 1),PC semi clear cover, 2),Prismatic cover Installation: surface mounting or pendent mounting , | Aluminum+PC cover per meter |
EC1270 end cap per pair | ||||
joint bridge per PCS | ||||
YF-SK1580 | ![]() | ![]() | Aluminum Profile for toe kick line 1) pcs diffused diffuser(opal) Surface mounting | Aluminum+PC cover per meter |
EC1580 end cap per pair | ||||
joint bridge per PCS | ||||
YF-SK1580TR | ![]() | ![]() | Aluminum Profile for toe kick line 1) pcs diffused diffuser(opal) recessed mounting | Aluminum+PC cover per meter |
EC1580 end cap per pair | ||||
joint bridge per PCS | ||||
YF-ALP167 | ![]() | ![]() | Aluminum profile for architectural lighting, 12.5mm drywall Option 1) PC diffused cover (opal), 2) PC semi-clear cover Installation recessed mounting , | Profile+PC cover per meter |
EC167( end cap per pair) | ||||
YF-ALP168 | ![]() | ![]() | Aluminum profile for architectural lighting, 12.5mm drywall Option 1) PC diffused cover (opal), 2) PC semi-clear cover Installation recessed mounting , | Profile+PC cover per meter |
EC168( end cap per pair) | ||||
YF-ALP127-R | ![]() | ![]() | Trimless recessed Aluminum Profile for plasterboard, Ceiling to wall Option: 1) PC diffused cover (opal) 2) PC semi clear cover | Profile+PC cover per meter |
EC127-R( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP128-R | ![]() | ![]() | Trimless recessed Aluminum Profile for drywall, light shining from wall to ceiling Option: 1) PC diffused cover (opal) 2) PC semi clear cover | Profile+PC cover per meter |
EC128-R( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-ALP077 | ![]() | ![]() | Aluminium LED profile for wardrobe Option: PC Diffused Cover | Profile+PC cover per meter |
EC077( end cap per pair) | ||||
hang braket/pcs | ||||
YF-ALP166 | ![]() | ![]() | Aluminum profile for architectural lighting, 12.5mm drywall Option: 1),PC Diffused Cover, Installation: recessed mounting , | Profile+PC cover per meter |
EC168( end cap per pair) | ||||
YF-ALP159-TR | ![]() | ![]() | Low glare profile with regressed cover,Ceiling to Wall, with flange Trimless recessed Option: 1),PC semi clear cover, 2),Prismatic cover Installation: surface mounting or pendent mounting , | Aluminum+PC cover per meter |
Aluminum + Prism cover per Meter | ||||
EC158( end cap per pair) | ||||
joint bridge per PCS | ||||
YF-T30 | ![]() | ![]() | 30mm diameter aluminum profile with PC frosted cover for surface or pendent light | Profile+PC cover per meter |
ECT30( end cap per pair) | ||||
IC-ALP027 snap per PCS | ||||
YF-T40 | ![]() | ![]() | 40mm diameter aluminum profile with PC Frosted Cover for surface or pendent light | Profile+PC cover per meter |
ECT40( end cap per pair) | ||||
Hanging wire per PCS | ||||
YF-T60 | ![]() | ![]() | 60mm diameter aluminum profile with PC Frosted Cover for pendent light | Profile+PC cover per meter |
ECT60( end cap per pair) | ||||
Hanging wire per PCS | ||||
YF-T100 | ![]() | ![]() | 4 inches tube for pendent light, Option: 1),PC Frosted Cover Installation:Pendent | Profile+PC cover per meter |
ECT100( end cap per pair) | ||||
Hanging wire per PCS |
Part Number | Section Size mm | Lighting Direction | PCB Width mm | Picture | Size Drawing | Refer Apply |
---|---|---|---|---|---|---|
YF-TVD13 | round dia 13 | round | 5 | ![]() | ![]() | ![]() |
YF-TVD20 | round dia 20 | round | 10 | ![]() | ![]() | ![]() |
YF-TVD22H | round dia 20 | round | Double side 8 | ![]() | ![]() | ![]() |
YF-TVD40 | round dia 40 | round | Double side 10 | ![]() | ![]() | ![]() |
YF-SV0308 | 3*8 | Sideview | 5 | ![]() | ![]() | ![]() |
YF-SV0410 | 4*10 | Sideview | 5/6 | ![]() | ![]() | ![]() |
YF-SV0612 | 6*12 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV0612H | 6*12 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV0616H2 | 6*12 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV0616H3 | 6*16 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV0815 | 8*15 | Sideview | 5 | ![]() | ![]() | ![]() |
YF-SV0817 | 8*17 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV1018 | 10*18 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1023 | 10*23 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1023H | 10*23 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1212 | 12*12 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV1220 | 12*20 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1220B | 12*20 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1220C | 10*20 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1220H | 10*20 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV1225 | 12*25 | Sideview | 12 | ![]() | ![]() | ![]() |
YF-SV0613 | 6*13 | Sideview | 8 | ![]() | ![]() | ![]() |
YF-SV1616 | 16*16 | Sideview | 10 | ![]() | ![]() | ![]() |
YF-SV2020 | 20*20 | Sideview | 10/12 | ![]() | ![]() | ![]() |
YF-SV3020 | 30*20 | Sideview | 15 | ![]() | ![]() | ![]() |
YF-SVD22 | round dia 22 | Sideview | Double side 5 | ![]() | ![]() | ![]() |
YF-SVD22B | round dia 22 | Sideview | Double side 8 | ![]() | ![]() | ![]() |
YF-TV0606 | 6*6 | Sideview | 3 | ![]() | ![]() | ![]() |
YF-TV1010 | 10*10 | Topview | 5 | ![]() | ![]() | ![]() |
YF-TV1010C | 10*10 | Topview | 6 | ![]() | ![]() | ![]() |
YF-TV1010H | 10*10 | Topview | 6 | ![]() | ![]() | ![]() |
YF-TV1010U | 10*10 | Topview | 5 | ![]() | ![]() | ![]() |
YF-TV1105 | 11*5 | Topview | 8 | ![]() | ![]() | ![]() |
YF-TV1212 | 12*12 | Topview | 8 | ![]() | ![]() | ![]() |
YF-TV1212C | 12*12 | Topview | 8 | ![]() | ![]() | ![]() |
YF-TV1212H | 12*12 | Topview | 8 | ![]() | ![]() | ![]() |
YF-TV1305H | 13*5 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1505 | 15*5 | Topview | 12 | ![]() | ![]() | ![]() |
YF-TV1513 | 15*13 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1525 | 15*25 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1616 | 16*16 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1616H | 16*16 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1616H3 | 16*16 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1616U | 16*16 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV1620 | 16*20 | Topview | 12 | ![]() | ![]() | ![]() |
YF-TV1723 | 17*23 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV2010U | 20*10 | Topview | 10/12 | ![]() | ![]() | ![]() |
YF-TV2014 | 20*14 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV2014C | 20*14 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV2016 | 20*16 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV2018U | 20*18 | Topview | 10 | ![]() | ![]() | ![]() |
YF-TV2020 | 20*20 | Topview | 10/12 | ![]() | ![]() | ![]() |
YF-TV2020H | 20*20 | Topview | 10/12 | ![]() | ![]() | ![]() |
YF-TV2020U | 20*20 | Topview | 10/12 | ![]() | ![]() | ![]() |
YF-TV2020U2 | 20*20 | Topview | 10/12 | ![]() | ![]() | ![]() |
YF-TV2020U3 | 20*20 | Topview | 12 | ![]() | ![]() | ![]() |
YF-TV3020 | 30*20 | Topview | 15 | ![]() | ![]() | ![]() |
YF-TV3020U | 30*20 | Topview | 15 | ![]() | ![]() | ![]() |
YF-TV3020U2 | 30*20 | Topview | 15 | ![]() | ![]() | ![]() |
YF-TV4015U | 40*15 | Topview | 15/20 | ![]() | ![]() | ![]() |
YF-TV4025 | 40*25 | Topview | Topview 20/sideview 8 | ![]() | ![]() | ![]() |
YF-TV5015U | 50*15 | Topview | 15/20 | ![]() | ![]() | ![]() |
YF-TV5025 | 50*25 | Topview | 20 | ![]() | ![]() | ![]() |
YF-TV7030 | 70*30 | Topview | 30 | ![]() | ![]() | ![]() |
YF-TV10030 | 100*30 | Topview | 20*2 | ![]() | ![]() | ![]() |
YF-TVV22 | V corner 22*22 | V corner | 5 | ![]() | ![]() | ![]() |
Buy cob led strips key tips and considerations, COB LED Strip Lights Buying Guide
COB (Chip On Board) LED strips have been a popular DIY lighting solution for years. As a new type of soft light strip, COB light strip has more advantages such as higher brightness, more uniform lighting, etc. COB LED light strip is welcomed by many architects and lighting designers.
This article will tell you what is a COB LED light strip, what are the advantage of a COB light strip, What is the difference between COB and SMD,how to choose COB led strip lights, top 9 consideration for buying a COB light strip, how to install a COB lighting strip, how to apply a COB light strip, how Maintaining COB Strips.
With more than 10 years in the LED lighting business, Yiford owns a lot of experience in the lighting field. Yiford now offers some new type of non spot light strip COB light strips.
This new type of light strip offers uniform luminescence, and is popular among many different types of customers for a variety of reasons. uniform luminescence, high brightness, good flexibility, and a wider range of applications. It is highly respected and loved by users. This is definitely the buying guide you need.
Table of Contents
What is COB LED Strip lights?
below is the video for cob light strip overall display:
Warm white, neutral white, cool white, tunable white.
Red, green, blue, yellow, pink, purple,
RGB Color Change and RGB addressable COB LED strip Lights.
Outdoor waterproof light strips.
Different voltages 5V 12V 24V.
COB LED Strips Lights Range
RGB Color changing, 12V/24V COB LED strip lights. Rich and varied colors. Indoor & Waterproof RGB LED Strips.
Magic Dream Color Changing, RGB IC COB LED Strips, each led could be controller, digital and addressable. 5V, Indoor & Waterproof.
Dynamic tunable white LED strip lights, produce any CCT from 2300K-4000K-6500K. warm white+neutral white+cool white
Green is freshness, health, hope, and a symbol of life; it has a sense of security, peace and comfort
Quiet like the sky on a sunny day and the deep sea,bringing a fresh and peaceful.
Purple brings dreams, nobility, elegance, mystery, and also represents an extraordinary status.
18 major characteristics of COB light strips
COB LED strips Lights Features: What makes them so special?
![COB LED Strip Lights Buying Guide 838 180 degree light emitte](https://www.yiford.com/wp-content/uploads/2022/07/180-degree-light-emitte-150x150.webp)
Good luminous consistency
No bright areas and dark spots are the biggest advantages of COB light strips, which bring better results and a wider range of applications. high density with uniform lighting.
![COB LED Strip Lights Buying Guide 839 high cri](https://www.yiford.com/wp-content/uploads/2022/07/high-cri-150x150.webp)
High color rendering index
The color rendering index is above 90, CRI>90 which can make the color reproduction better, the object looks richer, the details are more obvious, and the eyes are protected at the same time
![COB LED Strip Lights Buying Guide 840 soft flexible](https://www.yiford.com/wp-content/uploads/2022/07/soft-flexible-150x150.webp)
Soft and flexible
LED light strips are flexible and can be bent to form different smooth and beautiful linear lighting shapes. It is also easy to apply to curved surfaces.
![COB LED Strip Lights Buying Guide 841 cuttable](https://www.yiford.com/wp-content/uploads/2022/07/cuttable-150x150.webp)
Can be cut
The light strip is cuttable and can be cut in small increments to adjust to the required length. After cutting, they can be connected together by using LED lights with solderless connectors or by soldering.
![COB LED Strip Lights Buying Guide 842 small volume](https://www.yiford.com/wp-content/uploads/2022/07/small-volume-150x150.webp)
Small size
LED light strips is thin and flat, low key appearance, easy to hide in a small space, to achieve the effect of not seeing the light.
![COB LED Strip Lights Buying Guide 843 slim](https://www.yiford.com/wp-content/uploads/2022/07/slim-150x150.webp)
Ultra thin
thickness is only 2mm, and the width can be as low as 2mm. It is easy to add lights in a small space.
![COB LED Strip Lights Buying Guide 844 dimmable](https://www.yiford.com/wp-content/uploads/2022/07/dimmable-150x150.webp)
Dimmable
Is the dimmable LED strip dimmable? Yes, they are fully dimmable. With a dimmer or controller, the LED strip can be easily dimmed to the desired brightness level
![COB LED Strip Lights Buying Guide 845 environment protect](https://www.yiford.com/wp-content/uploads/2022/07/environment-protect-150x150.webp)
Environmental protection
It does not contain harmful substances such as mercury and lead, and does not contain UV and infrared rays. It is safer for your eyes, will not cause pollution and damage to the earth
![COB LED Strip Lights Buying Guide 846 save energy](https://www.yiford.com/wp-content/uploads/2022/07/save-energy-150x150.webp)
Low energy consumption
LED has very low energy consumption and is an environmentally friendly light. In the long run, the use of LED strips can save a lot of operating costs.
![COB LED Strip Lights Buying Guide 843 slim](https://www.yiford.com/wp-content/uploads/2022/07/slim-150x150.webp)
Ultra light
A roll of 5 meters COB chip on board light belt weighs only about 80 grams, which is convenient to handle and relatively low transportation cost. it will not increase the weight of the object to be installed
![COB LED Strip Lights Buying Guide 848 adhesive](https://www.yiford.com/wp-content/uploads/2022/07/adhesive-150x150.webp)
Easy install with adhesive
These are attached to the LED light strips with 3M adhesive, which can be installed without professional installers.
![COB LED Strip Lights Buying Guide 849 waterproof](https://www.yiford.com/wp-content/uploads/2022/07/waterproof-150x150.webp)
Indoor and Waterproof
Provide indoor and outdoor waterproof LED light strips.
![COB LED Strip Lights Buying Guide 850 low voltage](https://www.yiford.com/wp-content/uploads/2022/07/low-voltage-150x150.webp)
The safe low voltage
COB light strip uses 12V or 24V DC low voltage power supply to work. Therefore, both young and old, including children, can be used safely.
![COB LED Strip Lights Buying Guide 851 accessary](https://www.yiford.com/wp-content/uploads/2022/07/accessary-150x150.webp)
Complete accessories
COB light belt may use materials such as power supply controllerconnector waterproof shell aluminum groove etc.
![COB LED Strip Lights Buying Guide 852 low heat](https://www.yiford.com/wp-content/uploads/2022/07/low-heat-150x150.webp)
Low energy consumption
LED has very low energy consumption and is an environmentally friendly light. In the long run, the use of LED strips can save a lot of operating costs.
![COB LED Strip Lights Buying Guide 838 180 degree light emitte](https://www.yiford.com/wp-content/uploads/2022/07/180-degree-light-emitte-150x150.webp)
Large light emitting angle
The light emitting angle of the COB LED strip is 180 degrees, which can illuminate a wider range.
![COB LED Strip Lights Buying Guide 854 colorful](https://www.yiford.com/wp-content/uploads/2022/07/colorful-150x150.webp)
Diversified colors
LED strips perfectly create a variety of lighting atmospheres. There are many options for different color temperatures and colors, single color/ RGB/digital dream color...
![COB LED Strip Lights Buying Guide 855 long life](https://www.yiford.com/wp-content/uploads/2022/07/long-life-150x150.webp)
Long life
COB light strip is to directly encapsulate the LED chip on the light strip. Because the chip is directly encapsulated on the light strip, the COB strip light dissipates heat faster and has a longer life span.
then you should start there first, because this will cover all the basics of LED Strip lighting.>>>>>>If you are already familiar with light strips,
hope you are happy to learn how COB light strips make the world of LED lighting better than reading!
This guide will guide newer and experts on
How to buy the most suitable COB LED strips for work
How to overcome common installation problems, and how to better use them.
What is COB LED strip?
COB (chip on board) LED strips are different from traditional led SMD LED strips. COB strip lights are strips that encapsulate the chip on a flexible circuit board. Chips are mostly flip chips, which are linearly solid bonded on the PCB, and then a layer of packaging glue mixed with phosphor is directly dropped on the surface of the chip light source. The appearance resembles a strip of ramen glued to the PCB board.
The light emitted by the chip is refracted, reflected, and interacted with the phosphor in the packaging colloid. phosphor coating reflective surface made cob led strip lights single color or rgb dream colorful, The colloid evenly emits light of different colors and color temperatures.
![COB LED Strip Lights Buying Guide 856 led strip on off](https://www.yiford.com/wp-content/uploads/2022/07/led-strip-on-off.webp)
![COB LED Strip Lights Buying Guide 857 COB LED Light Strips And SMD Light Strips](https://www.yiford.com/wp-content/uploads/2022/07/compare-cob-and-smd-1024x238.webp)
The difference between SMD leds and COB leds light
1. Due to the structural characteristics of the COB (chip on board) light strip, the light emitting surface is a linear colloid; while the ordinary SMD (smd surface mount) type light strip, its structure is a luminous lamp bead, which is attached to the PCB board. Therefore, the light emitted by the high quality COB light strip should be much more uniform, linear, and there is no light spot;
2. Since the COB chip is directly solidified on the PCB board, the heat of the chip can be quickly transferred to the PCB board. Therefore, the heat dissipation speed of the chip of the COB led light is faster than that of the SMD type strips, and the light decay of the COB light strip is smaller and the life span is longer;
compared to cob leds, new led technology led strip light brings better lighting solution. heat sink not necessary, cost effective. energy efficiency.
3. The luminous angle of the light emitting surface of the COB led light source can reach 180°.
4. The main components of the COB light strip include: led chip, fluorescent agent, FPC board, double sided adhesive.
The new COB (chip on board) LED lighting technology consists of many small chips integrated into a large single led chip
Compare COB and SMD leds:
![COB LED Strip Lights Buying Guide 858 cob structure](https://www.yiford.com/wp-content/uploads/2022/07/cob-structure.webp)
COB LED
the structure diagram of the COB (chip on board cob) light strips, which is mainly composed of PCB/phosphor/chip/gold wire. We can see that the chip is directly connected to the PCB board.
![COB LED Strip Lights Buying Guide 859 smd structure](https://www.yiford.com/wp-content/uploads/2022/07/smd-structure.webp)
SMD LED
the structure diagram of the SMD (surface mounted device) led light strips, which is mainly composed of PCB/pad/bracket/chip/gold wire/phosphor. The chip here is connected to the PCB board through the bracket and the pad.
![COB LED Strip Lights Buying Guide 860 smd and cob led strip compare](https://www.yiford.com/wp-content/uploads/2022/07/smd-and-cob-led-strip-compare.webp)
COB and SMD LED Strips
Let’s look at this SMD light strip. This is an SMD LED lamp bead. The white outside is the bracket frame. It has a certain thickness.
The COB light strip does not have this bracket, so on the same length PCB circult board, the COB light strip There are more chip light source that can be arranged, and the density is higher. One thousand or even two thousand chips can be reached per meter.
The brightness and uniformity of this COB light strips far exceed the SMD light strips.
Summary COB and SMD Difference
COB LED achieves higher brightness, and the appearance is more uniform than its predecessor. COB flip chip technology provides a higher level of light scattering, eliminating those dark and then bright spots produced by narrow beam accessories. In addition, COB led light has higher reliability, better energy efficient, and longer service life than SMD LED lights.
![COB LED Strip Lights Buying Guide 861 Yiford Company Brief Introduce Profile Video](https://www.yiford.com/wp-content/uploads/2022/07/about-us-factory-5-1024x576.webp)
COB LED strip technology innovation
With the aid of the newly developed “chip on board” flip chips technology, LED strips can achieve uniform beam quality because individual LED dots are no longer visible.
Using continuous flexible led light strips, you can create delicate, narrow light. This is especially due to the high density of LED strips, with up to 500 chips per meter. linear light cob encapsulation solved SMD led strips with dark areas, led chips package direct on the circuit boards, flexible led strips has good heat dissipation, The effect of using cob led strip lights as effect light or path and direction lighting is particularly impressive.
![COB LED Strip Lights Buying Guide 862 cob led strips product machine](https://www.yiford.com/wp-content/uploads/2022/07/cob-led-strips-product-machine-1024x363.webp)
COB LED Strips production process:
Traditional SMD LED strips use SMT surface mounted technology. The lamp bead of the light strips is welded on the circuit board by SMT process, and then the waterproof process level is achieved through the outer glue.
The COB LED strip is directly fixed on the PCB ( printed circuit boards ) by the packaging manufacturer using high precision flip chip technology, and then the light emitting color is directly realized through the silicone coating and different waterproof levels are processed. each stage has quality control staff inspect to be sure good quality, kindly visit here to get know more about process of the COB led strip lights. you can read led strip factory process and machine
![COB LED Strip Lights Buying Guide 863 lighting blog4](https://www.yiford.com/wp-content/uploads/2022/07/lighting-blog4-1024x272.webp)
Cost of COB LED Strip Lights
Traditional SMD LED strips have been developed for more than 10 years. All supply links and suppliers are very mature. Every supply chain has fierce competition and a transparent market. At present, enterprises are operating models with low profits and high turnover.
Compared with COB LED strips, it has a great advantage in cost. Flexible COB LED strips have a short development time. In the short term, compared with traditional light strips, there is no advantage in cost. As the technology matures, COB LED strips have great advantages.
The Top key points for buying LED strip Lights
LED light strips purchase all inclusive guide
What color do you need?
White color features
what color temperature do you want for white light?
If you need to install a white light, the color temperature of the white color light must be considered.
Color temperature is a professional concept. It simply means the color of light. As far as white light is concerned, the color temperature is generally expressed in thousands of digits. The smaller the number, the yellower and redder the color, and the larger the number, the whiter and bluer the color. The unit is represented by K.
The color temperature of conventionally produced LED has 2300K, 3000K, 4000K, 6500K, this range, for example, 2400K represents yellow white light, and 6500k represents white blue light.
![COB LED Strip Lights Buying Guide 864 color temperature](https://www.yiford.com/wp-content/uploads/2022/12/640-2-1.webp)
How to choose the color temperature of the LED strip?
Let me talk about some basic common sense first. The human eye’s sensitivity to light is in the very limited range of visible light. The human eye can perceive different feelings in the white light field with different color temperatures.
For example: 2300K, 3000K warm white perception is a very warm color, this color temperature is more suitable for people to use when they are relaxing or resting, such as bedrooms, coffee shops and other places;
4000K, neutral white, more suitable for business occasions, so it will not be too warm, and will not make people very excited;
5000K and 6500K belong to the range of cold white light. This color temperature gives a sense of spirit and excitement. This color temperature is suitable for shopping malls, offices, schools and public places with many people.
The specific color temperature to choose depends on your needs and where you are using it. At present, the color temperature of LEDs produced by YIFORD Technology is relatively complete. All color temperatures are available, which can also provide you with more choices according to your own preferences. How to choose the right color temperature will let know the role of the led lighting’s color temperature.
![COB LED Strip Lights Buying Guide 865 White color tempteraure](https://www.yiford.com/wp-content/uploads/2022/07/White-color-tempteraure-1024x343.webp)
Color of COB LED Strip Lights
Adjustable white CCT LED light strips
Also called tunable CCT white light strips, can produce lights with a color temperature of 2700K to 6500K. They are made by using both warm white light and cold white light LEDs on the same FPC board. The light of warm white and cold white LEDs are mixed to different relative brightness levels to produce lighting of different color temperatures.
What is tunable white CCT COB Strip Lights?
below video about tunable white dotless led strip lights tunable white COB strips will let you know:
Review CCT White tunable cob led strips
1.2700K-6000K color temperature can be switched at will
Intelligent control, color temperature change, Composed of two chips, cold white, natural color, and warm white can be switched as you like, you only need one light strip
2. The brightness of the light can be controlled on demand
Whether it is too bright and dazzling, or too dark to see clearly, it will affect vision health. Low voltage three color stepless dimming, and the controller can adjust the brightness steplessly, you can always find the brightness state that you feel comfortable.
3. More extensive applications
Even, bright and non glaring light, although it is not the C position in the light, it is used as a decorative technique to render a delicate, light and luxurious space atmosphere, which makes people feel comfortable and experience better. Use different color temperatures as the environment changes.
Best color temperature for room
![COB LED Strip Lights Buying Guide 866 Warm White And Neutral Light For Room](https://www.yiford.com/wp-content/uploads/2022/07/white-light-for-room.webp)
Living room color temperature
When the living room is mainly illuminated, the color temperature is generally recommended to be between 4000-6000K for the best experience. Such as watching TV at night, switching to the warm light of 2700K is both eye protection and comfort.
Bedroom color temperature
The bedroom is used as a place to sleep and rest. In fact, nobody like seeing dazzling lights. Therefore, it is very important to install a two color temperature light belt in the bedroom. The light belt not only plays the role of beautifying the shape and space, but also conveys the sensory atmosphere.
It is recommended to adjust the normal color temperature of the bedroom to between 2700-3500. If you need high brightness lighting, you only need to switch the white lighting mode, which is very suitable.
Placed on the top of the bed can replace or cooperate with the bedside lamp to create a different visual effect and space atmosphere. At night, it is a weapon to turn off the main light and exaggerate the mood, giving the bedroom a romantic and warm feeling. if you are designer and wonder how to simple use the led strips for your room lighting, you could refer this article 3 Step get interior lighting design wonderful
Colorful Light strips
![COB LED Strip Lights Buying Guide 867 Led Lighting For Room](https://www.yiford.com/wp-content/uploads/2022/07/cob-led-strips-2-3-1024x722.webp)
What is colorful RGB led strip lights
But, If you want colored lighting, you can choose single color strip lights, such as red, green, blue, or purple, pink and so on. Or you can choose multi-color changing COB RGB LED light strips or RGB IC PIXEL light strips
Different colors of light create a visual sense of various postures. It has many different forms and subtle effects on our emotions, such as the light and shade of space, color, atmosphere, etc., which stimulate our perception of the world and indirectly affect our emotions. you may wonder How different colors of light affect our lives
here is the video for all different single color led strip lights.
How much light density do you want? That is, how bright a light strip you want
The density of LED strips refers to how many LEDs there are in an area. For LED flexible light strips, the density is measured by the “number of LEDs per meter”. To be more accurate, LED strips should indicate how many LEDs per meter or how many LEDs per foot. It is often referred to as the LED density of the light strip.
LED density indicates the distance between one LED and the next LED, expressed in the number of LEDs per meter or per foot. Taking SMD light strips as an example, there are 60 LEDs/meter, 120 LEDs/meter, and 18 LEDs/foot. Or 36 LEDs/foot.
The density of COB light strips are: 210LEDs/meter, 320 LEDs/meter, 378 LEDs/meter, 384 LEDs/meter, 480 LEDs/meter, 528 LEDs/meter, 680 LEDs/meter, 768 LEDs/meter, 1134 LEDs/meter.
How does LED density affect the brightness of LED strips?
Generally speaking, when all other factors are comparable, high density LED strips are brighter than low density LED strips. This is because there are more LEDs that emit light on higher density LED strips. Comparable factors refer to the same current drawn by the same type of LEDs and LED strips.
A higher density light strip equates to higher quality, brighter light. The following table shows the difference between standard and high density strips. Please pay attention to the difference in lumen output and the cutting length and maximum running length of each.
Because the surface of the COB light strip is completely sealed by the luminous agent, the number of chips cannot be determined, but it can be seen from the markings on the PCB board.
![COB LED Strip Lights Buying Guide 868 led quantity per meter](https://www.yiford.com/wp-content/uploads/2022/07/led-quantity-per-meter.png)
No. | Density LED Qty/Meter | Color | Cuttable Length | Voltage | Effect (±10%) | Lumen Watt(±10%) |
1 | 312 LEDs | white | 19.23mm | 12V | 8W/M | >70Lm/W |
2 | 312 LEDs | white | 38.46mm | 24V | 8W/M | >70Lm/W |
3 | 320 LEDs | white | 50mm | 12V/24V | 8W/M | >100Lm/W |
4 | 320 LEDs | white | 25mm | 5V | 8W/M | >100Lm/W |
5 | 384 LEDs | white | 41.66mm | 12V/24V | 10W/M | >100Lm/W |
6 | 384 LEDs 5mm | white | 41.66mm | 12V/24V | 10W/M | >100Lm/W |
7 | 480 LEDs | white | 50mm | 12V/24V | 11W/M | >100Lm/W |
8 | 528 LEDs | white | 45.45mm | 12V/24V | 14W/M | >100Lm/W |
9 | 608 LEDs | White CCT | 26.31mm | 24V | 14W/M | >100Lm/W |
10 | 768 LEDs | RGB | 31.26mm | 24V | 14W/M | >100Lm/W |
11 | 756 LEDs | RGB | 23.81mm | 12V | 14W/M | >100Lm/W |
The definition of lumen?
Lumen is a measure of the brightness perceived by the human eye. In LED lighting, lumens can measure the brightness of light. This is different from Watt, which measures the energy of light. The word lumen means “light”, and it only makes sense when you understand what it measures. In other words, lumens can measure the amount of light your LED lights emit. The higher the lumens, the brighter the light will be.
What is luminous efficacy?
Luminous efficiency is another important factor regarding brightness. It is the ratio of the lumen value of the light strip to its wattage. Through this definition, we can see that the ratio measures the luminous efficiency of the light strip when using one watt of power.
With the same power consumption, LED strips with higher luminous efficiency can produce more lumens. To put it another way, in the case of producing the same brightness, the LED light bar with higher luminous efficiency consumes less power, thereby saving more operating costs.
The relationship between brightness and wattage?
The brightness of the LED strip is related to its wattage, that is, the power consumed by the flexible LED strip. Similar to a light bulb, the higher the wattage of the light strip, the brighter the light produced.
How many lumens does a space need?
When installing LED strips for homes, we often encounter this question: How many lumens does the space need? How many lumens per square foot should be planned to illuminate the room in the best and comfortable way?
In order to achieve the best brightness in different rooms, you can refer to the following table as a general guide:
Application Area | How many lms/sf |
Bedroom lighting | 10-20 lumens/sqft |
Stairs and corridor lighting | 10-30 lumens/sqft |
Under the cabinet lighting | 20-40 lumens/sqft |
Understage lighting | 20-40 lumens/sqft |
Kitchen island baseboard light | 20-50 lumens/sqft |
Bathroom lighting | 50-70 lumens/sqft |
Kitchen countertop lighting | 60-80 lumens/sqft |
How much voltage do you need? 5V, 12V, or 24V?
![COB LED Strip Lights Buying Guide 869 voltage](https://www.yiford.com/wp-content/uploads/2022/07/voltage.png)
12V light strip
For new users of LED strips, we recommend 12V LED strips, because 12V power supplies or power adapters are more common in the market.
In addition, the cutting increment of the 12V light strip is shorter than that of the 24V light strip of the same model. The smaller cutting increment means that it is easier to cut and adjust the LED light strip to the exact installation length required.
Most cars, RVs, boats and yachts have 12V power systems. Therefore, 12V LED strip is the only choice.
24V light strip
The working current of 24V LED light bar is half of that of 12V LED light bar, which is determined by the relationship between power, current and voltage.
If a lighting project needs to install LED strips for a long time, the 24V version is better. The reason is a well known problem “voltage drop”. Voltage drop is a phenomenon in which the voltage drops along the light strip, because resistance in the path of the light strip is inevitable.
why 24V LED lights is better than 12V?
Due to the voltage drop, the light at the beginning of the long strip of LED strips will be brighter than the light at the end of the strips. The voltage drop of a 24V LED light bar is less than that of a 12V LED light bar. Many 24V LED light strips can run continuously for up to 10 meters (about 32 feet), and the brightness will not drop significantly from the start to the end of the light strip.
To put it simply, the 12V light strip has a relatively small power and is used in small scale occasions. The power of the 24V light strip is relatively large, and it is used in a wide range of spaces.
Constant current light strip
Current controlled LED strips can solve the voltage drop problem to a certain extent. However, current controlled LED strips are more expensive than ordinary 12V or 24V LED strips because they have more complicated circuit designs, use more electrical components, and require longer manufacturing time.
5V light strip
If you want to connect the COB light strip to the power bank, computer host, or TV, you can use 5V. The flexible light strip has a USB interface at one end, and you can plug it in and use it.
Lighting length and width
![COB LED Strip Lights Buying Guide 870 pcb width](https://www.yiford.com/wp-content/uploads/2022/07/pcb-width.png)
The length of our LED strips is usually 5 meters (16.4 feet). Why is the LED strip made 5M long? This is because of the voltage drop of the light strip. For a 12V LED light strips, if the length exceeds 5M, the brightness of the LED at the end of the light bar will be significantly reduced, and a large amount of heat will accumulate at the same time, which is not conducive to the life of the light strip.
The width of the COB light strip is usually 5mm, 8mm, 10mm and 12mm to choose from. The 5mm ultra thin version is designed to meet the needs of special lighting projects. Yiford also has a 3mm wide COB light strip, which is convenient for some projects that require a smaller size LED light strip.
CRI / Color Rendering Index
![COB LED Strip Lights Buying Guide 871 CRI compare](https://www.yiford.com/wp-content/uploads/2022/07/CRI-compare.webp)
CRI is a measure of the ability of a light source to render the original color of the object illuminated by the light source. The original color is defined by the color of the object when it is illuminated by sunlight.
The closer the color of the object rendered by the light source is to the color of the same object under the sun, the higher the color rendering index of the light source. The value of CRI ranges from 0 to 100. By definition, sunlight has a perfect CRI with a value of 100.
Note: The higher the CRI value, the better the quality in terms of the light source’s ability to render colors. This is important for lighting applications where color is important.
For example, if you need to light up your meat counter, then if you don’t want the meat to have an old, brown hue, then the color rendering of red is essential. The best CRI is to faithfully replicate the colors of goods and products in the store.
You may have noticed the produce area where the supermarket sells vegetables and fruits.
When using a light strip with a high color rendering index, the product presents a natural saturated color, which looks juicy, shiny and fresher. Therefore, they are clearly more attractive to customers.
The same goes for fresh meat. Under the light zone with high color rendering index, the meat is purple red and looks fresher. If the CRI is lower than 80, the color of the illuminated object will be distorted, as if it is covered by a gray veil. The object looks lacklustre and dull.
From the perspective of protecting human eyesight, long term use of light strips requires a CRI higher than 80. Light with a CRI lower than 80 will affect the human eye’s ability to distinguish colors. Prolonged exposure to light with a color rendering index of less than 80 may cause various vision problems. you may have some question about the CRI, what’s different with high CRI and low CRI? here you will get answer: What is CRI? What is high color rendering index?
All Yiford LED COB strips have CRI 90+. In order to meet your professional needs, we also provide CRI 95+ strip lights.
Do you need a shaped shell or protective cover?
For indoor applications, please choose IP20 indoor LED strips. For outdoor or semi outdoor applications, please use outdoor waterproof LED strips with IP65 or above.
Waterproof LED strips are also suitable for indoor use because their outer waterproof tube can protect electrical components from dust and impact.
Ordinary light strips are IP20, and the waterproof grades of waterproof light strips are IP65, IP66, IP67, IP68, etc. For SMD LED light strips, how many ways are there to be waterproof? as follows:
1. Epoxy waterproof LED linear light strips, many of which are made of epoxy resin and PU glue. Place the LED linear light strip flat on the glue table, and fix the LED light strip with double sided adhesive on the reverse side, and then put a layer of glue on the outside of the LED light strip to achieve the effect of waterproofing.
2. Hollow full tube waterproof light bar, generally used sleeves are silicone full tube and PVC full tube, or aluminum profile.
3. Semi sleeve drip waterproof or semi sleeve glue waterproof, that is, the bottom is covered with a semi sleeve, and then do the drip or glue treatment.
4. A full set of tubes is filled with glue or a full set of tubes is drawn with glue, which is the highest waterproof level among the current LED linear lights, and can be used completely in the water. For COB light strips, because there is a layer of fluorescent glue on the surface, it is not suitable to add glue on the surface. The waterproof treatment of COB light strips generally uses transparent sleeves or silicone tubes or aluminum profiles, and then waterproof treatment at the end, that is, the second type of waterproof treatment.
From this article how to install the cob led strips for your project you will get know how to install the soft light strip, but more often, lighting projects not only need the strip lights, but also need the shell or protective cover or shape shell, which could make the lighting look more beautiful, more spacious, and more artistic.
Which type shells could be used?
YIFORD provides three kinds of housings for LED light strips to meet the needs of users in different places:
1. If you want a flexible shell, please choose Silicone led channel system series. Strong flexibility, arbitrary bending, 30 degree to 360 degree light is available.
2. If you want hard line lighting, please choose LED Aluminum Profile series. Small shell, hundreds of different sizes, all corners can be applied.
3. If you want to use in commercial lighting, please choose the Ceiling Lights special shaped series. Large scale shell, large-area lighting, easy to combine into different shapes.
Neon Silicon Tube series
![COB LED Strip Lights Buying Guide 872 silicone led channel](https://www.yiford.com/wp-content/uploads/2022/07/silicone-led-channel.webp)
How to use the Neon Silicon tube?
Silicone tube is not only superior in performance, but also very convenient to use.
The LED light bar silicone sleeve installation is divided into the wired and non wired ones:
It is very simple and very convenient to tie the light strips tightly with the wire directly. For LED lights with silicone sleeves without wires, what we are talking about installation is to pass the wires through the LED light bar silicone sleeves, and only an air pressure machine is needed.
Tie one end of the board with a rope, and finally plug it with cotton. Because the cotton is very light and easy to deform without scratching the surface, put it in a little bit, and blow it with air pressure. Straighten it on one side and it’s OK!
YIFORD’s silicone tube is generally 50 meters per roll, 100 meters per roll, 200 meters per roll. There is a pulling wire in the casing. When using it, tie the pulling wire to one end of the LED light strip and pull it directly in from the silicone tube. It’s okay.
NEON SILICONE TUBE performance:
1. Non toxic, odorless, high transparency, high flame retardancy, no yellowing after long term use;
2. High flexibility, good elasticity, ozone resistance, voltage resistance, kink resistance and no deformation;
3. No cracking, long service life, cold and high temperature resistance;
4. Has high tear strength and superior electrical performance;
![COB LED Strip Lights Buying Guide 873 Flex LED Channel System For LED Strip Lights](https://www.yiford.com/wp-content/uploads/2022/07/silicone-led-strips.webp)
Silicone LED Neon Strips Applications:
Widely used in the LED flexible light belt industry, suitable from 4mm to 28mm flexible circuit boards (through casing, glue filling, glue dispensing processing technology), play a waterproof and protective role. the product is non-toxic, odorless; highly transparent, transparent High light rate; long term use does not change yellowing, embrittlement, or cracking; and has superior properties such as ozone resistance, voltage resistance, cold resistance, high and low temperature resistance.
Silicone LED Tube Range
According to the light emitting mode of the light strip, the silicone flexible light strip can do:
Ⅰ Single side light
Ⅱ Glow on three sides
Ⅲ 360° lighting
Ⅳ Curved surface light
How to install silicone led strip lights?
How to install the silicon led tube lights? In practical applications, the installation methods of flexible light strips mainly include: embedded installation, ceiling installation, suspension installation, snap in installation and other installation methods. The installation process is relatively simple and convenient.
![COB LED Strip Lights Buying Guide 874 silicone led channel](https://www.yiford.com/wp-content/uploads/2022/07/silicone-channel-2-1024x683.webp)
Snap in installation
Fix the buckle in position with screws;
Align the light strip with the buckle and lightly press it to the concave point.
Embedded installation
Make a groove according to the size of the light strip, and fix the glue on the picture around the groove;
When the fixing glue is not dry, align the light strip with the slot and insert it, and wait for the fixing glue to dry.
In fact, the advantages of the COB flexible light strip are also reflected in the installation method. It is a split structure, and the bottom bracket and the light strip are separated, which is convenient for later maintenance.
If the lamp bead is broken, there is no need to remove the entire lamp, just pull out the lamp strip and replace it with a new one. However, traditional lamps need to disassemble the whole set of lamps, which requires a large amount of work and will cause certain damage to the application carrier!
This split design not only reduces the workload, but also greatly reduces the labor and material costs in terms of the later maintenance of the lamp and the operation of the repair personnel! In addition, if one of the COB flexible lights is necrotic, it will not affect the normal light emission of other lights.
LED Aluminum Profile series
![COB LED Strip Lights Buying Guide 875 led aluminum profile led](https://www.yiford.com/wp-content/uploads/2022/07/led-aluminum-profile-led.webp)
High quality anodized aluminum LED strip channel, also known as LED aluminum profile or aluminum extrusion, is another best choice for LED strip project installation and functional companion. They are widely used as LED light bar diffusers to achieve better diffusion and creative lighting effects. They are used as LED light bar installation channels to assist the installation of LED light bars. They are a must for personalized lighting that many lighting designers love element.
These specially designed LED light bar aluminum troughs can be perfectly installed in the grooves of cabinets, ceilings, stairs, walls and floors. Due to its elegant linear shape, spotless diffusion, low key and unobtrusive contours, the resulting lighting is aesthetically beautiful and stylish.
LED light channels with diffusers are usually surface mounted and used for lighting under cabinets. Ceiling LED lights with channels, embedded LED lights with channels and corner LED lights with channels are the first choice for LED light strip applications. The aluminum channel provides housing and protection for the LED light bar. As heat sinks, they greatly improve the thermal management of LED strips.
The LED light strip in the aluminum channel with diffuser provides softer and more comfortable light than the light without diffuser. The diffuser eliminates the glare of the light. Light is more eye friendly and helps protect your eyesight. The lighting of the aluminum channel looks more beautiful. When installed in a suitable aluminum channel with a diffuser, it can provide pointless lighting.
![COB LED Strip Lights Buying Guide 876 led aluminum profile](https://www.yiford.com/wp-content/uploads/2022/07/led-aluminum-profile.webp)
Advantages of LED aluminum profiles
1. Improve the beauty of lighting.
The aesthetic appearance of the linear lighting improved by the aluminum channel creates a wonderful lighting shape for the space. When installing the light strip, its outline can increase the layering of the indoor environment.
If the shape of linear lighting is applied well, a simple structure can produce amazing results. It can be said that the light strip is the little make up at home! For commercial use, it displays more attractive products. It is very elegant to install at home. On the stage, it is very eye catching.
2. Strengthen heat dissipation.
The LED aluminum channel acts as a heat sink, which absorbs the heat generated by the LED light bar when it is working, and dissipates it into the air through the channel surface. The improved thermal management system extends the life of the LED light bar.
3. Protect the LED light bar.
The anodized aluminum tube provides a sturdy housing for the LED light bar, which prevents water, dust, ultraviolet radiation, weather conditions, and unnecessary influences. For example, it can be used for strip lighting in splash areas.
4. Easy to install.
Aluminum profiles can be seamlessly embedded in the grooves of cabinets, stairs, walls and floors. They take up very little space, but can provide lighting exactly where you want it to be illuminated without seeing bulky lamps.
5. Work as an LED light strip diffuser.
The cover layer of the aluminum extrusion is usually called an LED strip diffuser. It can be frosted or opal to provide the best light diffusion, achieve perfect spotless and more uniform lighting effects, and avoid glare.
6. Help the installation of LED strips.
Aluminum profiles can help to install LED strips in different ways. Some surfaces are not flat, rough or too oily, and are not suitable for attaching LED strips. Aluminum channels help to install LED strips to these surfaces. The aluminum channel can also be used as a bridge to fill the gap between two independent mounting surfaces.
7. Easy to form different shapes.
DIY lighting shape is easy. Aluminum channel steel can be easily cut at different angles at the end for angle connection to form a square, triangular, L shaped or tree shaped lighting design. Easily create more personalized lighting.
8. The LED light bar can be easily replaced.
The internal light strip can be easily removed and replaced, in case the user wants a different color light strip.
9. Security.
The LED light bar channel is designed for low voltage light bar. It is very safe to install and use.
Ceiling Lights special shaped series
![COB LED Strip Lights Buying Guide 877 ceiling lights](https://www.yiford.com/wp-content/uploads/2022/07/ceiling-lights.webp)
LED ceiling light speical sharped, also known as Led linear light, it is a free design lighting material. It can make many shape according to your design. LED linear lights are also very popular. They are usually composed of aluminum profiles, LED strips, power drivers, wires, and installation accessories.
LED linear lights come in different sizes, from small to large, from thin to thick, from square to round, linear lights of various basic shapes can be combined into countless kinds of personalized shapes.
![COB LED Strip Lights Buying Guide 878 led ceiling lights](https://www.yiford.com/wp-content/uploads/2022/07/ceiling-lights-2.webp)
This simple design is widely used in office lighting, hotel lighting, factory lighting and some shopping mall lighting. Yiford now has different types of LED linear lights with lengths ranging from 2ft/4ft/6ft/8ft. We can design LED linear lights according to your requirements.
What kind of power supply is best for your project ?
Led strip light driver is power supply, also called transformer . It change the high voltage AC110V/220V to low voltage, such as DC12V/24V. Then the led strip light can safe use.
Choosing the right power supply for your LED Strips is very important to achieve the optimum result in combination with a maximum lifespan of your LED strip.
![COB LED Strip Lights Buying Guide 879 led power supply](https://www.yiford.com/wp-content/uploads/2022/07/jointer.png)
Where to use the LED light strip determines the waterproof level of the required power supply. Outdoor or indoor, humid or dry place. If you use it outdoors in a humid place, or where it might rain, then you need a waterproof power supply. If used indoors, the place should be dry. Just like in ceilings, kitchen cabinets, TV cabinets, non waterproof drives are OK.
Non waterproof power supply
What purpose will you do for it
Do you want to use it for DIY or engineering projects?
We use it in DIY. If a few meters of LED strips are not used in a lot of LED strips, then we don’t need to use BIG power supply, we can choose the following power supply. Wall mounted power supply and desktop power supply. Wall mounted power supplies are generally not large in wattage, 1A, 2A, 3A. Desktop power supply is bigger, 4A, 5A, 6A. So this is convenient for us to make some small DIY lighting.
Do you need more functions? Such as controller/dimming/amplifer.
Generally speaking, the control distance of a simple controller is 10 to 15 meters, and the control of the remote control The distance is 15 to 20 meters, and the longest distance can be controlled up to 30 meters.
If the connection distance of the LED strip is long, and the controller cannot control that long strip, then a power amplifier is needed for tapping.
![COB LED Strip Lights Buying Guide 884 led light connect drawing 2](https://www.yiford.com/wp-content/uploads/2022/07/led-light-connect-drawing-2-1024x488.webp)
![COB LED Strip Lights Buying Guide 885 led light connect drawing](https://www.yiford.com/wp-content/uploads/2022/07/led-light-connect-drawing-1024x535.webp)
There are 3 kinds of dimmable power supplies, three different dimming methods, with different functions
![COB LED Strip Lights Buying Guide 886 controller Triac](https://www.yiford.com/wp-content/uploads/2022/07/controller-Triac-1024x409.webp)
![COB LED Strip Lights Buying Guide 887 dimmer1](https://www.yiford.com/wp-content/uploads/2022/07/dimmer1-1024x529.webp)
![COB LED Strip Lights Buying Guide 888 controller Dali](https://www.yiford.com/wp-content/uploads/2022/07/controller-Dali.webp)
Use branded led driver
High quality power supply and high quality power adapter can provide complete indication current to ensure continuous operation. The amperage provided by the inferior power supply is lower than the indicated value. During continuous operation, inferior power supplies can become overheated and usually fail within a short period of time.
I suggest you buy a branded led power supply. For example, MW Power Supply has many distributors around the world, so you can easily buy it.
How many watts of power do you need?
Voltage.
The LED light bar power supply should provide a suitable voltage for the light bar. 12V LED strips should use 12V power supply 24V LED strips should use 24V power supply.
Watts.
The power supply should be able to provide enough power for the light strip. The required power or wattage is determined by the wattage of the light bar to be installed. The formula for calculating the wattage of the light bar: wattage = LED light bar length x wattage/meter. For example, you are installing a 5m LED strip with 10W/m output. Total wattage = 5mx 10W/m = 50W.
Then we calculate the wattage of the power required. The rule is that the power supply should not be used at full load, because a full load will cause the power supply to overheat and shorten its service life. It is recommended to increase the capacity by 20%.
For example, for the above installation, the power supply should be: (1+20%) x 50W = 60W. If there is no power supply with this precise output power, then we choose the next level of output, which is 72W. The power supply higher than the necessary output will not damage the LED light bar, it will only provide the necessary output wattage for the strip light.
For more connection methods and power supply issues for LED strips, please refer below article and video:
Where can LED strips be used?
The LED light strips is soft, can be curled like a wire, can be cut and extended, is not easy to break, and has a long service life. It has perfect advantages of other light sources. Its function is far beyond your imagination, and it has become the most widely used.
The light source is also the most creative and versatile lighting for lighting design professionals. Whether it is for civilian or military use, whether it is large stage lighting or small electronic products, you can see LED tape lights.
It is easy to make graphics, text and other shapes; it has been widely used in decoration and lighting of buildings, bridges, roads, gardens, courtyards, floors, ceilings, furniture, cars, ponds, underwater, advertisements, signs, signs, etc.
Another article by Yiford explains the application of LED light strips in detail from 13 aspects. Each application scenario lists corresponding pictures or videos for your reference.
Welcome to read What are the application ideas of LED light strips?
![COB LED Strip Lights Buying Guide 889 lighting application](https://www.yiford.com/wp-content/uploads/2022/07/lighting-application.webp)
LED Strips Application area
1. Furniture, wood products, metal products, glass products, stone products, etc.
2. Home lighting, indoor and outdoor lighting and decoration
3. Display cabinets, shelves, wine cabinets, wardrobes, display boxes, etc.
4. Car wash room, fitness club, meeting room, multi function hall, etc.
5. Stairs, corridors, corridors, passages, etc.
6. Background walls, background lights, artistic modeling, etc.
7. Ceiling lights, ceiling lights, linear lights, modeling lights, etc.
8. Atmosphere lighting for stage bars, cafes and other leisure places
9. Vehicles such as cars, trains, airplanes, and cruise ships.
10.Hotels, clubs, shops, exhibitions, etc.
11. Exterior wall decoration, architectural outline, artistic modeling, etc.
12. Lighting for professional places such as museums and art galleries
13. Innovation of existing products
LED Strip Lights DIY For Rooms
DIY cob led strips to the flower frame for decoration
What is the effect of adding a soft COB light strip to the flower stand for decoration? Added “COB LED STRIPS” design. It not only adds contour lighting to the flower stand, enhances the bright environment, and makes the space colorful. It also allows plants to grow faster under the influence of growth lighting, and because the soft light strip itself has a waterproof function, it can withstand water.
DIY COB led light strip in the transparent storage box
An ordinary storage box, no matter where it is placed It is unremarkable, but with the addition of a flex cob light strip, it is completely different. The outside looks crystal clear, and the inside is very bright when you open it. It is very convenient to find what items.
What is the effect of installing a COB soft light strip on the drawing board
maybe you want it to be more eye-catching, maybe you want more people to appreciate it , Try this COB soft light strip, high color rendering index, so that your paintings are more reductive, what other ideas can you think of? You can create more surprises with COB light strips
Want to make your painting more eye-catching? Use this COB soft light strip
COB is the abbreviation of CHIP ON BOARD, which means that flip chip is arranged on the soft light strip, and the COB soft light strip looks like a soft tie Belt, with strong flexibility, folding and bending, the overall light is uniform, soft and not dazzling, and the brightness is high. It usually replaces traditional lighting fixtures,
RGB digital pixel COB led strips for decoration
do you know? The COB light strips also has RGB Symphony! What is the concept of encapsulating 600+ LED chips in a 1 meter led strips? Please see the effect.
magic led strips: There is an IC chip in each pixel, and each pixel is given a different light-emitting state through the program of the control system, so as to achieve the effects of water flow, horse racing, scanning, popular tailing, etc. It is also richer. There are 256 gray levels for each of the RGB three colors, and there are more than 16 million colors in total. In addition, the magic light strips can also display text, pictures, animation, and video through the programming of the control system.
DIY to transparent glass with rose flower
Bright and dazzling roses represent love and enthusiasm. People who receive flowers are always happy. If you add some soft COB led light strips to the flowers, what is the effect? The light of the LED soft light strips penetrates through the transparent glass, the glass is more crystal clear, and the roses inside are blooming, more vivid, richer, beautiful, dazzling, colorful, and full of romance.
Add some lovely led lighting to any part of your home by placing this light bulb flower lamp on display.Make the every day a bit more magical by creating an enchanting ambiance with these LED rose lamps.
5 Steps to make your own signs
10 minutes to make a colorful lighting on background? we know led strip is light, high brightness, flexible,slim,and with a lot of applications. Today I will show you how to use the COB led strips to make a beautiful light for this background.
LED Lighting for background
This product is suitable for hotels, shopping malls, home furnishing, cabinets, exhibition racks, etc., cooperate with aluminum profile can used for main lighting, indirect lighting, dark slot lighting, outline drawing, decorative lighting and other purposes.
DIY Decorating room with fairy attractive lights
Add some COB color soft light strips to instantly become brighter and more atmospheric. Use COB light strips to make your room shiny, right? DIY Decorating room with fairy attractive lights , Insufficient Lighting In Living Room? Stick COB Led Strips | Effective Much Better,
What is the effect of installing a COB soft light strip on the sofa
In addition to the main light source, home lighting also needs some auxiliary lights to illuminate. Partial decorations often give you different surprises. Want to add some auxiliary lights at home? But you don’t want to destroy the original structure and shape, the COB strip is worth a try.
Here is a special case about furniture
Case: With these lights, the chair is no longer an ordinary chair
How can the soft light strip be used at home?
In terms of function, LED strips are very suitable for ambient lighting, accent lighting, task lighting and decorative lighting.
Ambient lighting.
Ambient lighting is called general lighting or mood lighting. It is the starting point of the basic amount of light in a room. It is general lighting, not only allows you to move safely, but also sets the tone for the entire room.
Want to know how to design ambient lighting? How do different colors and design lights affect the mood of the residents?
Welcome to Unique Lighting Ideas For Rooms Without Main Lights
Accent lighting.
Accent lighting is the lighting concentrated in a small area or part of the room. The strip lighting under the counter is usually a special design to highlight the area. Accent lighting is also used to make the area stand out. Accent lighting is usually used to display works of art, photos or trophies.
Want to know the effect of using light strips in every corner of the home?
Welcome to Use LED strips in these 8 locations/how beautiful the lighting at home is!
Task lighting.
When you work, you need task lighting. It helps you process tasks by improving the alertness and attention level of the brain, as well as illuminating objects or areas through details. Task lighting often appears in areas such as home desks and kitchen countertops. The light strip lighting under the cabinet can be a good example of task lighting.
Want to know the effect of cabinet lighting?
Welcome to 6 amazing LED lights with lighting ideas, so suitable for your cabinet
Decorative lighting.
Bias lighting is the backlight used on the back of a TV, screen, or monitor. It provides soft lighting in the back area, which is usually very dark. The design purpose of offset lighting is to improve the performance of the TV screen and reduce the burden on the viewer’s eyes.
How to correctly design the TV background wall lighting?
Welcome to Best TV Wall Backlight Design Ideas
How to identify the quality of LED flexible light strips
The LED light strip market is uneven, and the prices of products from regular manufacturers and those from cottage factories are very different. If the quality of LED strips is identified from the professional technology, I am afraid that many customers do not have this ability. But we can make a preliminary identification from the simple appearance, and basically tell the quality of it.
It can be distinguished from the following aspects:
1. Look at the solder joints.
The LED strips produced by regular LED strip manufacturers are produced by SMT patch technology, using solder paste and reflow soldering. Therefore, the solder joints on the LED light strip are relatively smooth and the amount of solder is not too much. The solder joints extend from the FPC pad to the LED electrode in an arc shape.
2. Look at the quality of FPC.
FPC is divided into two types: copper and rolled copper. The copper foil of the copper clad board is protruding. If you look closely, it can be seen from the connection between the pad and the FPC. The rolled copper is closely connected to the FPC and can be bent at will without the phenomenon of pad falling off. If the copper clad board is bent too much, the pad will fall off, and if the temperature is too high during maintenance, the pad will fall off.
3. Look at the cleanliness of the surface of the LED strip.
The cleanliness of the surface of the LED light strip produced by SMT process is very good, and there are no impurities and stains. The counterfeit version of the LED light strip produced by the hand soldering process will have stains and cleaning marks on its surface no matter how it is cleaned.
4. Look at the packaging.
The regular LED light strips will be packaged in anti static coils, 5 meters per roll or 10 meters per roll, and the outside of the package will be sealed with an anti static and moistureproof packaging bag. The counterfeit version of the LED light belt uses a recycled reel, without an anti-static and moistureproof packaging bag. If you look carefully at the reel, you can see that there are traces and scratches left by the removal of the label on the outside.
5. Look at the label.
There will be printed labels on the regular LED light belt packaging bags and reels, not printed labels.
6. Look at the attachment.
The regular LED light strips will be enclosed in the packaging box with instructions for use and light strip specifications, and will also be equipped with LED light strip connectors or card holders; while the cottage version of the LED light strip packaging box does not have these accessories, because After all, some manufacturers can still save while saving.
Of course, this also depends on the buyer’s requirements for the configuration list of the product. After all, one more accessory will increase the cost, and the wholesaler will configure these lists on its own.
Other matters needing attention when choosing LED soft light strips:
1. The requirements for brightness are different for different occasions and different products. For example, if LED jewelry counter lights are placed in some large shopping malls, we need to have higher brightness to be attractive, and the same decorative function is also divided into different products such as LED spotlights and LED colorful light strips.
2. Antistatic ability: LEDs with strong antistatic ability and antistatic ability have a long life, but the price will be higher. Generally, antistatic is best to be higher than 700V.
3. LEDs with the same wavelength and color temperature will have the same color. This mass combination of lamps is particularly important. Do not produce too much color difference in the same lamp.
4. Leakage current is the current when the LED conducts reversely. We recommend using LED products with a smaller leakage current.
5. Waterproof capability. The requirements for outdoor and indoor LED lights are different. For outdoor use, a waterproof cover should be added to the light strip, especially where it is connected, it must be waterproofed.
6. The light emitting angle of LED has a great influence on LED lamps and has great requirements for different lamps. SMD light strips are 120 degrees, and COB light strips are 180 degrees. The range of illumination is larger, but a luminous cover with changing optical angle can be added.
7. LED chips determine the core quality of LEDs. There are many brands of LED chips, including foreign brands and Taiwanese ones. The prices of different brands are also very different.
8. The size of the LED chip also determines the quality and brightness of the LED. We also try to choose a larger chip when choosing, but the price will be correspondingly higher.
Can you cut an led strip?
Since LED strips are designed to be flexible and can be placed where you need them, you need to choose the right size for your room. With this in mind, the strips can be cut to fit the space.
However, you cannot cut the light strip anywhere. Many people don’t realize what they are doing with light strips and damage the entire roll.
Basically, each set of LED strips is made up of a series of connected circuits. As long as you cut the lights between this set of circuits, you won’t break either of them, and both will still work when connected to power.
So how to safely cut LED strips? It’s easy: look for cutting lines. it is on the top of print circult board, on the back of PCB which need to remove the adhesive tape.
Where to cut LED strips?
The strip will have a series of solid lines across the width of the strip. Cut there carefully and straight with a sharp knife or scissors. Depending on the type of LED strip you buy, these cut lines may be closer together or spread out.
cutting led strip lights, usually they are about every three LEDs, but 12V strips will have more cutoff points, usually twice as many as 24V strips.
For this reason, 24V strips are better for longer straight lines, but if you have a lot of corners, consider a 12V strip with multiple power supplies.
how to connect two strips of led lights?
Connecting Multiple LED Strips, LED Strip Connection Types Depending on the pin count, connecting LED strips together is relatively easy once you know what you’re doing.
Useing those led strips connectors, you will find connect two led strips together is very easy, and could complete complex lighting projects.
The easiest way to do this is to use a plug, which can be a straight, 90 degree angled L shape or 3 way T shaped plug.
how to reconnect cut led strips, All you need to do is insert the end of the strip into the connector, making sure to align the polarities. Then add a second light bar on the other side and you’re done.
![COB LED Strip Lights Buying Guide 890 cob strips connector](https://www.yiford.com/wp-content/uploads/2022/07/cob-strips-connector-3-300x108.jpg)
![COB LED Strip Lights Buying Guide 891 strip lights connector](https://www.yiford.com/wp-content/uploads/2022/07/cob-strips-connector-2-300x108.jpg)
![COB LED Strip Lights Buying Guide 892 cob strips connector](https://www.yiford.com/wp-content/uploads/2022/07/cob-strips-connector-1.jpg)
If you don’t want to use a connector, you can solder it directly. how to wire led strips, You’ll need to strip the wires from the connecting light strip and unscrew the frayed ends.
Next, you need to melt the solder directly onto the copper pads of the LED strip you want to connect. Connect the wires to the solder joints (black to negative, red to positive) and you’re done.
How to power led strip lighting
Install led strip lighting, We need to know the power of the light strip per meter, how long the light strip is, how to connect it, and how to configure how many power supplies. In this article, it will be explained in detail, and you will know all the problems related to cutting, connecting and controlling the light strip.
Maintenance instructions for LED flexible strips
1. Anti static:
As LED is a static sensitive component, if the anti static measures are not taken care of when the LED strip is being repaired, the LED will be burned out, causing losses. It should be noted that the electric soldering iron should use an anti static soldering iron, and the maintenance personnel must also prepare anti-static measures (such as wearing a static ring and anti static gloves, etc.).
2. Continue high temperature:
the two main components of LED strips are LED and FPC. If the FPC is continuing to high temperature or may exceed its acceptable measurement, it will crack the FPC’s covering film and indirectly form the waste of the LED strip. At the same time, LEDs cannot continue to withstand high temperatures, and their chips will be burned out by high temperatures for a long time.
Therefore, the electric soldering iron used when repairing the LED light strip is a temperature controlled electric soldering iron, which limits the measurement to a certain range and prevents arbitrary changes and settings.
In addition, even so, it is necessary to pay attention that the soldering iron cannot stop on the LED pin for more than 10 seconds during maintenance. If it exceeds a certain time, it may burn the LED chip.
3. Short circuit:
Many LED strips do not light up because there is a short circuit at the pin. It is necessary to investigate the real reason for the lack of light before repairing. Otherwise, after rashly changing the LED that is not bright, the chip that forms the LED will be broken down by the short circuit direct current when the power is recycled again.
Therefore, in advance, you must first find out the real reason for the lack of light, and you can get half the result with half the effort if you have a target.
Troubleshooting: the reason why the LED soft light does not light up
1. The packaging protection of the LED flexible light strip is not perfect, causing the lamp bead to be damaged by impact during transportation.
2. The welding point of the LED flexible light strip has a phenomenon of virtual welding, and the vibration during transportation causes the welding point to fall off and the light strip does not light up.
3. The LED flexible light strip has a small amount of solder, and the solder joints are easy to fall off
4. The soldering tin quality of the LED flexible light strip is not good, and the solder joints of the LED flexible light strip are prone to brittle cracking and falling off during the bending process.
5. The bending angle of the LED flexible light strip is too large when it is installed, which causes the LED flexible light strip to separate from the copper foil and cause no light.
6. Excessive squeezing of the product during the installation of the LED flexible light strip causes damage to the LED flexible light strip chip or the deformation of the solder joints and does not light up
7. The solder mask of the LED flexible light strip circuit board is too thick, and the solder and the circuit board cannot be completely fused together during soldering, which is also a kind of virtual soldering phenomenon.
8. The LED flexible light strip should not be twisted excessively during installation. If it is twisted too much, the solder joints of the LED flexible light strip will fall off and cause no light.
9.Static burnout, because LED is an electrostatic sensitive component, if there is no protection against static electricity, it will cause the chip to burn out.
Contact with Yiford
Thank you for reading this article. Those who can see here must be those who really love LED lighting. You may be an interior designer, product designer, electrical engineer, architect, LED wholesaler, lighting distributor, factory, trade…
If you are looking for a high quality LED lighting manufacturer, with 3 years after service, As long term partners who are familiar with the market and end users, please contact YIFORD. Yiford is happy to provide free samples for your testing.
Want to know YIFORD company? please watch the video:
