RGB LED Strips Connectors
Suitable For SMD RGB LED Strips or COB RGB LED Strip Lights or COB CCT White LED Strips
4PIN, 10mm width LED Strips, Max Current 6A. 4PIN could change to 3PIN for COB CCT White Strips.
RGB LED Strips connectors is with 4 pins, correspond to the 4 lines of the RGB SMD light strip or COB light strip respectively, the positive and negative poles correspond.
The copper thorns of the connecting terminals are inserted into the pads on the light strip，and the connector is like a bridge, connecting the two ends.
Below price is from factory directly. not include tax and freight cost.
For COB led strip lights
COB light strip is the latest type of light-emitting light strip.
It has hundreds of light-emitting chips per meter, with uniform light emission, no light spots, no dark areas, and higher brightness…
For SMD LED Strip Lights
Most of the light strips on the market belong to SMD light strips.
There are many models, SMD2835, SMD5050, SMD3014….
Mini Crystal LED Strip Connector
Strip to Strip Series
Specification
Mini Crystal LED strip connector is a transparent PC material connector, mainly suitable for IP20 COB & SMD strip with matching pads. It has the characteristics of reliable connection, invisible seamless lighting, perfect solution for aluminum profile application, and DIY connection without stripping.
Mini Crystal LED Strip Connector –Strip to Strip
IP20 Mini Crystal Series
| NO. | ITEM NO. | NO. | ITEM NO. | NO. | ITEM NO. | NO. | ITEM NO. |
|---|---|---|---|---|---|---|---|
| 1# | HR-S-SC-2PIN-5MM-B | 2# | HR-S-SC-2PIN-5MM-A | 3# | HR-S-SC-2PIN-5MM-C | 4# | HR-S-SC-2PIN-5MM-D |
| 5# | HR-S-SC-3PIN-5MM-B | 6# | HR-S-SC-3PIN-5MM-A | 7# | HR-S-SC-3PIN-5MM-C | 8# | HR-S-SC-3PIN-5MM-D |
| 9# | HR-S-SC-2PIN-8MM-B | 10# | HR-S-SC-2PIN-8MM-A | 11# | HR-S-SC-2PIN-8MM-C | 12# | HR-S-SC-2PIN-8MM-D |
| 13# | HR-S-SC-3PIN-8MM-B | 14# | HR-S-SC-3PIN-8MM-A | 15# | HR-S-SC-3PIN-8MM-C | 16# | HR-S-SC-3PIN-8MM-D |
| 17# | HR-S-SC-4PIN-8MM-B | 18# | HR-S-SC-4PIN-8MM-A | 19# | HR-S-SC-4PIN-8MM-C | 20# | HR-S-SC-4PIN-8MM-D |
| 21# | HR-S-SC-2PIN-10MM-B | 22# | HR-S-SC-2PIN-10MM-A | 23# | HR-S-SC-2PIN-10MM-C | 24# | HR-S-SC-2PIN-10MM-D |
| 25# | HR-S-SMD-2PIN-10MM-B | 26# | HR-S-SMD-2PIN-10MM-A | 27# | HR-S-SMD-2PIN-10MM-C | 28# | HR-S-SMD-2PIN-10MM-D |
| 29# | HR-S-SMD-3PIN-10MM-B | 30# | HR-S-SMD-3PIN-10MM-A | 31# | HR-S-SMD-3PIN-10MM-C | 32# | HR-S-SMD-3PIN-10MM-D |
| 33# | HR-S-COB-3PIN-10MM-B | 34# | HR-S-COB-4PIN-10MM-A | 35# | HR-S-COB-3PIN-10MM-C | 36# | HR-S-COB-4PIN-10MM-D |
| 37# | HR-S-COB-4PIN-10MM-B | 34# | HR-S-COB-4PIN-10MM-A | 38# | HR-S-COB-4PIN-10MM-C | 36# | HR-S-COB-4PIN-10MM-D |
| 39# | HR-S-SMD-4PIN-10MM-B | 40# | HR-S-SMD-4PIN-10MM-A | 41# | HR-S-SMD-4PIN-10MM-C | 42# | HR-S-SMD-4PIN-10MM-D |
| 43# | HR-S-SMD-5PIN-10MM-B | 44# | HR-S-SMD-5PIN-10MM-A | 45# | HR-S-SMD-5PIN-10MM-C | 46# | HR-S-SMD-5PIN-10MM-D |
| 47# | HR-S-SMD-2PIN-12MM-B | 48# | HR-S-SMD-2PIN-12MM-A | 49# | HR-S-SMD-2PIN-12MM-C | 50# | HR-S-SMD-2PIN-12MM-D |
| 51# | HR-S-SMD-3PIN-12MM-B | 52# | HR-S-SMD-3PIN-12MM-A | 53# | HR-S-SMD-3PIN-12MM-C | 54# | HR-S-SMD-3PIN-12MM-D |
| 55# | HR-S-SC-4PIN-12MM-B | 56# | HR-S-SC-4PIN-12MM-A | 57# | HR-S-SC-4PIN-12MM-C | 58# | HR-S-SC-4PIN-12MM-D |
| 59# | HR-S-SMD-5PIN-12MM-B | 60# | HR-S-SMD-5PIN-12MM-A | 61# | HR-S-SMD-5PIN-12MM-C | 62# | HR-S-SMD-5PIN-12MM-D |
| 63# | HR-S-COB-5PIN-12MM-B | 64# | HR-S-COB-5PIN-12MM-A | 65# | HR-S-COB-5PIN-12MM-C | 66# | HR-S-COB-5PIN-12MM-D |
| 67# | HR-S-SMD-6PIN-12MM-B | 68# | HR-S-SMD-6PIN-12MM-A | 69# | HR-S-SMD-6PIN-12MM-C | 70# | HR-S-SMD-6PIN-12MM-D |
| 115# | HR-S-SC-2PIN-8MM-E | 116# | HR-S-SMD-6PIN-12MM-E |
Waterproof Series
| NO. | ITEM NO. | NO. | ITEM NO. | NO. | ITEM NO. |
|---|---|---|---|---|---|
| 71# | HR-IP-SC-2PIN-8MM-B | 72# | HR-IP-SC-2PIN-8MM-A | 73# | HR-IP-SC-2PIN-8MM-C |
| 74# | HR-IP-SC-3PIN-8MM-B | 75# | HR-IP-SC-3PIN-8MM-A | 76# | HR-IP-SC-3PIN-8MM-C |
| 77# | HR-IP-SC-2PIN-10MM-B | 78# | HR-IP-SC-2PIN-10MM-A | 79# | HR-IP-SC-2PIN-10MM-C |
| 80# | HR-IP-SMD-2PIN-10MM-B | 81# | HR-IP-SMD-2PIN-10MM-A | 82# | HR-IP-SMD-2PIN-10MM-C |
| 83# | HR-IP-SMD-3PIN-10MM-B | 84# | HR-IP-SMD-3PIN-10MM-A | 85# | HR-IP-SMD-3PIN-10MM-C |
| 86# | HR-IP-COB-3PIN-10MM-B | 87# | HR-IP-COB-4PIN-10MM-A | 88# | HR-IP-COB-3PIN-10MM-C |
| 89# | HR-IP-COB-4PIN-10MM-B | 87# | HR-IP-COB-4PIN-10MM-A | 90# | HR-IP-COB-4PIN-10MM-C |
| 91# | HR-IP-SMD-4PIN-10MM-B | 92# | HR-IP-SMD-4PIN-10MM-A | 93# | HR-IP-SMD-4PIN-10MM-C |
| 94# | HR-IP-SMD-5PIN-10MM-B | 95# | HR-IP-SMD-5PIN-10MM-A | 96# | HR-IP-SMD-5PIN-10MM-C |
| 97# | HR-IP-SMD-2PIN-12MM-B | 98# | HR-IP-SMD-2PIN-12MM-A | 99# | HR-IP-SMD-2PIN-12MM-C |
| 100# | HR-IP-SMD-3PIN-12MM-B | 101# | HR-IP-SMD-3PIN-12MM-A | 102# | HR-IP-SMD-3PIN-12MM-C |
| 103# | HR-IP-SC-4PIN-12MM-B | 104# | HR-IP-SC-4PIN-12MM-A | 105# | HR-IP-SC-4PIN-12MM-C |
| 106# | HR-IP-COB-5PIN-12MM-B | 107# | HR-IP-COB-5PIN-12MM-A | 108# | HR-IP-COB-5PIN-12MM-C |
| 109# | HR-IP-SMD-5PIN-12MM-B | 110# | HR-IP-SMD-5PIN-12MM-A | 111# | HR-IP-SMD-5PIN-12MM-C |
| 112# | HR-IP-SMD-6PIN-12MM-B | 113# | HR-IP-SMD-6PIN-12MM-A | 114# | HR-IP-SMD-6PIN-12MM-C |

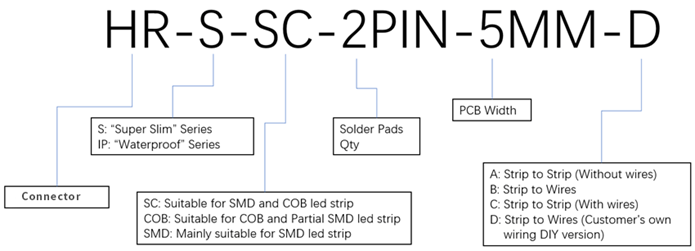

1. Naming Rule
2. Item No.
2# HR-S-SC-2PIN-5MM-A
Strip-to-strip, mainly suitable for IP20 COB & SMD strips, 5mm width PCB, 2PIN single color
10# HR-S-SC-2PIN-8MM-A
Strip-to-strip, mainly suitable for IP20 COB & SMD strips, 8mm width PCB, 2PIN single color
14# HR-S-SMD-3PIN-8MM-A
Strip-to-strip, mainly suitable for IP20 SMD strips, 8mm width PCB, 3PIN CCT color
18# HR-S-SMD-4PIN-8MM-A
Strip-to-strip, mainly suitable for IP20 SMD strips, 8mm width PCB, 4PIN RGB color
22# HR-S-SC-2PIN-10MM-A
Strip-to-strip, mainly suitable for IP20 COB & SMD strips, 10mm width PCB, 2PIN single color
26# HR-S-SMD-2PIN-10MM-A
Strip-to-strip, mainly suitable for IP20 SMD strips, 10mm width PCB, 2PIN single color
30# HR-S-SMD-3PIN-10MM-A
Strip-to-strip, mainly suitable for IP20 SMD strips, 10mm width PCB, 3PIN CCT color
30A# HR-S-SMD-3PIN-10MM-A1
Strip-to-strip (High density), mainly suitable for Tunable CCT COB strips, 10mm width PCB (Suitable for 168LED/M)
34# HR-S-COB-4PIN-10MM-A
Strip-to-strip, mainly suitable for Tunable CCT and RGB COB strips, 10mm width PCB
40# HR-S-SMD-5PIN-10MM-A
Strip-to-strip, mainly suitable for IP20 SMD strips, 10mm width PCB, 5PIN RGBW color
44# HR-S-SMD-2PIN-12MM-A
Strip-to-strip, mainly suitable for IP20 SMD strips, 12mm width PCB, 2PIN single color
48# HR-S-SMD-3PIN-12MM-A
Strip-to-strip, mainly suitable for IP20 SMD strips, 12mm width PCB, 3PIN CCT color
52# HR-S-SC-4PIN-12MM-A
Strip-to-strip, mainly suitable for IP20 COB & SMD strips, 12mm width PCB, 4PIN RGB color
56# HR-S-SMD-5PIN-12MM-A
Strip-to-strip, mainly suitable for IP20 SMD strips, 12mm width PCB, 5PIN RGBW color
60# HR-S-SMD-6PIN-12MM-A
Strip-to-strip, mainly suitable for IP20 SMD strips, 12mm width PCB, 6PIN RGBCCT color
64# HR-S-COB-5PIN-12MM-A
Strip-to-strip, mainly suitable for IP20 COB strips, 12mm width PCB, 5PIN RGBW color
68# HR-S-SMD-6PIN-12MM-A
Strip-to-strip, mainly suitable for IP20 SMD strips, 12mm width PCB, 6PIN RGBCCT color
3. Product advantages
4. Instruction
(The picture shows the 2pin operation, refer to this The operation of 3~6pin products is the same.)
- Prepare led strip
- Cut the led strip along the pad
- Push the strip into the connector from both sides
- The arrow shows the stop position, push it to this position in place
- Use pliers to clamp the terminal to the level of the plastic surface , the operation is unilateral operation, clamp one side and then operate the other side.
- Finished
Remark: After pressing in, the contact terminal is allowed to be 0.15 MAX higher than the plastic plane.
5. Technical Parameters
5.1 Product parameters
- Rated Current: 6A Max
- Rated voltage: 5V/9V/12V/18V/24V/36V/48V
- Withstand voltage: 500V
- Temperature resistance: 105℃
- Working temperature: -20℃ ~ +80℃
- Salt spray test: neutral salt spray 24H
- Allowable humidity: 15%~90%
- Applicable strip specifications: IP20 SMD & COB strip
5.2 Yiford PCB Circuit Laying Rules
（Before purchasing connectors, please ensure that the led strip meets the following wiring requirements. Customer complaints caused by PCB wiring problems are not covered by the warranty.）:
- No.1 copper foil design needs to be laid in a straight line within this range;
- No.2 Cut the middle line;
- No.3 copper foil center distance design, the center symmetry with the outer width of the light strip is 0.2 Max;
- No.4 light strip design thickness 0.30 Max
- No.5 lamp beads allow the maximum height, the tolerance range is ±0.2;
- No.6 total height after sticking adhesive: 0.55±0.1;
- No. 7 Minimum size of lamp bead laying position;
- No. 8 Design requirements for the outer width of the light strip;
All lamp beads and the outer width of the lamp strip have a center symmetry of 0.5 Max;
