RGBW 5050 LED Strips

This new design of RGBW 5050 LED strips integrates all 3 primary colours (Red/Green/Blue) + Warm White in a single chip.

Commercial high grade RGBW LED strip with quad chip, 4 colours in 1 chip (RGB+warm white).

19.2W/m – 24V DC – 5m roll – 60 LEDs/m – IP20 (Non-Waterproof) – 15cm-wire cable

This new design of RGBW LED strip integrates all 3 primary colours (Red/Green/Blue) + Warm White in a single chip. Due to this innovative design (4 in 1 chip) the strip is brighter than the conventional RGB + W strips, which have one chip for RGB and another one for white.

The RGBW LED strips are powered by high quality quad SMD 5050 LED chips. The brightness of each chip is 20 lumens.

The power consumption is 14.4W per meter, which means an average of 3.6W per colour per meter.

Excellent colour rendering index (CRI) – all RGBW LED chips reach a value of Ra>80.



RGBW = RGB + White

.Superbright 5050 RGBW LED Strip Light, high intensity and reliability, one 5050
led have 4 color,rgb and white.

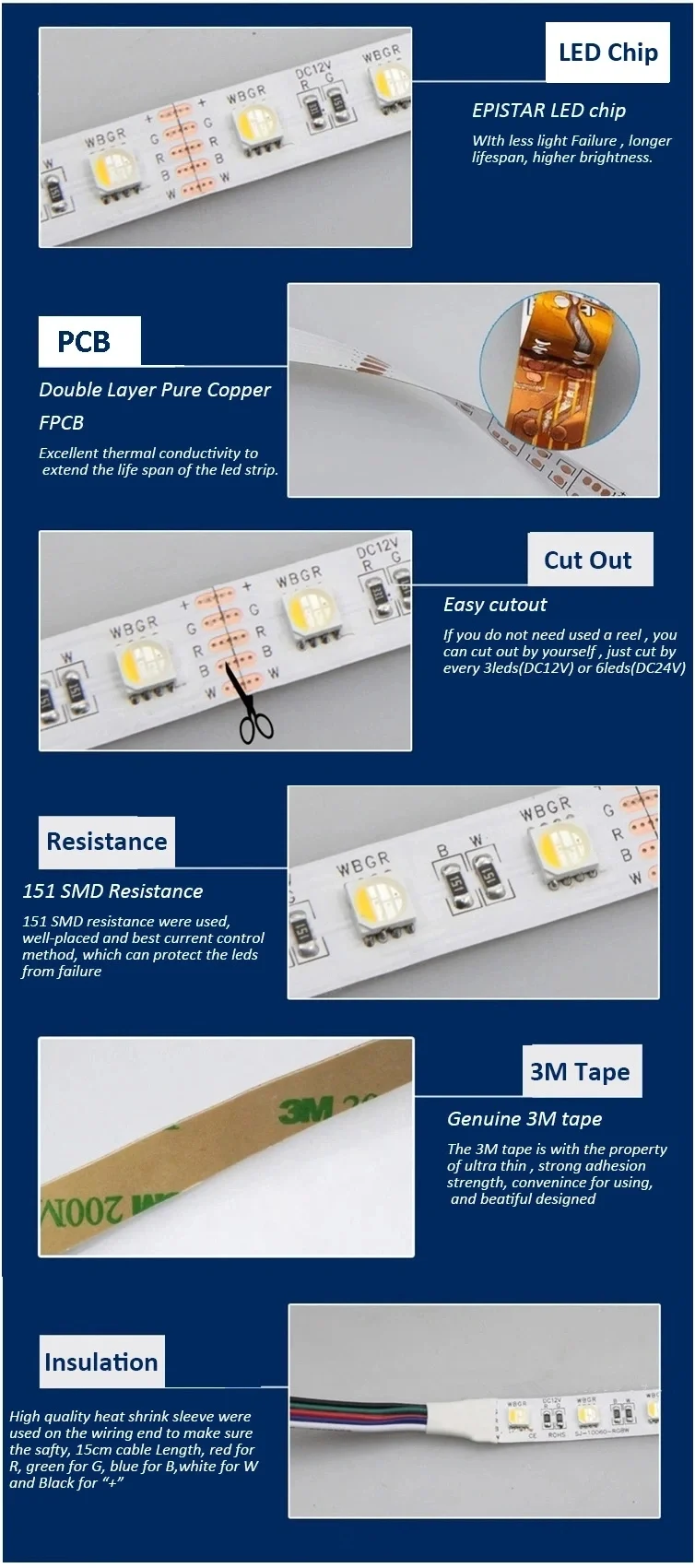

Rgbw 5050 Led Strips 2
Model No YF-LR5050RGBW120 YF-LR5050RGBW60
SMD Type Epistar 5050 Epistar 5050
Input voltage DC24V DC24V
LED Q’ty 120LEDs/m 60LEDs/m
Power/m 28.8W/M 19.2W/M
Max current / LED 60mA 60mA
SMD LED spacing 16.6MM 16.6MM
Lumen / m 2000LM 700LM
CRI(Ra) >90Ra>80Ra >90Ra>80Ra
Minim cuttable length 166.6mm (6LEDs 24V) 100mm (6LEDs 24V)
PCB Width 15mm 12mm
Energy grade A A
Warranty 3years 3years
Working hour 30000h 30000h
Illumination Angle 120° 120°
Working temperture .-20℃~+45℃ .-20℃~+45℃



Avaliable with 5 colors, RGB+Warmwhite+Cool White

RGBWW = RGB + Cold White (6000-6500k)+Warm white(2800-3200k)

.Superbright 5050 RGBWW LED Strip Light, high intensity and reliability, one 5050
led have 5 color,rgb and white and wram white!

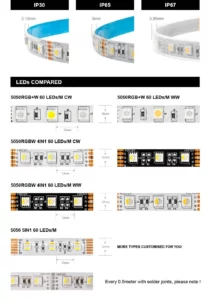

Rgbw 5050 Led Strips 10
Rgbw 5050 Led Strips 11
Rgbw 5050 Led Strips 12
