24V 840LEDs Addressable LED Strip RGBW-IC – Ultra-Bright Individually Programmable Lighting
24V 840LEDs Addressable LED Strip RGBW-IC – Ultra-Bright Individually Programmable Lighting Original price was: $500.00.Current price is: $230.00.

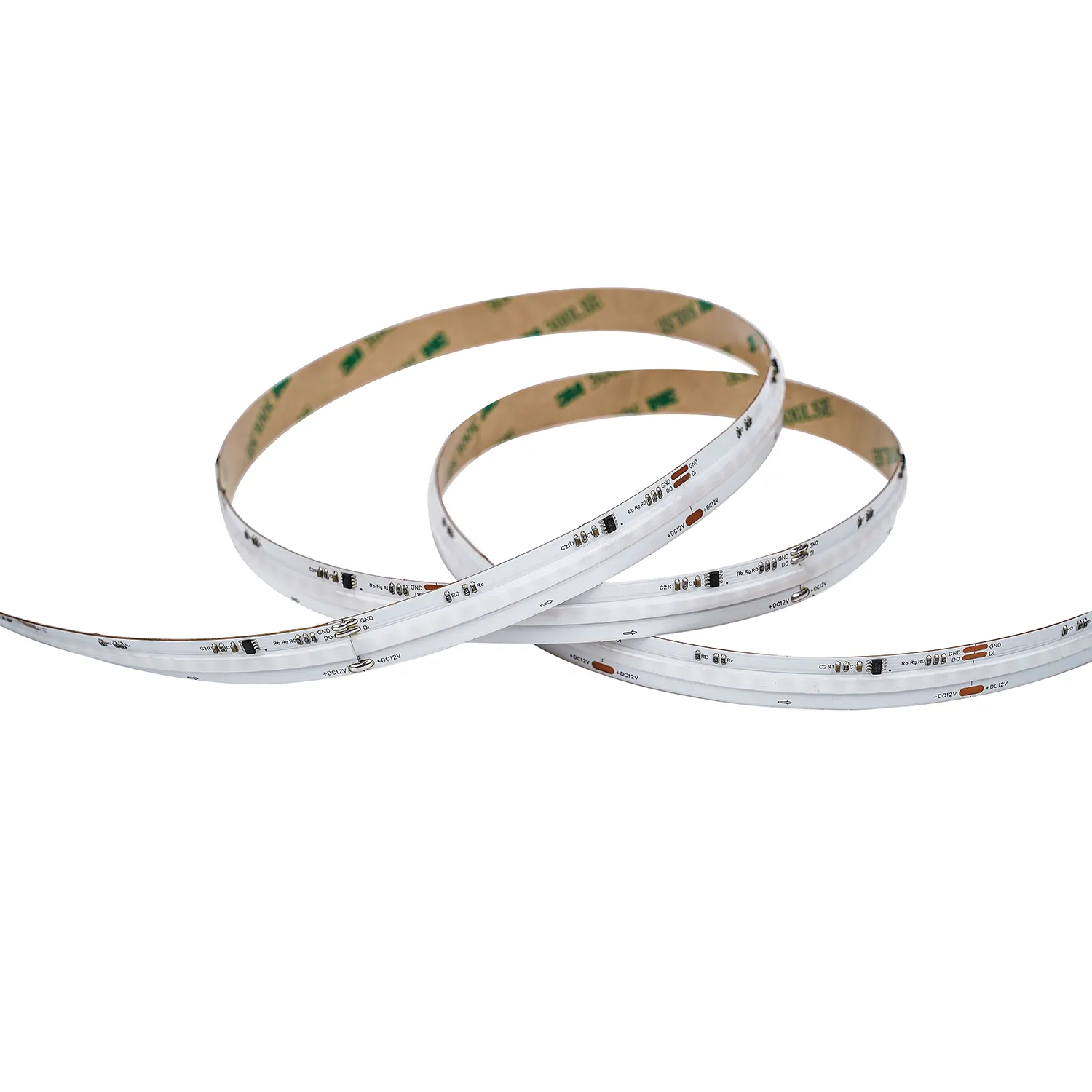

12V 840LEDs Addressable LED Strip RGBW-IC – Full Color Customization

SKU: YF-CRGBWIC12MM840-12V

Original price was: $500.00.Current price is: $230.00.

Per Box

YIFORD’s 12V 840LEDs Addressable LED Strip RGBW-IC delivers stunning, individually controllable lighting for dynamic ambiance. With 840 LEDs/m and 14 ICs/m, this digital RGB LED strip offers ultra-smooth color transitions, perfect for home decor, gaming setups, and commercial displays. Its COB (Chip-on-Board) technology ensures uniform brightness and durability.

  • Prices are per box.
  • Prices will appear after all available options have been selected.
  • Shipping cost will appear after filling in the recipient’s company address and zip code.
Description

Product Overview

The YIFORD Addressable LED Strip RGBW-IC is a high-density, programmable LED tape that enables individual LED control for seamless animations and color effects. Unlike standard LED strips, each LED can display different colors simultaneously, making it ideal for creative lighting projects.

Built with COB LED technology, this strip eliminates visible light dots, ensuring smooth, professional-grade illumination. The 12V low-voltage operation enhances safety, while the flexible PCB allows easy installation on curved surfaces.

Perfect for DIY enthusiasts, interior designers, and event planners, this controllable RGB LED strip supports various controllers (SPI or Arduino-compatible) for endless customization.

🔹 Part Number: YF-CRGBWIC12MM840-12V
🔹 LED Color: RGBW-IC (RGB + White + Independent Control)
🔹 Voltage: 12V DC
🔹 Power Consumption: Up to 10.4W/m
🔹 Dimensions: 12mm (W) × 2mm (T)
🔹 Cutting Length: Every 71.4mm

Part Number: YF-CRGBWIC12MM840-12V

Specifications:

Weight 6 kg
LED Color

RGBWIC

Voltage

12VDC

LED Quantity

840 LEDs Per Metre

PCB Width

12mm

Power

10.4 W/M

Cuttable Length

71.4mm

IC Quantity

14PCS/Meter

Length Per pcs

5 Meter

Box

100 Meters

bright, vivid, and dynamic lighting effects

Key Features

features

● 12V digital LED strip, (spot-free COB design, )individual color control with 14pixels each meter.
● SPI protocol addressable led strip, RGB color changing with dynamic chasing effect.
● 3M back tape by default for easy installation.
● Ideal solution for decorating stage, building structure, entertainment places or gaming devices.

Ultra-High LED Density (840 LEDs/m) for Seamless Lighting

With 840 LEDs per meter, this strip provides superior color blending without dark spots. The 14 ICs per meter ensure precise individual LED control, making it perfect for gradient effects, dynamic patterns, and smooth transitions.

True RGBW-IC (RGB + White + Independent Control)

Unlike standard RGB strips, this model includes dedicated white LEDs (Warm/Cool White) + RGB, allowing independent control for richer color mixing. Achieve natural white tones without compromising RGB vibrancy.

COB (Chip-on-Board) Technology for Uniform Brightness

Traditional LED strips show visible dots between LEDs, but COB technology integrates micro-LEDs into a single light-emitting layer, producing a smooth, continuous glow ideal for backlighting, signage, and decorative lighting.

Flexible & Easy to Install (Cut Every 71.4mm)

The 12mm width and 2mm thickness make it ultra-flexible for curved installations. Pre-marked cutting points every 71.4mm allow customization without damaging circuitry.

Low Power & Safe 12V Operation

Operating at 12V DC, this strip is safer than 24V alternatives, reducing overheating risks. With 10.4W/m power consumption, it balances brightness and efficiency.

Wide Compatibility with Controllers & Software

Works with SPI, Arduino, Raspberry Pi, and popular LED controllers (WS2812B-compatible). Use WLED, FastLED, or proprietary apps for advanced effects like music sync, gradients, and animations.

How to Use and Installation instructions

  1. Connect to Power – Use a 12V power supply .
  2. Add a Controller – Choose SPI or WS2812B-compatible controllers.
  3. Customize Effects – Program via WLED, FastLED, or mobile apps.
  4. Install & Secure – Use 3M adhesive backing or aluminum channels for heat dissipation.
  5. Extend as Needed – Solder or use connectors for longer runs (max. 10m per power injection).
  • Clean the surface: Ensure the surface is free of dust and grease for better adhesion.
  • Cut the strip: Most LED strips have marked cutting points for safe and precise trimming.
  • Adhesive backing: Press firmly after sticking to ensure the strip stays in place.
  • Connect to the controller: Match the positive and negative terminals correctly to avoid damage.

Product Applications

✨ Home Decor – Cove lighting, under-cabinet, TV backlighting
✨ Gaming & PC Setups – Custom RGB lighting for desks and monitors
✨ Retail & Commercial – Accent lighting for bars, shops, exhibitions
✨ Stage & Events – Dynamic LED walls, wedding decorations
✨ Architectural Lighting – Facades, stair lighting, signage

Why Choose YIFORD

✔ Premium COB LED Technology – Smoother, brighter, longer-lasting
✔ Rigorous Quality Testing – Stable signal, no flickering, durable build
✔ Customizable Solutions – Cut, extend, and program for any project
✔ Global Support & Warranty – Reliable customer service

Upgrade your lighting with YIFORD’s 12V Addressable LED Strip RGBIC – where innovation meets brilliance!

🔹 Part No.: YF-CRGBIC10MM630-12V
🔹 Voltage: 12V DC
🔹 LED Type: COB (Chip-on-Board)
🔹 LED Density: 630 LEDs/m
🔹 Cutting Length: 71.4mm
🔹 Power: Max 8W/m

Order now & transform your space with limitless lighting possibilities!

Additional information
Weight 6 kg
LED Color

RGBWIC

Voltage

12VDC

LED Quantity

840 LEDs Per Metre

PCB Width

12mm

Power

10.4 W/M

Cuttable Length

71.4mm

IC Quantity

14PCS/Meter

Length Per pcs

5 Meter

Box

100 Meters
