24V 840LEDs Addressable LED Strip RGBW-IC – Ultra-Bright Individually Programmable Lighting

SKU: YF-CRGBWIC12MM840-24V

Original price was: $500.00.Current price is: $230.00.

Per Box

YIFORD’s 24V 840LEDs Addressable LED Strip RGBW-IC delivers ultra-bright, individually controllable lighting with 840 LEDs/m for seamless color transitions. Featuring COB technology for uniform illumination and 24V high-efficiency power, this programmable RGB LED strip is perfect for home decor, commercial displays, and stage lighting.

  • Prices are per box.
  • Prices will appear after all available options have been selected.
  • Shipping cost will appear after filling in the recipient’s company address and zip code.
Description

Product Overview

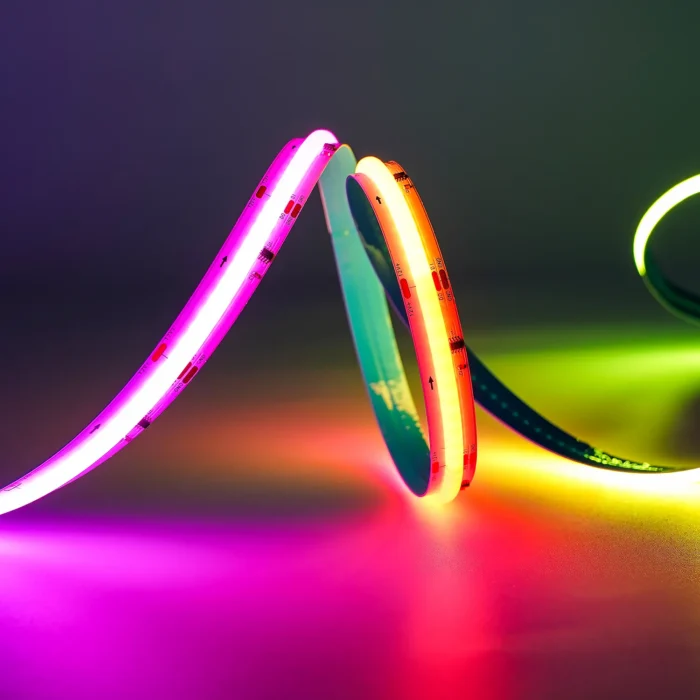

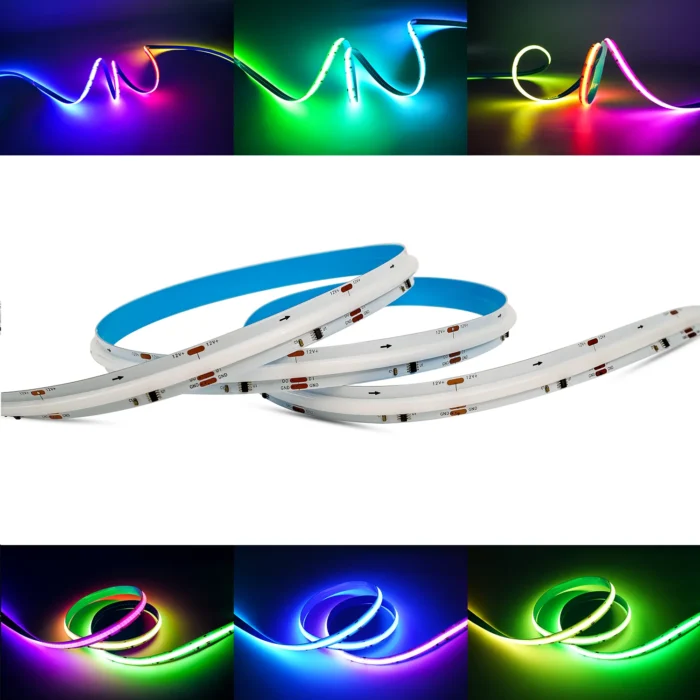

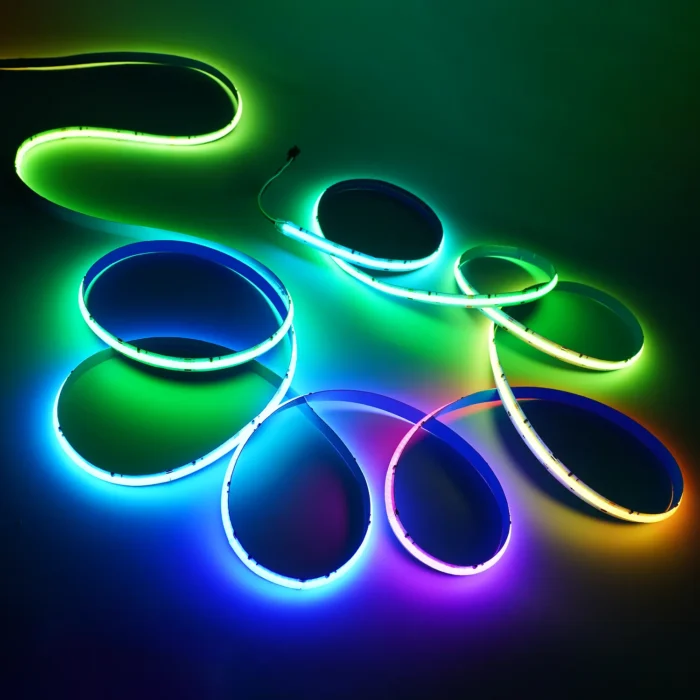

The YIFORD 24V Addressable LED Strip RGBW-IC is a high-performance, individually programmable LED tape that allows per-LED color control for dynamic lighting effects. With 840 LEDs per meter and 10 ICs/m, it provides smooth gradients, animations, and precise lighting control—ideal for creative installations.

Built with COB (Chip-on-Board) LED technology, this strip eliminates visible light dots, ensuring professional-grade, uniform brightness. The 24V operation reduces voltage drop, allowing longer runs without power loss, making it perfect for large-scale projects.

Compatible with SPI, DMX, Arduino, and popular LED controllers, this digital RGB LED strip supports WLED, FastLED, and custom programming for endless lighting possibilities.

🔹 Part Number: YF-CRGBWIC12MM840-24V
🔹 LED Color: RGBW-IC (Full RGB + White + Independent Control)
🔹 Voltage: 24V DC (Higher efficiency, longer runs)
🔹 Power Consumption: Up to 16W/m
🔹 Dimensions: 12mm (W) × 2mm (T)
🔹 Cutting Length: Every 100mm (Easy customization)

Part Number: YF-CRGBWIC12MM840-24V

Specifications:

Weight 6 kg
LED Color

RGBWIC

Voltage

24VDC

LED Quantity

840 LEDs Per Metre

PCB Width

12mm

Power

16W/M

Cuttable Length

100mm

IC Quantity

10PCS/Meter

Length Per pcs

5 Meter

Box

100 Meters

bright, vivid, and dynamic lighting effects

Key Features

features

✅ 840 LEDs/m – Ultra-high density for seamless lighting
✅ Individually addressable – Full RGBW+IC control
✅ COB technology – No visible dots, smooth glow
✅ 24V efficiency – Longer runs, less power loss
✅ Cuttable every 100mm – Flexible customization
✅ Wide compatibility – Works with Arduino,  SPI

Ultra-High LED Density (840 LEDs/m) for Smooth Lighting

With 840 LEDs per meter, this strip ensures no dark spots and perfect color blending, ideal for gradient effects, dynamic patterns, and cinematic lighting. The 10 ICs per meter allow precise individual LED control for advanced animations.

True RGBW-IC (RGB + White + Independent Control)

Unlike standard RGB strips, this model includes dedicated white LEDs (Warm/Cool White) + RGB, allowing independent control for richer color mixing. Achieve natural white tones without compromising RGB vibrancy.

COB (Chip-on-Board) Technology for Professional Lighting

Traditional LED strips show visible dots, but COB technology integrates micro-LEDs into a single light-emitting layer, producing a smooth, continuous glow—perfect for backlighting, signage, and architectural lighting.

24V High-Efficiency Power for Longer Runs

Operating at 24V DC, this strip reduces voltage drop, allowing longer installations (up to 10m without power injection). The 16W/m power consumption balances brightness and efficiency.

Flexible & Easy to Install (Cut Every 100mm)

The 12mm width and 2mm thickness make it highly flexible for curved surfaces. Pre-marked cutting points every 100mm allow custom lengths without damaging circuits.

Wide Compatibility with Controllers & Software

Works with SPI,  Arduino, Raspberry Pi, and WS2812B-compatible controllers. Use WLED, FastLED, or custom apps for music sync, pixel mapping, and real-time animations.

How to Use and Installation instructions

  1. Connect to Power – Use a 12V power supply .
  2. Add a Controller – Choose SPI or WS2812B-compatible controllers.
  3. Customize Effects – Program via WLED, FastLED, or mobile apps.
  4. Install & Secure – Use 3M adhesive backing or aluminum channels for heat dissipation.
  5. Extend as Needed – Solder or use connectors for longer runs (max. 10m per power injection).
  • Clean the surface: Ensure the surface is free of dust and grease for better adhesion.
  • Cut the strip: Most LED strips have marked cutting points for safe and precise trimming.
  • Adhesive backing: Press firmly after sticking to ensure the strip stays in place.
  • Connect to the controller: Match the positive and negative terminals correctly to avoid damage.

Product Applications

✨ Home & Interior Lighting – Cove lighting, under-cabinet, TV backlighting
✨ Gaming & PC Setups – Custom RGB lighting for desks and monitors
✨ Retail & Commercial – Accent lighting for bars, shops, exhibitions
✨ Stage & Events – Dynamic LED walls, wedding decorations
✨ Architectural Lighting – Facades, stair lighting, signage

Why Choose YIFORD

✅ Premium COB LED Technology – No visible dots, superior brightness
✅ 5-Year Warranty – Industry-leading reliability
✅ 24/7 Customer Support – Expert guidance for installation & programming
✅ Bulk Order Discounts – Ideal for commercial projects


Order Now & Transform Your Space with YIFORD’s Smart LED Lighting!

🔥 Ultra-Bright, Individually Programmable, Endless Creative Possibilities! 🔥

Additional information
Weight 6 kg
LED Color

RGBWIC

Voltage

24VDC

LED Quantity

840 LEDs Per Metre

PCB Width

12mm

Power

16W/M

Cuttable Length

100mm

IC Quantity

10PCS/Meter

Length Per pcs

5 Meter

Box

100 Meters
