yiford Light Strip
| wdt_ID | Number | Remarks | Code(5V) | Code(12V) | Code(24V) | Code(48V) | Photo | LED/M | Colour | CRI | Width | Thickness | LED Type | Cut (5V) | Cut (12V) | Cut(24V) | Cut(48V) | Power(W/M) | Flux(Lm/M) | Eff.(Lm/W) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | roll to roll | / | / | YF-CRGBIC10MM576-24V | / | 576 | RGB | / | 10mm | 2oz | COB | / | / | 62.5 | / | 17.00 | 578 | 34 | |

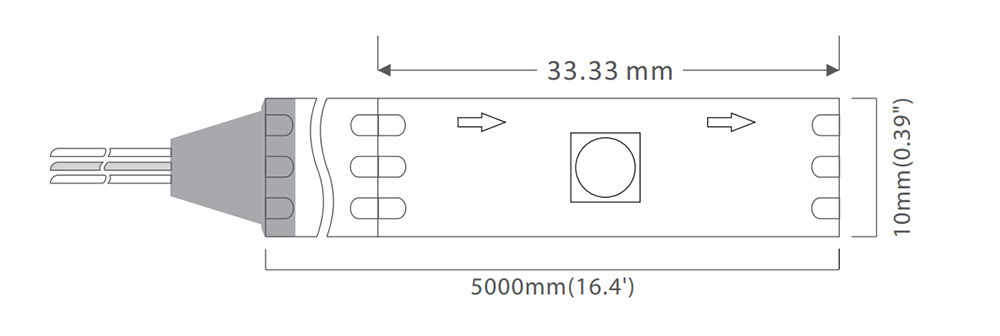

| 2 | 2 | SPI | YF-S5050RGBIC10MM30-5V | / | / | / |  | 30 | RGB | / | 10mm | 2oz | 5050 | 33.33mm | / | / | / | 5.40 | / | / |

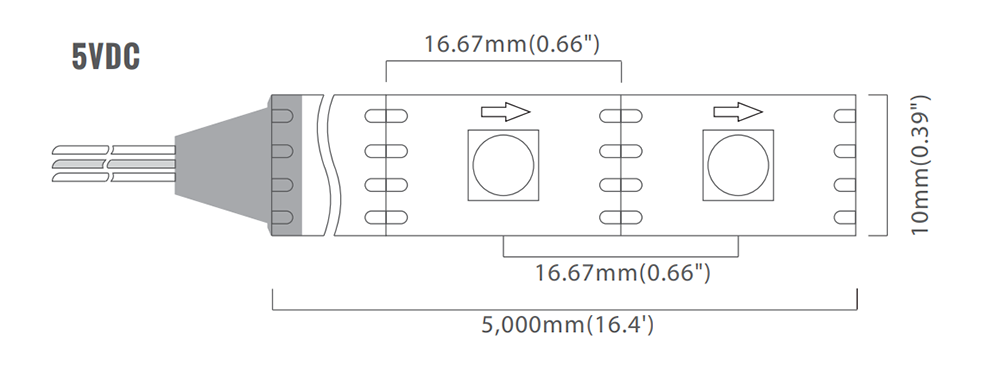

| 3 | 3 | SPI | YF-S5050RGBIC10MM60-5V | / | / | / |  | 60 | RGB | / | 10mm | 2oz | 5050 | 16.67mm | / | / | / | 10.80 | / | / |

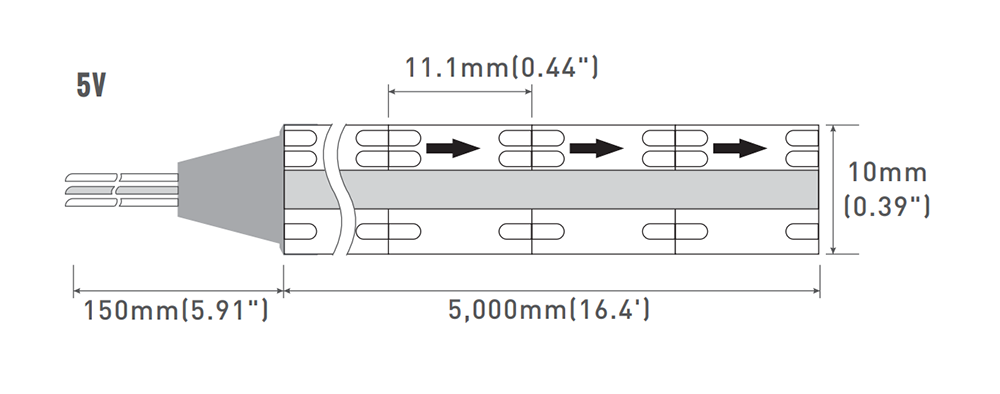

| 4 | 4 | SPI | YF-CRGBIC10MM180-5V | / | / | / |  | 180 | RGB | / | 10mm | 2oz | COB | 11.1mm | / | / | / | 14.00 | 280 | 20 |

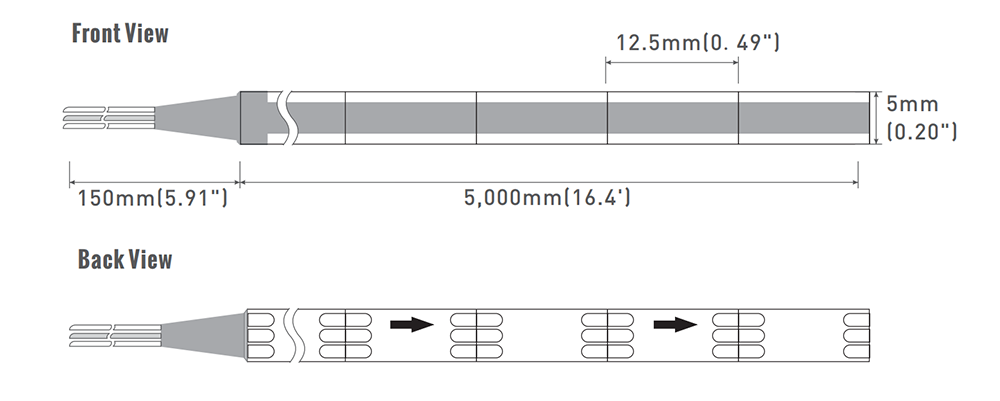

| 5 | 5 | SPI | YF-CRGBIC5MM160-5V | / | / | / |  | 160 | RGB | / | 5mm | 2oz | COB | 12.5mm | / | / | / | 12.00 | 240 | 20 |

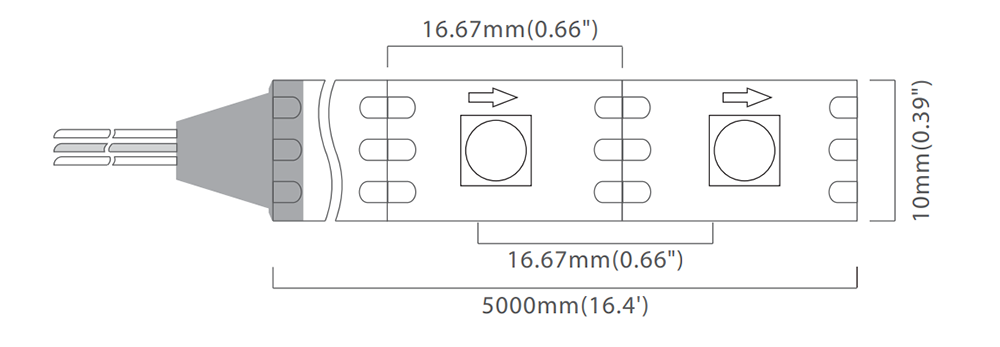

| 6 | 6 | SPI | YF-S5050RGBWIC10MM60-5V | / | / | / |  | 60 | RGBW | / | 10mm | 3oz | 5050 | 16.67mm | / | / | / | 11.00 | / | / |
| 7 | 7 | SPI | YF-S5050RGBWIC12MM120-5V | / | / | / | | 120 | RGBW | / | 12mm | 3oz | 5050 | 16.67mm | / | / | / | 22.00 | / | / |

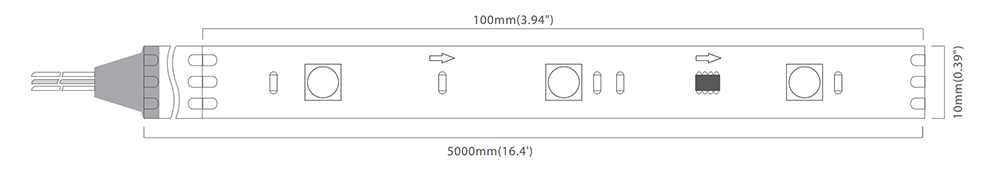

| 8 | 8 | SPI | / | YF-S5050RGBIC10MM30-12V | / | / |  | 30 | RGB | / | 10mm | 3oz | 5050 | / | 100mm | / | / | 6.12 | / | / |

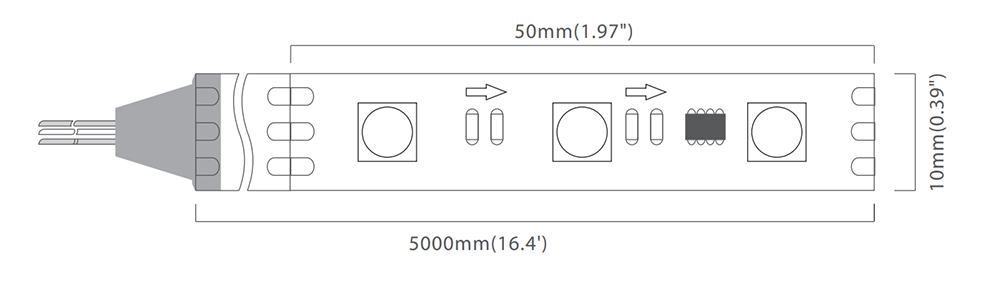

| 9 | 9 | SPI | / | YF-S5050RGBIC10MM60-12V | / | / |  | 60 | RGB | / | 10mm | 2oz | 5050 | / | 50mm | / | / | 12.24 | / | / |

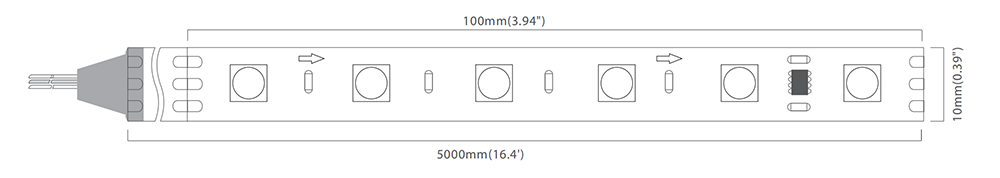

| 10 | 10 | SPI | / | / | YF-S5050RGBIC10MM60-24V | / |  | 60 | RGB | / | 10mm | 2oz | 5050 | / | / | 100mm | / | 12.24 | / | / |

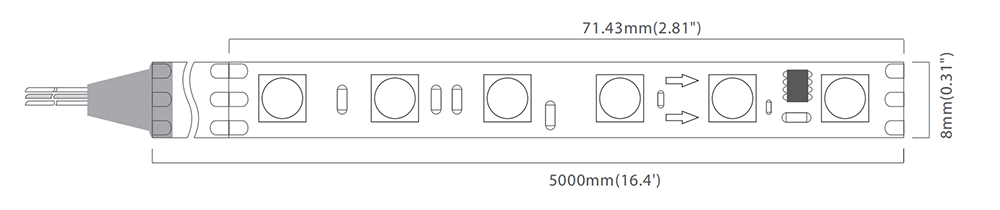

| 11 | 11 | SPI | / | / | YF-S5050RGBIC8MM84-24V | / |  | 84 | RGB | / | 8mm | 2oz | 5050 | / | / | 71.4mm | / | 15.00 | 480 | 32 |

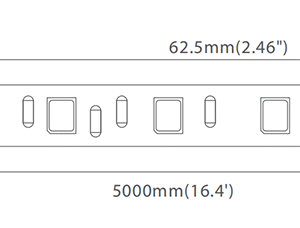

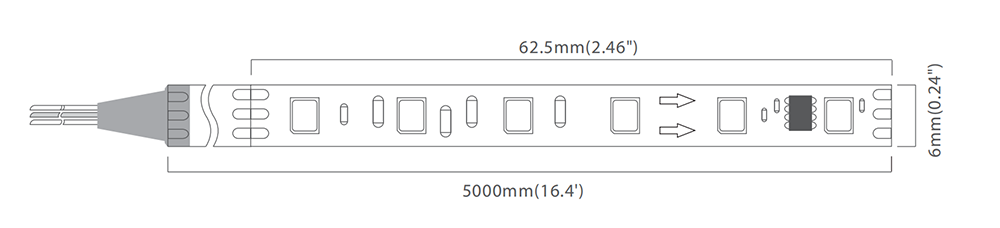

| 12 | 12 | SPI | / | / | YF-S2835RGBIC6MM96-24V | / |  | 96 | RGB | / | 6mm | 2oz | 2835 | / | / | 62.5mm | / | 16.00 | 496 | 31 |

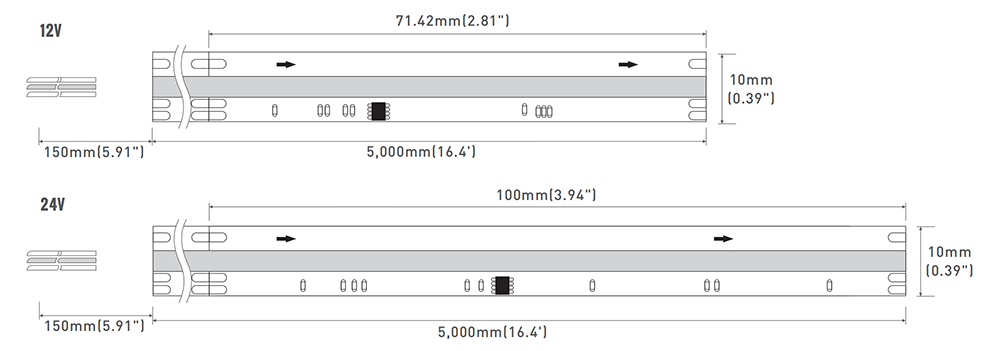

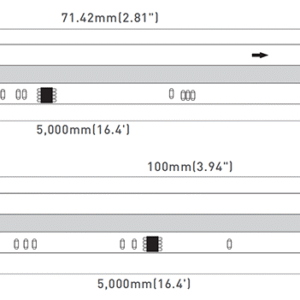

| 13 | 13 | SPI | / | YF-CRGBIC10MM630-12V | / | / |  | 630 | RGB | / | 10mm | 2oz | COB | / | 71.4mm | / | / | 8.00 | 280 | 35 |
| 14 | 14 | SPI | / | / | YF-CRGBIC10MM630-24V | / | | 630 | RGB | / | 10mm | 2oz | COB | / | / | 100mm | / | 11.00 | 440 | 40 |
| 15 | 15 | SPI Secondary drip glue | / | YF-CRGBIC12MM720-12V | / | / | 720 | RGB | / | 12mm | 2oz | COB | / | 50mm | / | / | 12.00 | 480 | 40 | |
| 16 | 16 | SPI Secondary drip glue | / | / | YF-CRGBIC12MM720-24V | / | 720 | RGB | / | 12mm | 2oz | COB | / | / | 50mm | / | 14.00 | 462 | 33 | |

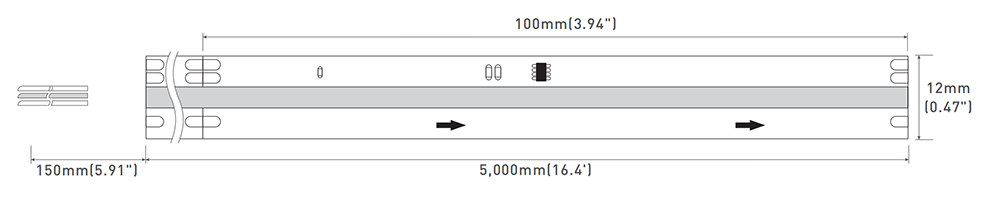

| 17 | 17 | SPI | / | / | YF-CWIC12MM420-24V | / |  | 420 | W | 90+ | 12mm | 2oz | COB | / | / | 100mm | / | 13.00 | 1105 | 85 |

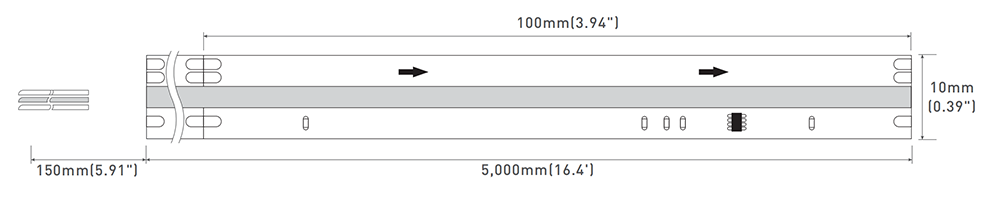

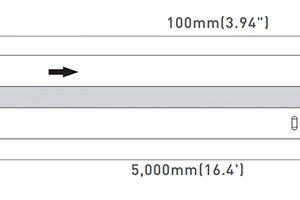

| 18 | 18 | SPI | / | / | YF-CCCTIC10MM560-24V | / |  | 560 | 2700-6500K | 90+ | 10mm | 2oz | COB | / | / | 100mm | / | 9.00 | 630 | 70 |
| 19 | 19 | SPI | / | / | YF-S4040RGBWIC8MM84-24V | / | 84 | RGBW | / | 8mm | 2oz | 4040 | / | / | 71.4mm | / | 16.00 | 464 | 29 | |
| 20 | 20 | SPI | / | YF-S5050RGBWIC10MM60-12V | / | / |  | 60 | RGBW | 80+ | 10mm | 2oz | 5050 | / | 50mm | / | / | 16.32 | / | / |

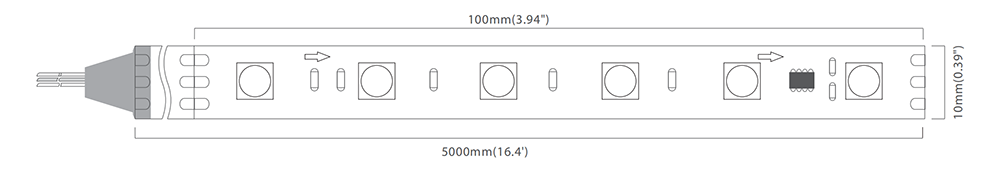

| 21 | 21 | SPI | / | / | YF-S5050RGBWIC10MM60-24V | / |  | 60 | RGBW | 80+ | 10mm | 2oz | 5050 | / | / | 100mm | / | 16.32 | / | / |

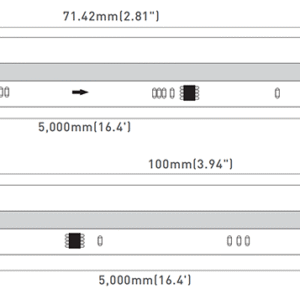

| 22 | 22 | SPI | / | YF-CRGBWIC12MM840-12V | / | / |  | 840 | RGBW | 90+ | 12mm | 2oz | COB | / | 71.4mm | / | / | 10.40 | 520 | 50 |
| 23 | 23 | SPI | / | / | YF-CRGBWIC12MM840-24V | / | | 840 | RGBW | 90+ | 12mm | 2oz | COB | / | / | 100mm | / | 16.00 | 800 | 50 |

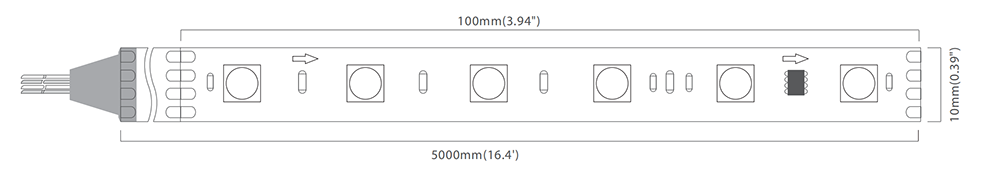

| 24 | 24 | DMX | / | / | YF-S5050RGBIC10MM60-24V-DMX | / |  | 60 | RGB | / | 10mm | 2oz | 5050 | / | / | 100mm | / | 14.40 | / | / |

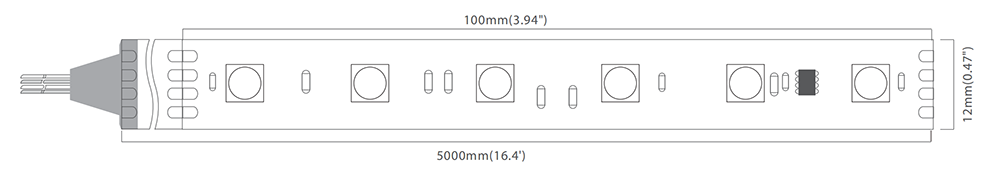

| 25 | 25 | DMX | / | / | YF-S5050RGBWIC12MM60-24V-DMX | / |  | 60 | RGBW | 80+ | 12mm | 2oz | 5050 | / | / | 100mm | / | 19.20 | / | / |

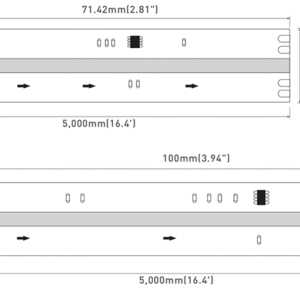

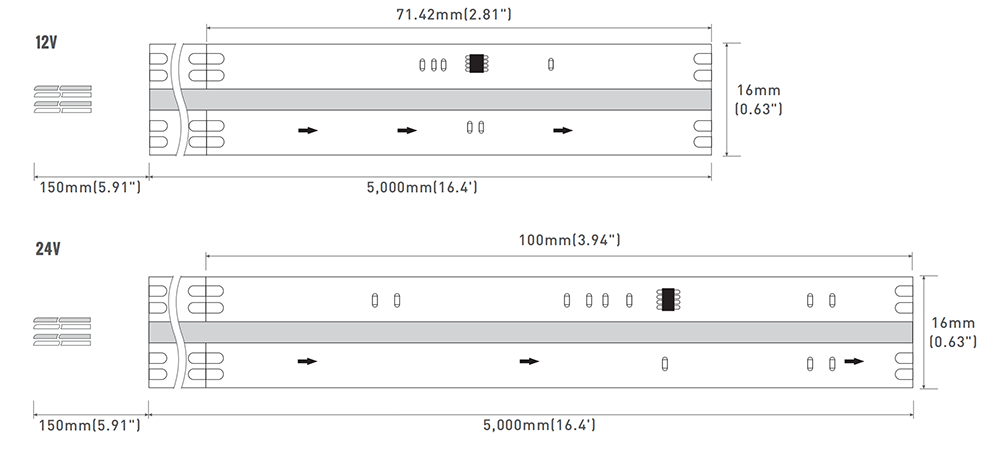

| 26 | 26 | DMX | / | YF-CRGBIC16MM630-12V-DMX | / | / |  | 630 | RGB | / | 16mm | 2oz | COB | / | 71.4mm | / | / | 10.00 | 200 | 20 |
| 27 | 27 | DMX | / | / | YF-CRGBIC16MM630-24V-DMX | / | | 630 | RGB | / | 16mm | 2oz | COB | / | / | 100mm | / | 14.00 | 280 | 20 |

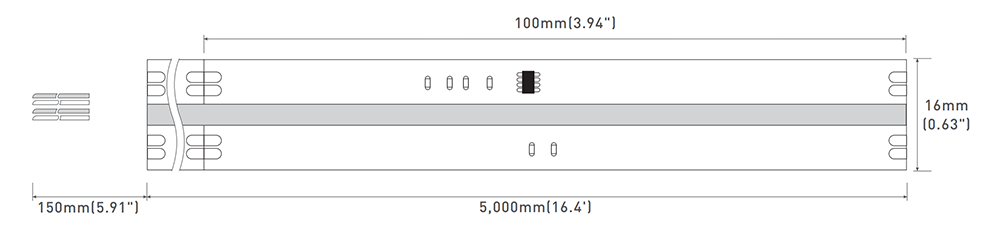

| 28 | 28 | DMX | / | / | YF-CWIC16MM420-24V-DMX | / |  | 420 | W | 90+ | 16mm | 2oz | COB | / | / | 100mm | / | 14.00 | 840 | 60 |

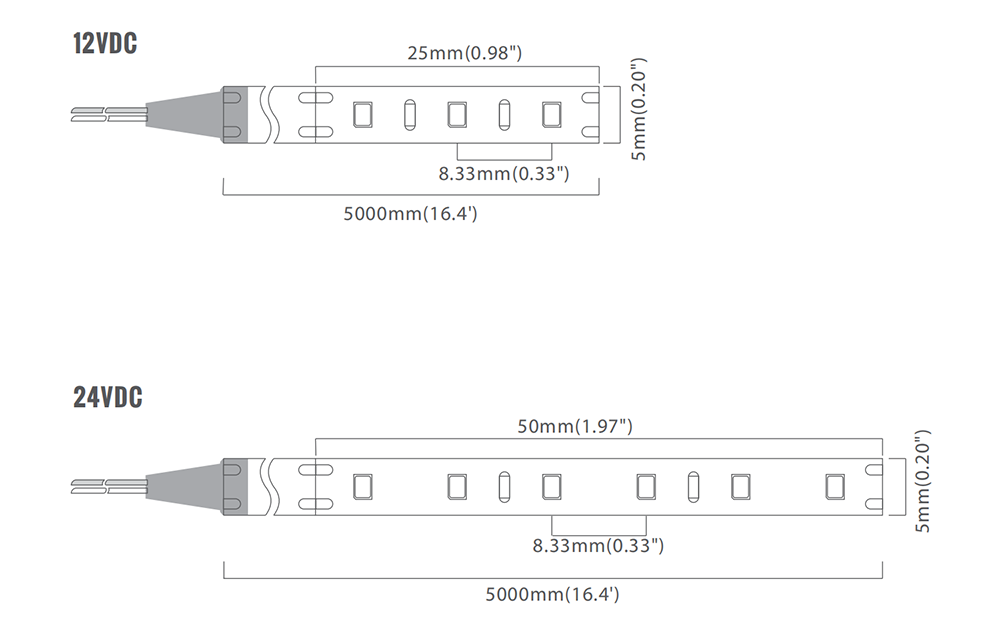

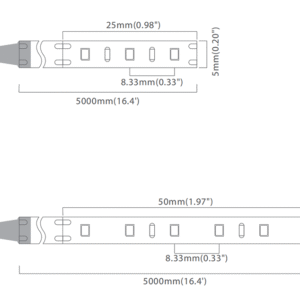

| 29 | 29 | / | YF-S2216W5MM120-12V | YF-S2216W5MM120-24V | / |  | 120 | WW/NW/CW | 90+ | 5mm | 2oz | 2216 | / | 25mm | 50mm | / | 6.00 | 480 | 80 | |

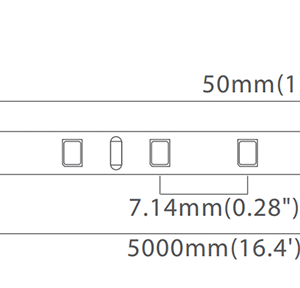

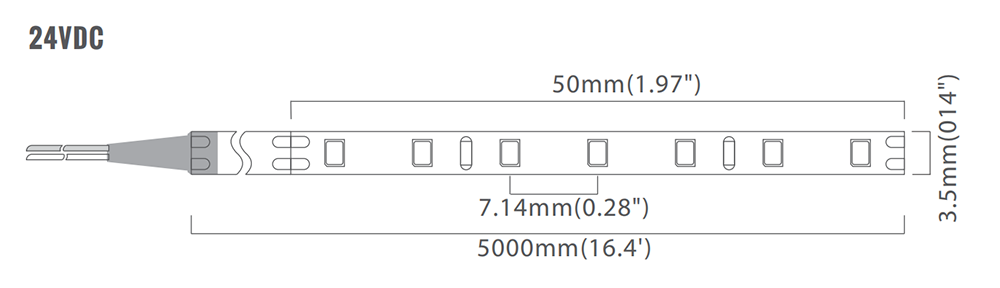

| 30 | 30 | / | / | YF-S2216W3MM140-24V | / |  | 140 | WW/NW/CW | 90+ | 3.5mm | 2oz | 2216 | / | / | 50mm | / | 4.00 | 360 | 90 | |

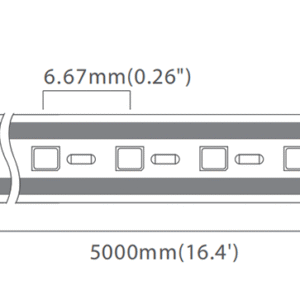

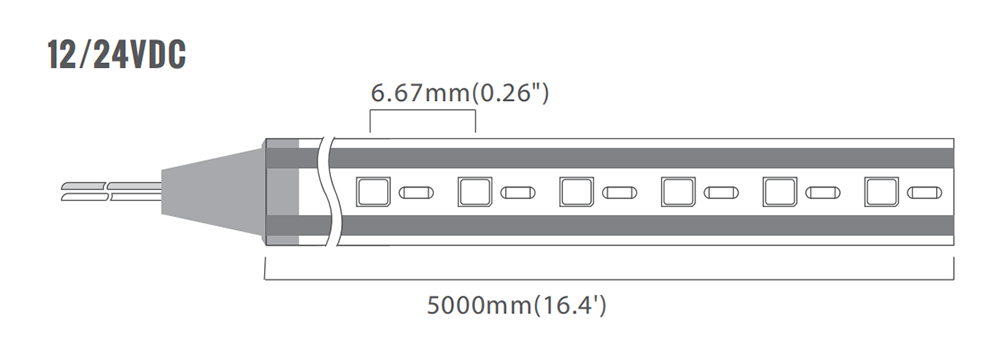

| 31 | 31 | / | YF-S2219W7MM150-12V | YF-S2219W7MM150-24V | / |  | 150 | WW/NW/CW | 80/90+ | 7mm | 2oz | 2219 | / | 6.67mm | 6.67mm | / | 12.00 | 1200 | 100 | |

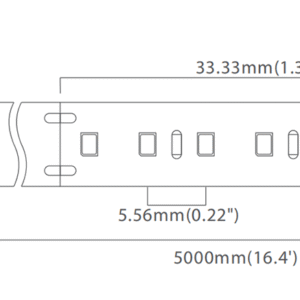

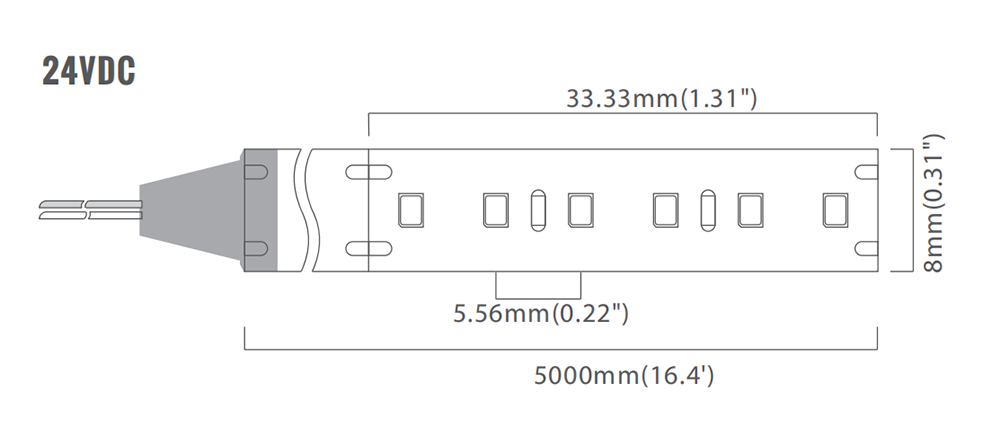

| 32 | 32 | / | / | YF-S2216W8MM180-24V | / |  | 180 | WW/NW/CW | 90+ | 8mm | 20z | 2216 | / | / | 33.33mm | / | 12.00 | 960 | 80 | |

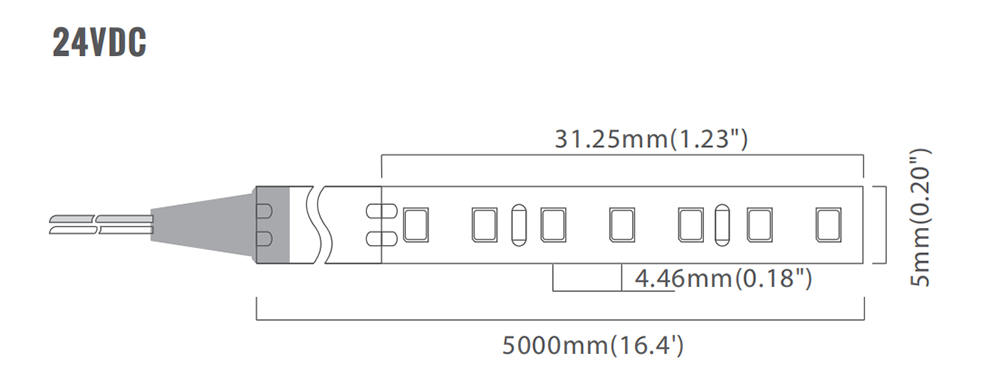

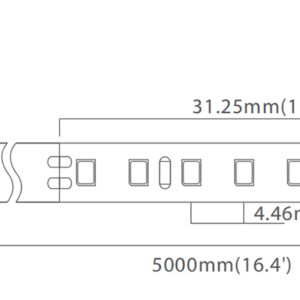

| 33 | 33 | / | / | YF-S2216W5MM224-24V | / | 224 | WW/NW/CW | 90+ | 5mm | 2oz | 2216 | / | / | 31.25mm | / | 8.00 | 720 | 90 | ||

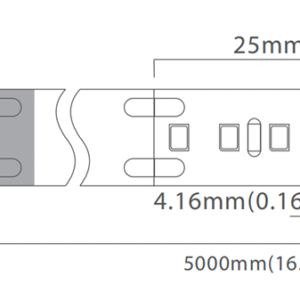

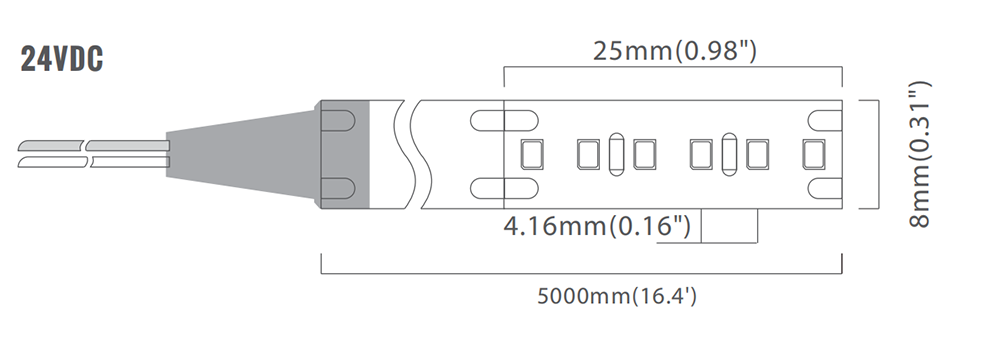

| 34 | 34 | / | / | YF-S2216W8MM240-24V | / | 240 | WW/NW/CW | 90+ | 8mm | 2oz | 2216 | / | / | 25mm | / | 14.00 | 1120 | 80 | ||

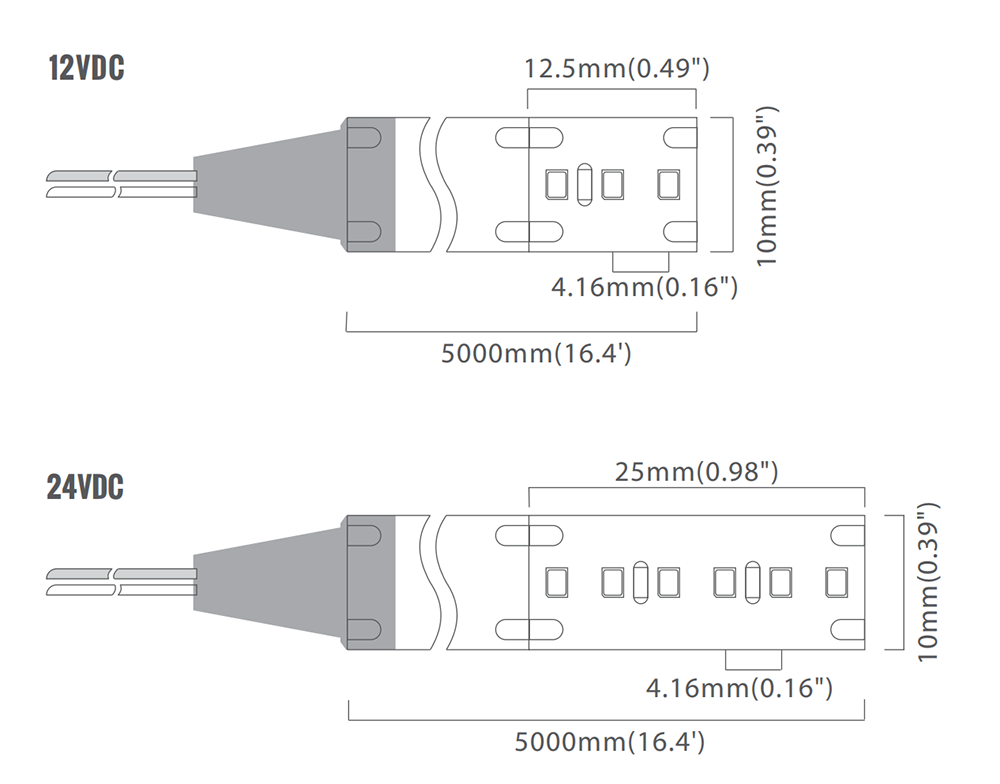

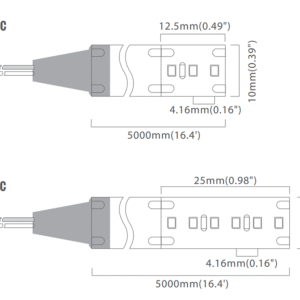

| 35 | 35 | / | YF-S2216W10MM240-12V | YF-S2216W10MM240-24V | / | 240 | WW/NW/CW | 90+ | 10mm | 3oz | 2216 | / | 12.5mm | 25mm | / | 18.00 | 1440 | 80 | ||

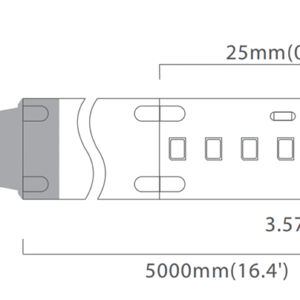

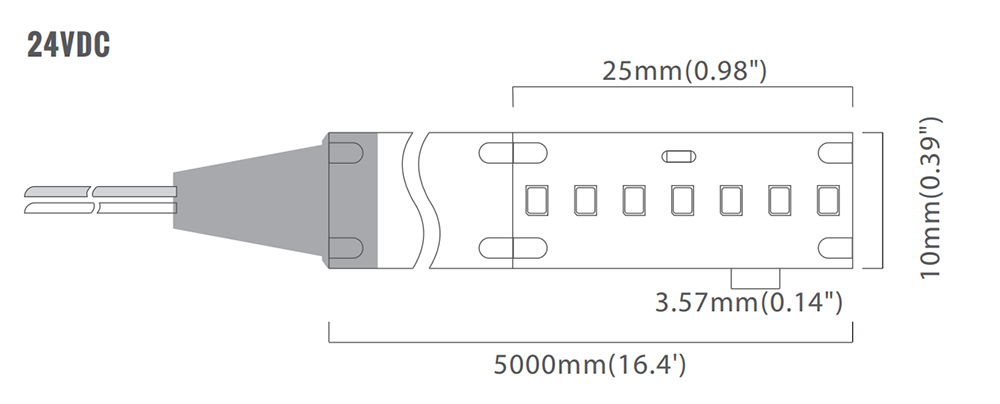

| 36 | 36 | / | / | YF-S2216W10MM280-24V | / | 280 | WW/NW/CW | 90+ | 10mm | 3oz | 2216 | / | / | 25mm | / | 18.00 | 1620 | 90 | ||
| 37 | 37 | / | / | YF-S2216W8MM304-24V | / | 304 | WW/NW/CW | 90+ | 8mm | 3oz | 2219 | / | / | 26.32mm | / | 9.60 | 1536 | 160 | ||
| 38 | 38 | / | / | YF-S2216W8MM320-24V-SC | / | 320 | WW/NW/CW | 90+ | 8mm | 3oz | 2219 | / | / | 12.5mm | / | 9.60 | 1536 | 160 | ||

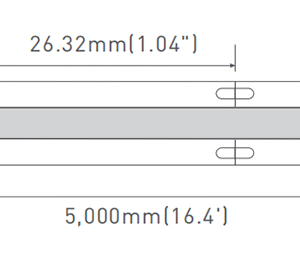

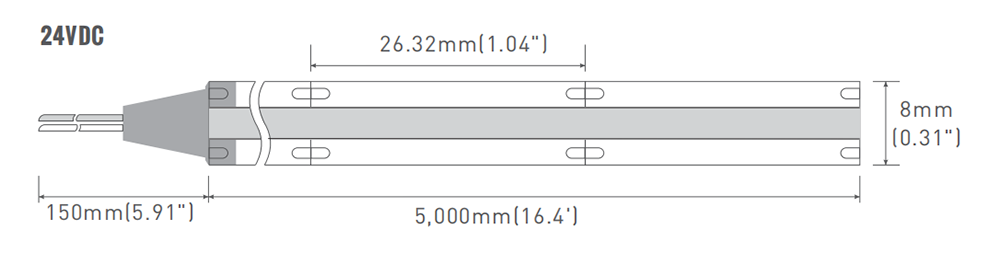

| 39 | 39 | SOB | / | / | YF-SOB2219W8MM304-24V | / | 304 | WW/NW/CW | 90+ | 8mm | 2oz | 2219 | / | / | 26.32mm | / | 9.60 | 1488 | 155 | |

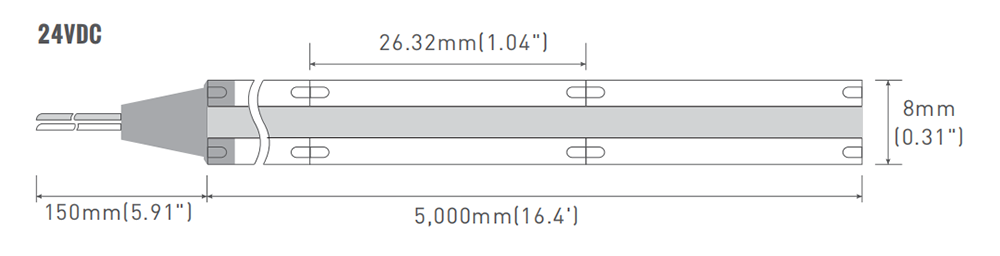

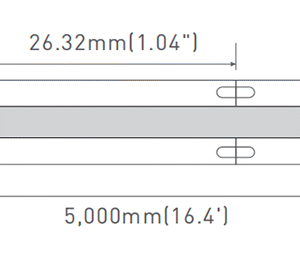

| 40 | 40 | SOB | / | / | YF-SOB2219W8MM304-24V-BW | / | 304 | WW/NW/CW | 90+ | 8mm | 2oz | 2219 | / | / | 26.32mm | / | 9.60 | 1344 | 140 | |

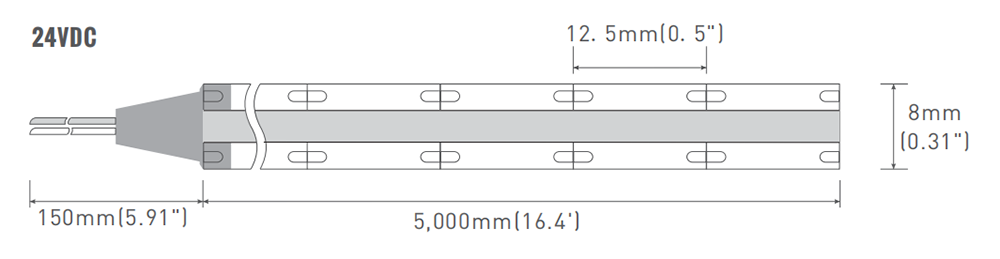

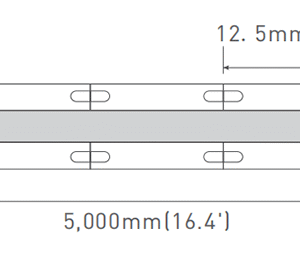

| 41 | 41 | SOB | / | / | YF-SOB2219W8MM320-24V-BW-SC | / | 320 | WW/NW/CW | 90+ | 8mm | 3oz | 2219 | / | / | 12.5mm | / | 9.60 | 1344 | 140 | |
| 42 | 42 | roll to roll | / | / | YF-S2835W8MM120-24V | / | 120 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | / | 50mm | / | 9.60 | 1104 | 115 | |

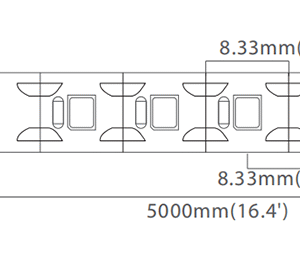

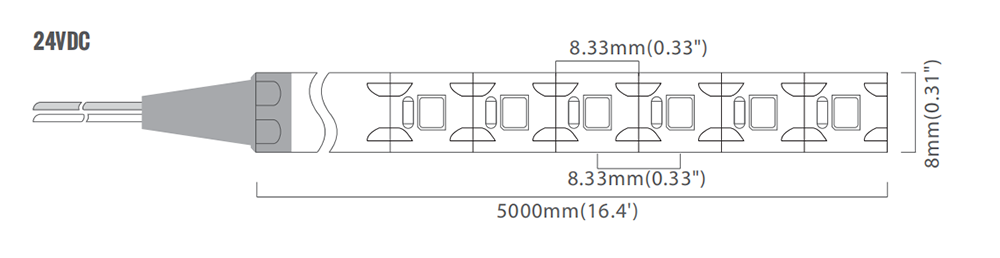

| 43 | 43 | roll to roll | / | / | YF-S2835W8MM120-24V-OL | / | 120 | WW/NW/CW | 95+ | 8mm | 2oz | 2835 | / | / | 8.33mm | / | 9.60 | 816 | 85 | |

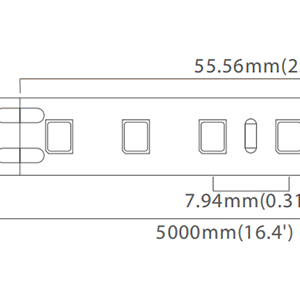

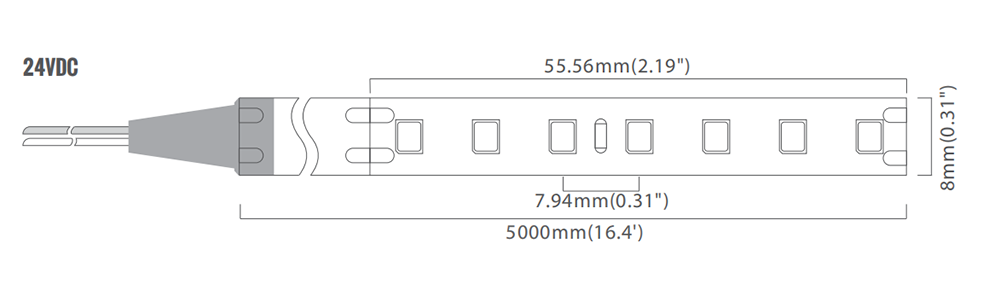

| 44 | 44 | roll to roll | / | / | YF-S2835W8MM126-24V | / | 126 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | / | 55.56mm | / | 9.60 | 1248 | 130 | |

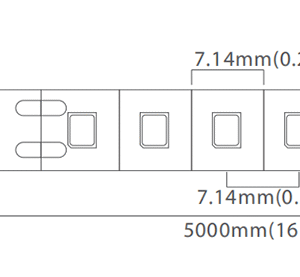

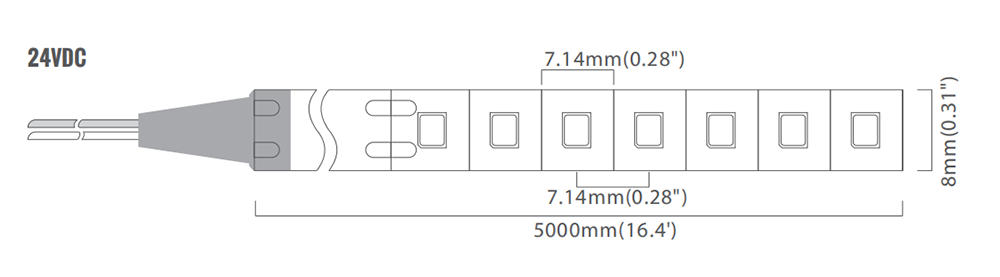

| 45 | 45 | roll to roll | / | / | YF-S2835W8MM140-24V-OL | / | 140 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | / | 7.14mm | / | 9.60 | 1104 | 115 | |

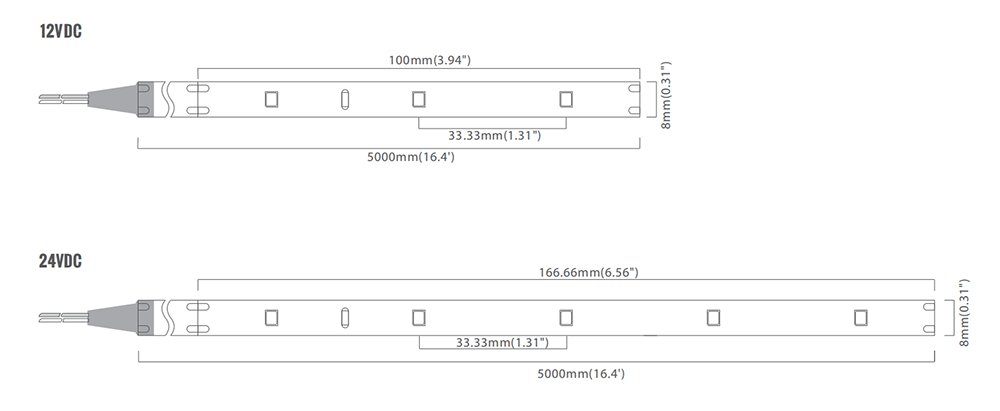

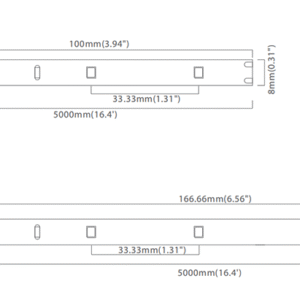

| 46 | 46 | / | YF-S2835W8MM30-12V | YF-S2835W8MM30-24V | / | 30 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | 100mm | 166.67mm | / | 6.40 | 578.7 | 90 | ||
| 47 | 47 | / | YF-S2835X8MM30-12V | YF-S2835X8MM30-24V | / | 30 | R/B/G | / | 8mm | 2oz | 2835 | / | 100mm | 166.67mm | / | 6.40 | - | - | ||

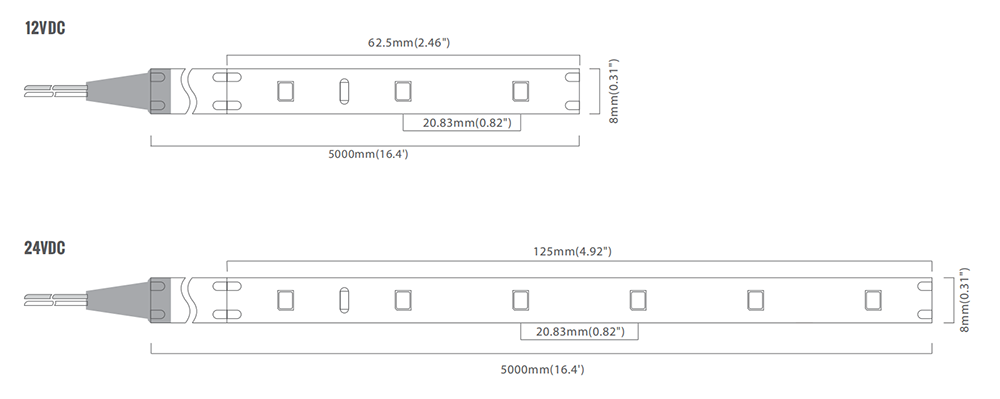

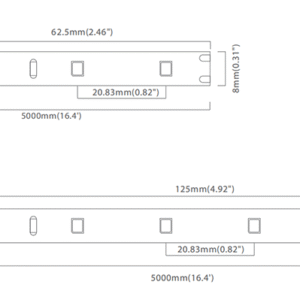

| 48 | 48 | / | YF-S2835W8MM48-12V | YF-S2835W8MM48-24V | / | 48 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | 62.5mm | 125mm | / | 9.00 | 810 | 90 | ||
| 49 | 49 | / | YF-S2835X8MM48-12V | YF-S2835X8MM48-24V | / | 48 | R/B/G | / | 8mm | 2oz | 2835 | / | 62.5mm | 125mm | / | 9.00 | - | - | ||

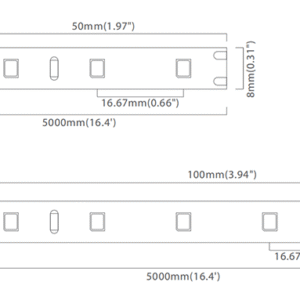

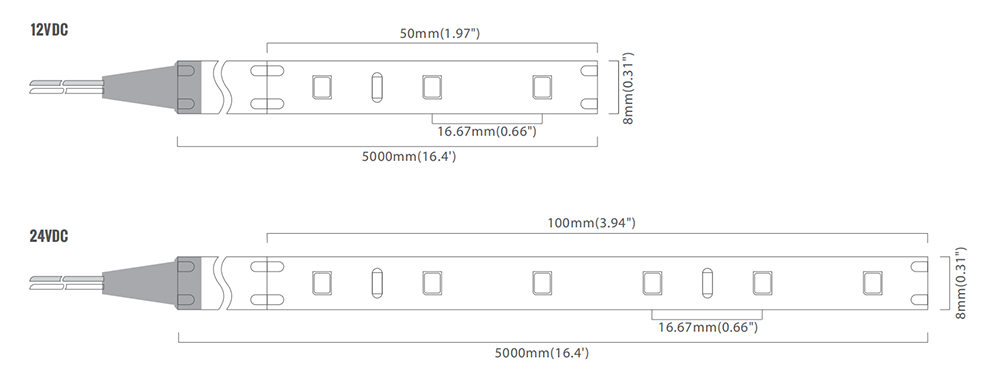

| 50 | 50 | / | YF-S2835W8MM60-12V | YF-S2835W8MM60-24V | / | 60 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | 50mm | 100mm | / | 12.00 | 1080 | 90 | ||
| 51 | 51 | / | YF-S2835X8MM60-12V | YF-S2835X8MM60-24V | / | 60 | R/B/G | / | 8mm | 2oz | 2835 | / | 50mm | 100mm | / | 12.00 | - | - | ||

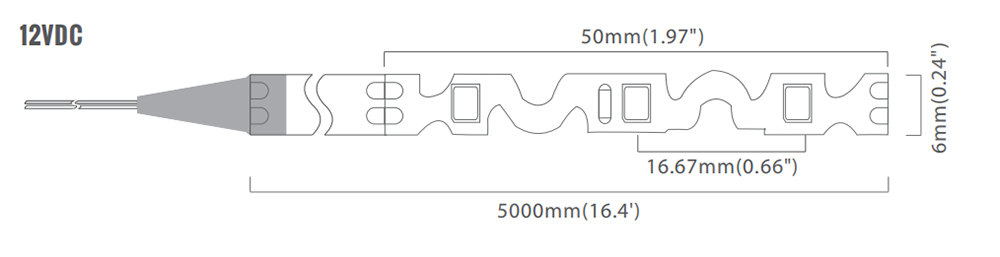

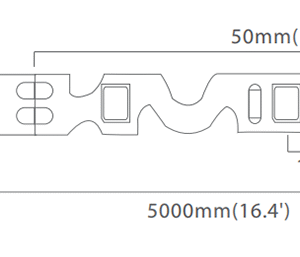

| 52 | 52 | / | YF-S2835W6MM60-12V-S | / | / | 60 | WW/NW/CW | 80/90+ | 6mm | 2oz | 2835 | / | 50mm | / | / | 4.80 | 432 | 90 | ||
| 53 | 53 | / | YF-S2835X6MM60-12V-S | / | / | 60 | R/B/G | / | 6mm | 2oz | 2835 | / | 50mm | / | / | 4.80 | - | - | ||

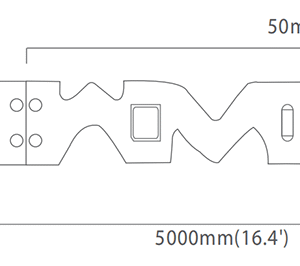

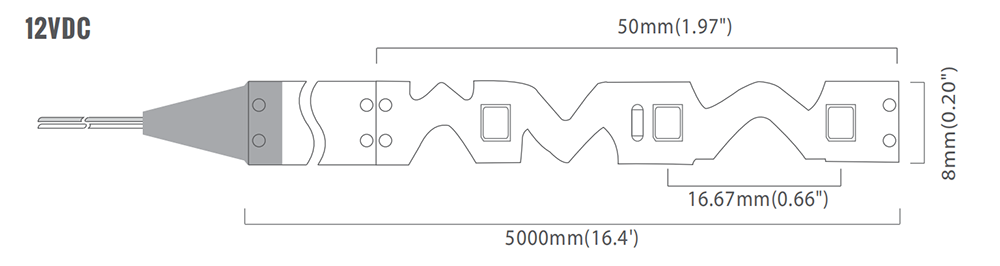

| 54 | 54 | / | YF-S2835W8MM60-12V-S | / | / | 60 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | 50mm | / | / | 7.20 | 648 | 90 | ||
| 55 | 55 | / | YF-S2835X8MM60-12V-S | / | / | 60 | R/B/G | / | 8mm | 2oz | 2835 | / | 50mm | / | / | 7.20 | - | - | ||
| 56 | 56 | / | YF-S2835W4MM60-12V-S | / | / | 60 | WW/NW/CW | 80/90+ | 4.5mm | 2oz | 2835 | / | 50mm | / | / | 4.80 | 432 | 90 | ||
| 57 | 57 | / | YF-S2835X4MM60-12V-S | / | / | 60 | R/B/G | / | 4.5mm | 2oz | 2835 | / | 50mm | / | / | 4.80 | - | - | ||

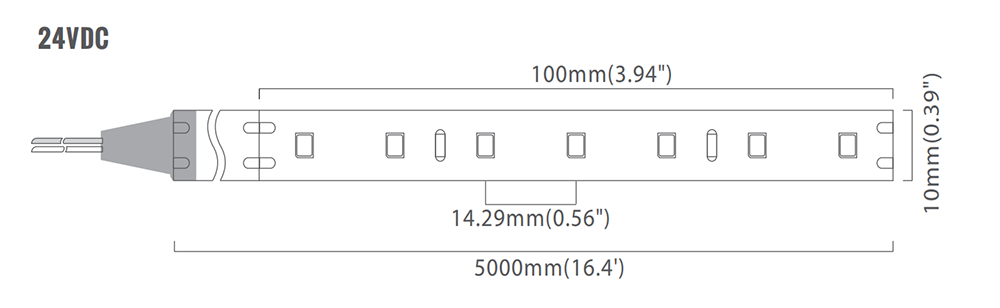

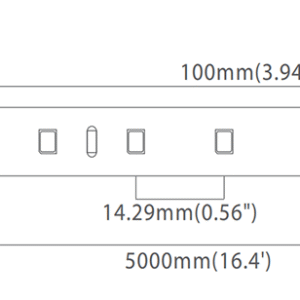

| 58 | 58 | / | / | YF-S2835W10MM70-24V | / | 70 | WW/NW/CW | 80/90+ | 10mm | 2oz | 2835 | / | / | 100mm | / | 12.00 | 1260 | 105 | ||
| 59 | 59 | / | / | YF-S2835X10MM70-24V | / | 70 | R/B/G | / | 10mm | 2oz | 2835 | / | / | 100mm | / | 12.00 | - | - | ||

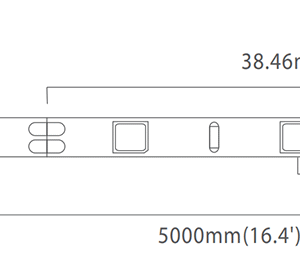

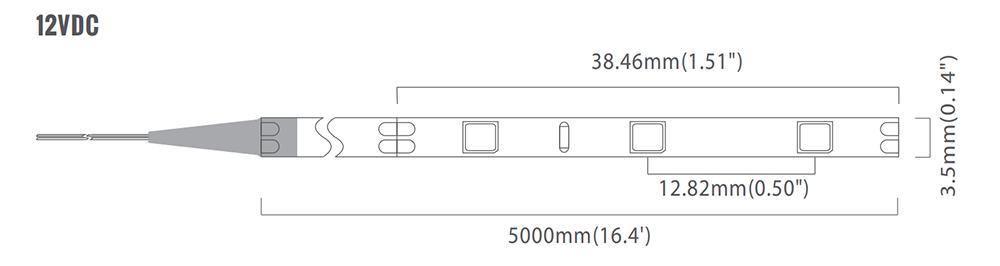

| 60 | 60 | / | YF-S2835W3MM78-12V | / | / | 78 | WW/NW/CW | 80/90+ | 3.5mm | 2oz | 2835 | / | 38.5mm | / | / | 4.00 | 360 | 90 | ||
| 61 | 61 | / | YF-S2835X3MM78-12V | / | / | 78 | R/B/G | / | 3.5mm | 2oz | 2835 | / | 38.5mm | / | / | 4.00 | - | - | ||

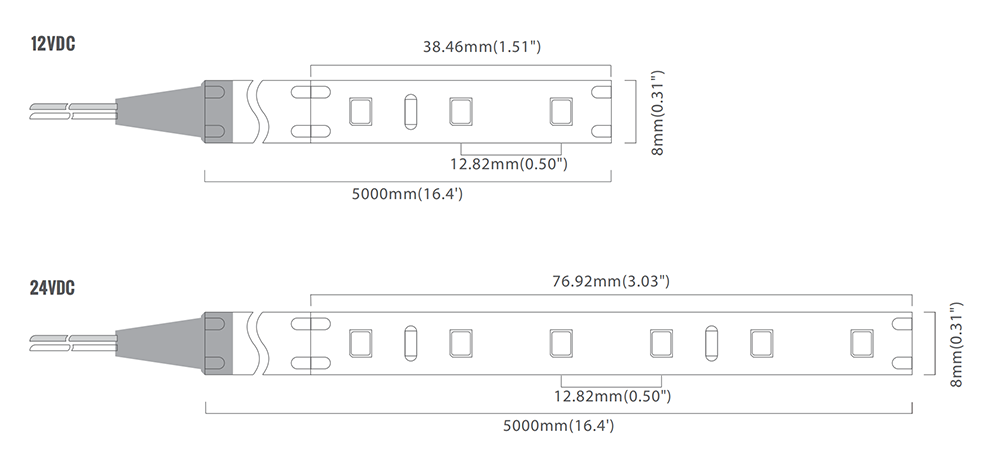

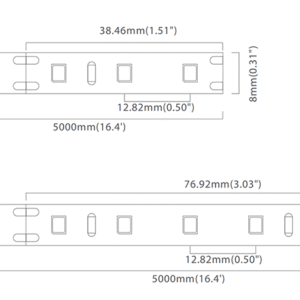

| 62 | 62 | / | YF-S2835W8MM78-12V | YF-S2835W8MM78-24V | / | 78 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | 38.5mm | 77mm | / | 14.00 | 1260 | 90 | ||
| 63 | 63 | / | YF-S2835X8MM78-12V | YF-S2835X8MM78-24V | / | 78 | R/B/G | / | 8mm | 2oz | 2835 | / | 38.5mm | 77mm | / | 14.00 | - | - | ||

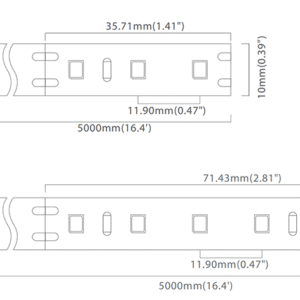

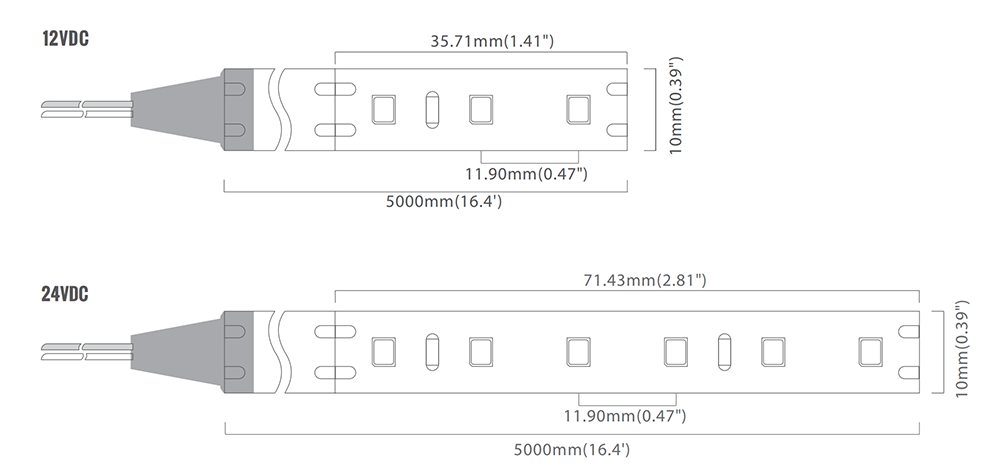

| 64 | 64 | / | YF-S2835W10MM84-12V | YF-S2835W10MM84-24V | / | 84 | WW/NW/CW | 80/90+ | 10mm | 2oz | 2835 | / | 35.71mm | 71.43mm | / | 18.00 | 1620 | 90 | ||
| 65 | 65 | / | YF-S2835X10MM84-12V | YF-S2835X10MM84-24V | / | 84 | R/B/G | / | 10mm | 2oz | 2835 | / | 35.71mm | 71.43mm | / | 18.00 | - | - | ||

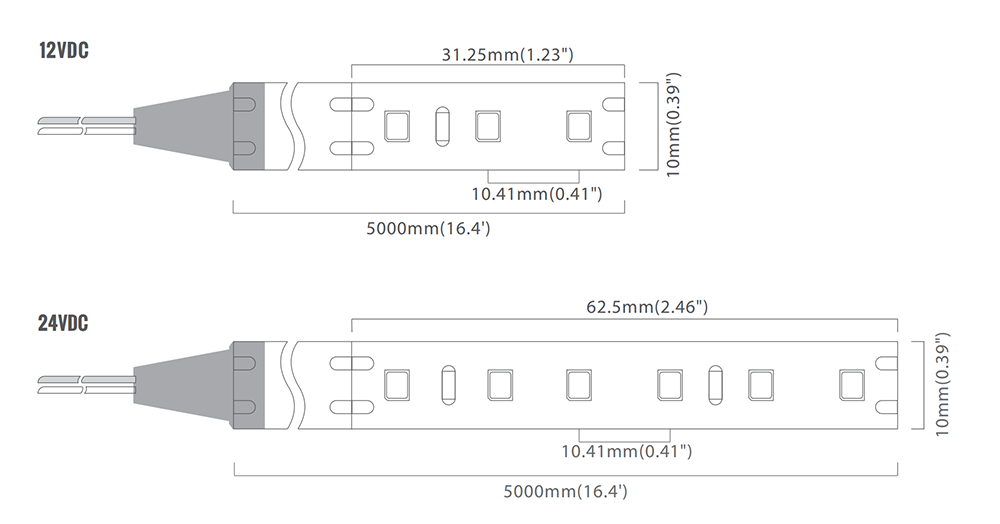

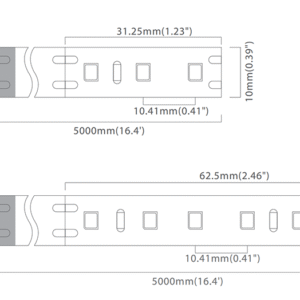

| 66 | 66 | / | YF-S2835W10MM96-12V | YF-S2835W10MM96-24V | / | 96 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | 31.2mm | 62.4mm | / | 20.00 | 1800 | 90 | ||
| 67 | 67 | / | YF-S2835X10MM96-12V | YF-S2835X10MM96-24V | / | 96 | R/B/G | / | 10mm | 3oz | 2835 | / | 31.2mm | 62.4mm | / | 20.00 | - | - | ||

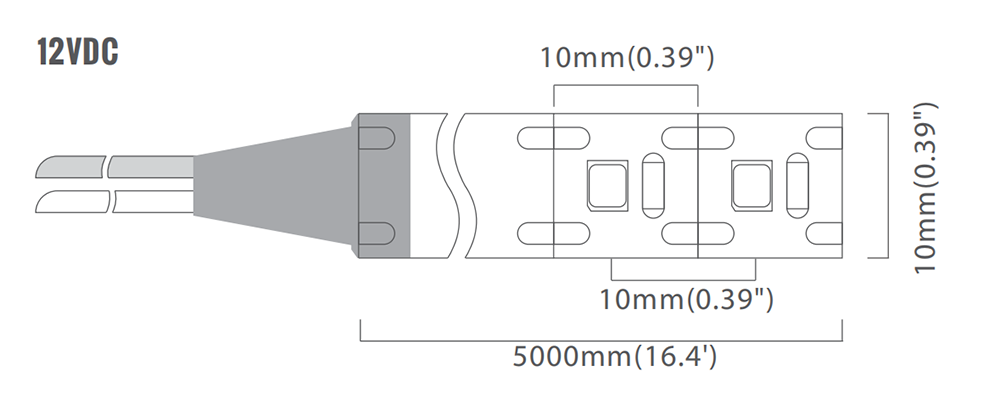

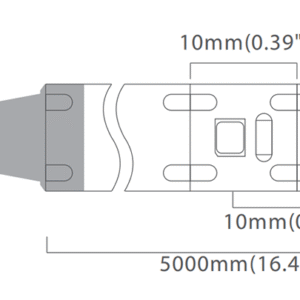

| 68 | 68 | / | YF-S2835W10MM100-12V-OL | / | / | 100 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | 10mm | / | / | 20.00 | 1800 | 90 | ||

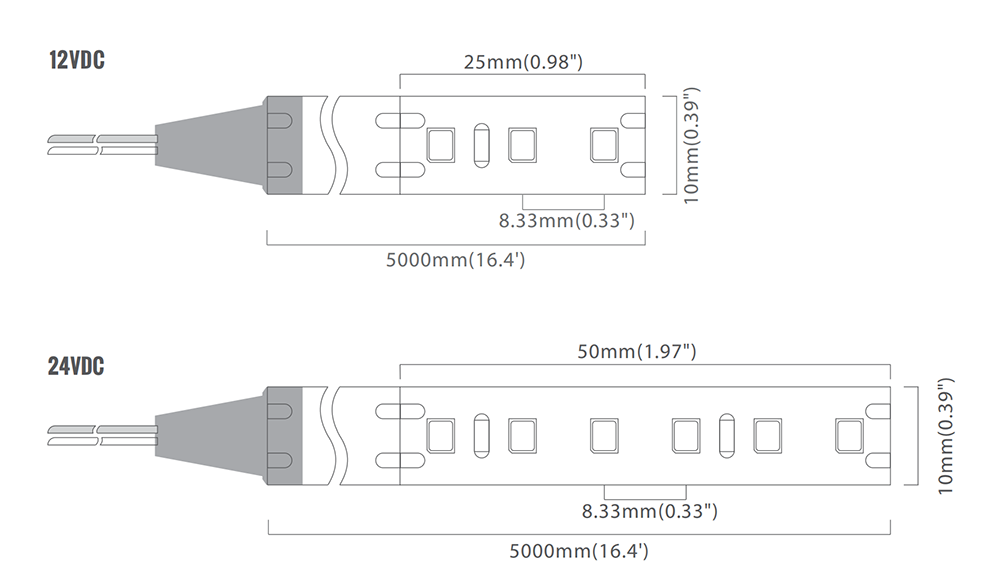

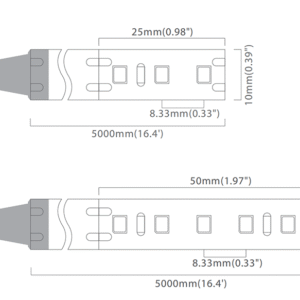

| 69 | 69 | / | YF-S2835W10MM120-12V | YF-S2835W10MM120-24V | / | 120 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | 25mm | 50mm | / | 21.00 | 1890 | 90 | ||
| 70 | 70 | / | YF-S2835X10MM120-12V | YF-S2835X10MM120-24V | / | 120 | R/B/G | / | 10mm | 3oz | 2835 | / | 25mm | 50mm | / | 21.00 | - | - | ||

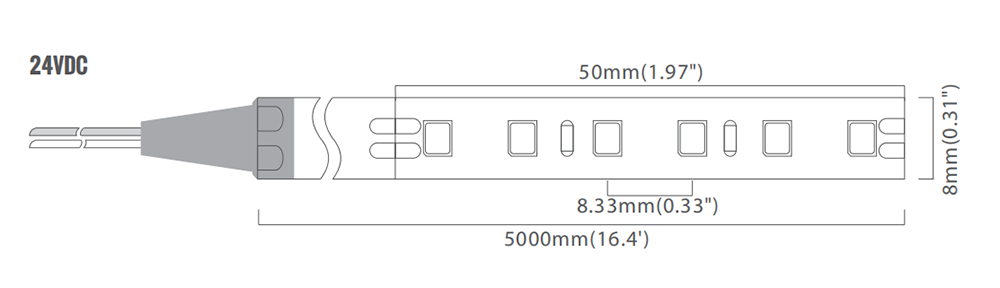

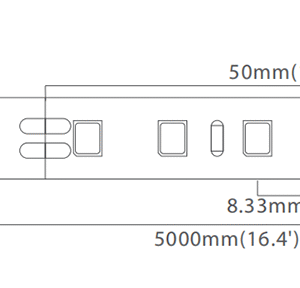

| 71 | 71 | / | YF-S2835W8MM120-12V | YF-S2835W8MM120-24V | / | 120 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | 25mm | 50mm | / | 12.00 | 1080 | 90 | ||
| 72 | 72 | / | YF-S2835X8MM120-12V | YF-S2835X8MM120-24V | / | 120 | R/B/G | / | 8mm | 2oz | 2835 | / | 25mm | 50mm | / | 12.00 | - | - | ||

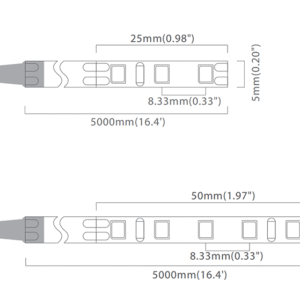

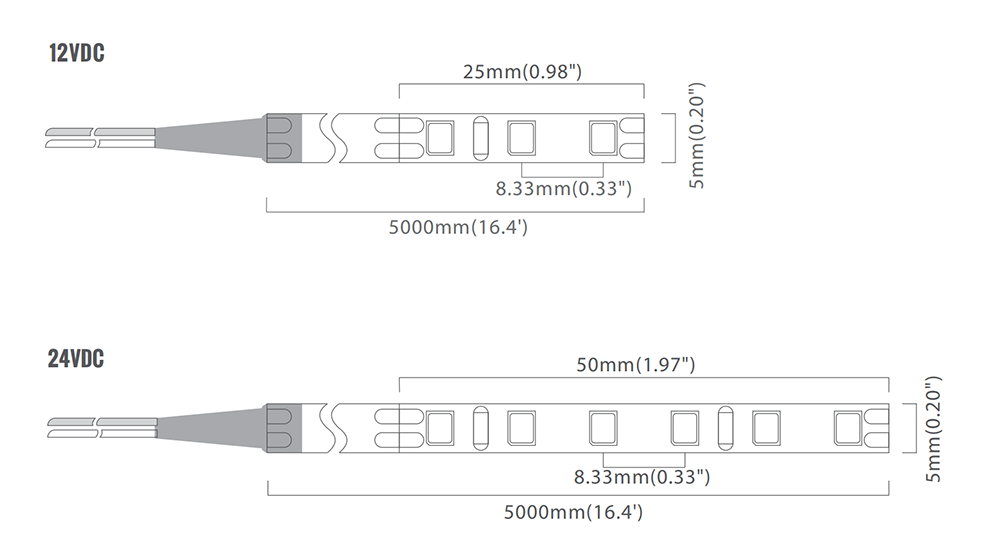

| 73 | 73 | / | YF-S2835W5MM120-12V | YF-S2835W5MM120-24V | / | 120 | WW/NW/CW | 80/90+ | 5mm | 2oz | 2835 | / | 25mm | 50mm | / | 9.60 | 864 | 90 | ||
| 74 | 74 | / | YF-S2835X5MM120-12V | YF-S2835X5MM120-24V | / | 120 | R/B/G | / | 5mm | 2oz | 2835 | / | 25mm | 50mm | / | 9.60 | - | - | ||

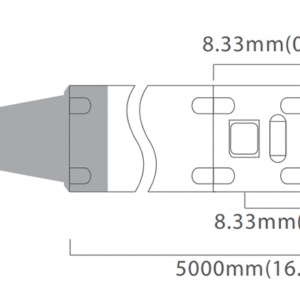

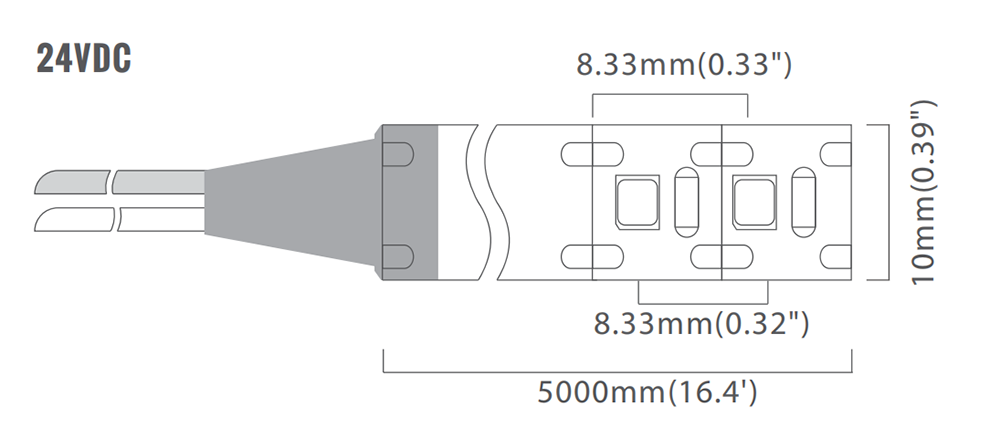

| 75 | 75 | / | YF-S2835W10MM120-12V-OL | / | / | 120 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | 8.3mm | / | / | 21.00 | 2037 | 97 | ||
| 76 | 76 | / | / | YF-S2835W10MM120-24V-OL | / | 120 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | / | 8.3mm | / | 21.00 | 2037 | 97 | ||

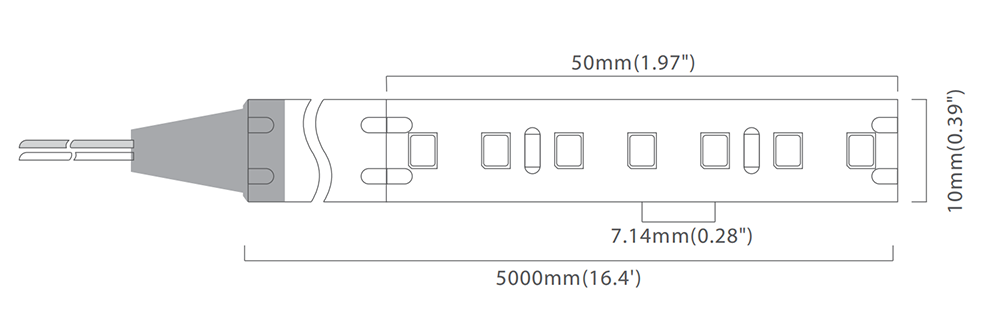

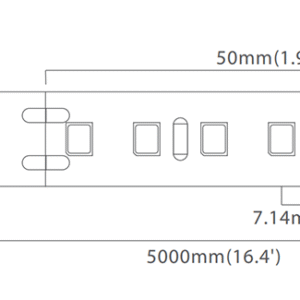

| 77 | 77 | / | / | YF-S2835W10MM140-24V | / | 140 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | / | 50mm | / | 20.00 | 2200 | 110 | ||
| 78 | 78 | / | / | YF-S2835X10MM140-24V | / | 140 | R/B/G | / | 10mm | 3oz | 2835 | / | / | 50mm | / | 20.00 | - | - | ||
| 79 | 79 | / | / | YF-S2835W12MM160-24V | / | 160 | WW/NW/CW | 80/90+ | 12mm | 2oz | 2835 | / | / | 50mm | / | 16.00 | 1920 | 120 | ||
| 80 | 80 | / | / | YF-S2835X12MM160-24V | / | 160 | R/B/G | / | 12mm | 2oz | 2835 | / | / | 50mm | / | 16.00 | - | - | ||

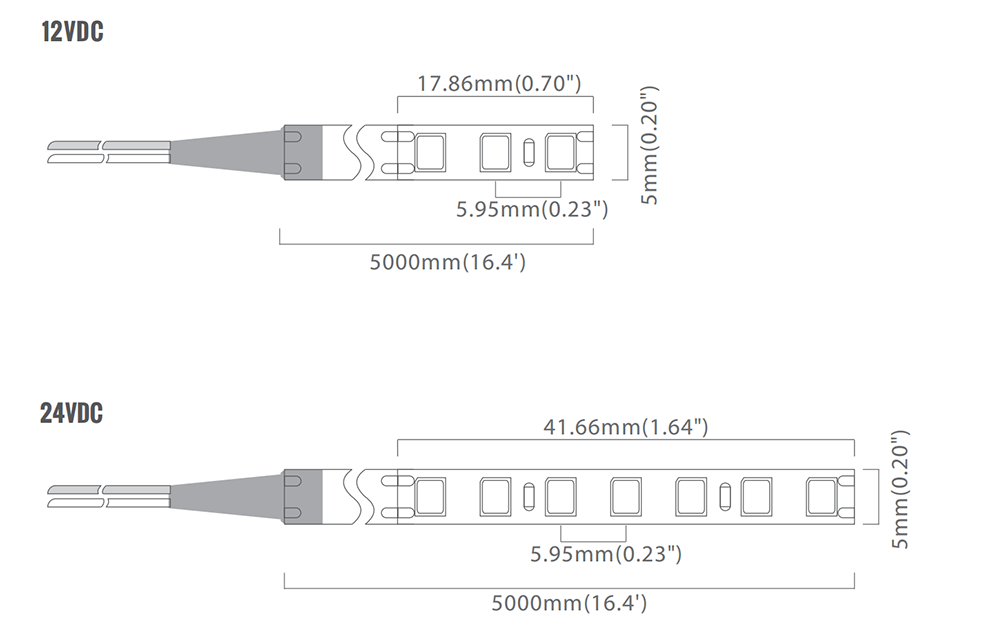

| 81 | 81 | / | / | YF-S2835W5MM168-24V | / | 168 | WW/NW/CW | 80/90+ | 5mm | 3oz | 2835 | / | / | 41.66mm | / | 10.00 | 800 | 80 | ||

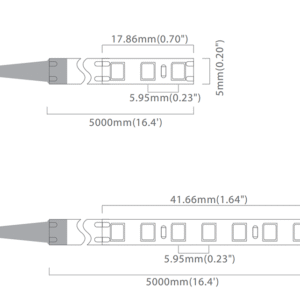

| 82 | 82 | / | / | YF-S2835X5MM168-24V | / | 168 | R/B/G | / | 5mm | 3oz | 2835 | / | / | 41.66mm | / | 10.00 | - | - | ||
| 83 | 83 | / | / | YF-S2835W10MM224-24V | / | 224 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | / | 35.74mm | / | 22.40 | 2688 | 120 | ||
| 84 | 84 | / | / | YF-S2835X10MM224-24V | / | 224 | R/B/G | / | 10mm | 3oz | 2835 | / | / | 35.74mm | / | 22.40 | - | |||

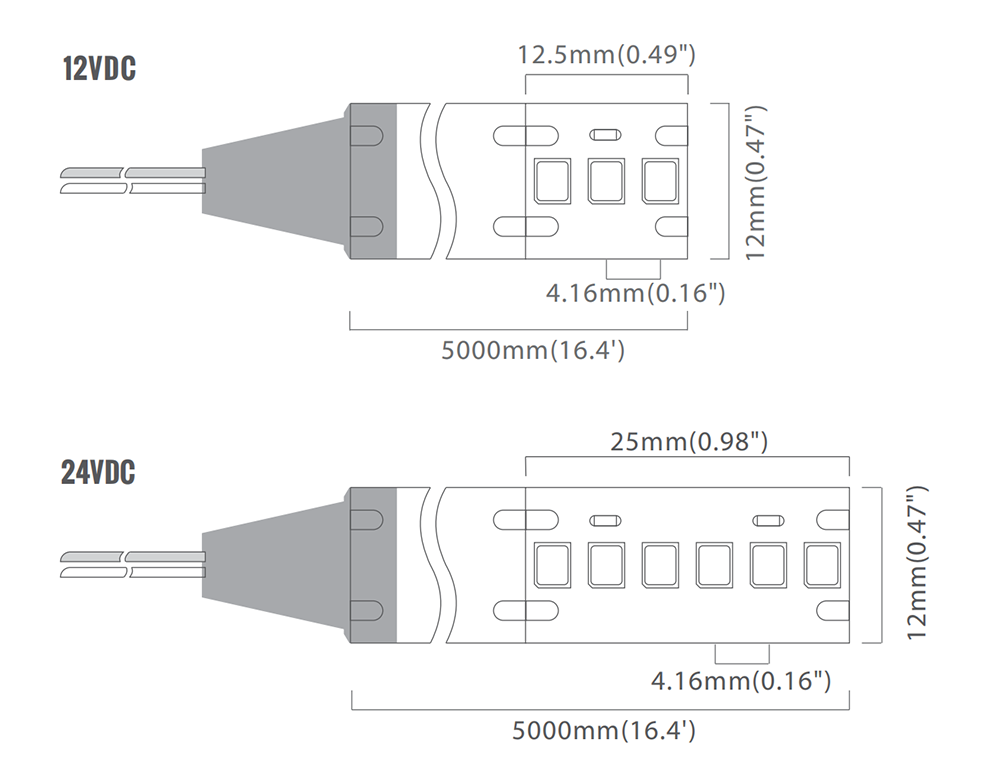

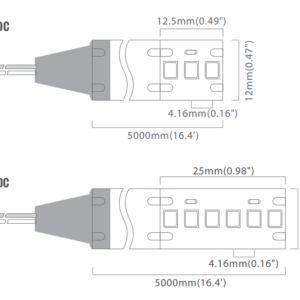

| 85 | 85 | / | YF-S2835W12MM240-12V | YF-S2835W12MM240-24V | / | 240 | WW/NW/CW | 80/90+ | 12mm | 3oz | 2835 | / | 12.5mm | 25mm | / | 26.00 | 2340 | 90 | ||
| 86 | 86 | / | YF-S2835X12MM240-12V | YF-S2835X12MM240-24V | / | 240 | R/B/G | / | 12mm | 3oz | 2835 | / | 12.5mm | 25mm | / | 26.00 | - | - | ||

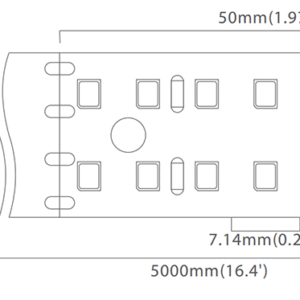

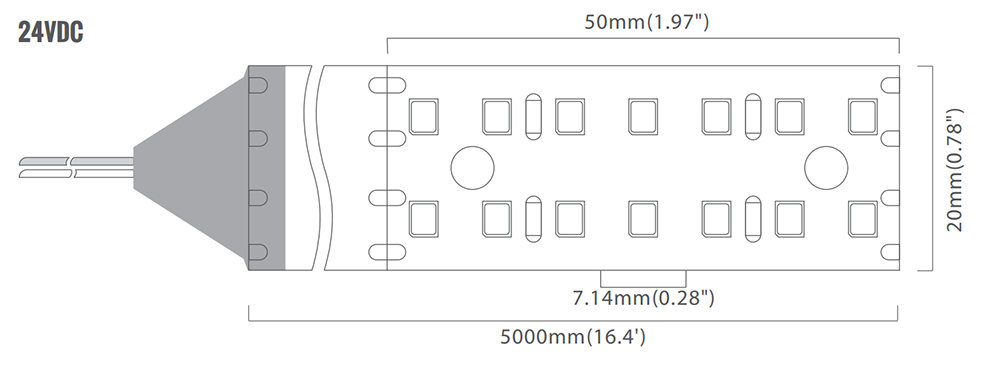

| 87 | 87 | / | / | YF-S2835W20MM280-24V | / | 280 | WW/NW/CW | 80/90+ | 20mm | 3oz | 2835 | / | / | 50mm | / | 32.00 | 3680 | 115 | ||
| 88 | 88 | / | / | YF-S2835X20MM280-24V | / | 280 | R/B/G | / | 20mm | 3oz | 2835 | / | / | 50mm | / | 32.00 | - | - | ||

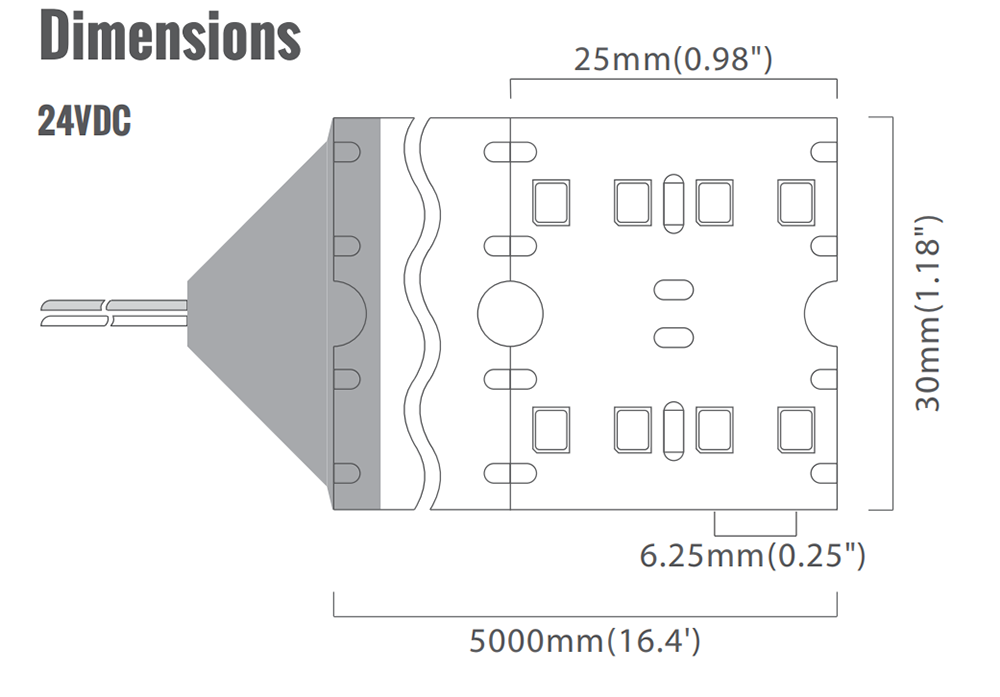

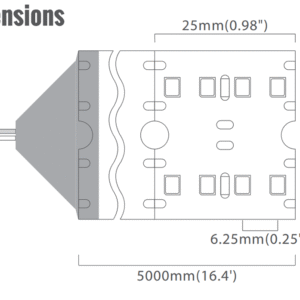

| 89 | 89 | / | / | YF-S2835W30MM320-24V | / | 320 | WW/NW/CW | 80/90+ | 30mm | 3oz | 2835 | / | / | 25mm | / | 32.00 | 3840 | 120 | ||
| 90 | 90 | / | / | YF-S2835X30MM320-24V | / | 320 | R/B/G | / | 30mm | 3oz | 2835 | / | / | 25mm | / | 32.00 | - | - | ||

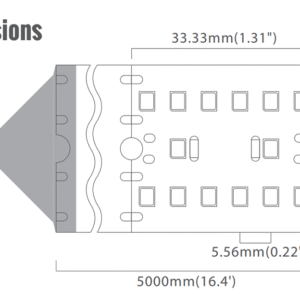

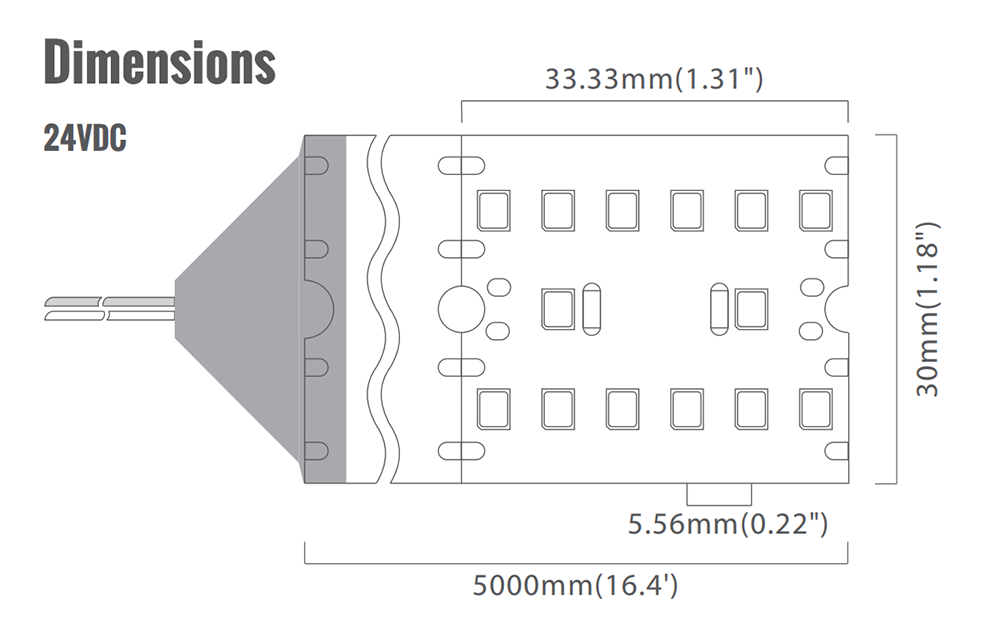

| 91 | 91 | / | / | YF-S2835W30MM420-24V | / | 420 | WW/NW/CW | 80/90+ | 30mm | 3oz | 2835 | / | / | 33.3mm | / | 36.00 | 4320 | 120 | ||
| 92 | 92 | / | / | YF-S2835X30MM420-24V | / | 420 | R/B/G | / | 30mm | 3oz | 2835 | / | / | 33.3mm | / | 36.00 | - | - | ||
| 93 | 93 | / | / | YF-S2835W40MM480-24V | / | 480 | WW/NW/CW | 80/90+ | 40mm | 3oz | 2835 | / | / | 50mm | / | 40.00 | 4800 | 120 | ||
| 94 | 94 | / | / | YF-S2835X40MM480-24V | / | 480 | R/B/G | / | 40mm | 3oz | 2835 | / | / | 50mm | / | 40.00 | - | - | ||
| 95 | 95 | / | YF-S5730W10MM36-12V | YF-S5730W10MM36-24V | / | 36 | WW/NW/CW | 80/90+ | 10mm | 2oz | 5730 | / | 83.4mm | 167mm | / | 9.00 | 819 | 91 | ||
| 96 | 96 | / | YF-S5730X10MM36-12V | YF-S5730X10MM36-24V | / | 36 | R/B/G | / | 10mm | 2oz | 5730 | / | 83.4mm | 167mm | / | 9.00 | 819 | / | ||
| 97 | 97 | / | YF-S5730W10MM60-12V | YF-S5730W10MM60-24V | / | 60 | WW/NW/CW | 80/90+ | 10mm | 2oz | 5730 | / | 50mm | 100mm | / | 16.00 | 1456 | 91 | ||
| 98 | 98 | / | YF-S5730X10MM60-12V | YF-S5730X10MM60-24V | / | 60 | R/B/G | / | 10mm | 2oz | 5730 | / | 50mm | 100mm | / | 16.00 | 1456 | / | ||
| 99 | 99 | / | / | YF-S5730W12MM60-24V | / | 60 | WW/NW/CW | 80/90+ | 12mm | 3oz | 5730 | / | / | 100mm | / | 18.00 | 1638 | 91 | ||
| 100 | 100 | / | / | YF-S5730X12MM60-24V | / | 60 | R/B/G | / | 12mm | 3oz | 5730 | / | / | 100mm | / | 18.00 | 1638 | / | ||
| 101 | 101 | / | / | YF-S5730W5MM70-24V-CC | / | 70 | WW/NW/CW | 80/90+ | 5mm | 2oz | 5730 | / | / | 100mm | / | 7.00 | 630 | 90 | ||
| 102 | 102 | / | / | YF-S5730X5MM70-24V-CC | / | 70 | R/B/G | / | 5mm | 2oz | 5730 | / | / | 100mm | / | 7.00 | 630 | / | ||
| 103 | 103 | / | YF-S5730W10MM72-12V | YF-S5730W10MM72-24V | / | 72 | WW/NW/CW | 80/90+ | 10mm | 3oz | 5730 | / | 41.67mm | 83.33mm | / | 19.20 | 1785.6 | 93 | ||
| 104 | 104 | / | YF-S5730X10MM72-12V | YF-S5730X10MM72-24V | / | 72 | R/B/G | / | 10mm | 3oz | 5730 | / | 41.67mm | 83.33mm | / | 19.20 | 1785.6 | / | ||
| 105 | 105 | / | / | YF-S5730W12MM128-24V-CC | / | 128 | WW/NW/CW | 80/90+ | 12mm | 3oz | 5730 | / | / | 62.5mm | / | 15.00 | 2250 | 150 | ||
| 106 | 106 | / | / | YF-S5730X12MM128-24V-CC | / | 128 | R/B/G | / | 12mm | 3oz | 5730 | / | / | 62.5mm | / | 15.00 | 2250 | / | ||
| 107 | 107 | roll to roll | / | / | YF-CCCT10MM608-24V | / | 608 | 2700K-6500K | 90+ | 10mm | 2oz | COB | / | / | 26.3mm | / | 8.00 | 720 | 90 | |
| 108 | 108 | Sunset Plan | / | / | YF-CCCTIC10MM560-24V | / | 560 | 2200K-2700K | 80+ | 10mm | 2oz | COB | / | / | 50mm | / | 12.00 | 960 | 80 | |
| 109 | 109 | Sunset Plan | / | / | YF-S2835CCTIC10MM120-24V | / | 120 | 2000K-3000K | 80+ | 10mm | 3oz | 2835 | / | / | 100mm | / | 16.00 | 1360 | 85 | |
| 110 | 110 | / | YF-CCCT10MM612-12V | / | / | 612 | 2700K-6500K | 90+ | 10mm | 2oz | COB | / | 29.41mm | / | / | 8.00 | 720 | 90 | ||
| 111 | 111 | / | / | YF-CCCT10MM640-24V | / | 640 | 2700K-6500K | 80+ | 10mm | 2oz | COB | / | / | 25mm | / | 8.00 | 760 | 95 | ||
| 112 | 112 | / | / | YF-CCCT10MM640-24V-N0 | / | 640 | 2700K-6500K | 90+ | 10mm | 2oz | COB | / | / | 50mm | / | 8.00 | 624 | 78 | ||
| 113 | 113 | 2wire+ Free cut | / | / | YF-CCCT8MM576-24V-2W-FC | / | 576 | 2700K-6500K | 90+ | 8mm | 2oz | COB | / | Free cut | Free cut | / | 8.00 | 480 | 60 | |
| 114 | 114 | 2 wire | / | YF-CCCT5MM576-12V-DW | / | / | 576 | 2700K-6500K | 80/90+ | 5mm | 2oz | COB | / | 20.83mm | / | / | 6.00 | 360 | 60 | |
| 115 | 115 | / | / | YF-S2835CCT8MM120-24V-2in1 | / | 120 | 2700K-6500K | 80+ | 8mm | 2oz | 2835 | / | / | 50mm | / | 8.00 | 840 | 105 | ||
| 116 | 116 | / | / | YF-S2835CCT8MM120-24V-2in1-2W | / | 120 | 2700K-6500K | 80+ | 8mm | 2oz | 2835 | / | / | 50mm | / | 8.00 | 800 | 100 | ||
| 117 | 117 | / | YF-S2835CCT10MM120-12V | YF-S2835CCT10MM120-24V | / | 120 | 2700K-6500K | 80/90+ | 10mm | 3oz | 2835 | / | 50mm | 100mm | / | 11.00 | 990 | 90 | ||
| 118 | 118 | / | / | YF-S2835CCT10MM120-24V-OL | / | 120 | 2700K-6500K | 80/90+ | 10mm | 3oz | 2835 | / | / | 8.3mm | / | 11.00 | 1100 | 100 | ||
| 119 | 119 | / | / | YF-S2835CCT12MM240-24V | / | 240 | 2700K-6500K | 80/90+ | 12mm | 3oz | 2835 | / | / | 50mm | / | 23.00 | 2070 | 90 | ||
| 120 | 120 | / | YF-S3527CCT8MM60-12V-2in1 | / | / | 60 | 2700K-6500K | 90+ | 8mm | 2oz | 3527 | / | 50mm | / | / | 4.80 | 384 | 80 | ||
| 121 | 121 | / | YF-S3527CCT10MM60-12V-2in1 | YF-S3527CCT10MM60-24V-2in1 | / | 60 | 2700K-6500K | 90+ | 10mm | 2oz | 3527 | / | 50mm | 100mm | / | 6.00 | 480 | 80 | ||
| 122 | 122 | / | / | YF-S3527CCT10MM120-24V-2in1 | / | 120 | 2700K-6500K | 90+ | 10mm | 3oz | 3527 | / | / | 50mm | / | 9.60 | 768 | 80 | ||
| 123 | 123 | / | / | YF-S315CCT10MM140-24V | / | 140 | 2700K-6500K | 90+ | 10mm | 2oz | 315 | / | / | 100mm | / | 4.80 | 456 | 95 | ||
| 124 | 124 | / | / | YF-S2216CCT10MM240-24V | / | 240 | 2700K-6500K | 90+ | 10mm | 3oz | 2216 | / | / | 50mm | / | 9.60 | 768 | 80 | ||
| 125 | 125 | roll to roll | / | YF-CW8MM320-12V | YF-CW8MM320-24V | / | 320 | WW/NW/CW | 90+ | 8mm | 2oz | COB | / | 25mm | 50mm | / | 8.00 | 800 | 100 | |
| 126 | 126 | roll to roll | / | YF-CW8MM480-12V | YF-CW8MM480-24V | / | 480 | WW/NW/CW | 90+ | 8mm | 2oz | COB | / | 25mm | 50mm | / | 10.00 | 1000 | 100 | |
| 127 | 127 | roll to roll | / | YF-CW5MM320-12V | YF-CW5MM320-24V | / | 320 | WW/NW/CW | 90+ | 5mm | 2oz | COB | / | 12.5mm | 25mm | / | 8.00 | 800 | 100 | |
| 128 | 128 | roll to roll | / | YF-CW8MM480-12V-FC | YF-CW8MM480-24V-FC | / | 480 | WW/NW/CW | 90+ | 8mm | 2oz | COB | / | Free cut | Free cut | / | 10.00 | 800 | 80 | |
| 129 | 129 | roll to roll | / | - | YF-CW8MM320-24V-BW | / | 320 | WW/NW/CW | 90+ | 8mm | 2oz | COB | / | - | 50mm | / | 10.00 | 950 | 95 | |
| 130 | 130 | roll to roll | / | - | YF-CW8MM480-24V-BW | / | 480 | WW/NW/CW | 90+ | 8mm | 2oz | COB | / | - | 50mm | / | 10.00 | 950 | 95 | |
| 131 | 131 | Engineering style | / | YF-CW8MM320-12V-V2 | YF-CW8MM320-24V-V2 | / | 320 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | / | 50mm | 100mm | / | 8.00 | 800 | 100 | |
| 132 | 132 | Engineering style | / | YF-CW8MM528-12V-V2 | YF-CW8MM528-24V-V2 | / | 528 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | / | 22.73mm | 45.45mm | / | 10.00 | 1000 | 100 | |
| 133 | 133 | Engineering style | / | YF-CW10MM528-12V-V2 | YF-CW10MM528-24V-V2 | / | 528 | WW/NW/CW | 80/90+ | 10mm | 2oz | COB | / | 22.73mm | 45.45mm | / | 15.00 | 1500 | 100 | |
| 134 | 134 | High luminous efficiency | / | / | YF-CW8MM320-24V-H | / | 320 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | / | / | 100mm | / | 8.00 | 1040 | 130 | |
| 135 | 135 | High luminous efficiency | / | / | YF-CW8MM480-24V-H | / | 480 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | / | / | 50mm | / | 10.00 | 1300 | 130 | |
| 136 | 136 | ultra-narrow | / | YF-CW5MM504-12V | YF-CW5MM504-24V | / | 504 | WW/NW/CW | 80/90+ | 5mm | 2oz | COB | / | 7.94mm | 13.89mm | / | 6.00 | 600 | 100 | |
| 137 | 137 | ultra-narrow | / | YF-CW3MM528-12V | / | / | 528 | WW/NW/CW | 80/90+ | 3mm | 2oz | COB | / | 22.73mm | / | / | 4.00 | 400 | 100 | |
| 138 | 138 | Small cutting | / | YF-CW8MM528-12V-SC | YF-CW8MM528-24V-SC | / | 528 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | / | 7.58mm | 11.36mm | / | 10.00 | 1000 | 100 | |
| 139 | 139 | Free cutting | / | YF-CW8MM528-12V-FC | YF-CW8MM528-24V-FC | / | 528 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | / | Free cut | Free cut | / | 10.00 | 1000 | 100 | |
| 140 | 140 | box dam | / | / | YF-CW10MM528-24V-N0 | / | 528 | WW/NW/CW | 80/90+ | 10mm | 2oz | COB | / | / | 45.45mm | / | 15.00 | 1500 | 100 | |
| 141 | 141 | Wide adhesive | / | / | YF-CW15MM960-24V | / | 960 | WW/NW/CW | 80/90+ | 15mm | 2oz | COB | / | / | 50mm | / | 25.00 | 2875 | 115 | |
| 142 | 142 | Wide adhesive | / | / | YF-CW30MM1600-24V | / | 1,600 | WW/NW/CW | 80/90+ | 30mm | 2oz | COB | / | / | 25mm | / | 40.00 | 4800 | 120 | |
| 143 | 143 | Secondary drip glue | / | / | YF-CW8MM320-24V-DO | / | 320 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | / | / | 100mm | / | 8.00 | 760 | 95 | |
| 144 | 144 | Secondary drip glue | / | / | YF-CW8MM480-24V-DO | / | 480 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | / | / | 50mm | / | 10.00 | 1000 | 100 | |
| 145 | 145 | Sauna style | / | YF-CW10MM528-12V-SR | YF-CW10MM528-24V-SR | / | 528 | WW/NW/CW | 90+ | 10mm | 2oz | COB | / | 22.7mm | 45.45mm | / | 5.00 | 550 | 110 | |
| 146 | 146 | 3V | YF-CW8MM320-3V | / | / | / | 320 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | 25mm | / | / | / | 3.00 | 300 | 100 | |
| 147 | 147 | 5V | YF-CW8MM320-5V | / | / | / | 320 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | 12.5mm | / | / | / | 5.00 | 350 | 70 | |
| 148 | 148 | / | / | YF-S2835W10MM64-24V | / | 64 | WW/NW/CW | 80/90+ | 10mm | 2oz | 2835 | / | / | 125mm | / | 4.80 | 768 | 160 | ||
| 149 | 149 | / | / | YF-S2835W8MM128-24V-E | / | 128 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | / | 62.5mm | / | 9.60 | 1536 | 160 | ||
| 150 | 150 | / | / | YF-S2835W8MM128-24V-E | / | 128 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | / | 62.5mm | / | 14.40 | 2520 | 175 | ||
| 151 | 151 | / | / | YF-S2835W12MM176-24V | / | 176 | WW/NW/CW | 80/90+ | 12mm | 3oz | 2835 | / | / | 45.45mm | / | 25.00 | 4375 | 175 | ||
| 152 | 152 | / | / | YF-S2835W12MM240-24V | / | 240 | WW/NW/CW | 80/90+ | 12mm | 3oz | 2835 | / | / | 33.33mm | / | 40.00 | 7000 | 175 | ||
| 153 | 153 | / | / | YF-S2835W8MM72-24V | / | 72 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | / | 125mm | / | 3.00 | 600 | 200 | ||
| 154 | 154 | / | / | YF-S2835W8MM144-24V | / | 144 | WW/NW/CW | 80/90+ | 8mm | 2oz | 2835 | / | / | 62.5mm | / | 6.00 | 1200 | 200 | ||
| 155 | 155 | / | / | YF-S2835W10MM180-24V | / | 180 | WW/NW/CW | 80/90+ | 10mm | 2oz | 2835 | / | / | 50mm | / | 8.00 | 1600 | 200 | ||
| 156 | 156 | / | YF-S2835W8MM144-12V | / | / | 144 | WW/NW/CW | 80/90+ | 8mm | 3oz | 2835 | / | 27.78mm | / | / | 13.00 | 2405 | 185 | ||
| 157 | 157 | / | YF-S2835W10MM144-12V | / | / | 144 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | 27.78mm | / | / | 13.00 | 2405 | 185 | ||
| 158 | 158 | 160° | / | YF-S6060W10MM14-12V | / | / | 14 | WW/NW/CW | 80+ | 10mm | 2oz | 6060 | / | 71.4mm | / | / | 12.00 | 1020 | 85 | |
| 159 | 159 | 160° | / | YF-S6060W10MM28-12V | / | / | 28 | WW/NW/CW | 80+ | 10mm | 2oz | 6060 | / | 35.7mm | / | / | 18.00 | 1530 | 85 | |
| 160 | 160 | 160° | / | / | YF-S6060W10MM28-24V | / | 28 | WW/NW/CW | 80+ | 10mm | 2oz | 6060 | / | / | 71.4mm | / | 14.40 | 1368 | 95 | |
| 161 | 161 | 160° | / | / | YF-S6060W10MM60-24V | / | 60 | WW/NW/CW | 80+ | 10mm | 2oz | 6060 | / | / | 33.3mm | / | 19.20 | 1824 | 95 | |
| 162 | 162 | 160° | / | YF-S6060W8MM10-12V-S | / | / | 10 | WW/NW/CW | 80+ | 8mm | 2oz | 6060 | / | 100mm | / | / | 6.00 | 510 | 85 | |
| 163 | 163 | 160° | / | YF-S6060W8MM20-12V-S | / | / | 20 | WW/NW/CW | 80+ | 8mm | 2oz | 6060 | / | 50mm | / | / | 9.00 | 765 | 85 | |
| 164 | 164 | 30° | / | / | YF-S5050W10MM60-24V-30° | / | 60 | WW/NW/CW | 80+ | 10mm | 3oz | 5050 | / | / | 100mm | / | 12.00 | 1140 | 95 | |
| 165 | 165 | 13M | / | / | YF-CW10MM360-24V | / | 360 | WW/NW/CW | 80/90+ | 10mm | 2oz | COB | / | / | 50mm | / | 7.00 | 665 | 95 | |
| 166 | 166 | 20M | / | / | YF-CW10MM360-24V-CC | / | 360 | WW/NW/CW | 80/90+ | 10mm | 2oz | COB | / | / | 50mm | / | 7.00 | 665 | 95 | |
| 167 | 167 | 10M | / | / | YF-CW10MM504-24V-CC | / | 504 | WW/NW/CW | 80/90+ | 10mm | 2oz | COB | / | / | 41.67mm | / | 8.60 | 860 | 100 | |
| 168 | 168 | 20M | / | / | / | YF-CW12MM504-48V | 504 | WW/NW/CW | 80/90+ | 12mm | 2oz | COB | / | / | / | 83.33mm | 10.00 | 950 | 95 | |
| 169 | 169 | 50M | / | / | / | YF-S2835W10MM72-48V-CC | 72 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | / | / | 166.67mm | 4.30 | 408.5 | 95 | |
| 170 | 170 | 30M | / | / | / | YF-S2835W10MM112-48V-CC | 112 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | / | / | 125mm | 7.00 | 735 | 105 | |
| 171 | 171 | 25M | / | / | / | YF-S2835W10MM150-48V-CC | 150 | WW/NW/CW | 80/90+ | 10mm | 3oz | 2835 | / | / | / | 100mm | 9.60 | 1056 | 110 | |
| 172 | 172 | 40M | / | / | / | YF-S2835W10MM120-48V-CC | 120 | WW/NW/CW | 80/90+ | 10mm | 4oz | 2835 | / | / | / | 33.33mm | 4.80 | 480 | 100 | |
| 173 | 173 | 15M | / | / | YF-S2835W8MM120-24V-CC | / | 120 | WW/NW/CW | 80+ | 8mm | 3oz | 2835 | / | / | 50mm | / | 9.60 | 1152 | 120 | |
| 174 | 174 | 11M | / | / | YF-S2835W8MM120-24V-CC | / | 120 | WW/NW/CW | 80+ | 8mm | 3oz | 2835 | / | / | 50mm | / | 14.40 | 1584 | 110 | |
| 175 | 175 | 18M | / | / | YF-S2835W10MM120-24V-CC | / | 120 | WW/NW/CW | 80+ | 10mm | 3oz | 2835 | / | / | 50mm | / | 9.60 | 1152 | 120 | |
| 176 | 176 | 13M | / | / | YF-S2835W10MM120-24V-CC | / | 120 | WW/NW/CW | 80+ | 10mm | 3oz | 2835 | / | / | 50mm | / | 14.40 | 1584 | 110 | |
| 177 | 177 | 10M | / | / | YF-S2835W8MM140-24V-CC | / | 140 | WW/NW/CW | 80+ | 8mm | 3oz | 2835 | / | / | 50mm | / | 9.60 | 1344 | 140 | |
| 178 | 178 | 8M | / | / | YF-S2835W8MM140-24V-CC | / | 140 | WW/NW/CW | 80+ | 8mm | 3oz | 2835 | / | / | 50mm | / | 14.40 | 1872 | 130 | |
| 179 | 179 | 13M | / | / | YF-S2835W10MM140-24V-CC | / | 140 | WW/NW/CW | 80+ | 10mm | 3oz | 2835 | / | / | 50mm | / | 9.60 | 1344 | 140 | |
| 180 | 180 | 10M | / | / | YF-S2835W10MM140-24V-CC | / | 140 | WW/NW/CW | 80+ | 10mm | 3oz | 2835 | / | / | 50mm | / | 14.40 | 1872 | 130 | |
| 181 | 181 | roll to roll | / | YF-CRGB10MM576-12V | YF-CRGB10MM576-24V | / | 576 | RGB | / | 10mm | 2oz | COB | / | 31.25mm | 62.5mm | / | 12.00 | 400 | 30 | |
| 182 | 182 | / | YF-CRGB10MM630-12V | YF-CRGB10MM630-24V | / | 630 | RGB | / | 10mm | 2oz | COB | / | 71.42mm | 100mm | / | 9.00 | 360 | 40 | ||
| 183 | 183 | / | YF-CRGB10MM810-12V | YF-CRGB10MM840-24V | / | 810 | RGB | / | 10mm | 2oz | COB | / | 33.33mm | 50mm | / | 15.00 | 525 | 35 | ||
| 184 | 184 | box dam | / | / | YF-CRGB10MM840-24V-N0 | / | 840 | RGB | / | 10mm | 2oz | COB | / | / | 50mm | / | 15.00 | 420 | 28 | |
| 185 | 185 | / | / | YF-S2835RGB5MM120-24V | / | 120 | RGB | / | 5mm | 2oz | 2835 | / | / | 50mm | / | 14.40 | / | / | ||
| 186 | 186 | / | YF-S2835RGB8MM120-12V | YF-S2835RGB8MM120-24V | / | 120 | RGB | / | 8mm | 2oz | 2835 | / | 25mm | 50mm | / | 14.40 | / | / | ||
| 187 | 187 | / | YF-S5050RGB10MM30-12V | YF-S5050RGB10MM30-24V | / | 30 | RGB | / | 10mm | 2oz | 5050 | / | 100mm | 166.67mm | / | 7.20 | / | / | ||
| 188 | 188 | / | YF-S5050RGB10MM48-12V | YF-S5050RGB10MM48-24V | / | 48 | RGB | / | 10mm | 2oz | 5050 | / | 62.5mm | 125mm | / | 11.50 | / | / | ||
| 189 | 189 | / | YF-S5050RGB10MM60-12V | YF-S5050RGB10MM60-24V | / | 60 | RGB | / | 10mm | 2oz | 5050 | / | 50mm | 100mm | / | 14.40 | / | / | ||
| 190 | 190 | / | YF-S5050RGBS2835W10MM48-12V | YF-S5050RGBS2835W10MM48-24V | / | 48 | RGB+W | 80/90+ | 10mm | 2oz | 2835+ 5050 | / | 125mm | 250mm | / | 9.00 | 540 | 60 | ||
| 191 | 191 | / | YF-S5050RGBW12MM60-12V | YF-S5050RGBW12MM60-24V | / | 60 | RGB+W | 80/90+ | 12mm | 2oz | 5050 | / | 100mm | 200mm | / | 14.40 | 763.2 | 53 | ||
| 192 | 192 | / | YF-S5050RGBW12MM60-12V-4in1 | YF-S5050RGBW12MM60-24V-4in1 | / | 60 | RGB+W (4in1) | 80/90+ | 12mm | 3oz | 5050 | / | 50mm | 100mm | / | 19.20 | 768 | 40 | ||
| 193 | 193 | / | / | YF-S5050RGBW12MM96-24V | / | 96 | RGB+W | 80/90+ | 12mm | 3oz | 5050 | / | / | 125mm | / | 19.20 | 1011.8 | 52.7 | ||
| 194 | 194 | / | / | YF-S4040RGBW10MM120-24V | / | 120 | RGB+W (4in1) | / | 10mm | 2oz | 4040 | / | / | 50mm | / | 19.20 | 960 | 50 | ||
| 195 | 195 | / | / | YF-S2835RGBS2110W10MM240-24V | / | 240 | RGB+W | 90+ | 10mm | 3oz | 2835+ 2110 | / | / | 50mm | / | 19.20 | 864 | 45 | ||
| 196 | 196 | / | YF-CRGBW12MM816-12V | YF-CRGBW12MM896-24V | / | 896 | RGB+W | 90+ | 12mm | 2oz | COB | / | 29.4mm | 62.5mm | / | 16.00 | 720 | 45 | ||
| 197 | 197 | box dam | / | / | YF-CRGBW12MM896-24V-N0 | / | 896 | RGB+W | 90+ | 12mm | 2oz | COB | / | / | 62.5mm | / | 16.00 | 640 | 40 | |
| 198 | 198 | / | / | YF-S5050RGBCCT15MM60-24V | / | 60 | RGB+ CCT(2in1) | 80/90+ | 15mm | 2oz | 5050 | / | / | 166.67mm | / | 13.60 | 720.8 | 53 | ||
| 199 | 199 | / | / | YF-S5050RGBCCT14MM60-24V-5in1 | / | 60 | RGB+CCT (5in1) | 80/90+ | 13.8mm | 2oz | 5050 | / | / | 100mm | / | 13.60 | 720.8 | 53 | ||
| 200 | 200 | / | / | YF-S5050RGBS2216CCT15MM180-24V | / | 180 | RGB+CCT | 90+ | 15mm | 3oz | 2216+ 5050 | / | / | 100mm | / | 24.00 | 1272 | 53 | ||
| 201 | 201 | / | / | YF-S2835RGBS2110CCT12MM360-24V | / | 360 | RGB+CCT | 90+ | 12mm | 3oz | 2835+ 2110 | / | / | 50mm | / | 24.00 | 1080 | 45 | ||
| 202 | 202 | / | / | YF-CRGBCCT12MM840-24V | / | 840 | RGB+CCT | 90+ | 12mm | 2oz | COB | / | / | 41.6mm | / | 16.00 | 720 | 45 | ||
| 203 | 203 | free cut | / | / | YF-SV-CW8MM480-24V-FC | / | 480 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | / | / | free cut | / | 10.00 | 450 | 45 | |
| 204 | 204 | free cut | / | / | YF-SV-CCCT10MM576-24V-FC | / | 576 | 2700K-6500K | 80/90+ | 10mm | 2oz | COB | / | / | free cut | / | 8.00 | 320 | 40 | |
| 205 | 205 | CCT | / | / | YF-SV-CCCT10MM640-24V | / | 640 | 2700K-6500K | 90+ | 10mm | 2oz | COB | / | / | 50mm | / | 8.00 | 480 | 60 | |
| 206 | 206 | / | YF-SV-CW8MM480-12V | YF-SV-CW8MM480-24V | / | 480 | WW/NW/CW | 80/90+ | 8mm | 2oz | COB | / | 16.66mm | 33.33mm | / | 10.00 | 700 | 70 | ||
| 207 | 207 | RGB | / | / | YF-SV-CRGB10MM630-24V | / | 630 | RGB | - | 10mm | 2oz | COB | / | / | 100mm | / | 9.00 | 180 | 20 | |
| 208 | 208 | RGBW | / | / | YF-SV-CRGBW12MM784-24V | / | 784 | RGBW | 90+ | 12mm | 2oz | COB | / | / | 71.43mm | / | 14.00 | 462 | 33 | |
| 209 | 209 | addressable | / | / | YF-SV-CRGBIC10MM630-24V | / | 630 | RGBIC | - | 10mm | 2oz | COB | / | / | 100mm | / | 11.00 | 220 | 20 | |
| 210 | 210 | addressable | / | / | YF-SV-CWIC10MM420-24V | / | 420 | WIC | 90+ | 10mm | 2oz | COB | / | / | 100mm | / | 11.00 | 495 | 45 | |
| 211 | 211 | addressable | / | / | YF-SV-CCCTIC10MM560-24V | / | 560 | CCTIC | 90+ | 10mm | 2oz | COB | / | / | 100mm | / | 8.00 | 360 | 45 | |
| 212 | 212 | / | YF-SV-S315W8MM60-12V | YF-SV-S315W8MM60-24V | / | 60 | WW/NW/CW | 90+ | 8mm | 2oz | 315 | / | 50mm | 100mm | / | 4.80 | 360 | 75 | ||
| 213 | 213 | / | / | YF-SV-S3014W6MM120-24V | / | 120 | WW/NW/CW | 80+ | 6mm | 2oz | 3014 | / | / | 50mm | / | 8.70 | 783 | 90 | ||
| 214 | 214 | Dual-side-view | / | / | YF-SV-S3014W5MM120-24V | / | 120 | WW/NW/CW | 80+ | 5mm | 2oz | 3014 | / | / | 50mm | / | 10.00 | 820 | 82 | |
| 215 | 215 | / | / | YF-S2835WIC10MM70-24V | / | 70 | WW/NW/CW | 95+ | 10mm | 3oz | 2835 | / | / | 100mm | / | 12.00 | 1020 | 85 | ||
| 216 | 216 | / | / | YF-S2835WIC10MM140-24V | / | 140 | WW/NW/CW | 95+ | 10mm | 3oz | 2835 | / | / | 50mm | / | 19.00 | 1615 | 85 | ||
| 217 | 217 | / | / | YF-S3030WIC10MM70-24V | / | 70 | WW/NW/CW | 95+ | 10mm | 3oz | 3030 | / | / | 100mm | / | 12.00 | 996 | 83 | ||
| 218 | 218 | / | / | YF-S3030WIC10MM140-24V | / | 140 | WW/NW/CW | 95+ | 10mm | 3oz | 3030 | / | / | 50mm | / | 19.00 | 1577 | 83 | ||
| Number | Remarks | Code(5V) | Code(12V) | Code(24V) | Code(48V) | Photo | LED/M | Colour | CRI | Width | Thickness | LED Type | Cut (5V) | Cut (12V) | Cut(24V) | Cut(48V) | Power(W/M) | Flux(Lm/M) | Eff.(Lm/W) |
Waterproof options
| wdt_ID | Number | IP Rating | Material | Describe | 5/6mm | 8mm | 10mm | 12mm |
|---|---|---|---|---|---|---|---|---|
| 1 | 1 | IP54-PU | PU | Surface drip of PU | No | Yes | Yes | Yes |
| 2 | 2 | IP54-SI | silicone | Surface drip of silicone | No | Yes | Yes | Yes |
| 3 | 3 | IP65-ST | silicone | silicone tube | Yes | Yes | Yes | Yes |
| 4 | 4 | IP65-HT | polyolefin | Heat-shrink tube | Yes | Yes | Yes | Yes |
| 5 | 5 | IP67-HI | silicone | Hollow integrated molding | Yes | Yes | Yes | Yes |
| 6 | 6 | IP68-ST | silicone | Solid integrated molding | No | Yes | Yes | No |
| Number | IP Rating | Material | Describe | 5/6mm | 8mm | 10mm | 12mm |
COB LED Strip Lights
