TV1010 Mini Topview LED Silicone Channel System

SKU: YF-TV1010

Original price was: $200.00.Current price is: $100.00.

Per Box

TV1010 is a highly popular product in YIFORD’s LED silicone channel system lineup, especially favored for its compact size. This channel is designed for top view, front – facing light emission, making it perfect for applications where direct and focused illumination is required.

Add to wishlist

Prices are per box.
Prices will appear after all available options have been selected.
Shipping cost will appear after filling in the recipient’s company address and zip code.

Description

YIFORD’s TV1010 Silicone LED Channel System is a compact and highly popular product designed for professional use in various industrial and commercial applications. As part of YIFORD’s extensive range of LED lighting solutions, the TV1010 is engineered to provide efficient and reliable protection and installation for LED strips.

Product Overview

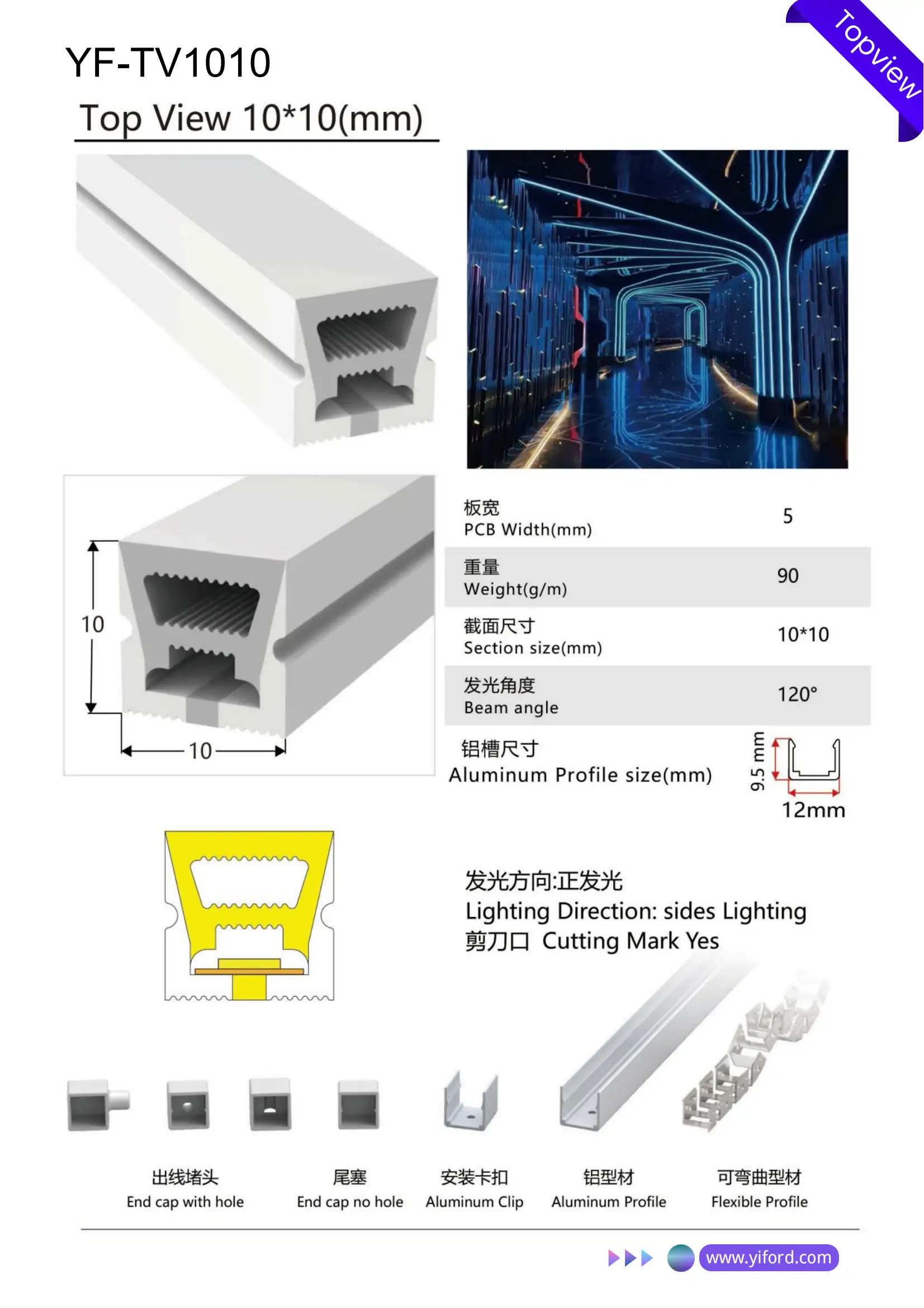

Model: YF-TV1010

Type: Topview Silicone LED Channel System

Section Size: 10mm x 10mm

Recommended LED Strip Width: 5mm

Material: High-Quality New Silicone

Features: Heat Insulation, Impact Resistance, Waterproof, Flexible, Durable

Applications: Indoor and Outdoor Lighting, Commercial Displays, Architectural Lighting, Decorative Lighting, and More

Compact Dimensions

Key Features:

It features a cross - sectional size of 10*10mm, which is both small and practical. This size allows for easy integration into various lighting setups without taking up much space. It is recommended to be paired with a 5mm - wide LED strip, ensuring a seamless and efficient lighting combination.

Compact Size:

With a cross-sectional dimension of 10mm x 10mm, the TV1010 is one of the smallest silicone tubes in our lineup, making it ideal for applications where space is at a premium. Its small size has made it a favorite among manufacturers, distributors, design firms, builders, and engineering contractors.

Topview Design:

The TV1010 is specifically designed for front-emitting applications, ensuring that light is directed forward for optimal illumination. This feature makes it suitable for scenarios that require direct and concentrated lighting.

Versatile Compatibility:

The TV1010 is recommended for use with 5mm wide LED strips, providing a snug fit and maximum protection. It can be paired with a variety of accessories to enhance its functionality and ease of installation.

Accessories for TV1010

End Caps: Securely seal the ends of the silicone tube, ensuring a watertight and dustproof enclosure.
Mounting Clips: Facilitate easy and secure installation, allowing for flexible positioning and adjustment.
Aluminum Profiles: With dimensions of 12mm x 9.5mm, these profiles offer additional structural support and improved heat dissipation.
Flexible Profiles: Allow for bending and shaping the silicone tube to fit curved surfaces or irregular installations.

Durability and Protection:

Made from high-quality silicone, the TV1010 provides excellent heat resistance, impact resistance, and waterproofing. Its hollow design ensures that the LED strip remains protected while allowing for efficient light emission.

Ease of Installation:

The TV1010’s design simplifies the installation process, making it a cost-effective solution for professional users. The combination of the silicone tube, LED strip, and end caps results in YIFORD’s SILICONE LED STRIP LIGHTS, a finished product that can be directly implemented in various projects.

Applications Ideas:

Interior Decor: Suitable for residential and commercial interiors where space is limited but high-quality lighting is required.
Display Cases: Ideal for highlighting details in display cases and exhibitions due to its compact size and front-emitting capability.
Signage: Enhances the visual impact of signs and billboards with its focused light output.

Why Choose YIFORD’s TV1010?

YIFORD is a leading LED lighting supplier, specializing in providing materials and finished products to manufacturers, distributors, design firms, builders, and engineering contractors. With over 300 different models of silicone tubes and over 300 different models of COB/SMD LED strips, YIFORD offers thousands of combinations for silicone LED strip lights. The TV1010’s small size and versatility make it an excellent choice for professionals seeking reliable and high-performance lighting solutions.

For more information and to explore our full range of products, please visit our website’s DOWNLOAD page, where you can access catalogs for both our Silicone LED Channel System and Silicone LED Strip Lights series.

Overview of YIFORD’s Silicone LED Channel System

YIFORD’s Silicone LED Channel System, also known as silicone tube, or silicone sleeve, silicone diffuser and so on, is designed specifically for LED strips and offers a range of benefits including heat insulation, impact resistance, and waterproofing.

These systems are hollow and come in various sizes and shapes, accommodating LED strips from as narrow as 3mm to as wide as 30mm.

They are available in different light-emitting angles, such as 120°, 180°, 270°, and 360°.

Package roll of 50 meters, 100 meters or 200 meters, Can be cut at any position.

Yiford can also add the woven ropes to the outside of the silicone led channel system to increase the artistic effect of the light or special functions.

YIFORD’s Silicone LED Channel System is categorized into the following types:

Topview Type: Suitable for applications requiring forward-bending LED strips.

Sideview Type: Ideal for applications needing side-bending LED strips.

Round Type: Perfect for applications requiring a larger light-emitting angle and a circular light effect.

Black Type: Designed for applications where reduced light pollution or specific design requirements are needed.

Fringe Type: Offers additional protection and securing features.

Half Cover Type: Allows for direct application over LED strips without threading them through the tube beforehand, primarily for indoor use.

All In One Co-Extrusion Type: LED strips are fused with silicone material using machinery, resulting in a finished product with enhanced aesthetics, durability, and special functions.

When LED strips are combined with the Silicone LED Channel System and end caps, they form YIFORD’s SILICONE LED STRIP LIGHTS, a complete product line available in a separate catalog on our website’s DOWNLOAD page.

Installation Instructions:

1.Preparation:

Measure the area where the channel will be installed and cut the silicone channel to the desired length using appropriate cutting tools.

2. LED Strip Insertion:

Insert the chosen LED strip into the channel, ensuring it fits snugly within the silicone casing.

3. Sealing:

Attach the end caps securely to both ends of the channel to prevent moisture and dust ingress.

4. Mounting:

Use the provided mounting clips to affix the channel to the desired surface, ensuring it is level and securely anchored.

5. Power Connection:

Connect the LED strip to an appropriate power source, adhering to standard electrical safety protocols.

Below Video About How to insert the led strips into Silicone Channel System--Step By Step

Additional information

Section Size	10×10 mm
PCB Width	5mm
Beam Angle	120°
