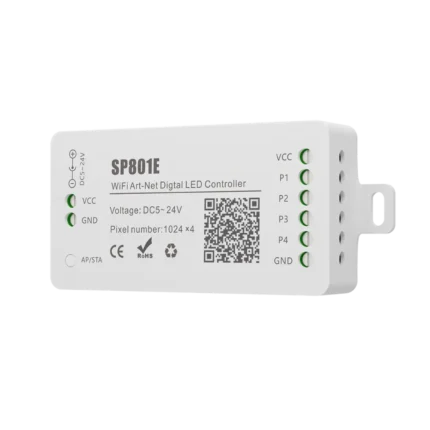

SP801E WiFi Art-Net LED Controller
Original price was: $400.00.$198.00Current price is: $198.00.
-52%
Signal amplifier for addressable LED SP902E
Original price was: $100.00.$48.00Current price is: $48.00.
Per Box
Compatible with both TTL and RS485 signal inputs, Two channels of strong-drive TTL signal amplifier output to meet. users’ needs for multiple strong signal control of lighting. Differential RS485 signal is used for cascading between.
- Prices are per box.
- Prices will appear after all available options have been selected.
- Shipping cost will appear after filling in the recipient’s company address and zip code.
Description
Product Features
1. Compatible with both TTL and RS485 signal inputs;
2. Two channels of strong-drive TTL signal output to meet users’ needs for multiple strong signal control of lighting;
3. Differential RS485 signal is used for cascading between amplifiers to achieve long-distance signal transmission;
4. Can be used alone or in cascade with multiple units;
5. Supports wide voltage input from DC5 to 24V, with reverse connection protection function.
Precautions
1. The current passed by the controller is limited. If the LED lighting requires a current that exceeds the limit, additional power supply is needed to prevent overheating and damage to the amplifier;
2. The strength of the TTL signal output by the amplifier is related to the type of chip used in the connected LED, the length and thickness of the connecting wires, and the number of LED connected in parallel. Please use it within a reasonable range according to the actual situation;
3. The transmission distance between amplifiers is affected by the type of wire used and the surrounding environment. If you need to transmit signals over a long distance or in a complex environment with a lot of interference, please use shielded twisted pair or CAT5 or higher Ethernet cables.
Technical Parameters:
Working voltage ： DC5V-24V
Operation temperature： -10℃～60℃
Syn Signal： 5V TTL&DIFF
DAT Signal： 5V TTL

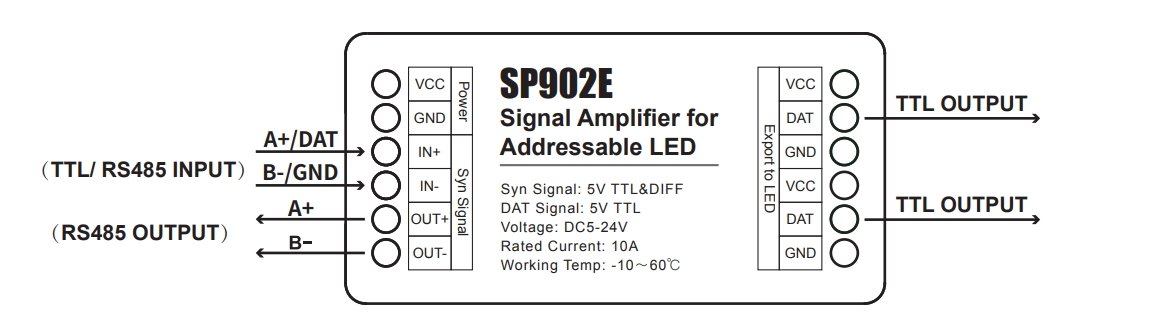

Port Descriptions
Power
Power input port⸺ VCC is connected to the positive terminal of the power supply and GND is connected to the negative terminal, It supports a wide voltage input range of DC5V-24V
Syn Signal
Cascading signal input and output port ⸺ Compatible with both TTL and RS485 signal inputs.
“IN+/IN-“ : Cascading signal input port（ When connecting to the main controller, DAT of the main controller is connected to “IN+”, and GND is connected to “IN-“; When cascading with sub-amplifier,
“OUT+” of the previous sub-amplifier is connected to “IN+” and “OUT-” is connected to “IN-“）
“OUT+/OUT-“ : Cascading signal output port（ “OUT+” and “OUT-” are respectively connected to
“IN+” and “IN-” of the next sub-amplifier）
Export to LED
Port for connecting two sets of LED
VCC DAT GND : Signal output and power output for the LED

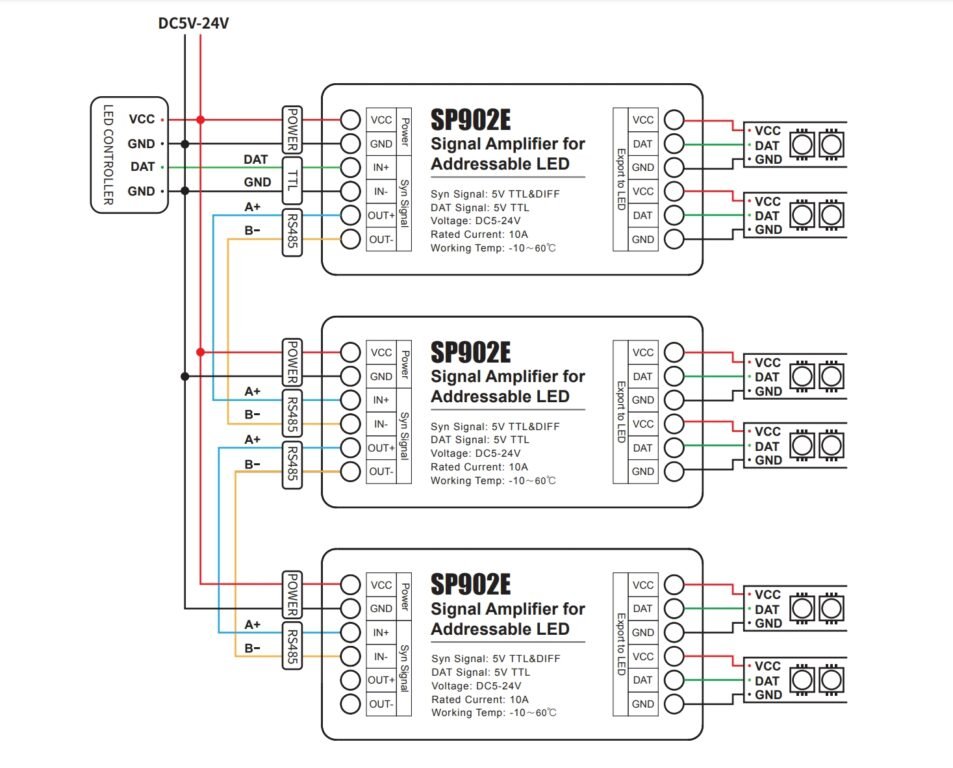

Wiring Instructions
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 30 × 30 × 30 cm |
Box
|
10 PCS |
Voltage
|
DC5V-24V |
| APP |
No |
| Remote control |
No |
| Music mode |
Yes |
Send Inquiry
