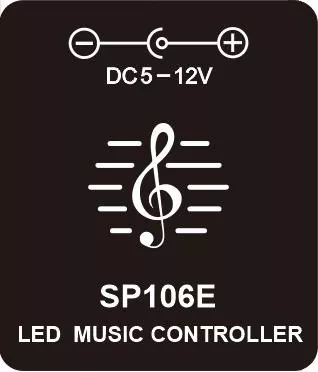

RF Remote Music LED Controller
Description
RF Remote Music LED controller Features:
Wide Voltage
DC5-12V wide range of working voltage
IC
Support almost every kind of one-wire or two-wire LED driver IC
Patterns
5 kinds of music dream color patterns
Music
20 kinds of none-music dream color patterns

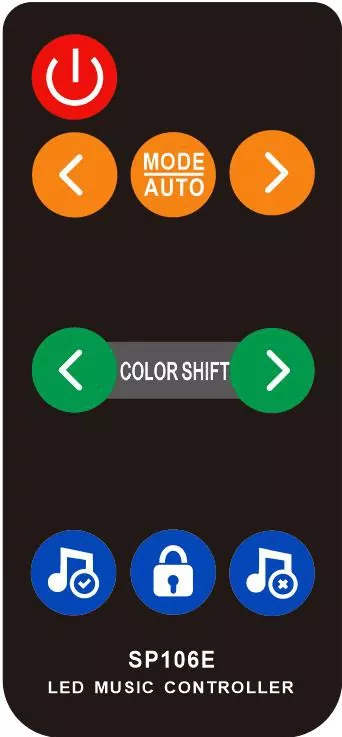

LED Controller Remote Contoller
ON\OFF
Mode -
AUTO Mode
Color Shift -
None-music Mode
Mode +)
Color Shift +
Lock
None-music Mode
Repeatedly press to adjust brightness
LED Controller List
No. | Model | Description | Image | Voltage | APP | Music | Remote | Button | DAT/CLK/PWM | Output | IC Type | Maxium Pixel |
---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | SP002E | Micro Simple 3 Buttons LED Controller | DC5V-24V | Non | Non | Non | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 | |
2 | SP103E | 14key Mini-RF Remote | DC5V/DC12V | Non | Non | 14key RF | Non | DATA GND | 1 Set TTL | One Wire IC | 2048 | |
3 | SP104E | 17key Mini-RF Remote | DC5V-24V | Non | Non | 17key RF | Non | DATA GND | 1 Set TTL | One Wire IC | 2048 | |
4 | SP105E | BT App Controlled Pixel LED Controller | DC5V-24V | Non | Non | Non | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 2048 | ||
5 | SP106E | RF Remote Music LED Controller | DC5V-12V | Non | Onboard Mic | 14key RF | Non | DATA GND | 1 Set TTL | One Wire IC | 600 | |
6 | SP107E | BT App Controlled Music Pixel LED Controller | DC5V-24V | Onboard Mic/AUX | Non | Non | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 960 | ||
7 | SP108E | WiFi App Controlled Pixel LED Controller | DC5V-24V | Non | Non | 1 | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 2048 | ||
8 | SP110E | BT App Controlled Pixel LED Controller | DC5V-24V | Non | Non | Non | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 1024 | ||
9 | SP201E | DMX512 Decoder | DC5V-24V | Non | Non | Non | 3 | CLK DATA GND + 5*PWM | 1 Set TTL + 5*PWM | One/Two Wire IC + PWM | 2000 Channels | |
10 | SP511E | IoT WiFi App Controlled Pixel LED Controller | DC5V-24V | Onboard Mic | 38key IF | 3 | DATA GND | 1 Set TTL | One Wire IC | 900 | ||
11 | SP513E | IoT WiFi App Controlled RGB LED Controller | DC5V-24V | Onboard Mic | 38key IF | 3 | RGB | 3*PWM | PWM | / | ||
12 | SP514E | IoT WiFi App Controlled RGBW LED Controller | DC5V-24V | Onboard Mic | 38key IF | 3 | RGBW | 4*PWM | PWM | / | ||
13 | SP601E | BT App Controlled 2 Output Music Pixel LED Controller | DC5V-24V | Onboard Mic | 16key RF | 3 | 2*DATA GND | 2 Set TTL | One Wire IC | 600*2 | ||
14 | SP602E | BT App Controlled 4 Output Music Pixel LED Controller | DC5V-24V | Onboard Mic/AUX | 16key RF | 3 | 4*DATA GND | 4 Set TTL | One Wire IC | 600*4 | ||
15 | SP608E | BT App Controlled 8 Output Music Pixel LED Controller | DC5V-24V | Onboard Mic/AUX | 16key RF | Non | 8*DATA GND | 8 Set TTL | One Wire IC | 600*8 | ||
16 | SP611E | BT App Controlled Music Pixel LED Controller | DC5V-24V | Onboard&Phone Mic /Streaming | 38key IF | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 | ||
17 | SP613E | BT App Controlled Music RGB LED Controller | DC5V-24V | Onboard&Phone Mic /Streaming | 38key IF | 3 | RGB | 3*PWM | PWM | / | ||
18 | SP614E | BT App Controlled Music RGBW LED Controller | DC5V-24V | Onboard&Phone Mic /Streaming | 38key IF | 3 | RGBW | 4*PWM | PWM | / | ||
19 | SP616E | BT App&AmbiBox Controlled Music Pixel LED Controller | DC5V | Onboard&Phone Mic /Streaming | Non | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 | ||
20 | SP617E | BT App&AmbiBox Controlled Music Pixel RGBW LED Controller | DC5V-24V | Onboard&Phone Mic /Streaming | 38key IF | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 | ||
21 | SP621E | Mini BT App Controlled Pixel LED Controller | DC5V-24V | Phone Mic /Streaming | Non | Non | DATA GND | 1 Set TTL | One Wire IC | 600 | ||
22 | SP623E | Mini BT App Controlled Music RGB LED Controller | DC5V-24V | Phone Mic /Streaming | Non | Non | RGB | 3*PWM | PWM | / | ||
23 | SP624E | Mini BT App Controlled Music RGBW LED Controller | DC5V-24V | Phone Mic /Streaming | Non | Non | RGBW | 4*PWM | PWM | / | ||
24 | SP801E | WiFi ArtNet LED Controller | DC5V-24V | Non | Non | 1 | CLK DATA GND | 4 Set TTL | One Wire IC | 1024*4 | ||
25 | SP901E | TTL Signal Amplifier | DC5V-24V | Non | Non | Non | Non | CLK DATA GND | 4 Set TTL | Depends on input | Depends on input |
