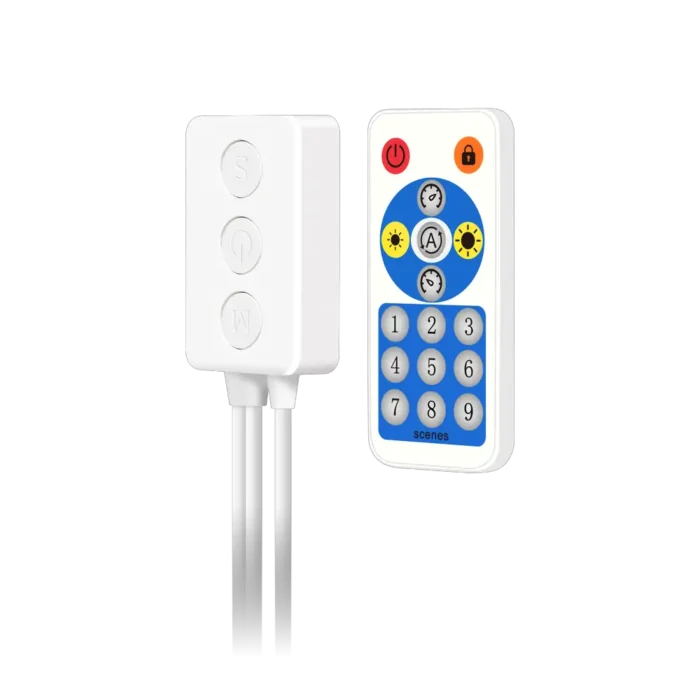

SP601E 2

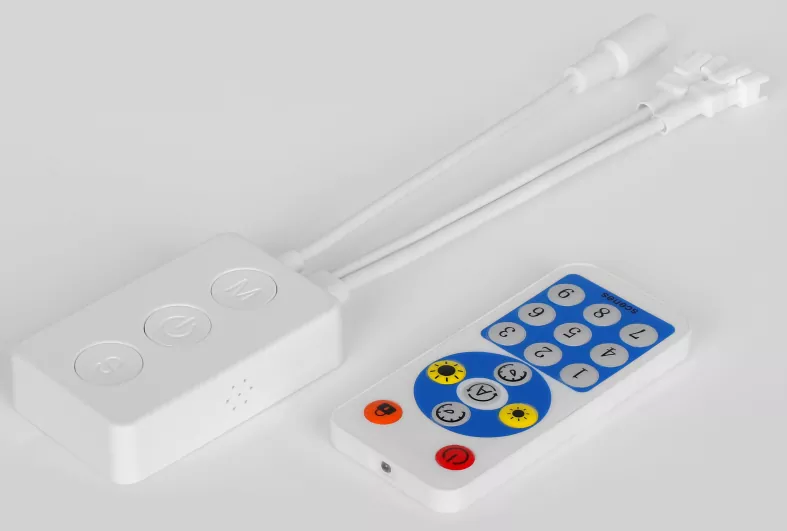

SPE601E

Dual Signal Output Pixel LED Controller

SKU YF-CT-SP601E Category
5/5
Ask Quote

best Price

Factory direct price

latest technology

new production process

Best After Sale

Factory technical service

Want to buy now? Shop here, thousands of products online.

Buy On Line

Dual Signal Output Pixel LED Controller

Description

Dual Signal Output Pixel LED Controller Features:

1. Supports both APP control and RF remote control;
2. Dual Signal Output Pixel LED Controller Dual output of two different signals, suitable for a variety of applications and meet the different needs of customers;
3. Supports common single-wire LED driver ICs in the market ;
4. Build in Music and Non-Music effects, multi-parameters adjustable;
5. DC5~24V wide voltage input, with power supply anti-reverse connection function;
6. With the function of automatically saving setting parameters.

Dual Signal Output Pixel LED Controller App Functions:

SP601E supports control by APP, supports IOS and Android system
Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later
You can scan the QR code to download and install the App:

Dual Signal Output Pixel LED Controller App Operations:

•Open the app and click the button in the top right corner of the home page to add a device, then click the device to access the control page.


•You can rename the controller by clicking the button in the top right corner.


•SP601E can output two different signals, you can click on channel 1 or channel 2 to enter the corresponding page to control it individually, or you can click on all channels to control both channels in a unified way.


•After adjusting the effect of each channel, click button in the upper right corner to save the current lighting effect settings to the scenes, SP601E supports a total of 9 scenes, users can call these 9 scenes through the scene page of the mobile app or use the RF remote control.


•Users can set up to five timing events by clicking on in the upper right corner, please note that all set timing events will be deleted when the controller is
powered down.


• In the effects page, there are a variety of music effects and non-music effects, users can set speed, brightness, color, direction and effect length for a specific effect.

Dual Signal Output Pixel LED Controller RF Remote Functions:

ON/OFFLock/UnlockSpeed +Speed -Brightness+Brightness-Scene
Auto		9 Scenes
on offmatchSpeed Up 2Speed Down 2brightness upbrightness downauto1-9

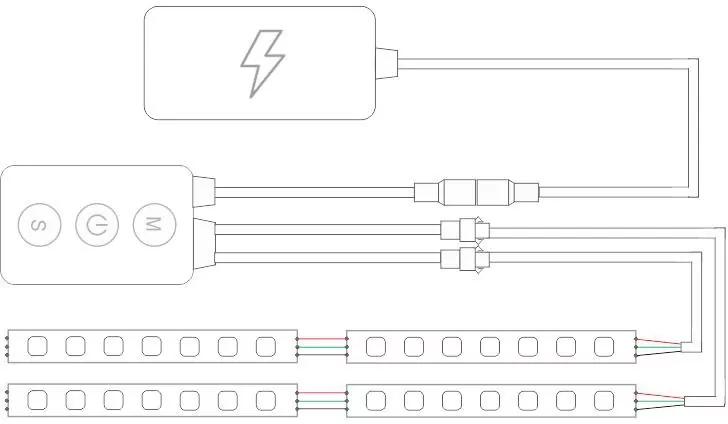

Wire Connection：

connection SP601E

LED Controller List

No.ModelDescriptionImageVoltageAPPMusicRemoteButtonDAT/CLK/PWMOutputIC TypeMaxium Pixel
1SP002EMicro Simple 3 Buttons LED ControllerSP002E 2DC5V-24VNonNonNon3DATA GND1 Set TTLOne Wire IC600
2SP103E14key Mini-RF RemoteSPE103E 2DC5V/DC12VNonNon14key RFNonDATA GND1 Set TTLOne Wire IC2048
3SP104E17key Mini-RF RemoteSPE104EDC5V-24VNonNon17key RFNonDATA GND1 Set TTLOne Wire IC2048
4SP105EBT App Controlled Pixel LED ControllerSP105EDC5V-24VAPP1NonNonNonCLK DATA GND1 Set TTLOne/Two Wire IC2048
5SP106ERF Remote Music LED ControllerSPE106EDC5V-12VNonOnboard Mic14key RFNonDATA GND1 Set TTLOne Wire IC600
6SP107EBT App Controlled Music Pixel LED ControllerSPE107EDC5V-24VAPP2Onboard Mic/AUXNonNonCLK DATA GND1 Set TTLOne/Two Wire IC960
7SP108EWiFi App Controlled Pixel LED ControllerSPE108EDC5V-24VAPP2NonNon1CLK DATA GND1 Set TTLOne/Two Wire IC2048
8SP110EBT App Controlled Pixel LED ControllerSPE110EDC5V-24VAPP4NonNonNonCLK DATA GND1 Set TTLOne/Two Wire IC1024
9SP201EDMX512 DecoderSPE201EDC5V-24VNonNonNon3CLK DATA GND + 5*PWM1 Set TTL
+ 5*PWM		One/Two Wire IC
+ PWM		2000
Channels
10SP511EIoT WiFi App Controlled Pixel LED ControllerSPE511EDC5V-24VAPP6Onboard Mic38key IF3DATA GND1 Set TTLOne Wire IC900
11SP513EIoT WiFi App Controlled RGB LED ControllerSP513EDC5V-24VAPP6Onboard Mic38key IF3RGB3*PWMPWM/
12SP514EIoT WiFi App Controlled RGBW LED ControllerSP513EDC5V-24VAPP6Onboard Mic38key IF3RGBW4*PWMPWM/
13SP601EBT App Controlled 2 Output Music Pixel LED ControllerSPE601EDC5V-24VAPP5Onboard Mic16key RF32*DATA GND2 Set TTLOne Wire IC600*2
14SP602EBT App Controlled 4 Output Music Pixel LED ControllerSPE602EDC5V-24VAPP5Onboard Mic/AUX16key RF34*DATA GND4 Set TTLOne Wire IC600*4
15SP608EBT App Controlled 8 Output Music Pixel LED ControllerSPE608EDC5V-24VAPP5Onboard Mic/AUX16key RFNon8*DATA GND8 Set TTLOne Wire IC600*8
16SP611EBT App Controlled Music Pixel LED ControllerSP611EDC5V-24VAPP5Onboard&Phone Mic
/Streaming		38key IF3DATA GND1 Set TTLOne Wire IC600
17SP613EBT App Controlled Music RGB LED ControllerSP613EDC5V-24VAPP5Onboard&Phone Mic
/Streaming		38key IF3RGB3*PWMPWM/
18SP614EBT App Controlled Music RGBW LED ControllerSP613EDC5V-24VAPP5Onboard&Phone Mic
/Streaming		38key IF3RGBW4*PWMPWM/
19SP616EBT App&AmbiBox Controlled Music Pixel LED ControllerSP616EDC5VAPP5Onboard&Phone Mic
/Streaming		Non3DATA GND1 Set TTLOne Wire IC600
20SP617EBT App&AmbiBox Controlled Music Pixel RGBW LED ControllerSP617EDC5V-24VAPP5Onboard&Phone Mic
/Streaming		38key IF3DATA GND1 Set TTLOne Wire IC600
21SP621EMini BT App Controlled Pixel LED ControllerSP621EDC5V-24VAPP5Phone Mic
/Streaming		NonNonDATA GND1 Set TTLOne Wire IC600
22SP623EMini BT App Controlled Music RGB LED ControllerSP623EDC5V-24VAPP5Phone Mic
/Streaming		NonNonRGB3*PWMPWM/
23SP624EMini BT App Controlled Music RGBW LED ControllerSP623EDC5V-24VAPP5Phone Mic
/Streaming		NonNonRGBW4*PWMPWM/
24SP801EWiFi ArtNet LED ControllerSP801EDC5V-24VAPP5NonNon1CLK DATA GND4 Set TTLOne Wire IC1024*4
25SP901ETTL Signal AmplifierSPE901EDC5V-24VNonNonNonNonCLK DATA GND4 Set TTLDepends on inputDepends on input
