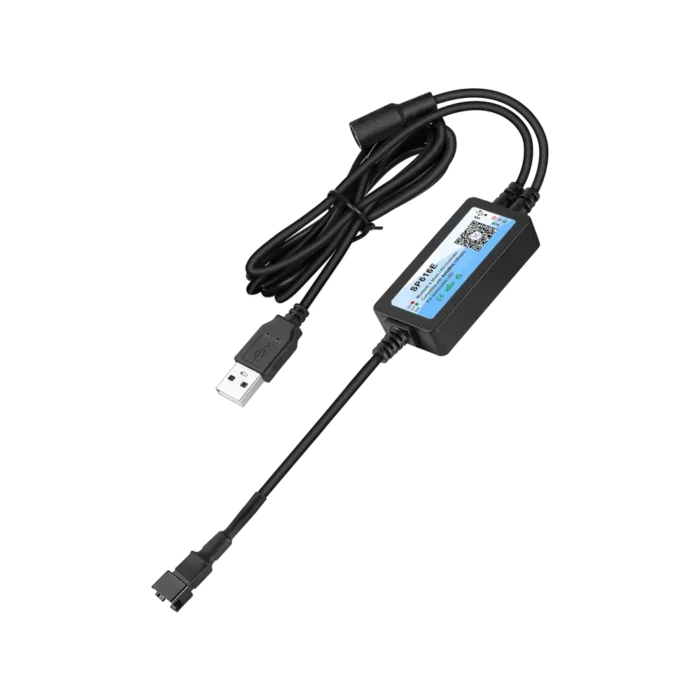

Name: Bluetooth Music & AmbiBox Pixel LED Controller / Yiford
Brand: Yiford
SKU: YF-CT-SP616E
Price: 56.00 USD
Availability: InStock

Bluetooth Music & AmbiBox Pixel LED Controller Features:

1. Supports both APP control and compatible with AmbiBox software;
2. Bluetooth Music & AmbiBox Pixel LED Controller Support automatic device connection and automatic re-connection when the APP turns on;
3. Support multiple devices grouping control;
4. Multiple sound collection methods: phone mic, player streaming, on-board mic;
5. Support modifying the device name, calibrate the RGB channel sequence, and timer function;
6. Compatible with the common single-line LED driver IC on the market, can drive up to 600 pixels;
7. Built-in 142 dynamic effects, effect length adjustable, with favour effects collecting function;
8. Built-in 18 music effects, effect length adjustable, sensitivity adjustable;
9. DC5V voltage input, the power supply has anti-reverse connection function;
10. Automatic saving function for setting parameters.

App Functions:

Bluetooth Music & AmbiBox Pixel LED Controller SP616E supports being controlled by APP, botth IOS and Android version are available;
Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later;
You can scan the QR code to download and install the App.
Bluetooth Music & AmbiBox Pixel LED Controller App Operations:
• Open the App and click the on the upper right corner of the homepage, add devices by scanning for devices, or creating a group of multiple added devices;
Click on an individual device in the device list to access the control page to control the device individually;
Click on a group in the group list to enter the control page to control all devices in the group at the same time;
• User can modify the device name and calibrate the RGB channel sequence by clicking on the upper right corner of the operation page.
• User can set up to five timing events by clicking on in the upper right corner, please note that all set timing events will be deleted when the controller is
powered off.
• In the effects page, there are a variety of music effects and non-music effects, users can set speed, brightness color and effect length for a specific effect.
Note: User can find more detailed information and help by clicking the button in the top right corner.

Bluetooth Music & AmbiBox Pixel LED Controller Work with AmbiBox Software:

Visit AmbiBox website to download and install the AmbiBox software. (http://www.ambibox.ru/en/index.php/Download_AmbiBox)
Download and install the USB driver.(http://www.wch-ic.com/downloads/CH341SER_ZIP.html)
1. Open the software, select the Intelligent backlight display page, click More settings to make the software display more setting options.
2. Check Use backlight.
3. In the Mode list, select the LED light mode you want.
(There are 5 display modes: Screen capture:
Static background, Dynamic background, Color music and Plugins)
4. Choose the way to capture the screen; (here use windows 8 mode)
5. Select AmbiLED in the Device list.
6. Select the correct port number in the Port list.
(You can find the comport number under Windows Device Manager)
7. Select the correct RGB order in the Order of color list.
(For example, the RGB order of WS2812B is GRB)
8. Set the number of LEDs used in the Number of zones list.
9. Click Wizard capture zones to set the layout of the LEDs.
10. Click Save settings to save the current settings.

Button Functions:

On/Off button : Turning on or off the LED light;
Mode button M : Switching between the AmbiBox and build-in effects;
Build-in effects Switching button S : Switching the build-in effects.

Technical Parameters：

Working temperature:-20℃~60℃
Dimensions:60mm*30mm*14mm
(not including the wires)
Working voltage:DC5V
Operating current:16mA

Wire Connection：

LED Controller List

No.	Model	Description	Voltage	APP	Music	Remote	Button	DAT/CLK/PWM	Output	IC Type	Maxium Pixel
1	SP002E	Micro Simple 3 Buttons LED Controller	DC5V-24V	Non	Non	Non	3	DATA GND	1 Set TTL	One Wire IC	600
2	SP103E	14key Mini-RF Remote	DC5V/DC12V	Non	Non	14key RF	Non	DATA GND	1 Set TTL	One Wire IC	2048
3	SP104E	17key Mini-RF Remote	DC5V-24V	Non	Non	17key RF	Non	DATA GND	1 Set TTL	One Wire IC	2048
4	SP105E	BT App Controlled Pixel LED Controller	DC5V-24V		Non	Non	Non	CLK DATA GND	1 Set TTL	One/Two Wire IC	2048
5	SP106E	RF Remote Music LED Controller	DC5V-12V	Non	Onboard Mic	14key RF	Non	DATA GND	1 Set TTL	One Wire IC	600
6	SP107E	BT App Controlled Music Pixel LED Controller	DC5V-24V		Onboard Mic/AUX	Non	Non	CLK DATA GND	1 Set TTL	One/Two Wire IC	960
7	SP108E	WiFi App Controlled Pixel LED Controller	DC5V-24V		Non	Non	1	CLK DATA GND	1 Set TTL	One/Two Wire IC	2048
8	SP110E	BT App Controlled Pixel LED Controller	DC5V-24V		Non	Non	Non	CLK DATA GND	1 Set TTL	One/Two Wire IC	1024
9	SP201E	DMX512 Decoder	DC5V-24V	Non	Non	Non	3	CLK DATA GND + 5*PWM	1 Set TTL + 5*PWM	One/Two Wire IC + PWM	2000 Channels
10	SP511E	IoT WiFi App Controlled Pixel LED Controller	DC5V-24V		Onboard Mic	38key IF	3	DATA GND	1 Set TTL	One Wire IC	900
11	SP513E	IoT WiFi App Controlled RGB LED Controller	DC5V-24V		Onboard Mic	38key IF	3	RGB	3*PWM	PWM	/
12	SP514E	IoT WiFi App Controlled RGBW LED Controller	DC5V-24V		Onboard Mic	38key IF	3	RGBW	4*PWM	PWM	/
13	SP601E	BT App Controlled 2 Output Music Pixel LED Controller	DC5V-24V		Onboard Mic	16key RF	3	2*DATA GND	2 Set TTL	One Wire IC	600*2
14	SP602E	BT App Controlled 4 Output Music Pixel LED Controller	DC5V-24V		Onboard Mic/AUX	16key RF	3	4*DATA GND	4 Set TTL	One Wire IC	600*4
15	SP608E	BT App Controlled 8 Output Music Pixel LED Controller	DC5V-24V		Onboard Mic/AUX	16key RF	Non	8*DATA GND	8 Set TTL	One Wire IC	600*8
16	SP611E	BT App Controlled Music Pixel LED Controller	DC5V-24V		Onboard&Phone Mic /Streaming	38key IF	3	DATA GND	1 Set TTL	One Wire IC	600
17	SP613E	BT App Controlled Music RGB LED Controller	DC5V-24V		Onboard&Phone Mic /Streaming	38key IF	3	RGB	3*PWM	PWM	/
18	SP614E	BT App Controlled Music RGBW LED Controller	DC5V-24V		Onboard&Phone Mic /Streaming	38key IF	3	RGBW	4*PWM	PWM	/
19	SP616E	BT App&AmbiBox Controlled Music Pixel LED Controller	DC5V		Onboard&Phone Mic /Streaming	Non	3	DATA GND	1 Set TTL	One Wire IC	600
20	SP617E	BT App&AmbiBox Controlled Music Pixel RGBW LED Controller	DC5V-24V		Onboard&Phone Mic /Streaming	38key IF	3	DATA GND	1 Set TTL	One Wire IC	600
21	SP621E	Mini BT App Controlled Pixel LED Controller	DC5V-24V		Phone Mic /Streaming	Non	Non	DATA GND	1 Set TTL	One Wire IC	600
22	SP623E	Mini BT App Controlled Music RGB LED Controller	DC5V-24V		Phone Mic /Streaming	Non	Non	RGB	3*PWM	PWM	/
23	SP624E	Mini BT App Controlled Music RGBW LED Controller	DC5V-24V		Phone Mic /Streaming	Non	Non	RGBW	4*PWM	PWM	/
24	SP801E	WiFi ArtNet LED Controller	DC5V-24V		Non	Non	1	CLK DATA GND	4 Set TTL	One Wire IC	1024*4
25	SP901E	TTL Signal Amplifier	DC5V-24V	Non	Non	Non	Non	CLK DATA GND	4 Set TTL	Depends on input	Depends on input
