What is a half cover silicone sleeve?

half cover silicone sleeve

half cover silicone tube for led strip lights

The half cover silicone sleeve also called split-type silicone sleeve,  it is different from the full-sleeve type. Its bottom is hollowed out, and the hollowed-out space is where the light strip is installed and hidden.No need to enter the light strip first, use it immediately after slotting, with built-in ribs, no need to seal.

Function for half cover silicone led tube

How to use U shape silicone LED tube for strip lights--DIY LED Neon Sign

Function effect of the silicone sleeve

The effect of their installation is very similar, the biggest difference is the process of installation: Full sleeve type silicone sleeve, before installation, the LED light strip must first enter the sleeve. The half-cover type silicone sleeve does not need to pass the light strip first. The LED light strip should be installed first, and then the half-cover sleeve is covered on the LED light strip.

video here how to use the U shape silicone groove with led strip lights:

播放有关的视频 u shape silicone led tube

What are the characteristics of the half cover type silicone sleeve

half cover silicone sleeve 3

Flexible bending freely

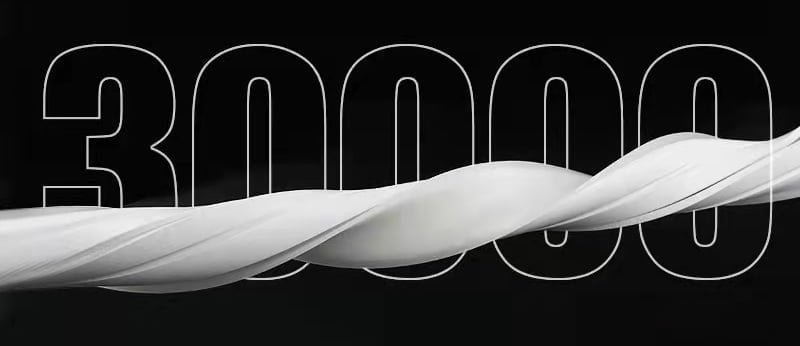

half cover silicone sleeve is made of new silicone material, It has a long life, easy to fabricate, simpler, and high transparency. The space in the new silicone light strip is effectively soft and uniform, and the effect of light output is very good!Bending resistance, easy to shape, good resistance, stable performance, Good quality, passed the twist test of more than 30,000 times in the factory。

How to put the light into the silicone sleeve

uniform lighting

Uniform light emission, no light spots

Work with LED Strip lights

led channel system

lighting effective

The left picture below shows the SMD light strip and the half-cover type silicone sleeve. When the SMD light strip emits light, the light spot can be seen. The picture on the right shows that the half-cover type silicone sleeve is placed on the top of the SMD light strip. There is no light spot, the light is uniform, the light is soft, and it is not dazzling.

half cover silicone sleeve 6

cuttable

The silicone sleeve can be cut arbitrarily, and the cutting tool is also very simple, and it can be cut to any length with scissors.

half cover silicone sleeve 7

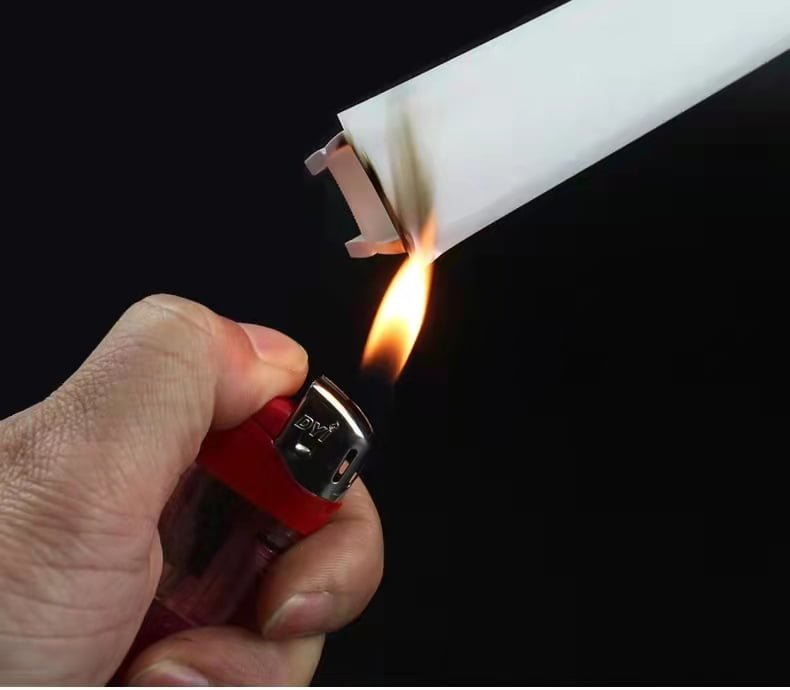

fire resistance

Silicone material has stable performance, anti-oxidation, no yellowing, and fire resistance

Video for silicone led tube lights

Here’s a video that tests some of the features of this product that might be of interest to you.

播放视频

Applications

Where can silicone sleeves be used?
Sharing some practical cases, hoping to bring some inspiration to designers. Very convenient to shape, not only linear, but also curved installation applications

Part NumberSection Size
mm
Lighting DirectionPCB Width
mm
PictureSize DrawingRefer Apply
YF-TVD13round dia 13round5TVD13 1TVD13 2TVD13 4
YF-TVD20round dia 20round10TVD20 1TVD20 2TVD20 3
YF-TVD22Hround dia 20roundDouble side 8TVD22H 1Silicone LED Channel System TVD22HTVD22H 3
YF-TVD40round dia 40roundDouble side 10SDD40 1 1SDD40 2 1SDD40 3 1
YF-SV03083*8Sideview5SV0308 2SV0308 1SV0308 3
YF-SV04104*10Sideview5/6SV0410 2 1SV0410 1 1SV0410 3 1
YF-SV06126*12Sideview8silicone led tubeSV0612 2SV0612H 4
YF-SV0612H6*12Sideview8SV0612H 1Silicone LED Channel System SV0612HSV0612H 4
YF-SV0616H26*12Sideview8SV0616H2 1Silicone LED Channel System SV0616H2SV0616H2 4
YF-SV0616H36*16Sideview8Silicone LED Channel System SV0616H3Silicone LED Channel System SV0616H3SV0616H2 4
YF-SV08158*15Sideview5SV0815 1SV0815 2SV0815 3
YF-SV08178*17Sideview8SV0817 1SV0817 2SV0817 3
YF-SV101810*18Sideview10SV1018 1SV1018 2SV1018 3
YF-SV102310*23Sideview10SV1023 1SV1023 2SV1023 4
YF-SV1023H10*23Sideview10SV1023H 1Silicone LED Channel System SV1023HSV1023H 3
YF-SV121212*12Sideview8SV1212 1SV1212 2SV1212 3
YF-SV122012*20Sideview10SV1220 1SV1220 2SV1220 4
YF-SV1220B12*20Sideview10SV1220B 1SV1220B 2SV1220B 3
YF-SV1220C10*20Sideview10SV1220C 1SV1220C 2SV1220C 3
YF-SV1220H10*20Sideview10SV1220H 1Silicone LED Channel System SV1220HSV1220H 3
YF-SV122512*25Sideview12SV1225 1SV1225 2SV1225 3
YF-SV06136*13Sideview8SV1613 1SV1613 2SV1613 3
YF-SV161616*16Sideview10SV1616 1SV1616 2SV1616 3
YF-SV202020*20Sideview10/12SV2020 1SV2020 2SV2020 3
YF-SV302030*20Sideview15SV3020 1SV3020 2SV3020 3
YF-SVD22round dia 22SideviewDouble side 5SVD22 1SVD22 2SVD22 3
YF-SVD22Bround dia 22SideviewDouble side 8SVD22B 1SVD22B 1SVD22B 3
YF-TV06066*6Sideview3TV0606 1TV0606 2TV0606 4
YF-TV101010*10Topview5TV1010 1TV1010 2TV1010 3
YF-TV1010C10*10Topview6TV1010C 1TV1010C 2TV1010C 3
YF-TV1010H10*10Topview6TV1010H 1TV1010HTV1010C 3
YF-TV1010U10*10Topview5TV1010U 1Silicone LED Channel System TV1010UTV1010U 3
YF-TV110511*5Topview8TV1105 1TV1105 1TV1105 2
YF-TV121212*12Topview8TV1212 1TV1212 2TV1212 3
YF-TV1212C12*12Topview8TV1212C 1TV1212C 2TV1212C 3
YF-TV1212H12*12Topview8TV1212H 1Silicone LED Channel System TV1212HLED Channel system 11
YF-TV1305H13*5Topview10TV1305H 1Silicone LED Channel System TV1305HTV1305H 3
YF-TV150515*5Topview12TV1505 1TV1105 1TV1505 2
YF-TV151315*13Topview10TV1513 1TV1513 2TV1513 4
YF-TV152515*25Topview10TV1525 1TV1525 2LED Neon sign ideas
YF-TV161616*16Topview10TV1616 1TV1616 2TV1616H3 3
YF-TV1616H16*16Topview10TV1616H 1Silicone LED Channel System TV1616HTV1616H3 3
YF-TV1616H316*16Topview10TV1616H3 1Silicone LED Channel System TV1616H3TV1616H3 3
YF-TV1616U16*16Topview10TV1616U 1Silicone LED Channel System TV1616UTV1616U 3
YF-TV162016*20Topview12TV1620 1TV1620 2TV1620 3
YF-TV172317*23Topview10TV1723 1TV1723 2TV1723 4
YF-TV2010U20*10Topview10/12TV2010U 1Silicone LED Channel System TV2010UTV2010U 3
YF-TV201420*14Topview10TV2014 1TV2014 2TV2014C 3
YF-TV2014C20*14Topview10TV2014C 1TV2014C 2TV2014C 3
YF-TV201620*16Topview10TV2016 1TV2016 2TV2016 3
YF-TV2018U20*18Topview10TV2018U 1Silicone LED Channel System TV2018UTV2014C 3
YF-TV202020*20Topview10/12TV2020 1TV2020 2TV2020 3
YF-TV2020H20*20Topview10/12TV2020H 1Silicone LED Channel System TV2020HTV2020H 3
YF-TV2020U20*20Topview10/12TV2020U 1Silicone LED Channel System TV2020UTV2020U 3
YF-TV2020U220*20Topview10/12TV2020U2 1TV2020U2 2TV2020U3 4
YF-TV2020U320*20Topview12Silicone LED Channel System TV2020U3TV2020U3 2TV2020U3 4
YF-TV302030*20Topview15TV3020 1TV3020 2TV3020 3
YF-TV3020U30*20Topview15TV3020U 1Silicone LED Channel System TV3020UTV3020U 4
YF-TV3020U230*20Topview15TV3020U2 1Silicone LED Channel System TV3020U2TV3020U 3
YF-TV4015U40*15Topview15/20TV4015U 1Silicone LED Channel System TV4015UTV4025 3
YF-TV402540*25TopviewTopview 20/sideview 8TV4025 1TV4025 2TV4025 3
YF-TV5015U50*15Topview15/20TV5015U 1Silicone LED Channel System TV4015UTV5015U 4
YF-TV502550*25Topview20TV5025 1TV5025 2TV5025 3
YF-TV703070*30Topview30TV7030 1TV7030 2TV7030 3
YF-TV10030100*30Topview20*2TV10030 1TV10030 2TV10030 3
YF-TVV22V corner 22*22V corner5TVV22TVV22 3TVV22 5

Available in a variety of sizes:

How to install the light strip and silicone sleeve?

A. Methods and steps for installing in the card slot:
1. According to the size of the silicone sleeve, make a hole for the slate or wood. Please note that the size of the opening is the bottom dimension of the sleeve, excluding the size of the sealing edge.
2. Paste the LED strip and test OK
3. Place the semi-silicone sleeve in the tank.

播放视频
half cover silicone sleeve 15

install method

The half-cover type silicone sleeve has an outer edge, which can be directly and firmly embedded with the background board. There is no need to seal the edge indoors. If it is used outdoors or in a humid environment, it is recommended to apply another sealant to prevent moisture. Or waterproof.

Silicone tube with RGB colorful LED Strip Lights

Video for how is the effect with the silicone led tube

播放有关的视频 COB LED Strips Make Your Pen Holder Unique

yiford company provides a variety silicone led channel for led strip lights, there is always one that is suitable for your project.

If you want to learn about related products through videos, you can follow my youtube channel! Or contact us directly by E-mail.
