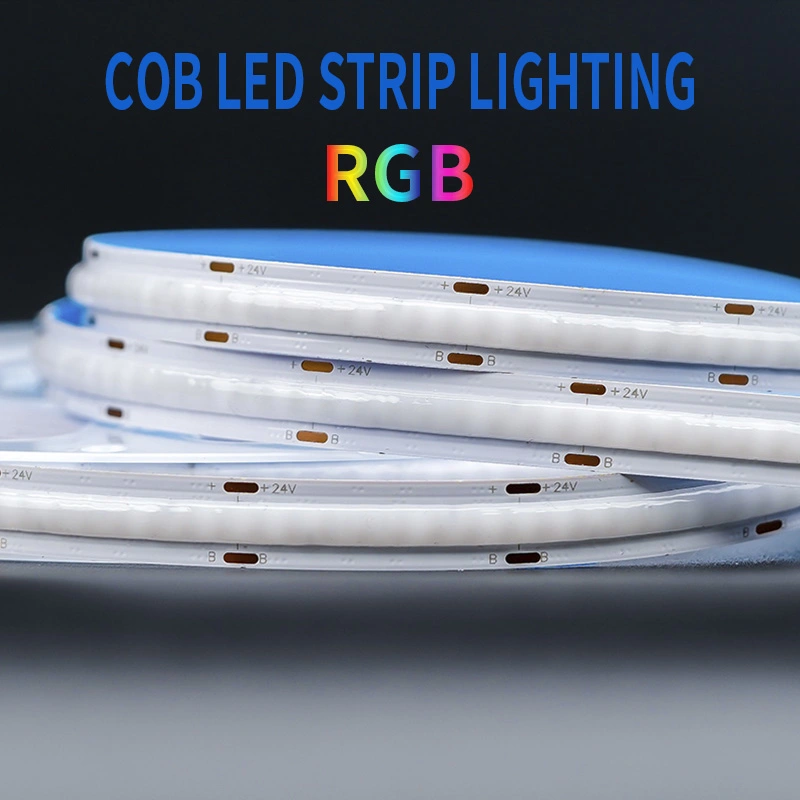

RGB 12mm 1134leds 24V
- Model NO.:
- YF-NQD24DD20-XX-1134
1、Wide beam angle, 180 degree
2、PCB width 12mm, 378*3 LEDs/Metre
3、Adjustable- can be but every 55.5mm
4、No RF interference, vibration resistant
5、No harmful substances and complies with Rohs
6、Widely used in decoration and accents lighting such as bar, hotel, shops, gardens,etc
2、PCB width 12mm, 378*3 LEDs/Metre
3、Adjustable- can be but every 55.5mm
4、No RF interference, vibration resistant
5、No harmful substances and complies with Rohs
6、Widely used in decoration and accents lighting such as bar, hotel, shops, gardens,etc
| Product Specification | |
| Product Name | RGB COB LED Strips |
| Model | YF-NQD24DD20-XX-1134 |
| LED QTY/Metre | 1134leds |
| PCB Thickness | 2 oz |
| PCB Color | White |
| Tape | Blue conduct heat adhesive tape |
| Length per reel | 16.4′ (5M) |
| Standard Connector | 20AWG red/green/blue/black cable on the end |
| Length of Cuttable | 55.5mm |
| PCB width | 12mm |
| LED Strip Dimension | 12mm (Width) *2.3mm(Height) *Length |
| Length | 5000mm (16.4ft) per roll |
| Connection Cable | 150mm length |
| Electrical Parameters | |
| Model | YF-NC1D24AD20-XX-1134 |
| Input Voltage | DC24V |
| Color | Red Green Blue |
| Wave Length (+-5nm) | Red: 625nm / Green: 535nm / Blue: 460nm |
| LED Beam Angle | 180° |
| Operating Temp.: | -25°C~ +45°C |
| Storage Temp.: | -25°C~ +70°C |
| Working Humidity | 40%-70%RH |
| Working Lifetime | 25,000+ hours |
| Power | 15W per Metre |
| Warranty | 3 years |
Advantage:

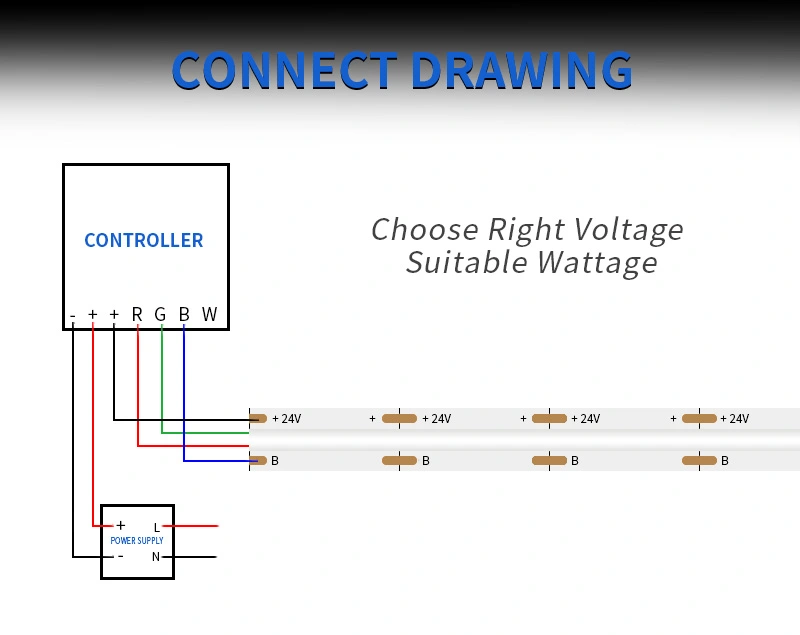

Connect Method:

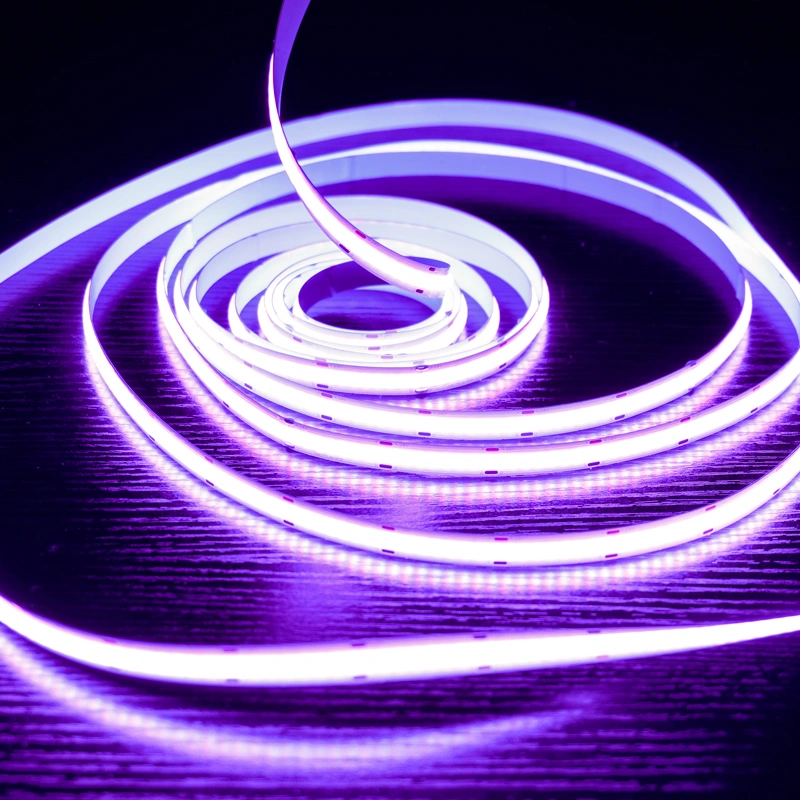

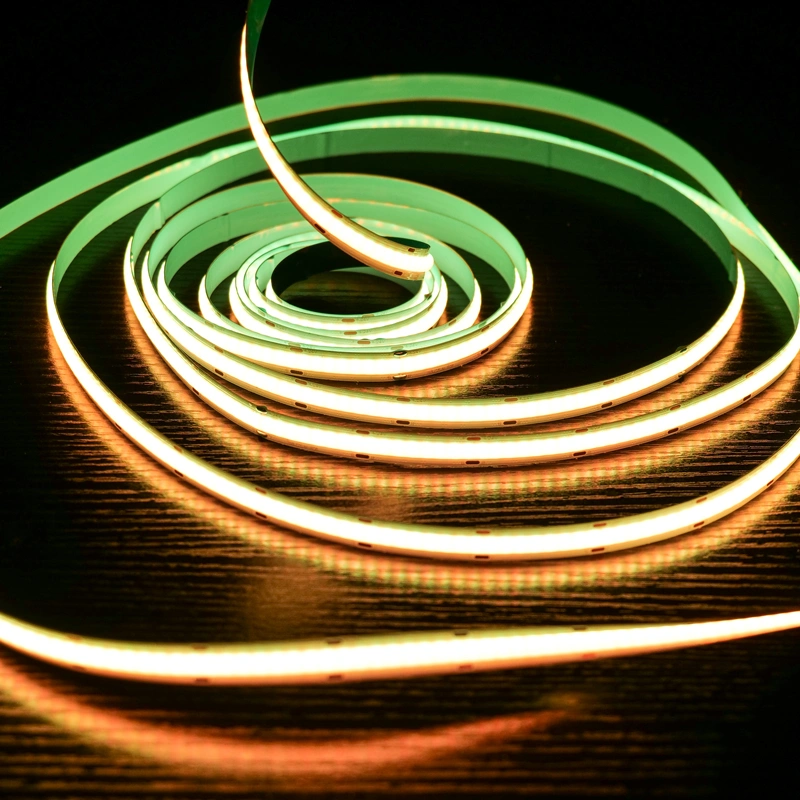

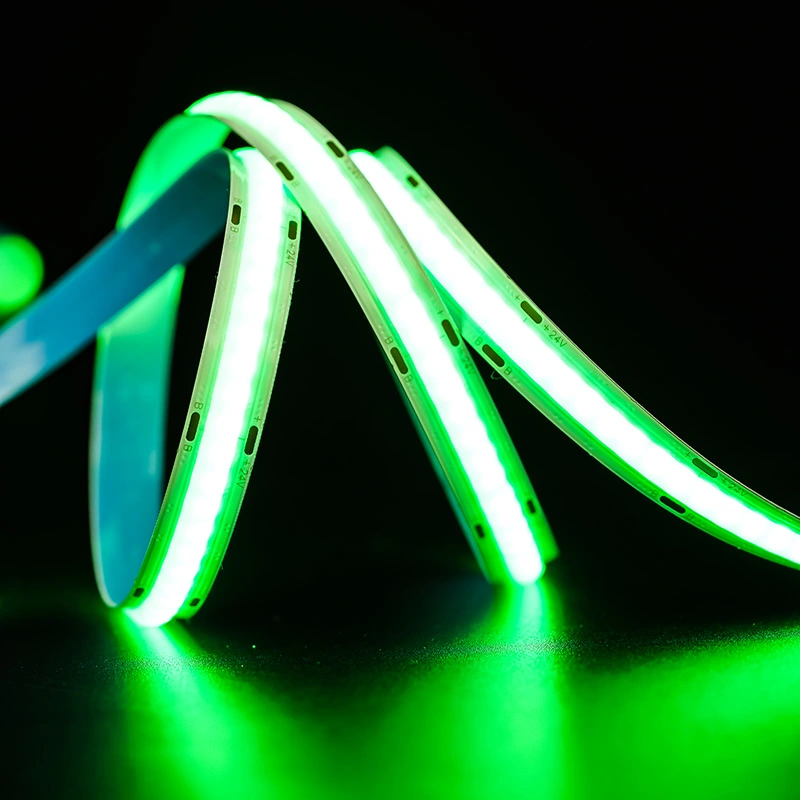

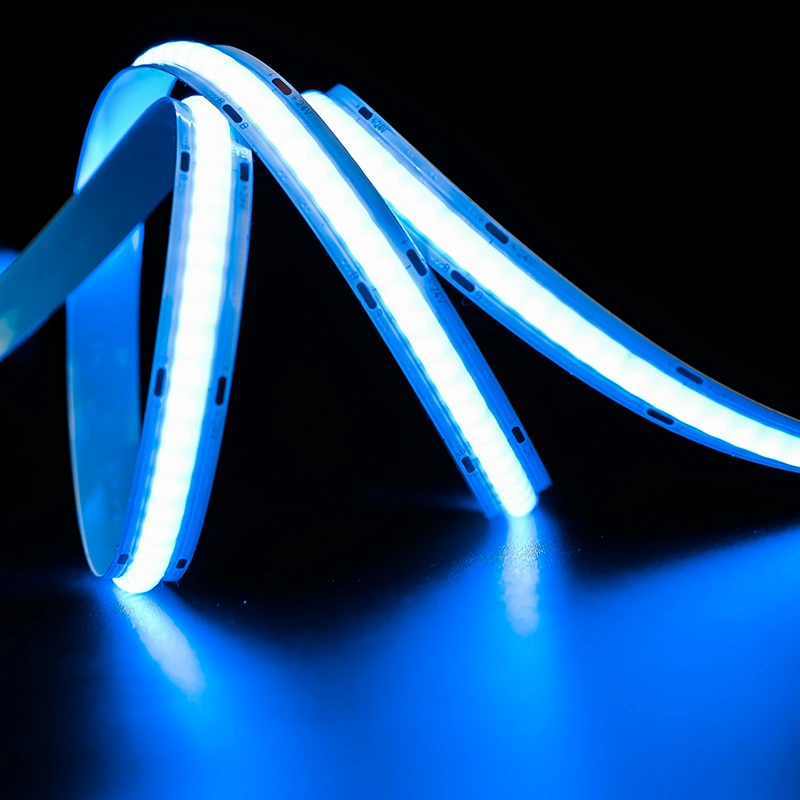

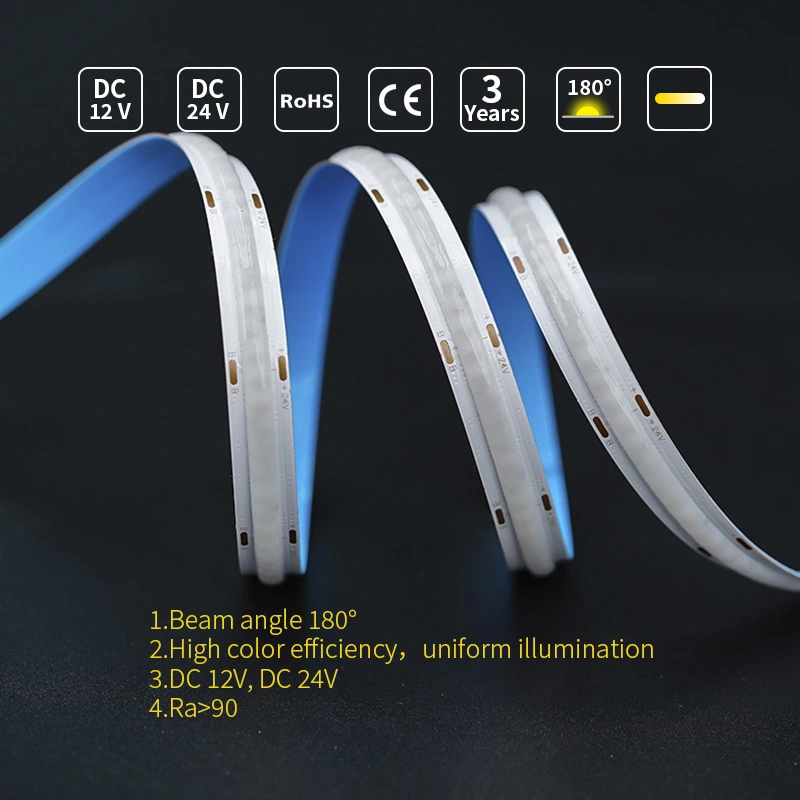

Real shot:
Why choose high CRI COB strips?
