DC12-24V 3×8A Wireless RF Touch Controller
DC12-24V 3×8A Wireless RF Touch Controller

DC12-24V 3×8A Wireless RF Touch Controller

Model NO.
YF-CT-RF800
Full-color touch controller is a high-end touch controller which adopts latest capacitive trigger and wireless technology. The controller has features such as large current, low power consumption; remote control adopts high precision capacitance touch control chip, has color ring and buttons function, increases the touch sensitivity, reduces trigger which caused by mistake. You can use remote control to switch the modes of RGB strips, and also can change the brightness and speed. It has advantages such as far control distance, high touch sensitivity, strong driving ability, stable performance. The product can control a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel light etc.
Quantity:

Technical Parameters

Controller

Supply voltage: DC12-24V

Working current: ≤8A/CH

Connection method: Common anode

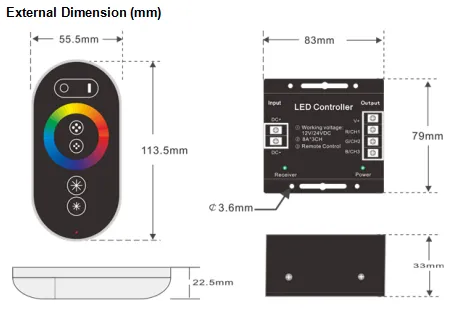

External dimension: L83×W79×H33 mm

Static power consumption: <1W

Output power: DC12V: <288W, DC24V: <576W

Output frequency: 900Hz

Remote Control

Working temperature: -20-60°C

Power supply mode: AAA × 3

Supply voltage: 1.5V × 3

Standby power consumption: 0.025Mw

Static current: 85Ua

Working current: 200uA

Remote distance: >20m

Standby time: >6 months

Controller_RF800_1

Controller_RF800_2

Controller_RF800_3
