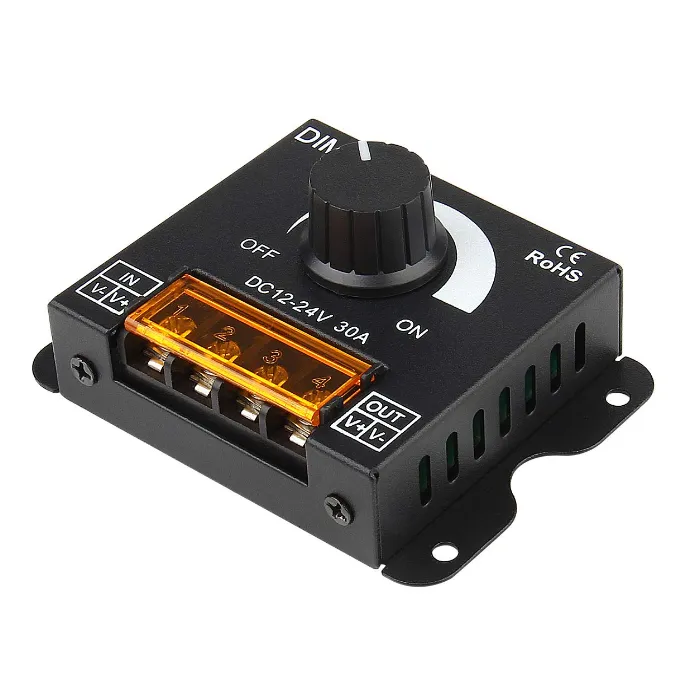

30A LED Rotary Dimmer Switch

Model NO.
YF-CT-DM30A

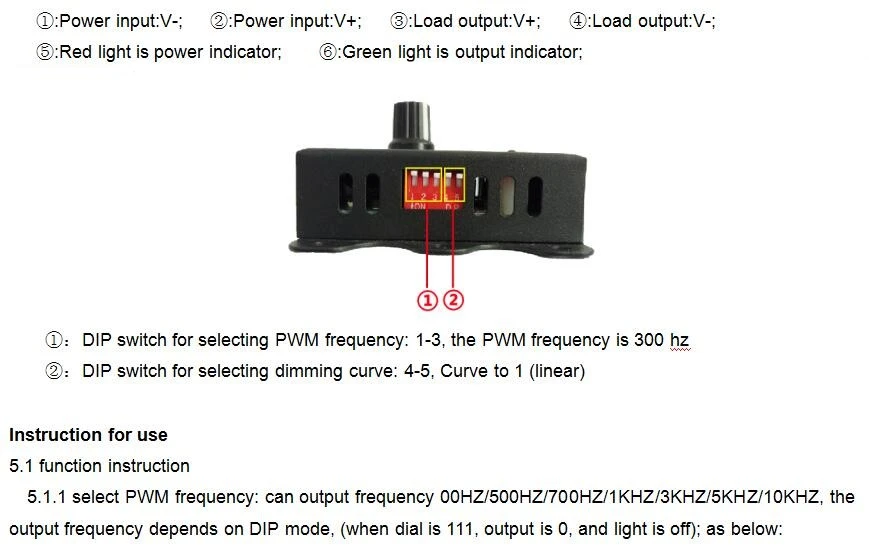

frequency adjustable dimmer can adjust brightness infinitely, adopts knob-operated control, user can adjust light to the appropriate brightness according to actual needs. Output of dimmer is 1 channel, and you can adjust PWM frequency and dimming curve through the dial switch.

Technical Parameters

2.1 working temperature: -20-60℃

2.2 supply voltage: DC12-24V

2.3 output: 1 channel

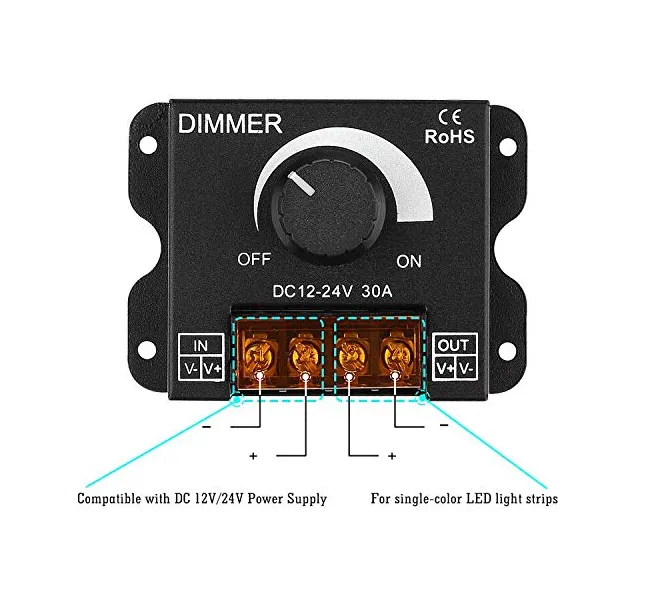

2.4 connection mode: common anode

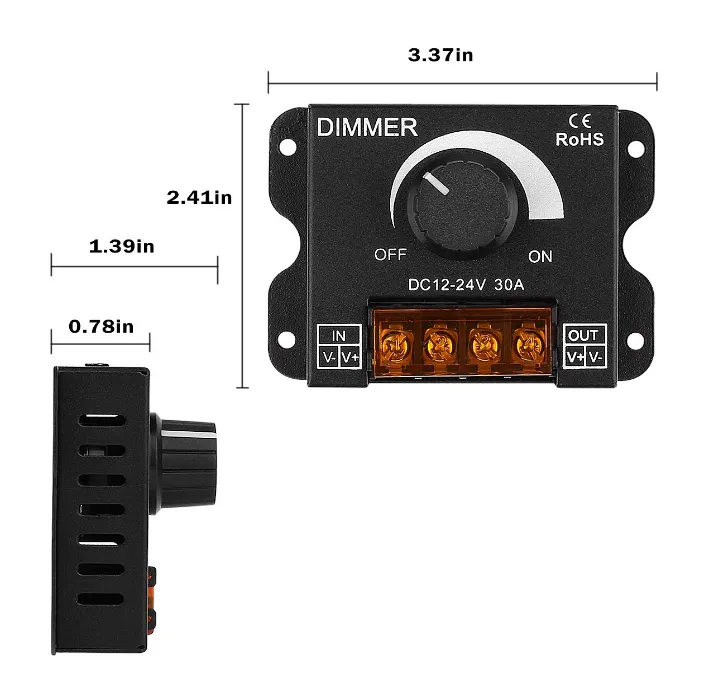

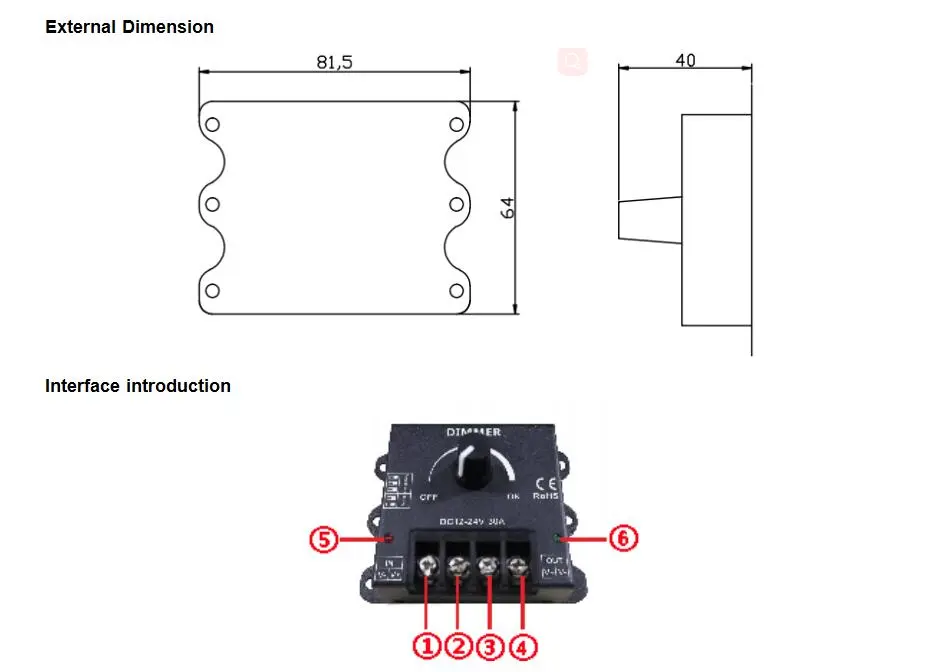

2.5 external dimension: L81.5×W64×H40 mm

2.6 packing size: L90×W72×H50 mm

2.7 net weight: 140g

2.8 gross weight: 195g

2.9 static power consumption:<0.7W

2.10 output current: <30A

(when PWM frequency is more than 1KHZ, maximum output current will reduce accordingly)

led dimmer switch

led dimmer switch

led dimmer switch

led dimmer switch

led dimmer switch

led dimmer switch

led dimmer switch

led dimmer switch

dimmer light switch,led dimmer switch,dimmer switch for led lights

frequency adjustable dimmer can adjust brightness infinitely, adopts knob-operated control, user can adjust light to the appropriate brightness according to actual needs. Output of dimmer is 1 channel, and you can adjust PWM frequency and dimming curve through the dial switch.
