The latest innovative design, patented products

LED light strip connection solution

Solve the problem of arbitrary connection of soft light bars

Quick solderless connector

No-stripping wire insulation

Transparent shell, better light transmission

solderless connector

Wide range of applications

Whether it is home decoration or large-scale architectural lighting, the connector of the light strip is inseparable. YIFORD’s connectors help you save labor, materials, time and costs.

Mini Crystal LED Strip Connector –Strip to Strip

IP20 Mini Crystal Series

NO.ITEM NO.NO.ITEM NO.NO.ITEM NO.NO.ITEM NO.
1#HR-S-SC-2PIN-5MM-B2#HR-S-SC-2PIN-5MM-A3#HR-S-SC-2PIN-5MM-C4#HR-S-SC-2PIN-5MM-D
5#HR-S-SC-3PIN-5MM-B6#HR-S-SC-3PIN-5MM-A7#HR-S-SC-3PIN-5MM-C8#HR-S-SC-3PIN-5MM-D
9#HR-S-SC-2PIN-8MM-B10#HR-S-SC-2PIN-8MM-A11#HR-S-SC-2PIN-8MM-C12#HR-S-SC-2PIN-8MM-D
13#HR-S-SC-3PIN-8MM-B14#HR-S-SC-3PIN-8MM-A15#HR-S-SC-3PIN-8MM-C16#HR-S-SC-3PIN-8MM-D
17#HR-S-SC-4PIN-8MM-B18#HR-S-SC-4PIN-8MM-A19#HR-S-SC-4PIN-8MM-C20#HR-S-SC-4PIN-8MM-D
21#HR-S-SC-2PIN-10MM-B22#HR-S-SC-2PIN-10MM-A23#HR-S-SC-2PIN-10MM-C24#HR-S-SC-2PIN-10MM-D
25#HR-S-SMD-2PIN-10MM-B26#HR-S-SMD-2PIN-10MM-A27#HR-S-SMD-2PIN-10MM-C28#HR-S-SMD-2PIN-10MM-D
29#HR-S-SMD-3PIN-10MM-B30#HR-S-SMD-3PIN-10MM-A31#HR-S-SMD-3PIN-10MM-C32#HR-S-SMD-3PIN-10MM-D
33#HR-S-COB-3PIN-10MM-B34#HR-S-COB-4PIN-10MM-A35#HR-S-COB-3PIN-10MM-C36#HR-S-COB-4PIN-10MM-D
37#HR-S-COB-4PIN-10MM-B34#HR-S-COB-4PIN-10MM-A38#HR-S-COB-4PIN-10MM-C36#HR-S-COB-4PIN-10MM-D
39#HR-S-SMD-4PIN-10MM-B40#HR-S-SMD-4PIN-10MM-A41#HR-S-SMD-4PIN-10MM-C42#HR-S-SMD-4PIN-10MM-D
43#HR-S-SMD-5PIN-10MM-B44#HR-S-SMD-5PIN-10MM-A45#HR-S-SMD-5PIN-10MM-C46#HR-S-SMD-5PIN-10MM-D
47#HR-S-SMD-2PIN-12MM-B48#HR-S-SMD-2PIN-12MM-A49#HR-S-SMD-2PIN-12MM-C50#HR-S-SMD-2PIN-12MM-D
51#HR-S-SMD-3PIN-12MM-B52#HR-S-SMD-3PIN-12MM-A53#HR-S-SMD-3PIN-12MM-C54#HR-S-SMD-3PIN-12MM-D
55#HR-S-SC-4PIN-12MM-B56#HR-S-SC-4PIN-12MM-A57#HR-S-SC-4PIN-12MM-C58#HR-S-SC-4PIN-12MM-D
59#HR-S-SMD-5PIN-12MM-B60#HR-S-SMD-5PIN-12MM-A61#HR-S-SMD-5PIN-12MM-C62#HR-S-SMD-5PIN-12MM-D
63#HR-S-COB-5PIN-12MM-B64#HR-S-COB-5PIN-12MM-A65#HR-S-COB-5PIN-12MM-C66#HR-S-COB-5PIN-12MM-D
67#HR-S-SMD-6PIN-12MM-B68#HR-S-SMD-6PIN-12MM-A69#HR-S-SMD-6PIN-12MM-C70#HR-S-SMD-6PIN-12MM-D
115#HR-S-SC-2PIN-8MM-E116#HR-S-SMD-6PIN-12MM-E

Waterproof Series

NO.ITEM NO.NO.ITEM NO.NO.ITEM NO.
71#HR-IP-SC-2PIN-8MM-B
72#HR-IP-SC-2PIN-8MM-A73#HR-IP-SC-2PIN-8MM-C
74#HR-IP-SC-3PIN-8MM-B75#HR-IP-SC-3PIN-8MM-A76#HR-IP-SC-3PIN-8MM-C
77#HR-IP-SC-2PIN-10MM-B78#HR-IP-SC-2PIN-10MM-A79#HR-IP-SC-2PIN-10MM-C
80#HR-IP-SMD-2PIN-10MM-B81#HR-IP-SMD-2PIN-10MM-A82#HR-IP-SMD-2PIN-10MM-C
83#HR-IP-SMD-3PIN-10MM-B84#HR-IP-SMD-3PIN-10MM-A85#HR-IP-SMD-3PIN-10MM-C
86#HR-IP-COB-3PIN-10MM-B87#HR-IP-COB-4PIN-10MM-A88#HR-IP-COB-3PIN-10MM-C
89#HR-IP-COB-4PIN-10MM-B87#HR-IP-COB-4PIN-10MM-A90#HR-IP-COB-4PIN-10MM-C
91#HR-IP-SMD-4PIN-10MM-B92#HR-IP-SMD-4PIN-10MM-A93#HR-IP-SMD-4PIN-10MM-C
94#HR-IP-SMD-5PIN-10MM-B95#HR-IP-SMD-5PIN-10MM-A96#HR-IP-SMD-5PIN-10MM-C
97#HR-IP-SMD-2PIN-12MM-B98#HR-IP-SMD-2PIN-12MM-A99#HR-IP-SMD-2PIN-12MM-C
100#HR-IP-SMD-3PIN-12MM-B101#HR-IP-SMD-3PIN-12MM-A102#HR-IP-SMD-3PIN-12MM-C
103#HR-IP-SC-4PIN-12MM-B104#HR-IP-SC-4PIN-12MM-A105#HR-IP-SC-4PIN-12MM-C
106#HR-IP-COB-5PIN-12MM-B107#HR-IP-COB-5PIN-12MM-A108#HR-IP-COB-5PIN-12MM-C
109#HR-IP-SMD-5PIN-12MM-B110#HR-IP-SMD-5PIN-12MM-A111#HR-IP-SMD-5PIN-12MM-C
112#HR-IP-SMD-6PIN-12MM-B113#HR-IP-SMD-6PIN-12MM-A114#HR-IP-SMD-6PIN-12MM-C

Specification for Mini Crystal LED Strip Connector

Strip to Strip Series

Mini Crystal LED strip connector is a transparent PC material connector, mainly suitable for IP20 COB & SMD strip with matching pads. It has the characteristics of reliable connection, invisible seamless lighting, perfect solution for aluminum profile application, and DIY connection without stripping.

1. Naming Rule


2. Item No.

Connector –Strip to Strip 2

2# HR-S-SC-2PIN-5MM-A

Strip-to-strip, mainly suitable for IP20 COB & SMD strips, 5mm width PCB, 2PIN single color

Connector –Strip to Strip 3

10# HR-S-SC-2PIN-8MM-A

Strip-to-strip, mainly suitable for IP20 COB & SMD strips, 8mm width PCB, 2PIN single color

Connector –Strip to Strip 4

14# HR-S-SMD-3PIN-8MM-A

Strip-to-strip, mainly suitable for IP20 SMD strips, 8mm width PCB, 3PIN CCT color

Connector –Strip to Strip 5

18# HR-S-SMD-4PIN-8MM-A

Strip-to-strip, mainly suitable for IP20 SMD strips, 8mm width PCB, 4PIN RGB color

Connector –Strip to Strip 6

22# HR-S-SC-2PIN-10MM-A

Strip-to-strip, mainly suitable for IP20 COB & SMD strips, 10mm width PCB, 2PIN single color

Connector –Strip to Strip 7

26# HR-S-SMD-2PIN-10MM-A

Strip-to-strip, mainly suitable for IP20 SMD strips, 10mm width PCB, 2PIN single color

Connector –Strip to Strip 8

30# HR-S-SMD-3PIN-10MM-A

Strip-to-strip, mainly suitable for IP20 SMD strips, 10mm width PCB, 3PIN CCT color

Connector –Strip to Strip 9

30A# HR-S-SMD-3PIN-10MM-A1

Strip-to-strip (High density), mainly suitable for Tunable CCT COB strips, 10mm width PCB (Suitable for 168LED/M)

Connector –Strip to Strip 10

34# HR-S-COB-4PIN-10MM-A

Strip-to-strip, mainly suitable for Tunable CCT and RGB COB strips, 10mm width PCB

Connector –Strip to Strip 11

40# HR-S-SMD-5PIN-10MM-A

Strip-to-strip, mainly suitable for IP20 SMD strips, 10mm width PCB, 5PIN RGBW color

Connector –Strip to Strip 12

44# HR-S-SMD-2PIN-12MM-A

Strip-to-strip, mainly suitable for IP20 SMD strips, 12mm width PCB, 2PIN single color

Connector –Strip to Strip 13

48# HR-S-SMD-3PIN-12MM-A

Strip-to-strip, mainly suitable for IP20 SMD strips, 12mm width PCB, 3PIN CCT color

Connector –Strip to Strip 14

52# HR-S-SC-4PIN-12MM-A

Strip-to-strip, mainly suitable for IP20 COB & SMD strips, 12mm width PCB, 4PIN RGB color

Connector –Strip to Strip 15

56# HR-S-SMD-5PIN-12MM-A

Strip-to-strip, mainly suitable for IP20 SMD strips, 12mm width PCB, 5PIN RGBW color

Connector –Strip to Strip 16

60# HR-S-SMD-6PIN-12MM-A

Strip-to-strip, mainly suitable for IP20 SMD strips, 12mm width PCB, 6PIN RGBCCT color

Connector –Strip to Strip (17)

64# HR-S-COB-5PIN-12MM-A

Strip-to-strip, mainly suitable for IP20 COB strips, 12mm width PCB, 5PIN RGBW color

Connector –Strip to Strip 18

68# HR-S-SMD-6PIN-12MM-A

Strip-to-strip, mainly suitable for IP20 SMD strips, 12mm width PCB, 6PIN RGBCCT color

3. Product advantages

Connector –Strip to Strip 19

4. Instruction

     (The picture shows the 2pin operation, refer to this The operation of 3~6pin products is the same.)

install 1
  1. Prepare led strip
install 2
  1. Cut the led strip along the pad
Connector –Strip to Strip 22
  1. Push the strip into the connector from both sides
Connector –Strip to Strip 23
  1. The arrow shows the stop position, push it to this position in place
Connector –Strip to Strip 24
  1. Use pliers to clamp the terminal to the level of the plastic surface , the operation is unilateral operation, clamp one side and then operate the other side.
Connector –Strip to Strip 25
  1. Finished
Connector –Strip to Strip 26

Remark: After pressing in, the contact terminal is allowed to be 0.15 MAX higher than the plastic plane.

5. Technical Parameters

5.1 Product parameters

  1. Rated Current: 6A Max
  2. Rated voltage: 5V/9V/12V/18V/24V/36V/48V
  3. Withstand voltage: 500V
  4. Temperature resistance: 105℃
  5. Working temperature: -20℃ ~ +80℃
  6. Salt spray test: neutral salt spray 24H
  7. Allowable humidity: 15%~90%
  8. Applicable  strip specifications: IP20 SMD & COB strip

5.2 Yiford PCB Circuit Laying Rules

Before purchasing connectors, please ensure that the led strip meets the following wiring requirements. Customer complaints caused by PCB wiring problems are not covered by the warranty.):

  • No.1 copper foil design needs to be laid in a straight line within this range;
  • No.2 Cut the middle line;
  • No.3 copper foil center distance design, the center symmetry with the outer width of the light strip is 0.2 Max;
  • No.4 light strip design thickness 0.30 Max
  • No.5 lamp beads allow the maximum height, the tolerance range is ±0.2;
  • No.6 total height after sticking adhesive: 0.55±0.1;
  • No. 7 Minimum size of lamp bead laying position;
  • No. 8 Design requirements for the outer width of the light strip;

All lamp beads and the outer width of the lamp strip have a center symmetry of 0.5 Max;

rule 1

HR-S-SC-5MM-2PIN

rule 2

HR-S-SC-8MM-2PIN

rule 3

HR-S-SC-10MM-2PIN

rule 4

HR-S-SMD-10MM-3PIN

rule 5

HR-S-COB-10MM-3PIN

rule 6

HR-S-COB-10MM-4PIN

rule 7

HR-S-SMD-10MM-4PIN

rule 8

HR-S-SMD-12MM-5PIN

rule 9

HR-S-SMD-12MM-5PIN

rule 10

HR-S-SMD-12MM-6PIN

6. Product Size

COB 5mm Strip to Strip 2PIN(HR-S-SC-2PIN-5MM-A)

Connector –Strip to Strip 37

COB 8mm Strip to Strip 2PIN(HR-S-SC-2PIN-8MM-A)

Connector –Strip to Strip 38 1

10mm Series: Strip to Strip

COB/SMD-2PIN:HR-S-SC-2PIN-10MM-A

Connector –Strip to Strip 39

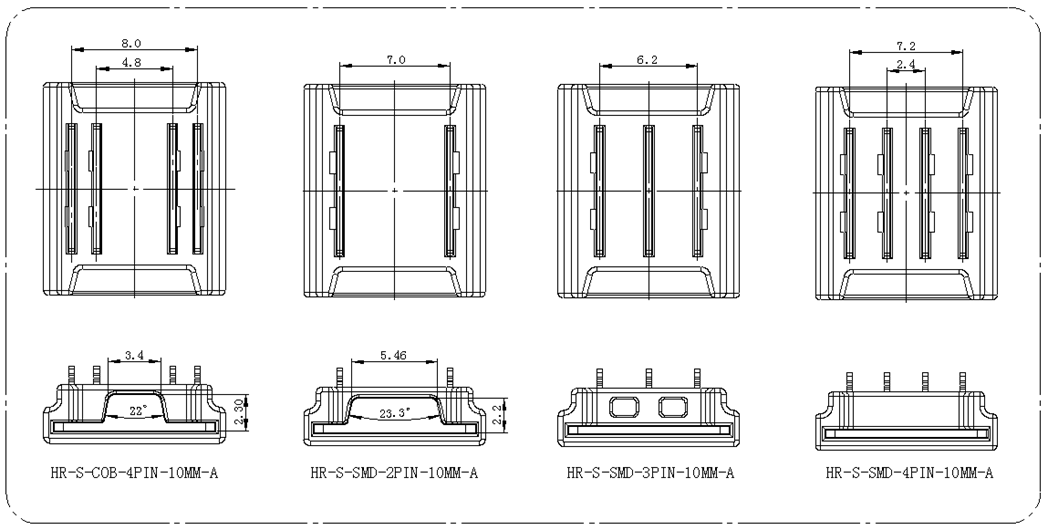

Connector –Strip to Strip 40

Remark: There are 5 specifications in total, and the marked reference view is SMD/COB-2PIN. Other products are the same except for the number of PINs and some marked dimensions;

SMD 12mm Strip to Strip

SMD-5PIN:HR-S-SMD-5PIN-12MM-A

Connector –Strip to Strip 41
Connector –Strip to Strip 42

SMD-6PIN:HR-S-SMD-6PIN-12MM-A

Connector –Strip to Strip 43

Note: The marked view is the 5PIN benchmark, and the 6PIN is the same except for the number of PINs;

If you want to know more about light strips, you can follow my youtube channel or facebook. Of course, you can also email us directly.
