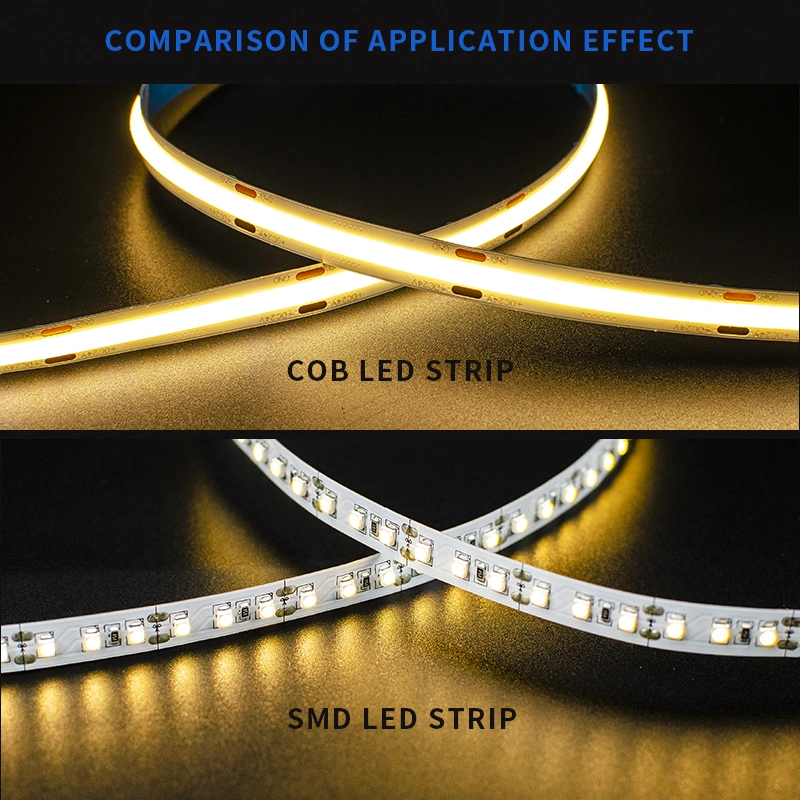

cob led strips compare smd led strips
cob led strip 5mm
cob led strip 528leds 5mm led strip
cob led strip 528leds 5mm led strip
cob led strip 528leds 5mm led strip
cob led strips compare smd led strips
cob led strip 5mm
cob led strip 528leds 5mm led strip
cob led strip 528leds 5mm led strip

cob strip lights 528leds 5mm led strip

Model NO.
YF-NWD24BA20X-528

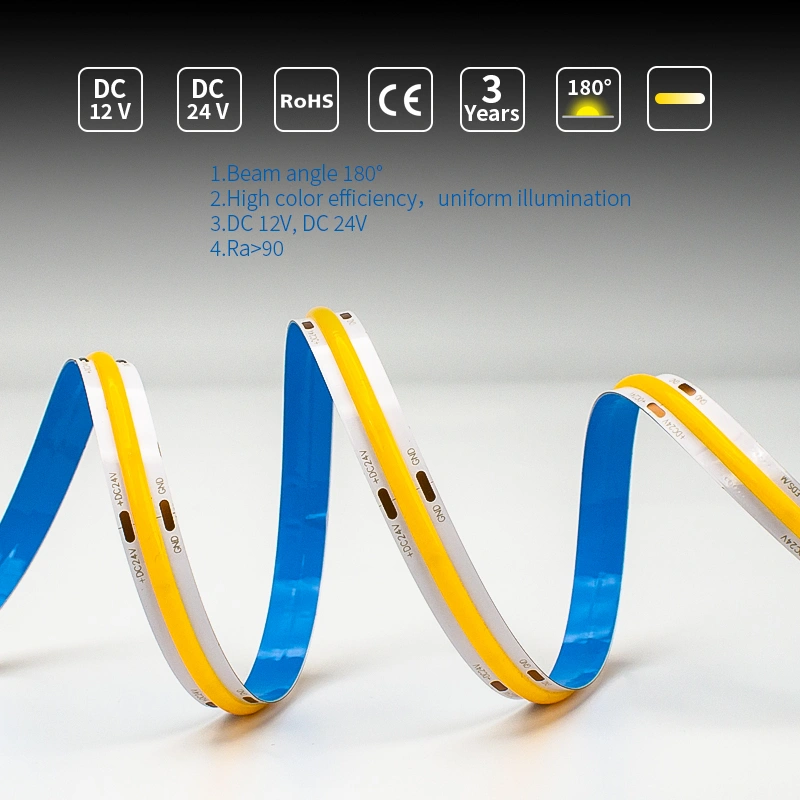

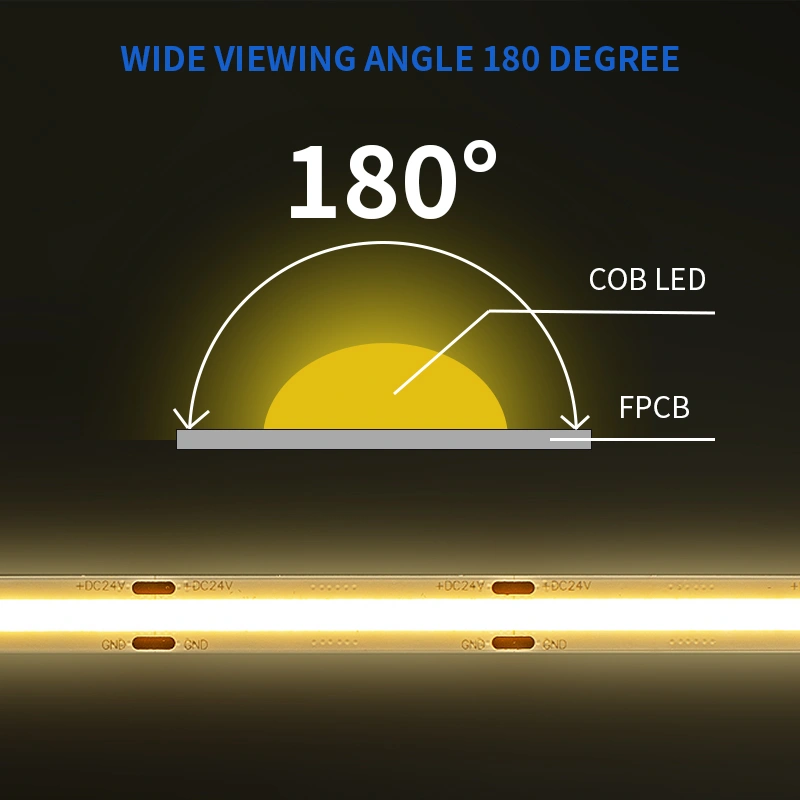

1、Wide beam angle, 180 degree

2、Only 5mm width, it can use in narrow area, easily installation

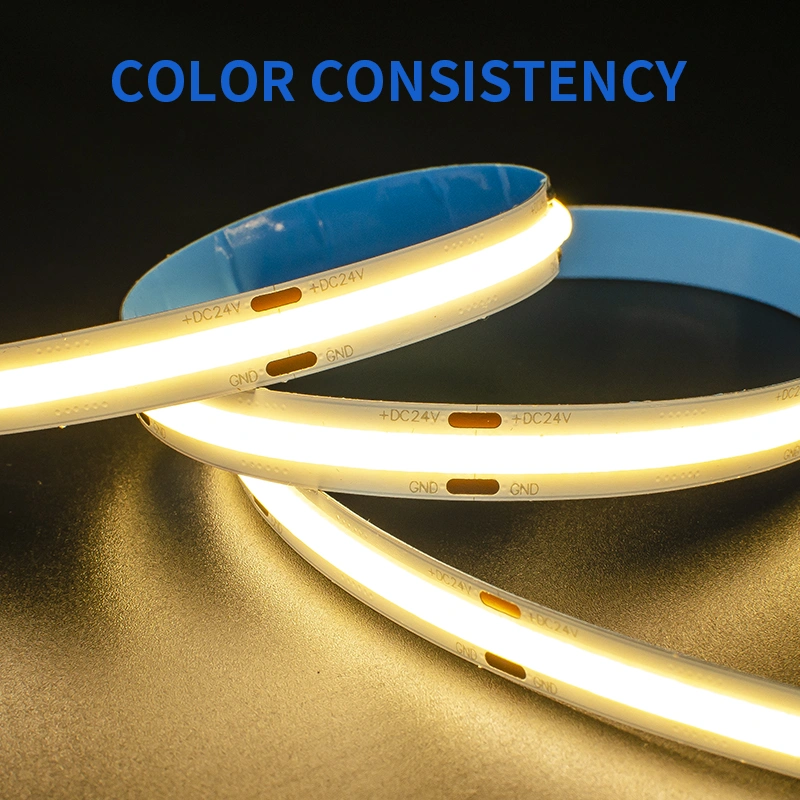

3、High CRI>90, SDCM<5, restore true color

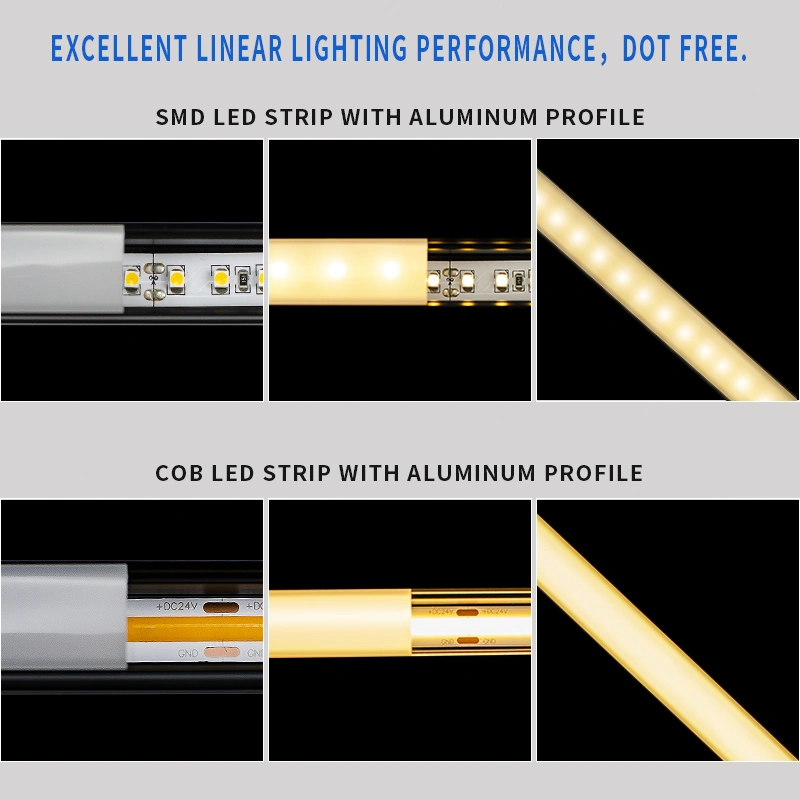

4、No dark area, perfect light performance

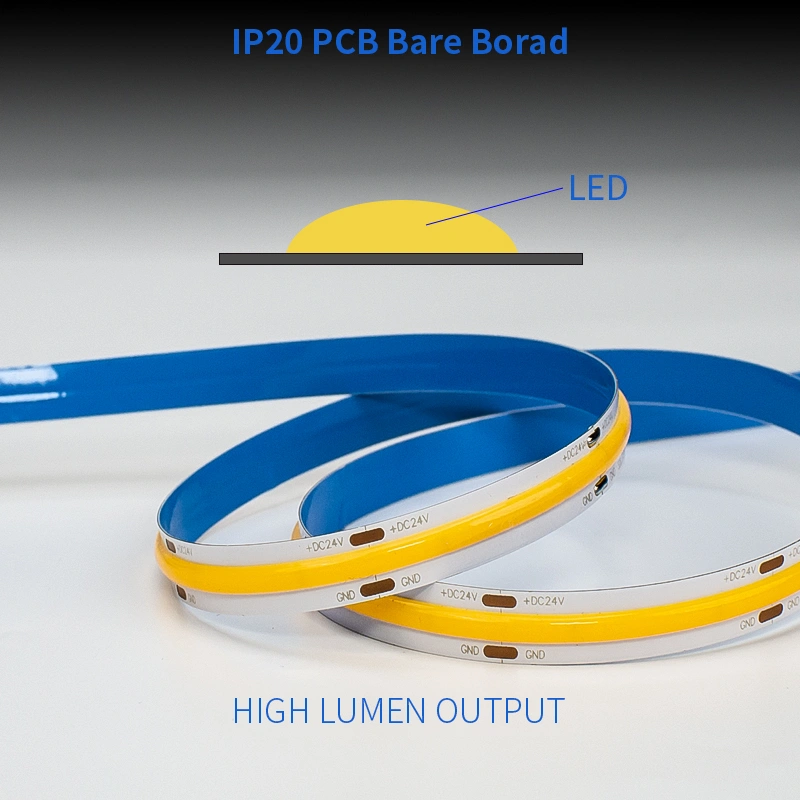

5、High lumen output, more than 1000lm/meter

6、Widely used in decoration and accents lighting such as bar, hotel, shops, gardens,etc
Product Specification

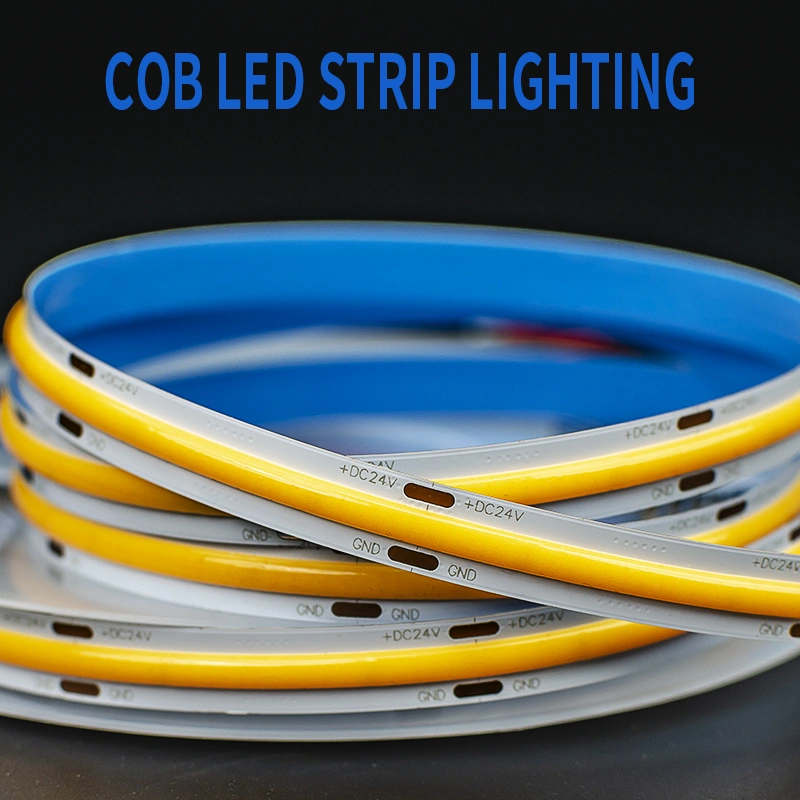

Product Name528leds 5mm mini slim 24V strips
ModelYF-NWD24BA20X-528
LED QTY/Metre528 LEDs
PCB Thickness2 oz
PCB ColorWhite
TapeBlue conduct heat adhesive tape
Length per reel16.4′ (5M)
Standard Connector20AWG red/black cable on the end

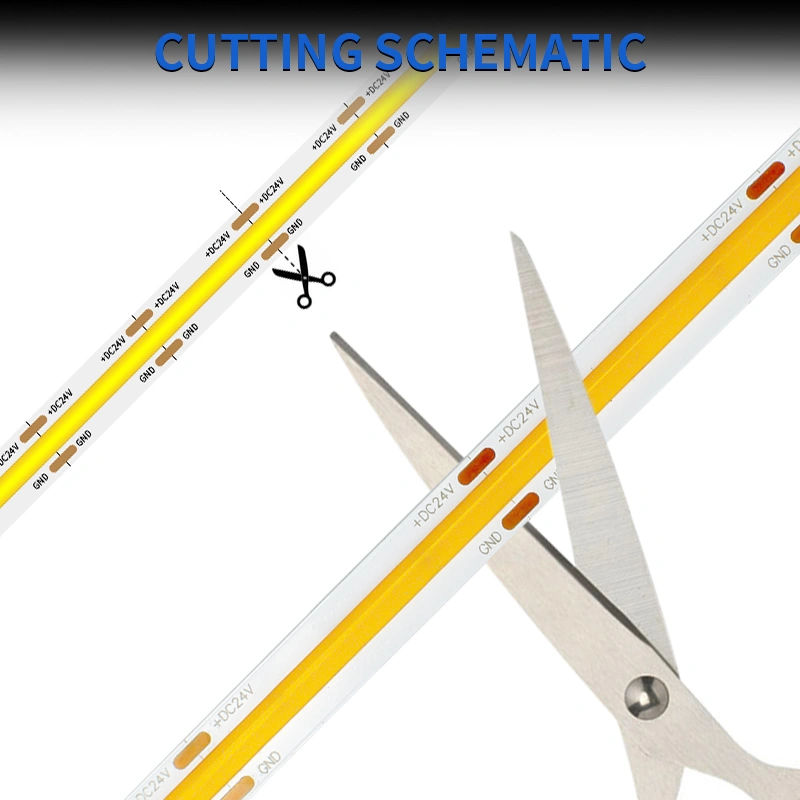

Length of Cuttable45 mm
PCB width5 mm
LED Strip Dimension5mm (Width) *2.3mm(Height) *Length
Length5000mm (16.4ft) per roll
Connection Cable150mm length
Electrical Parameters
ModelYF-NWD24BA20X-528

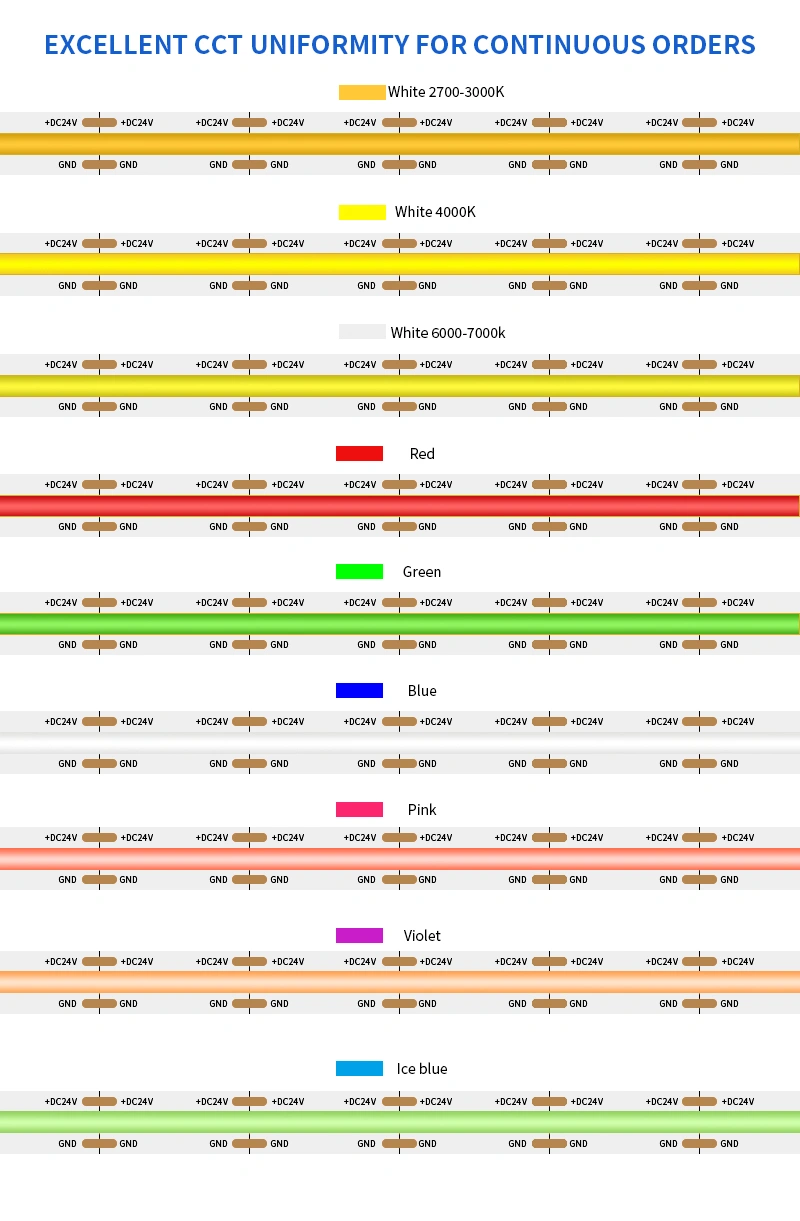

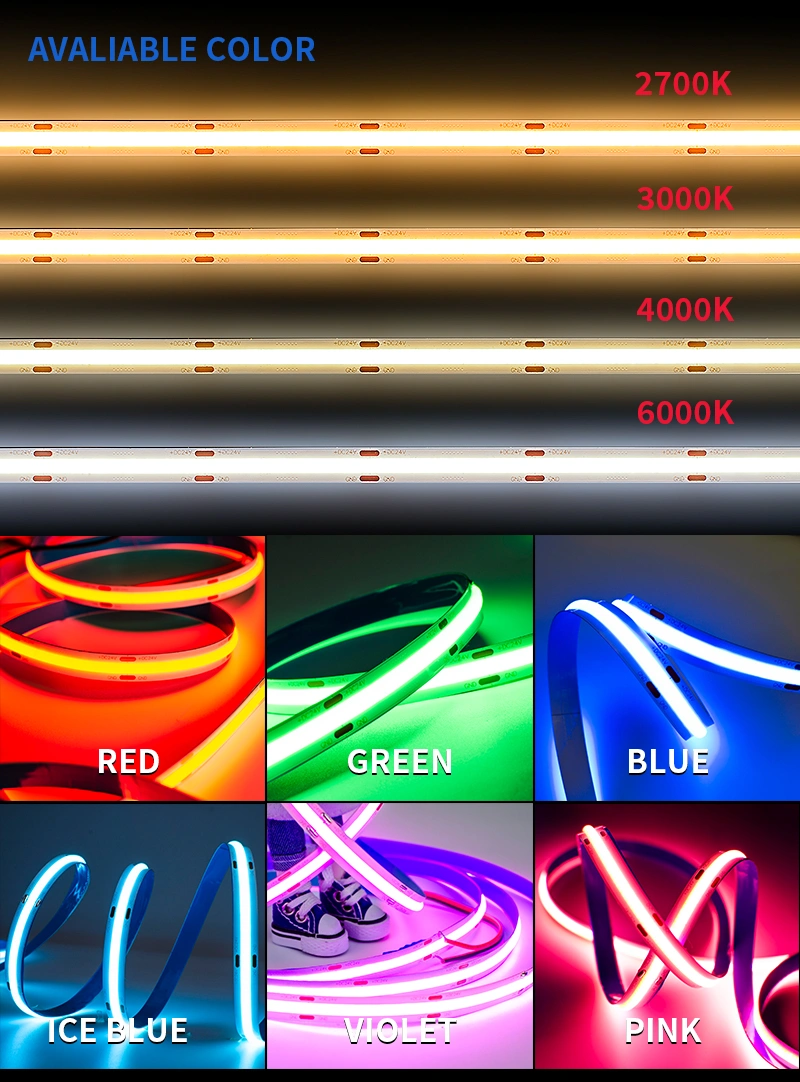

Color2700K/3000K/ 4000K/ 6000K
Light Efficiency100 LM/Watt

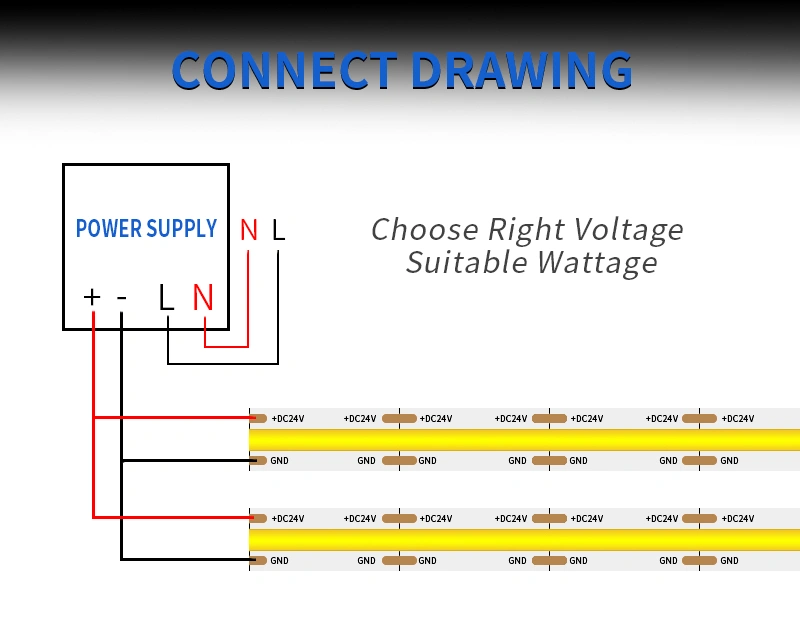

Input VoltageDC24V
Ra>90
LED Beam Angle180°
Lumen Output/Metre1000
Operating Temp.: -25°C~ +45°C
Storage Temp.:-25°C~ +70°C
Working Humidity40%-70%RH
Working Lifetime25,000+ hours
Power10W/Metre
Warranty3 years

To understand the advantages of COB light strips, please click:
Detailed introduction to the advantages of COB light strips

To find the most suitable COB light strip and purchase the installation guide, please click:
COB LED Strip Lights Buying Guide

To know the most detailed features of COB and what the 18 features do, please click:
COB LED Light Strips Most Complete Introduction

If you want to know how to better apply COB light strips, here are the cases in 13 fields, please click:
What are application ideas for LED Strip Lighting?



cob led strip 5mm wideth, cob led strip lights, dotless led strip, cob strip lights, ob strip lights 5mm led strip,mini cob led strip  meter 5mm pcb
