The latest innovative design, patented products

LED light strip connection solution

Solve the problem of arbitrary connection of soft light bars

Quick solderless connector

No-stripping wire insulation

Transparent shell, better light transmission

solderless connector

RGB LED Strips Connectors

Suitable For SMD RGB LED Strips or COB RGB LED Strip Lights or COB CCT White LED Strips

4PIN, 10mm width LED Strips, Max Current 6A. 4PIN could change to 3PIN for COB CCT White Strips.

RGB LED Strips connectors is with 4 pins, correspond to the 4 lines of the RGB SMD light strip or COB light strip respectively, the positive and negative poles correspond.

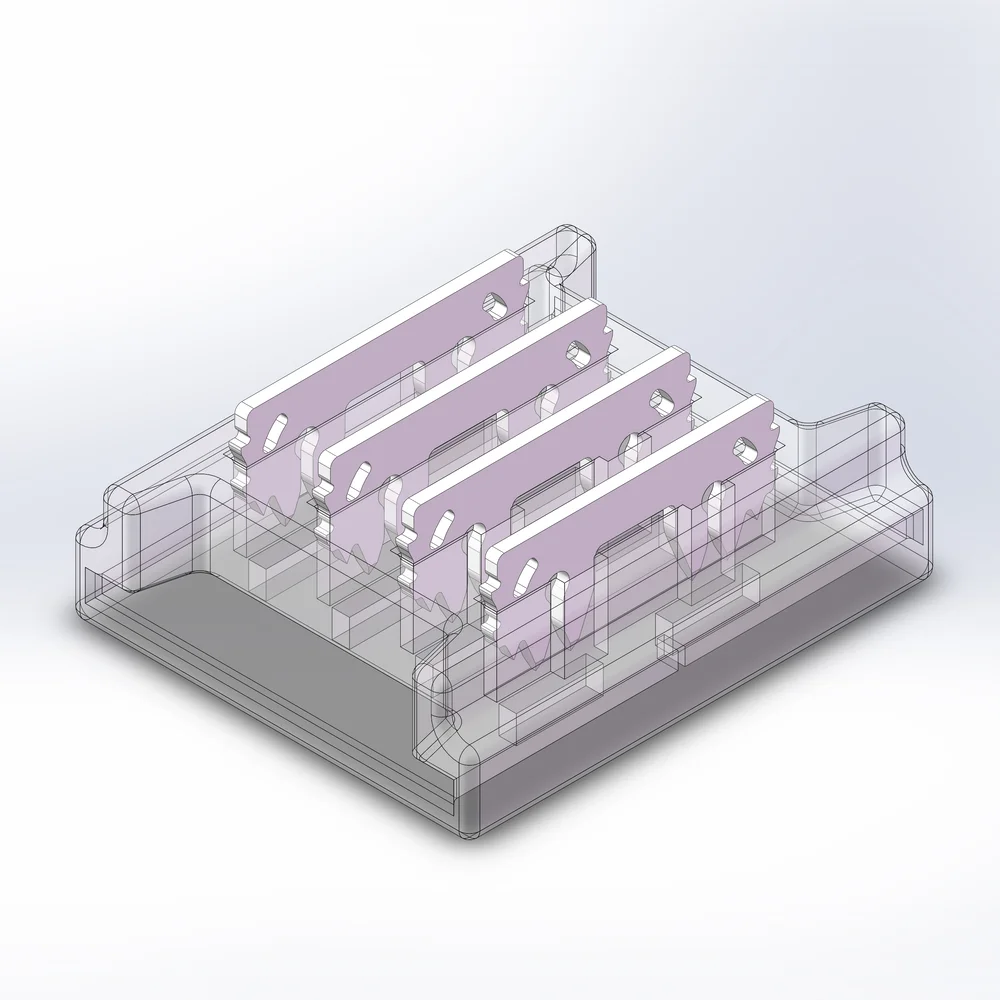

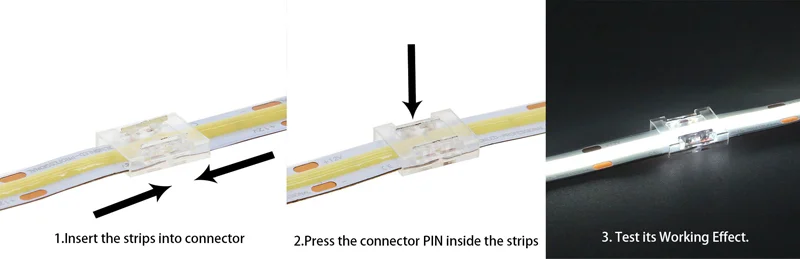

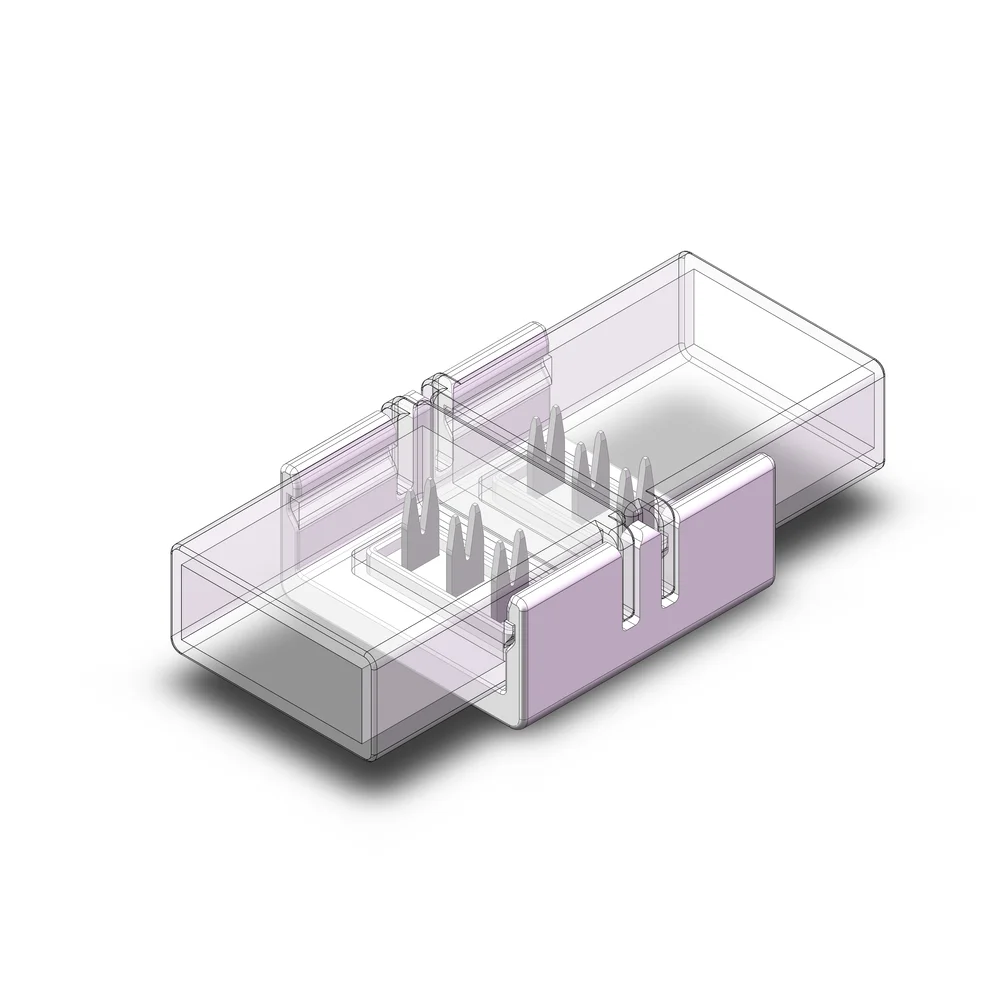

The copper thorns of the connecting terminals are inserted into the pads on the light strip,and the connector is like a bridge, connecting the two ends.

Below price is from factory directly. not include tax and freight cost.

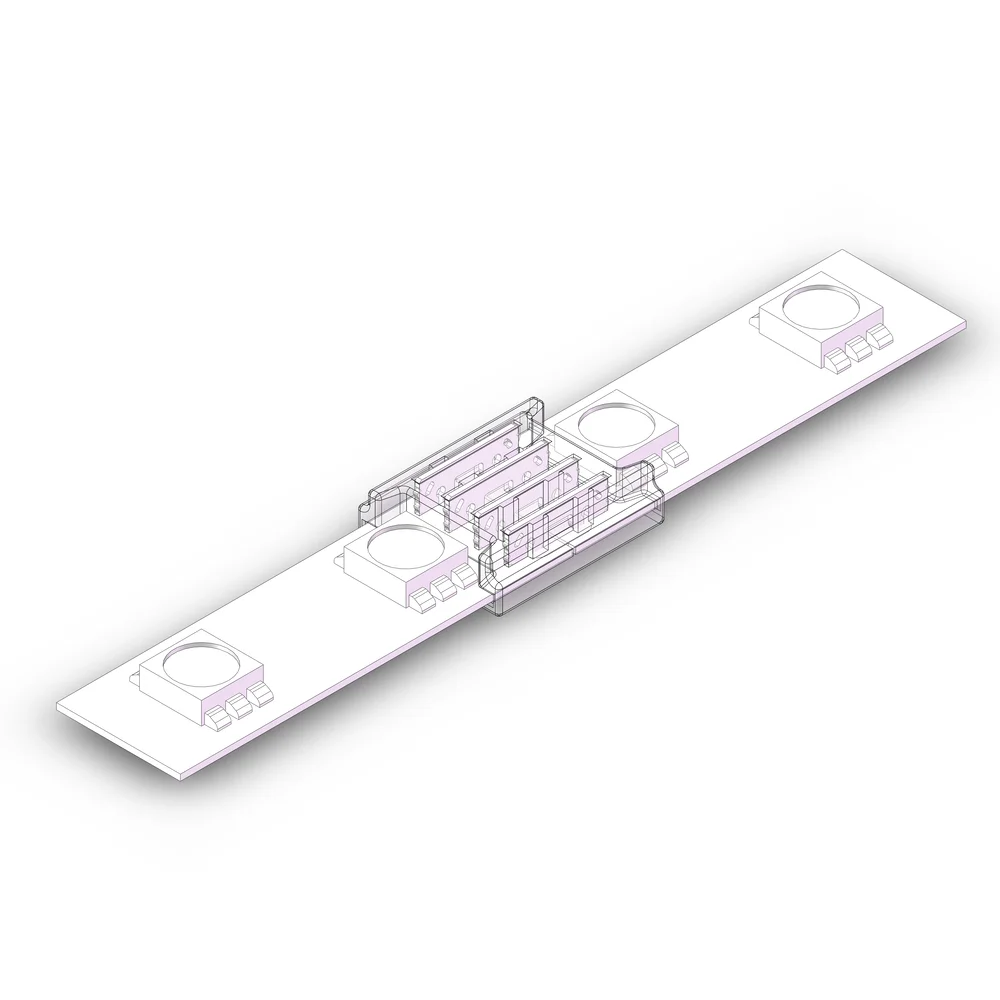

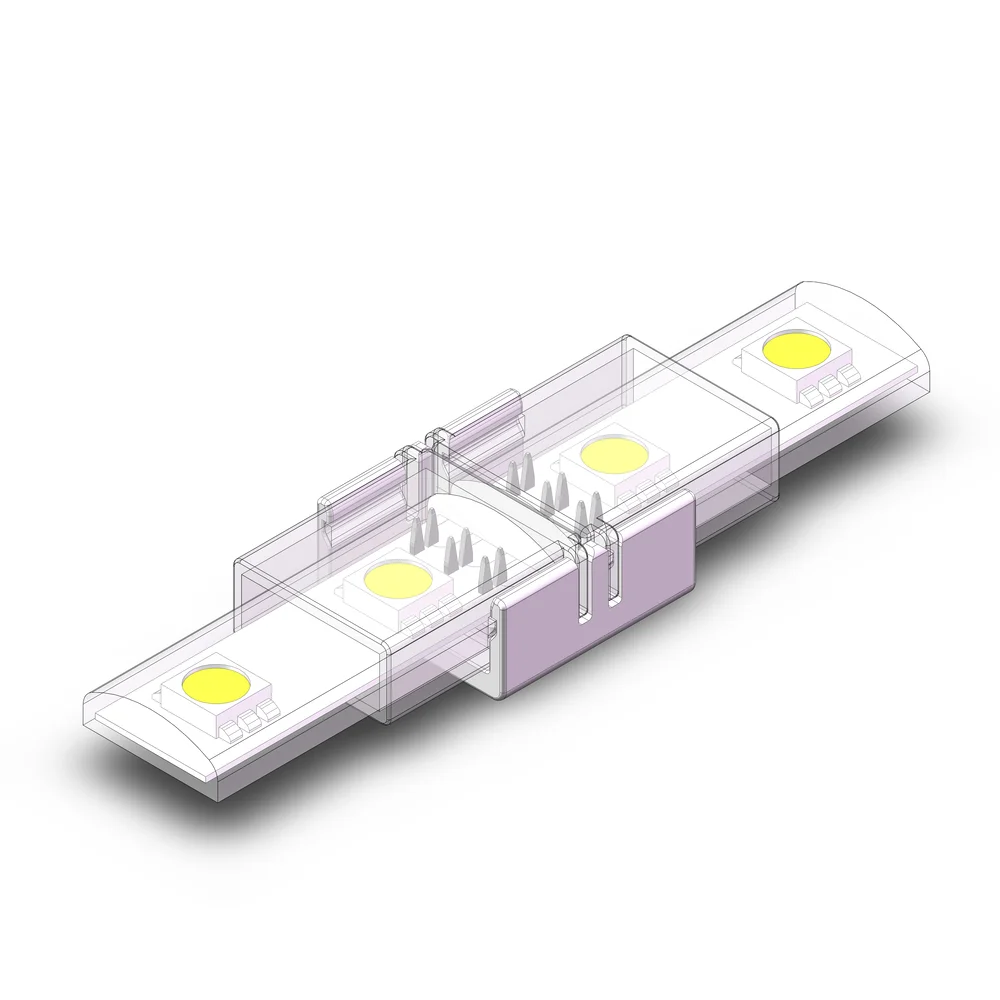

Strip To Strip

$ 17
Per 100PCS
  • Type A
Popular
RGB LED Strips Connectors
Connctor A
SMD-10mm 4Pins
Join 2 strips together

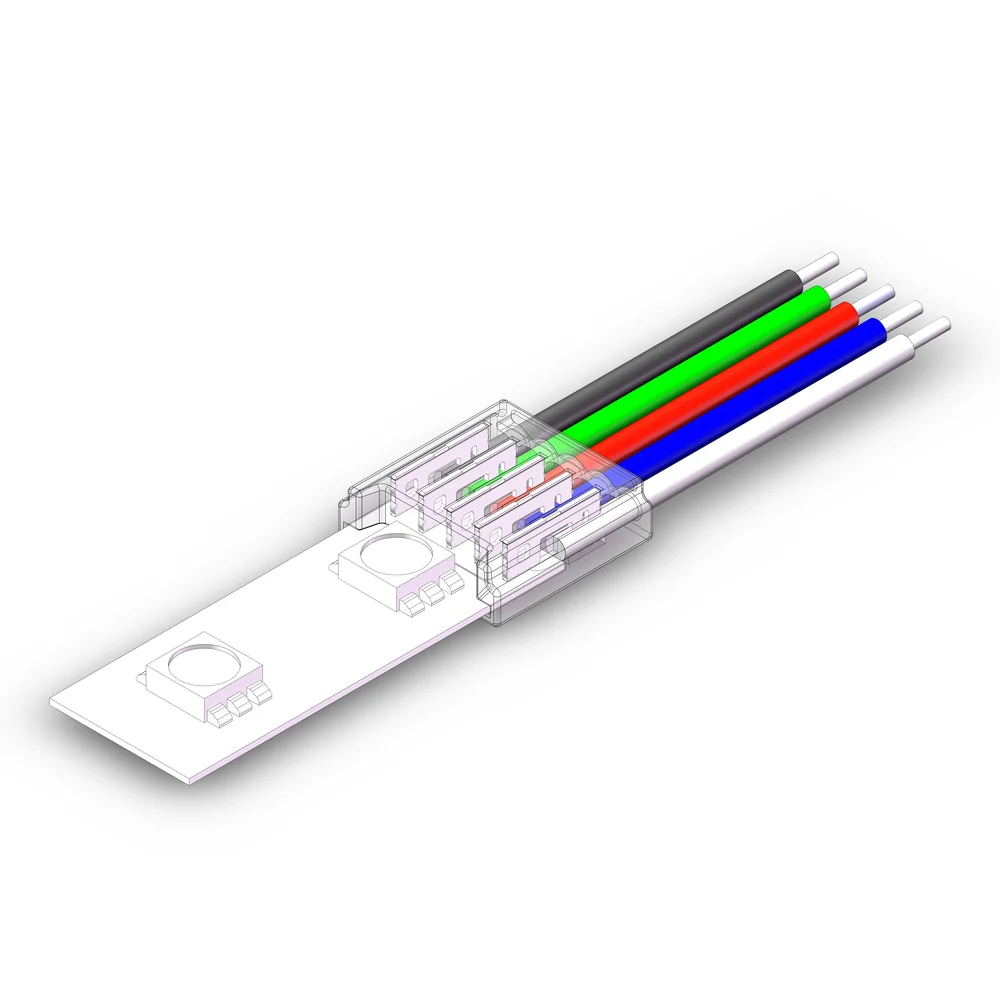

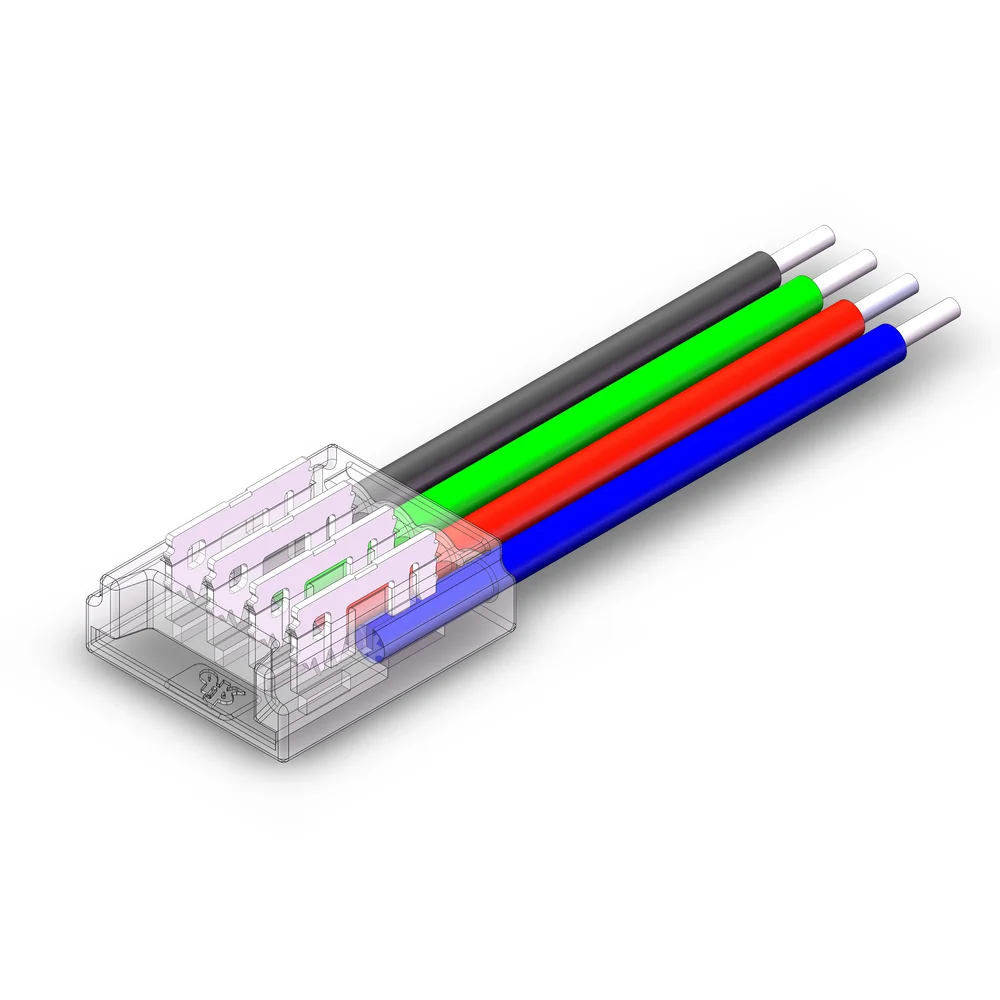

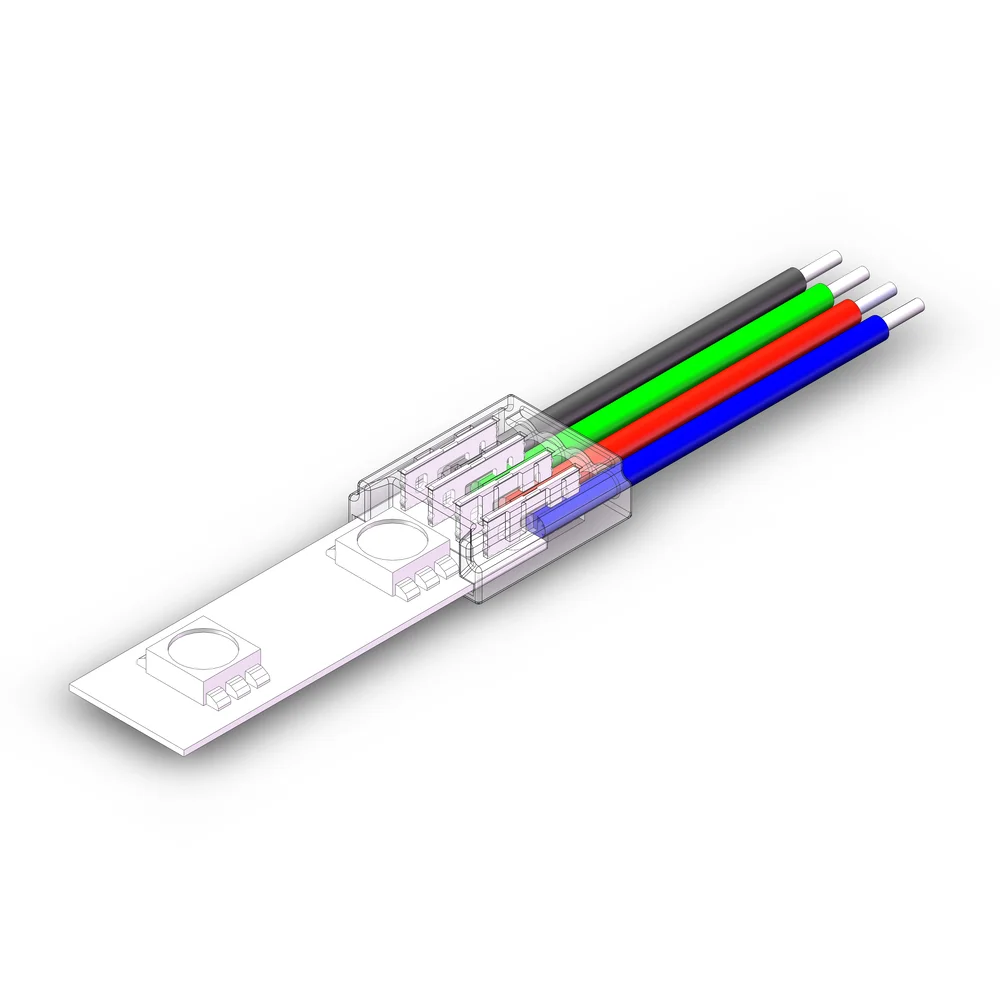

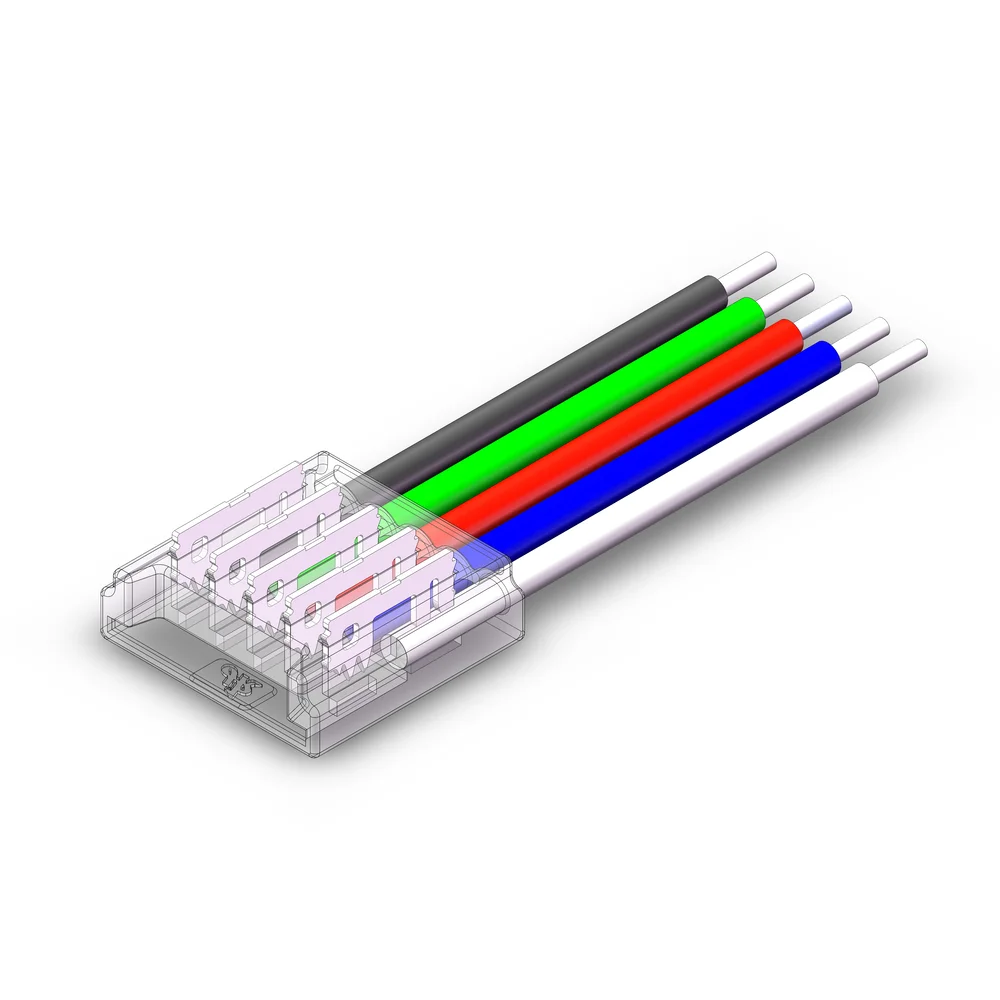

Strip To wire

$ 39
Per 100PCS
  • Type B
Popular
SMD-10mm 4Pins
Connector B
SMD-10mm 4Pins
Join strips to power supply

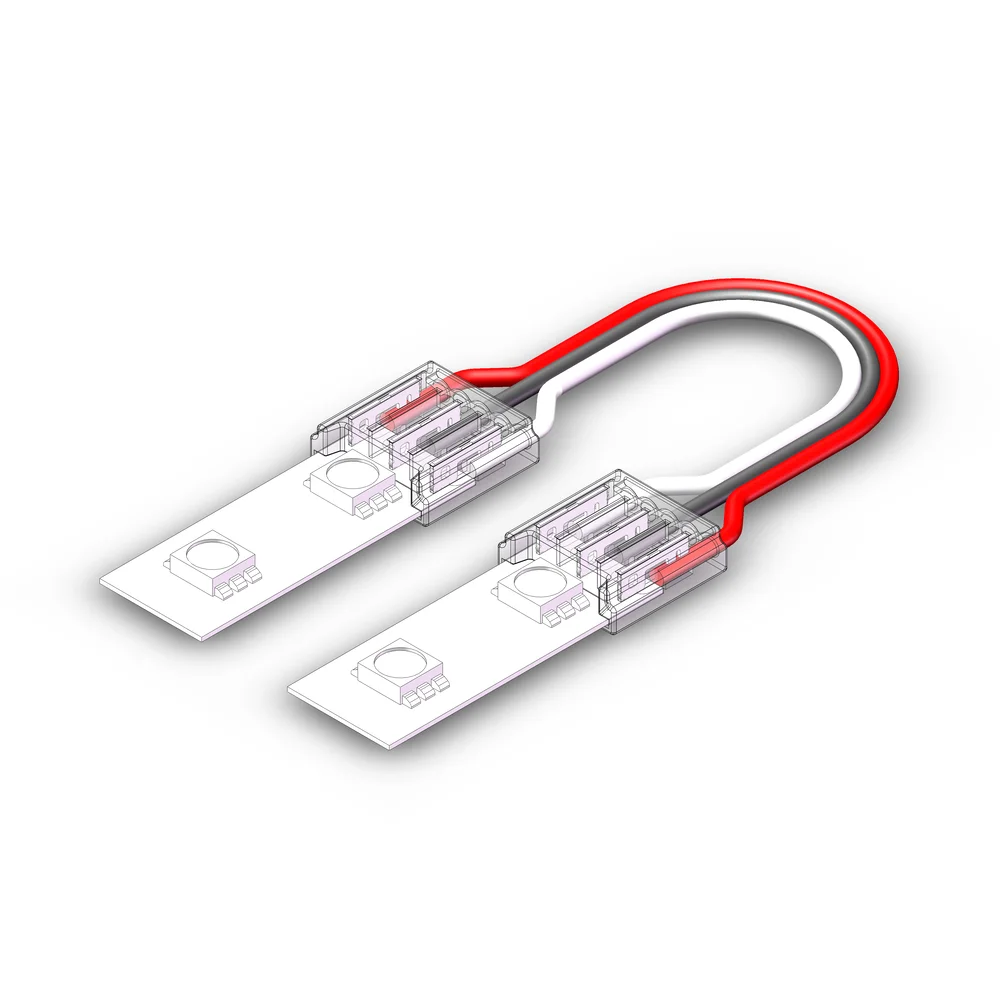

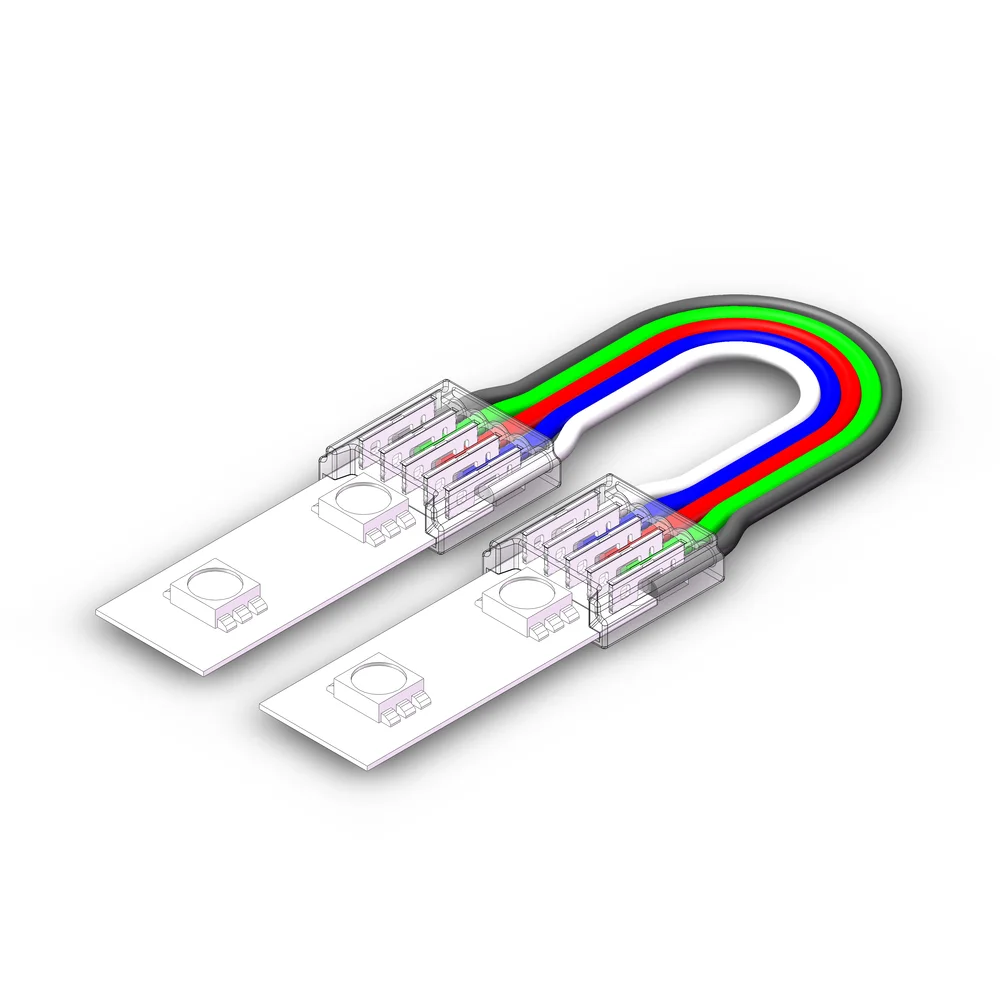

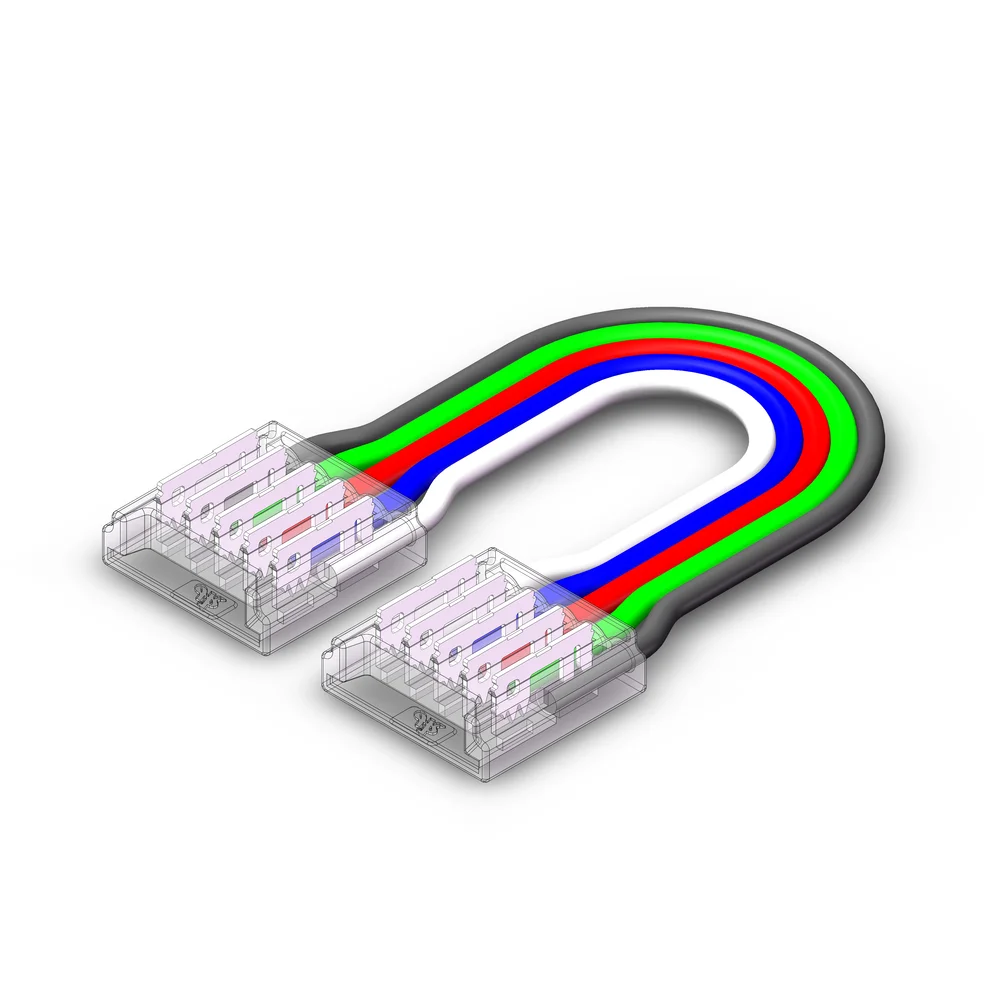

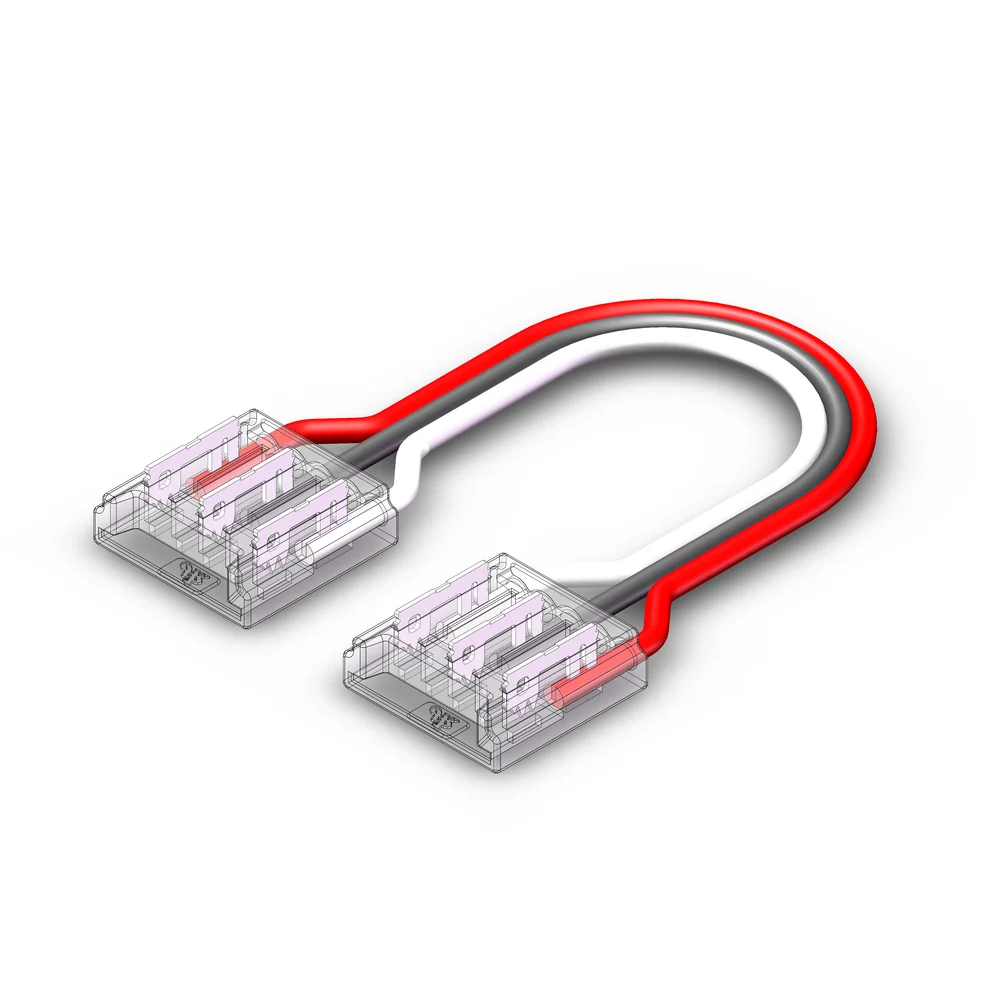

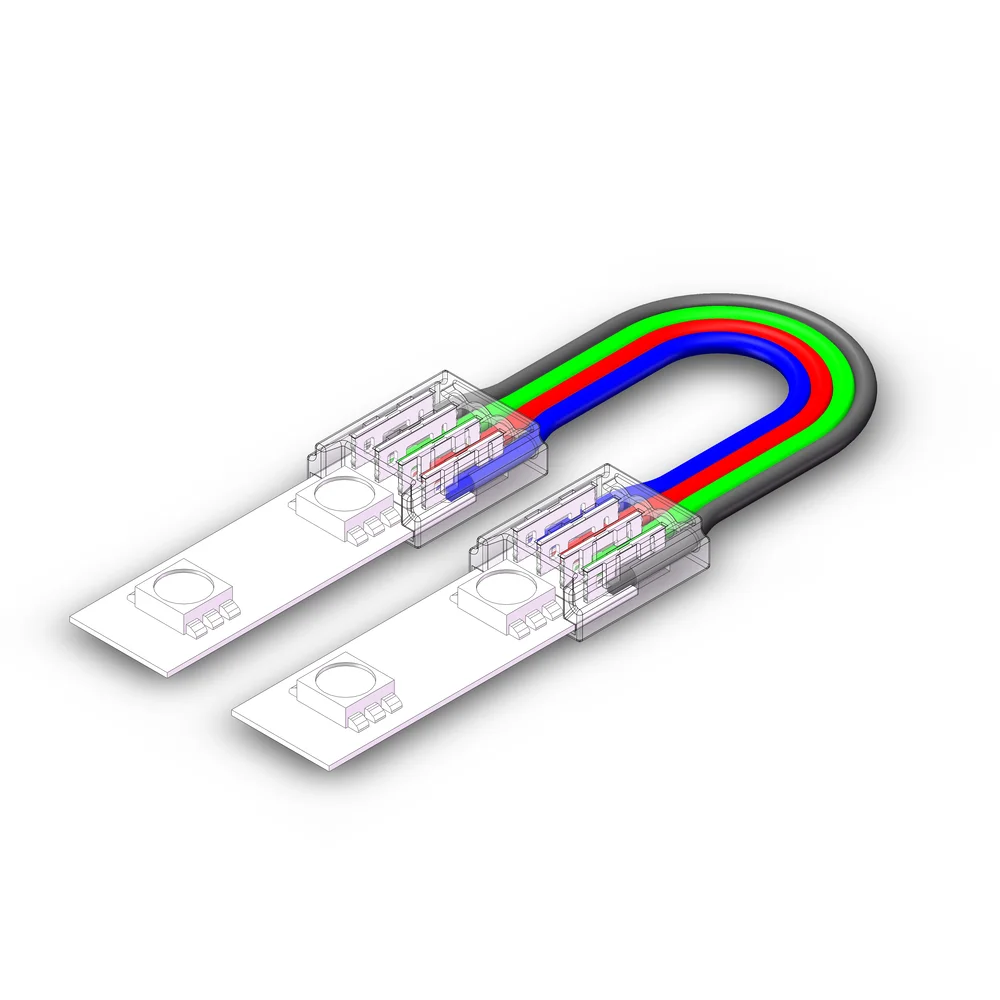

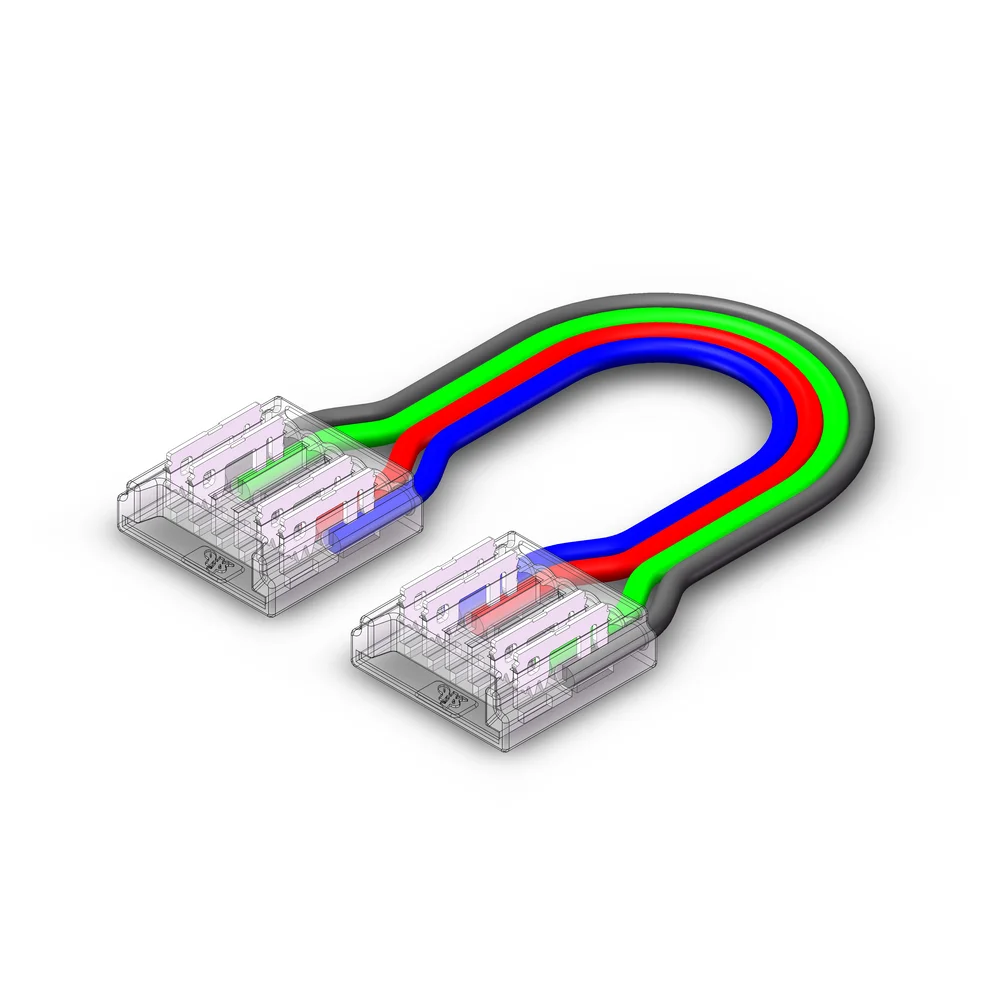

strip to wire to strip

$ 59
Per 100PCS
  • TYPE C
RGB LED Strips Connectors
Connector C
10mm SMD-4pin
Middle with Wire

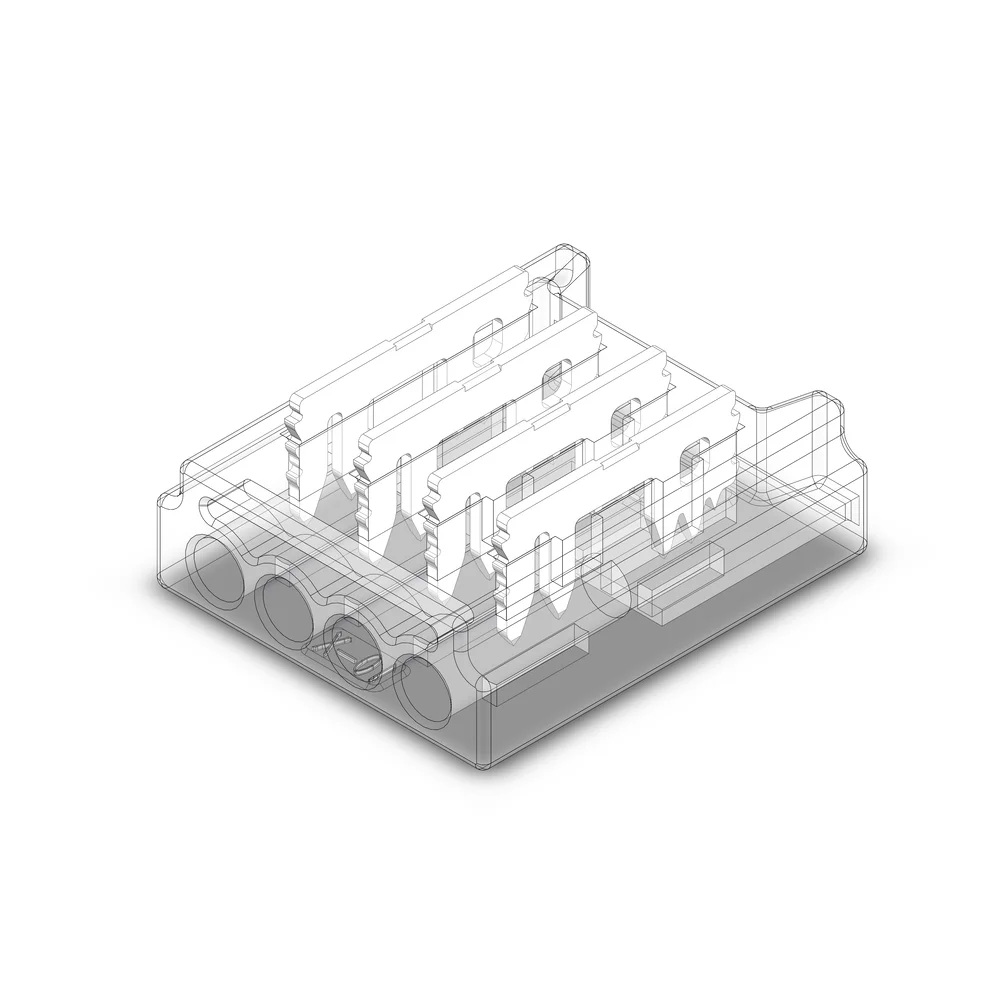

strip to wire DIY

$ 17
Per 100PCS
  • Type D
SMD-10mm 4Pins
Connector D
SMD-10mm 4Pins
DIYAny Length Of Wire
DIY Decorating Room With Fairy Attractive Lights

Common to more than 90% of the light strips on the market

Not waterproof, waterproof, Epoxy, single PCB, double PCB…

COB LED Strips,SMD LED Strips…

3mm,5mm, 8mm, 10mm, 12mm…

Single Color, RGB,RGBW,RGBWW,RGBIC, CCT…

2PIN, 3PIN, 4PIN, 5PIN, 6PIN…

Type A

Strip To Strip

type B

Strip to Wire

type C

Strip to Wire to Strip

Type D

Strip to Wire DIY

For LED soft light strip, YIFORD solderless crystal joint can help you achieve all the design schemes you want

Linear installation,

U-type installation,

L-type installation



Intermediate connection,

single end connection,

jump connection,

extension wire connection

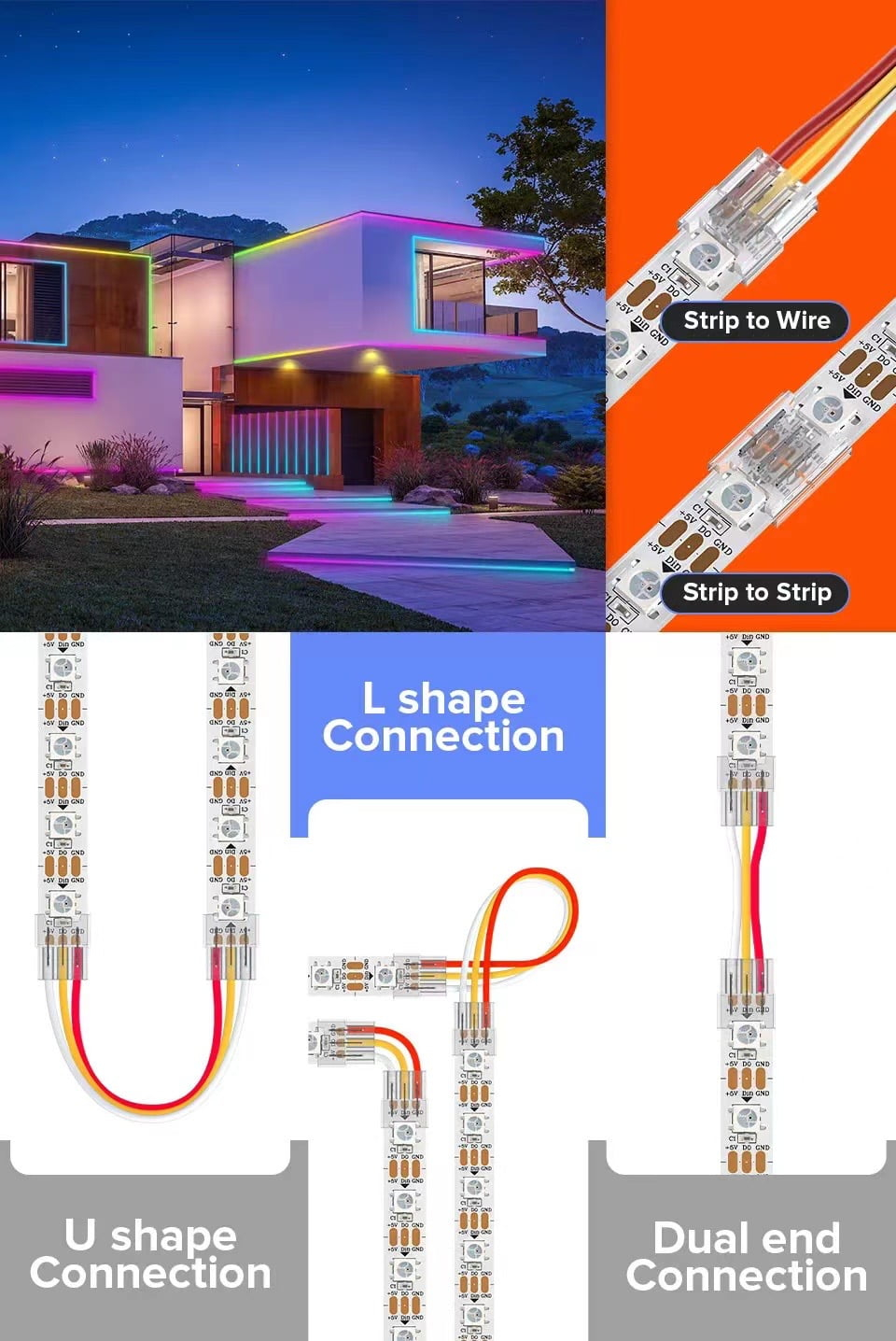

IMG 970420220913 124645

Easy Install

No need solder, no need tool, no need professionals,everyone could handle.

Factory Direct Delivery

Factory direct shipment, guarantee the latest craftsmanship, the latest materials, the best price

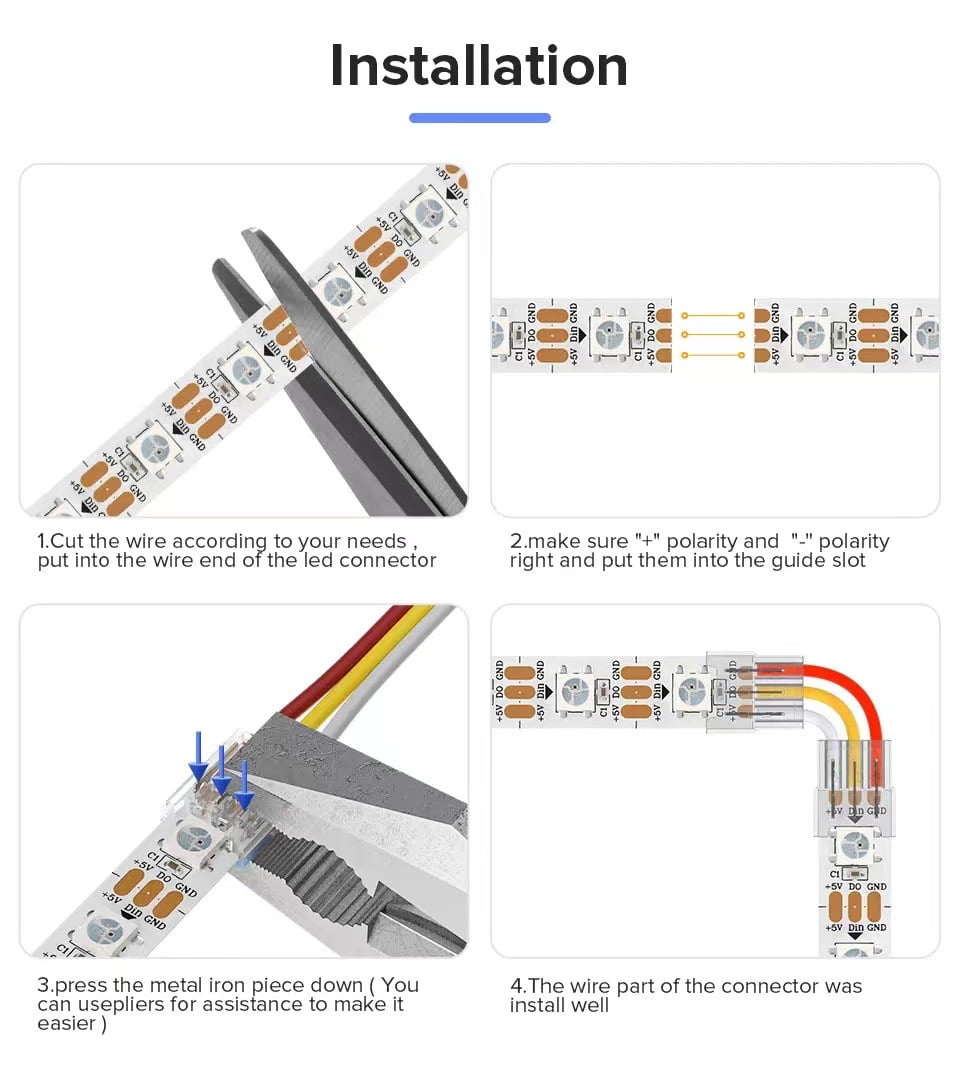

IMG 970920220913 124659

Durable

High-quality transparents material, anti-drop, anti-beat, durable,

Environmental Protection Material

Environmentally friendly materials, no harmful substances, recyclable, protect the environment

播放有关的视频 how to use solderless connector

Wide range of applications

Whether it is home decoration or large-scale architectural lighting, the connector of the light strip is inseparable. YIFORD’s connectors help you save labor, materials, time and costs.

To learn more about LED strips, you can also follow my youtube channel or Facebook!

NO.ITEM NO.NO.ITEM NO.NO.ITEM NO.NO.ITEM NO.
1#HR-S-SC-2PIN-5MM-B2#HR-S-SC-2PIN-5MM-A3#HR-S-SC-2PIN-5MM-C4#HR-S-SC-2PIN-5MM-D
5#HR-S-SC-3PIN-5MM-B6#HR-S-SC-3PIN-5MM-A7#HR-S-SC-3PIN-5MM-C8#HR-S-SC-3PIN-5MM-D
9#HR-S-SC-2PIN-8MM-B10#HR-S-SC-2PIN-8MM-A11#HR-S-SC-2PIN-8MM-C12#HR-S-SC-2PIN-8MM-D
13#HR-S-SC-3PIN-8MM-B14#HR-S-SC-3PIN-8MM-A15#HR-S-SC-3PIN-8MM-C16#HR-S-SC-3PIN-8MM-D
17#HR-S-SC-4PIN-8MM-B18#HR-S-SC-4PIN-8MM-A19#HR-S-SC-4PIN-8MM-C20#HR-S-SC-4PIN-8MM-D
21#HR-S-SC-2PIN-10MM-B22#HR-S-SC-2PIN-10MM-A23#HR-S-SC-2PIN-10MM-C24#HR-S-SC-2PIN-10MM-D
25#HR-S-SMD-2PIN-10MM-B26#HR-S-SMD-2PIN-10MM-A27#HR-S-SMD-2PIN-10MM-C28#HR-S-SMD-2PIN-10MM-D
29#HR-S-SMD-3PIN-10MM-B30#HR-S-SMD-3PIN-10MM-A31#HR-S-SMD-3PIN-10MM-C32#HR-S-SMD-3PIN-10MM-D
33#HR-S-COB-3PIN-10MM-B34#HR-S-COB-4PIN-10MM-A35#HR-S-COB-3PIN-10MM-C36#HR-S-COB-4PIN-10MM-D
37#HR-S-COB-4PIN-10MM-B34#HR-S-COB-4PIN-10MM-A38#HR-S-COB-4PIN-10MM-C36#HR-S-COB-4PIN-10MM-D
39#HR-S-SMD-4PIN-10MM-B40#HR-S-SMD-4PIN-10MM-A41#HR-S-SMD-4PIN-10MM-C42#HR-S-SMD-4PIN-10MM-D
43#HR-S-SMD-5PIN-10MM-B44#HR-S-SMD-5PIN-10MM-A45#HR-S-SMD-5PIN-10MM-C46#HR-S-SMD-5PIN-10MM-D
47#HR-S-SMD-2PIN-12MM-B48#HR-S-SMD-2PIN-12MM-A49#HR-S-SMD-2PIN-12MM-C50#HR-S-SMD-2PIN-12MM-D
51#HR-S-SMD-3PIN-12MM-B52#HR-S-SMD-3PIN-12MM-A53#HR-S-SMD-3PIN-12MM-C54#HR-S-SMD-3PIN-12MM-D
55#HR-S-SC-4PIN-12MM-B56#HR-S-SC-4PIN-12MM-A57#HR-S-SC-4PIN-12MM-C58#HR-S-SC-4PIN-12MM-D
59#HR-S-SMD-5PIN-12MM-B60#HR-S-SMD-5PIN-12MM-A61#HR-S-SMD-5PIN-12MM-C62#HR-S-SMD-5PIN-12MM-D
63#HR-S-COB-5PIN-12MM-B64#HR-S-COB-5PIN-12MM-A65#HR-S-COB-5PIN-12MM-C66#HR-S-COB-5PIN-12MM-D

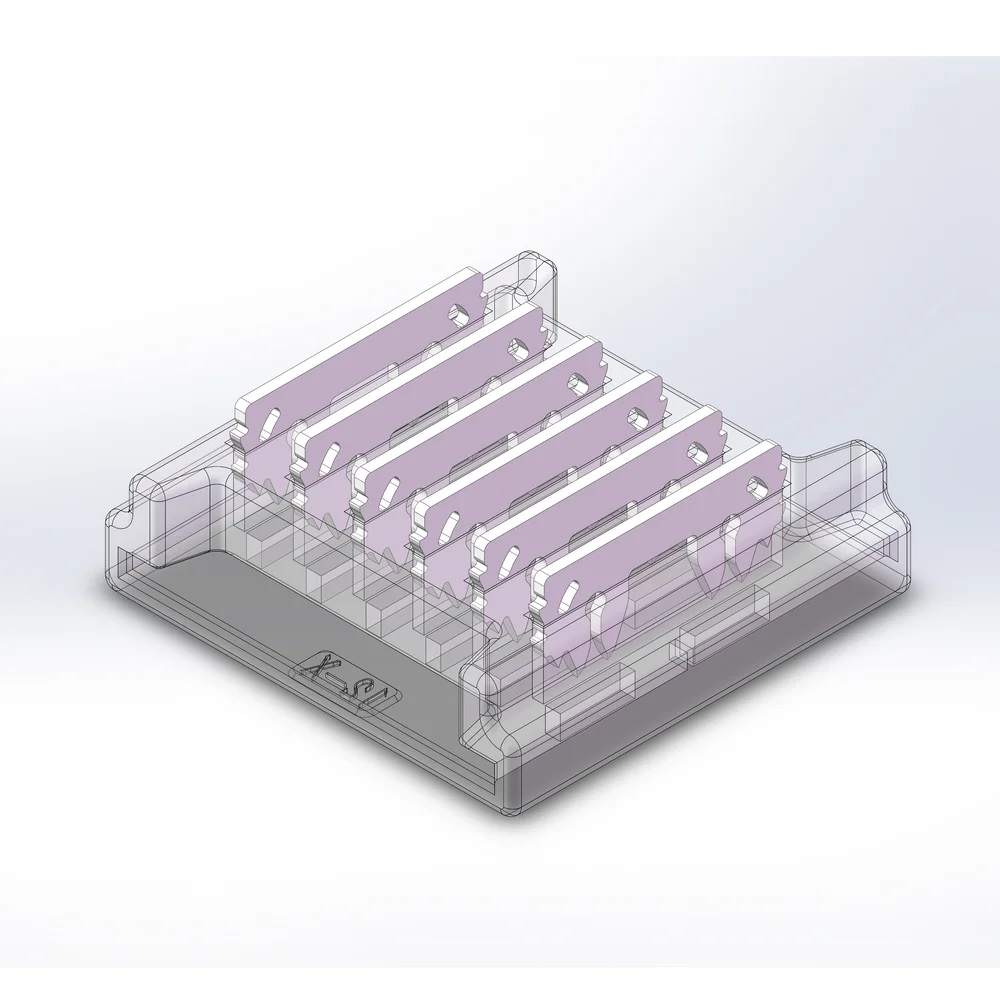

67#HR-S-SMD-6PIN-12MM-B68#HR-S-SMD-6PIN-12MM-A69#HR-S-SMD-6PIN-12MM-C70#HR-S-SMD-6PIN-12MM-D
115#HR-S-SC-2PIN-8MM-E116#HR-S-SMD-6PIN-12MM-E
NO.ITEM NO.NO.ITEM NO.NO.ITEM NO.
71#HR-IP-SC-2PIN-8MM-B
72#HR-IP-SC-2PIN-8MM-A73#HR-IP-SC-2PIN-8MM-C
74#HR-IP-SC-3PIN-8MM-B75#HR-IP-SC-3PIN-8MM-A76#HR-IP-SC-3PIN-8MM-C
77#HR-IP-SC-2PIN-10MM-B78#HR-IP-SC-2PIN-10MM-A79#HR-IP-SC-2PIN-10MM-C
80#HR-IP-SMD-2PIN-10MM-B81#HR-IP-SMD-2PIN-10MM-A82#HR-IP-SMD-2PIN-10MM-C
83#HR-IP-SMD-3PIN-10MM-B84#HR-IP-SMD-3PIN-10MM-A85#HR-IP-SMD-3PIN-10MM-C
86#HR-IP-COB-3PIN-10MM-B87#HR-IP-COB-4PIN-10MM-A88#HR-IP-COB-3PIN-10MM-C
89#HR-IP-COB-4PIN-10MM-B87#HR-IP-COB-4PIN-10MM-A90#HR-IP-COB-4PIN-10MM-C
91#HR-IP-SMD-4PIN-10MM-B92#HR-IP-SMD-4PIN-10MM-A93#HR-IP-SMD-4PIN-10MM-C
94#HR-IP-SMD-5PIN-10MM-B95#HR-IP-SMD-5PIN-10MM-A96#HR-IP-SMD-5PIN-10MM-C
97#HR-IP-SMD-2PIN-12MM-B98#HR-IP-SMD-2PIN-12MM-A99#HR-IP-SMD-2PIN-12MM-C
100#HR-IP-SMD-3PIN-12MM-B101#HR-IP-SMD-3PIN-12MM-A102#HR-IP-SMD-3PIN-12MM-C
103#HR-IP-SC-4PIN-12MM-B104#HR-IP-SC-4PIN-12MM-A105#HR-IP-SC-4PIN-12MM-C
106#HR-IP-COB-5PIN-12MM-B107#HR-IP-COB-5PIN-12MM-A108#HR-IP-COB-5PIN-12MM-C
109#HR-IP-SMD-5PIN-12MM-B110#HR-IP-SMD-5PIN-12MM-A111#HR-IP-SMD-5PIN-12MM-C
112#HR-IP-SMD-6PIN-12MM-B113#HR-IP-SMD-6PIN-12MM-A114#HR-IP-SMD-6PIN-12MM-C

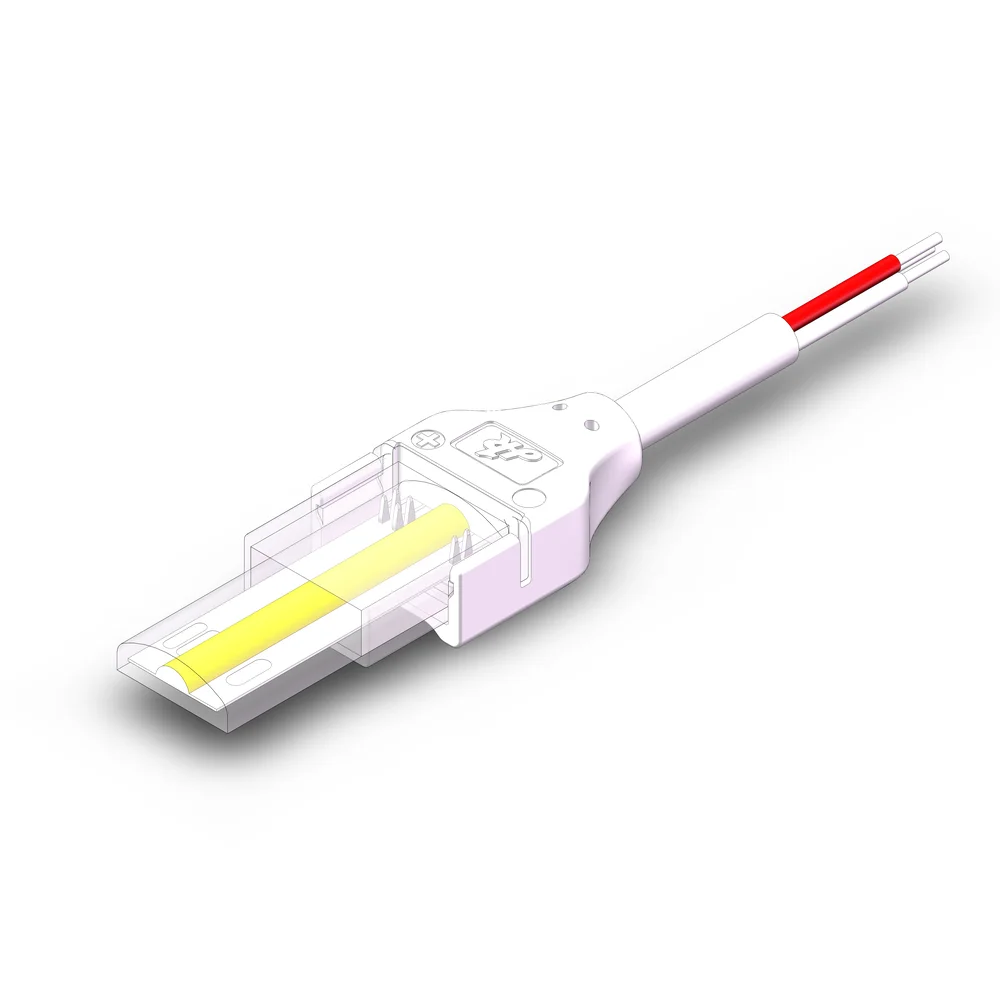

For COB led strip lights

COB light strip is the latest type of light-emitting light strip.

It has hundreds of light-emitting chips per meter, with uniform light emission, no light spots, no dark areas, and higher brightness…

For SMD LED Strip Lights

Most of the light strips on the market belong to SMD light strips.

There are many models, SMD2835, SMD5050, SMD3014….

connector

LED light strips connector

In order to help customers know more before buying LED light strip connectors, we comprehensively explained various LED light strip light solderless connectors, LED wire connectors, LED wires and other LED accessories and their usage and installation methods, as well as related Note, such as 8mm wide and 10mm wide PCB connectors, 2-pin LED strip connectors, cable splitters, etc. The LED light strip connector is a very important LED accessory for connecting the LED light strip, which makes the installation of the LED light strip easier and faster. LED strip connectors are also called LED strip connectors by many people.

There are many factors to consider when buying LED light strip connectors, such as connecting light strips and light strips, light strips and wires, light strips and controllers, light strips and power adapters or power supplies. Monochrome white and color LEDs have a 2-pin LED connector light bar, or a 4-pin RGB LED light bar connector for color-changing LED light bars.

Types of led connectors

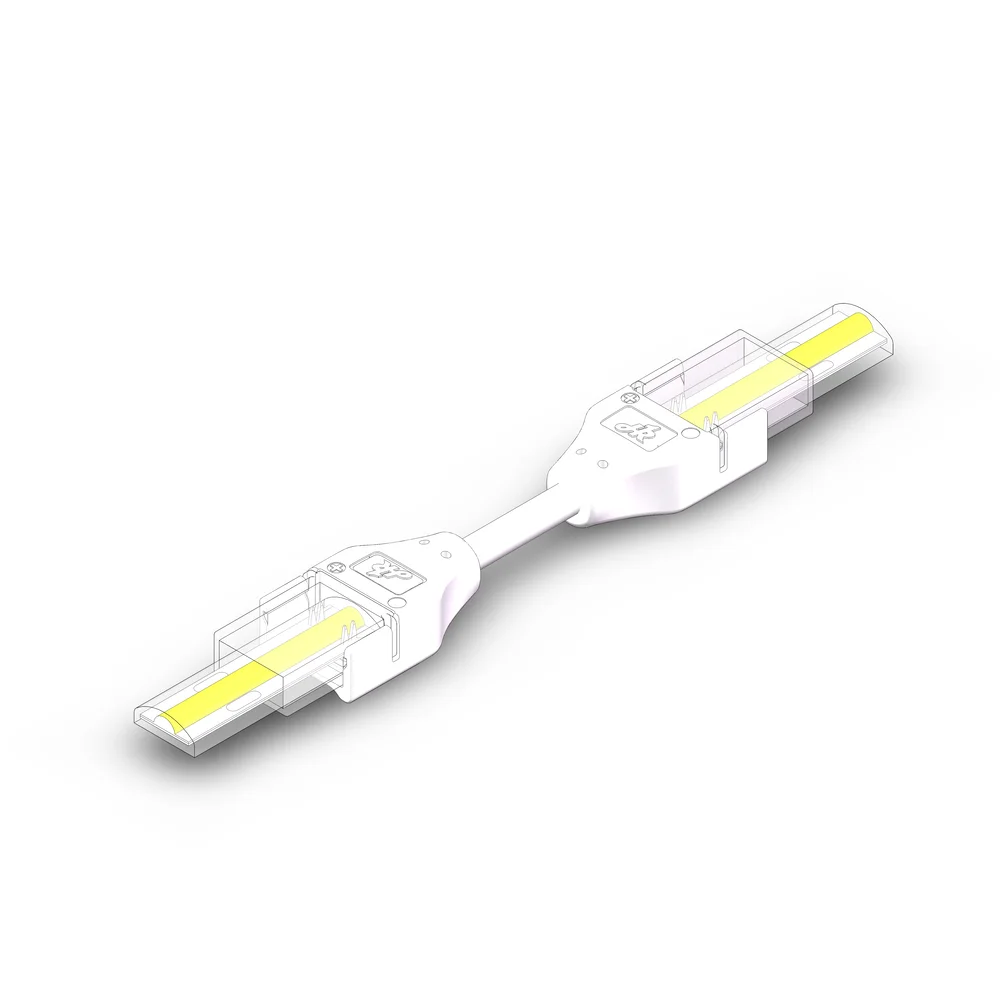

The transparent crystal connector is dedicated to COB flexible light strips, with high transparency and seamless connection. After lighting, there is almost no connection breakpoint. It is divided into 8mm wide and 10mm wide PCB boards. Currently, there are only single-color connections, RGB series The connector will be introduced in the future.

2-pin LED connector-suitable for warm white, neutral white, cool white, monochrome red, green and blue LED strips.
3-pin LED connector-used for adjustable white LED strips.
4-pin LED connector-used for RGB color-changing LED strips.
5-pin LED connector-for RGBW LED strips.

Some types are non-waterproof strips, and other types are waterproof strips. It is also necessary to consider the width of the LED strip, the density of the LEDs on the strip, the power or current of the LED strip, and the current carrying capacity of the connecting wire.

If you want to learn about related products through videos, you can follow my youtube channel!
