5050 RGB LED Strips

Model NO.
5050 RGB LED Strips
High luminous 5050 SMD LED

Double layer pure copper PCB

12V/ 24V optional

120° beam angle

3M adhesive tape for easy installation

Model No

YF-LR5050RGB30

YF-LR5050RGB60

SMD Type

Epistar 5050 RGB or Single Color

Input voltage

DC12V

DC12V

LED Q’ty

30LEDs/m

60LEDs/m

Power/m

7.2W/M

14.4W/M

Max current / LED

60mA

60mA

SMD LED spacing

33.3mm

16.6MM

Lumen / m

180LM

360LM

CRI(Ra)

.-

.-

Minim cuttable length

100mm

50mm

PCB Width

10mm

10mm

Energy grade

A

A

Warranty

3years

3years

Working hour

30000h

30000h

Illumination Angle

120°

120°

Working temperture

.-20℃~+45℃

.-20℃~+45℃

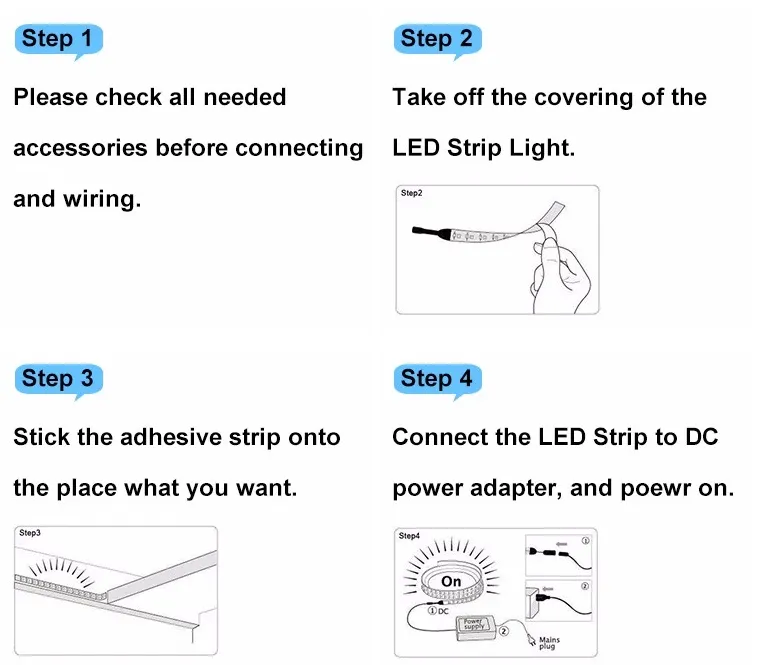

Installation Process

5050 RGB LED Strips

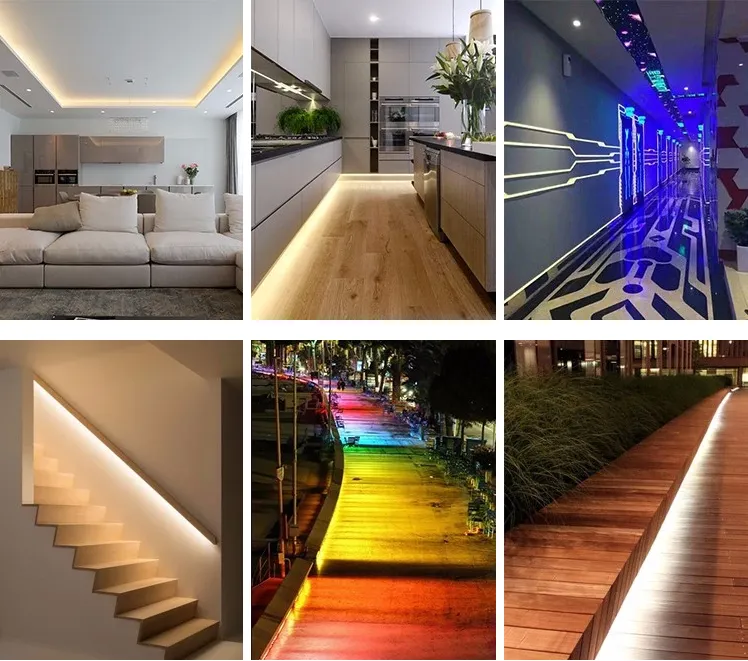

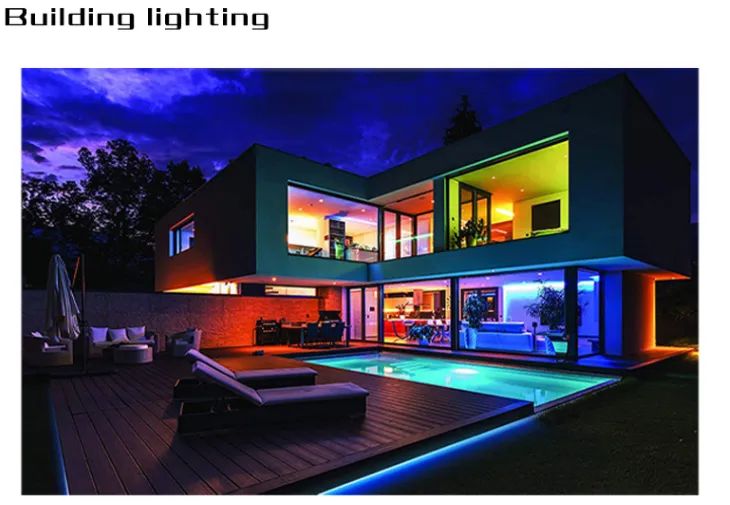

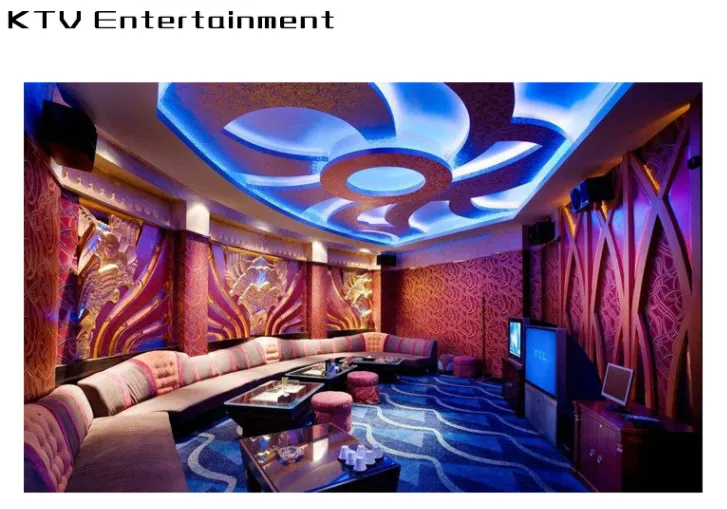

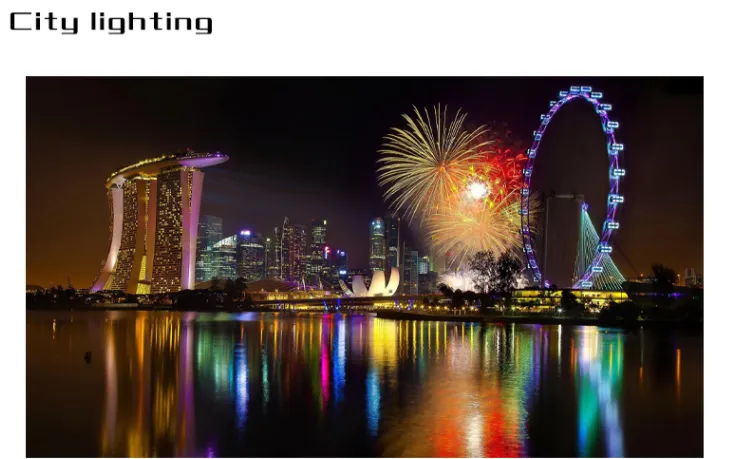

Applications

5050 RGB LED Strips

5050 RGB LED Strips

5050 RGB LED Strips

5050 RGB LED Strips

LED Strip Light is with super bright 5050 LED Strip Lights, DC12V safe working voltage. Low power consumption, energy Saving,

5050 RGB LED Strips

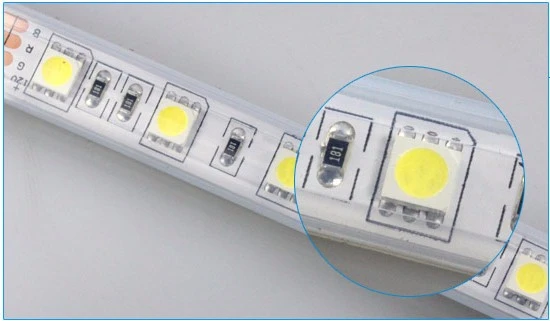

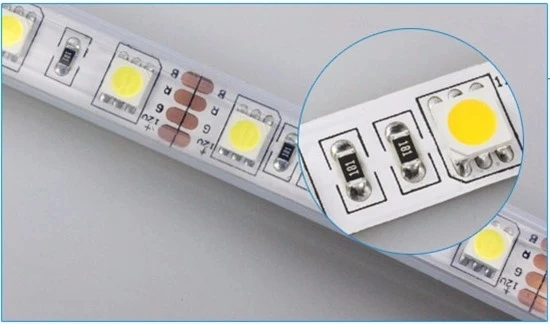

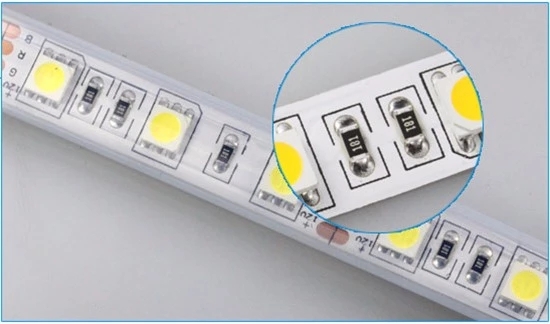

Resistor

LED Strip Light with high quality smd resistors, excellent design, control the led strip light current, protect the SMD LED.
5050 RGB LED Strips

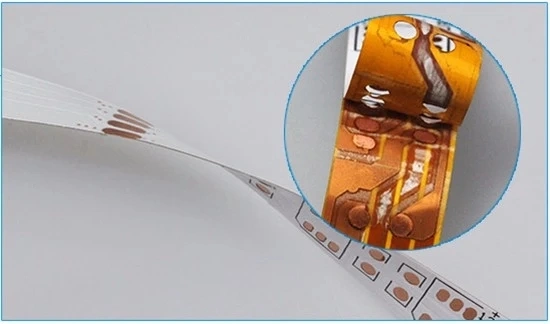

Double PCB
LED Strip Lights is with doulbe PCB, 10mm width. Flexible design, good electrical conductivity to protect the LED Strip lights with a long life.
5050 RGB LED Strips

welding

Low-temperature reflow soldering technology, solder joints strong. Improve the circuit board firmness, conductivity. Reduce false welding, drain welding.
5050 RGB LED Strips
