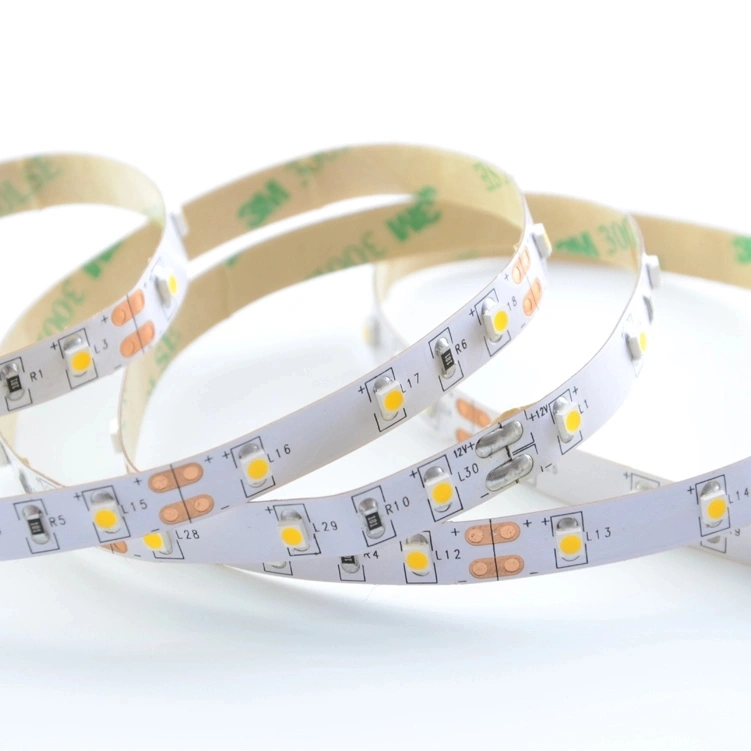

3528 LED Strip Lights

Model NO.
3528 LED Strip Lights
Fully Dimmable
Double layer pure copper PCB
12V/ 24V optional
120° beam angle
3M adhesive tape for easy installation

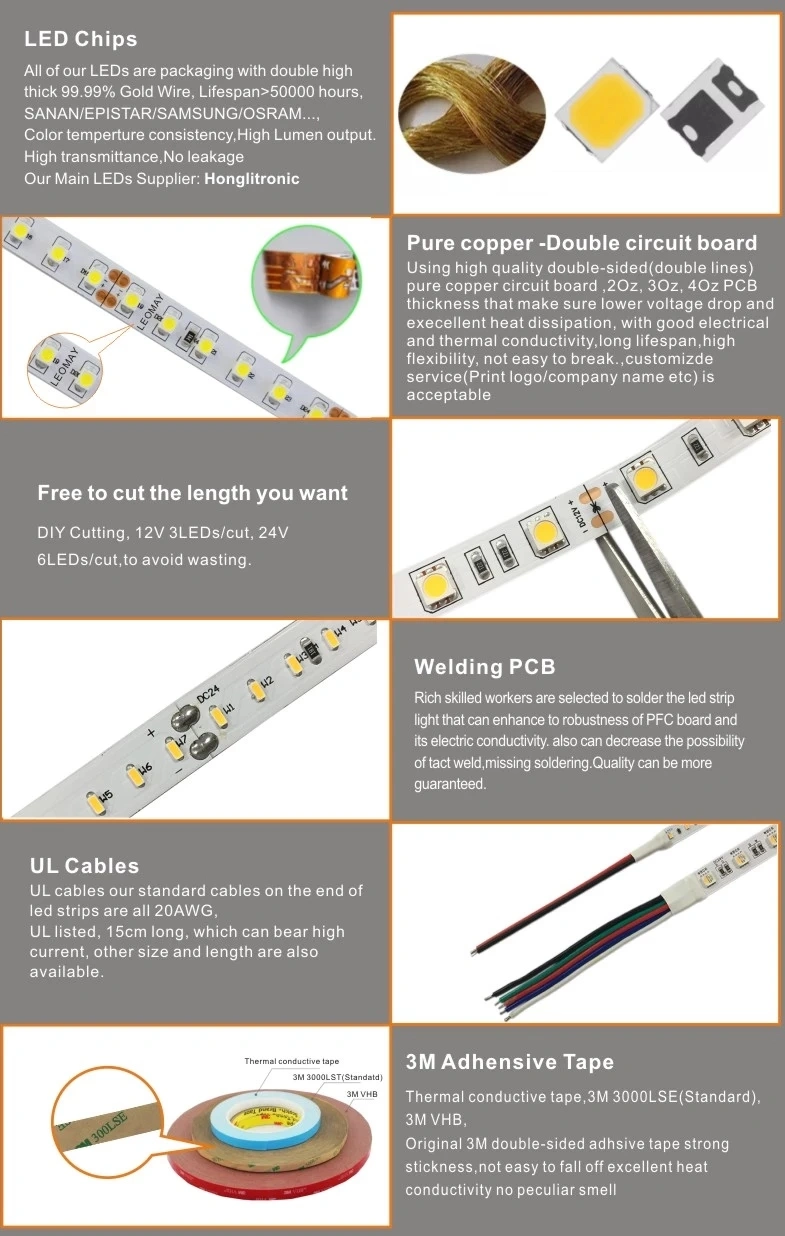

Feature:

1, SMD LED lights use copper base and the led chip is gold wire which provide good heat dispersion, long life span and low Luminous Decay.

2, CRI>80Ra, avaliable CRI>95

3, flexible PCB are all high quality double layers PCB, at least 2 ounces, or 3 ounces in particular models.

4, We always require same bin number SMD LEDs for different production batches for the same customer.

5, We have Everfine integrating sphere to test the color temperature of incoming SMD LEDs and put it in our QC records for every batch.

6,We can controll the color temperature very well . Our strip is small tolerance of the CCT within +- 100k.

7, We can produce 3 MacAdam LED Strip as customer request.

8. The SMD3528 led strips has 30leds/m,60leds/m,120leds/m,240leds/m,480leds/m per meter.

strip led lights 2835


Model NoYF-LR3528XN60-12/24YF-LR3528XN120-12/24YF-LR3528XN240-24YF-LR3528XN240-24
(double line)
SMD TypeEpistar 3528Epistar 3528Epistar 3528Epistar 3528
Input voltageDC24V/DC12VDC24V/DC12VDC24VDC24V
LED Q’ty60LEDs/m120LEDs/m240LEDs/m240LEDs/m
Power/m4.8W/M9.6W/M19.2W/M19.2W/M
Max current / LED20mA20mA20mA20mA
SMD LED spacing16.6mm8.3mm4.2mm8.4mm
Lumen / m(Max)420-480LM840-960LM1680-1920LM1680-1920LM
CRI(Ra)>90Ra>80Ra>90Ra>80Ra>90Ra>80Ra>90Ra>80Ra
Minim cuttable length100mm (3LEDs 12V)
50mm (6LEDs 24V)
50mm (3LEDs 12V)
25mm (6LEDs 24V)
25mm (6LEDs 24V)50mm (6LEDs 24V)
PCB Width8mm8mm10mm15mm
Energy gradeAAAA
Warranty3years3years3years3years
Working hour30000h30000h30000h30000h
Illumination Angle120°120°120°120°
Working temperture.-20℃~+45℃.-20℃~+45℃.-20℃~+45℃.-20℃~+45℃

Size:

strip led lights 2835

Raw-materials:

strip led lights 2835

CRI compare:

strip led lights 2835

Connect:

strip led lights 2835

Application:

♦ Building decoration

♦ Car decoration

♦ Amusement park and theater lighting

♦ Emergency hallway lighting

♦ Shopping mall, restaurant, hotel, meeting room and advertisement lighting decoration

strip led lights 2835

Other led strips for choose:

We have different led strips such as RGB+CCT led strip , side view led light strip ,food led strip, constant current led strip ,digital color ,high density led strips .

please check the photo:

strip led lights 2835

strip led lights 2835

strip led lights 2835,led tape light, 3528 led strip lights
